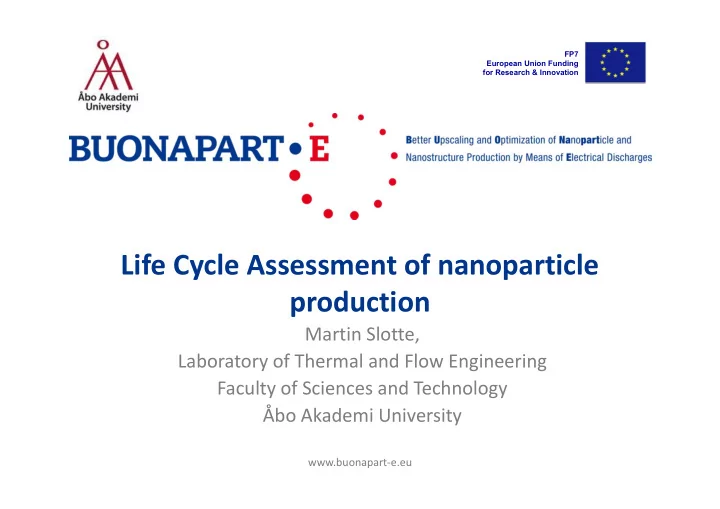

SLIDE 1

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Life Cycle Assessment of nanoparticle production

Martin Slotte, Laboratory of Thermal and Flow Engineering Faculty of Sciences and Technology Åbo Akademi University

SLIDE 2

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Outline

Life cycle assessment of production of metallic

nanoparticles

– Life cycle assessment in brief and method used – System boundaries for the study – Production of metallic nanoparticles Ag, Cu, Zn and Al – Case study of Zinc nanoparticles in polypropylene

SLIDE 3

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

LCA using SIMAPRO 7.3 software

Stages considered so far:

– metal production (data: Ecoinvent 2.2, industry) – electricity production (data: Ecoinvent 2.2) – metal NP production (data: project partners) – products containing metal NP (data: Ecoinvent 2.2, project partners)

Cradle‐to‐gate; not considered:

– metal NP (product) waste handling

Metals so far: Ag, Cu, Zn, Al, (Ni)

– metal NP production – comparison spark/arc ↔ “wet” NP production processes – NP (Cu, Ag, Zn) in selected product applications

Task 6.2 Cradle ‐ to – gate life cycle assessment (LCA)

Use of resources Use of energy Generation of waste, toxics pollution

SLIDE 4

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

LCA of metal NP production

Metal production from ore & purification; electricity production; carrier gas production: SimaPro Efficiency of NP production and specific electricity consumption: project data

LCA environmental indicators: A ‐ Air and Climate

‐ Global warming ‐ Acidification potential ‐ Photochemical Ozone creation potential ‐ Ozone depleting potential ‐ Human Toxicity potential

B ‐ Water

‐ Freshwater aquatic ecotoxicity potential ‐ Marine aquatic ecotoxity potential ‐ Eutrophication potential

C – Soil

‐ Land use ‐ Ecosystem damage potential ‐ Terrestrial ecotoxicity potential

D ‐ Resources

‐ Abiotic resource depletion ‐ Non‐hazardous waste landfilled ‐ Radioactive waste landfilled ‐ Hazardous waste landfilled

SLIDE 5

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Nanoparticle Production Arc/Spark

Impact2002+ (EPFL)

SLIDE 6

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Nanoparticle Production Arc/Spark

Scheme for electric arc/spark reactor setup

SLIDE 7

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Chemical reduction method for producing nano‐particulate Ag

Silver nitrate solution is reduced to metallic silver

using a sodium borohydride solution [3]

[3] Lee P. C., et al. , Adsorption and Surface-Enhanced Raman of Dyes on Silver and Gold Sols.

J Phys Chem 1982, 3391‐3395.

SLIDE 8

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

NP Silver

Data: UDE May 2014

SLIDE 9

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

UDE arc vs TUD spark Silver NPs (theoretical 100% material yield)

SLIDE 10

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Chemical reduction method for producing nano‐particulate Cu

Copper dodecyl sulfate (Cu(DS)2) reduced with

sodium borohydrate,

, in aqueous solution[2]

[2] Lisiecki I., et al. Control of the Shape and the Size of Copper Metallic Particles.
J. Phys. Chem. 1996, 100, 4160-4166

SLIDE 11

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

NP Copper

Data: UDE May 2014

SLIDE 12

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

UDE arc vs TUD spark Copper NPs (theoretical 100% material yield)

SLIDE 13

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Chemical reduction method for producing nano‐particulate Zn

Reaction of zinc chloride with lithium borohydride [4]
[4] Ghanta S. R., et al., Single-pot synthesis of zinc nanoparticles, borane (BH3)

and closo-dodecaborate (B12H12)2− using LiBH4 under mild conditions. Dalton Trans., 2013, 42, 8420

SLIDE 14

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

NP Zinc

Data: UDE May 2014

SLIDE 15

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

UDE arc vs TUD spark Zinc NPs (theoretical 100% material yield)

SLIDE 16

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

NP Aluminum

Data: UDE May 2014

SLIDE 17

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Case studies in the Buonapart‐e project

Nanoparticulate zinc integration in polypropylene
Nanoparticulate copper in water suspension ‐ as

cooling agent

Nanoparticulate silver integrated in textiles

SLIDE 18

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Production of nanoparticulate zinc

Assumptions for LCA (UDE mOSU)

– Pure metallic zinc is shipped by containership to the NP production plant – Liquid argon is shipped by truck and used as carrier gas – Electricity is Spanish grid mix for consumers < 1kV

SLIDE 19

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

LCI of NP zinc production

SLIDE 20

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Nanoparticulate Zn integration in polypropylene

NP’s produced with arc discharge in nitrogen

atmosphere (MNL OSU)

Project partner data AIT

– NP’s mixed with PP using twin screw extruder – NP loading 0.1‐5 % by weight – Power need: 200 kWh per 500 kg product

Assumptions for LCA

– PP is produced off‐site ‐ shipped 500 km by truck – NPs are produced on‐site ‐ no shipping – Electricity is Spanish grid mix for consumers < 1kV

SLIDE 21

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Nanoparticulate Zn 5 %‐wt integration in polypropylene

SLIDE 22

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Nanoparticulate Zn 2.5 %‐wt integration in polypropylene

SLIDE 23

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Nanoparticulate Zn 0.1 %‐wt integration in polypropylene

SLIDE 24

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Nanoparticulate Zn 5 %‐wt integration in polypropylene

SLIDE 25

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Nanoparticulate Zn 0.1 %‐wt integration in polypropylene

SLIDE 26

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Conclusions

LCA is a good tool to compare different processes
Hard to get data suitable for doing LCA studies
The dry arc/spark process is better or comparable to

the wet processes in most cases

The LCI of the nanocomposite is largely dependent on

the nanoparticle concentration

SLIDE 27

www.buonapart‐e.eu

FP7 European Union Funding for Research & Innovation

Life Cycle Assessment of nanoparticle production

Martin Slotte, Laboratory of Thermal and Flow Engineering Faculty of Sciences and Technology Åbo Akademi University

Outline

nanoparticles

– Life cycle assessment in brief and method used – System boundaries for the study – Production of metallic nanoparticles Ag, Cu, Zn and Al – Case study of Zinc nanoparticles in polypropylene

LCA using SIMAPRO 7.3 software

Stages considered so far:

– metal production (data: Ecoinvent 2.2, industry) – electricity production (data: Ecoinvent 2.2) – metal NP production (data: project partners) – products containing metal NP (data: Ecoinvent 2.2, project partners)

Cradle‐to‐gate; not considered:

– metal NP (product) waste handling

Metals so far: Ag, Cu, Zn, Al, (Ni)

– metal NP production – comparison spark/arc ↔ “wet” NP production processes – NP (Cu, Ag, Zn) in selected product applications

Task 6.2 Cradle ‐ to – gate life cycle assessment (LCA)

Use of resources Use of energy Generation of waste, toxics pollution

LCA of metal NP production

LCA environmental indicators: A ‐ Air and Climate

B ‐ Water

C – Soil

D ‐ Resources

Nanoparticle Production Arc/Spark

Nanoparticle Production Arc/Spark

Scheme for electric arc/spark reactor setup

Chemical reduction method for producing nano‐particulate Ag

using a sodium borohydride solution [3]

NP Silver

Data: UDE May 2014

UDE arc vs TUD spark Silver NPs (theoretical 100% material yield)

Chemical reduction method for producing nano‐particulate Cu

sodium borohydrate,

, in aqueous solution[2]

NP Copper

Data: UDE May 2014

UDE arc vs TUD spark Copper NPs (theoretical 100% material yield)

Chemical reduction method for producing nano‐particulate Zn

NP Zinc

Data: UDE May 2014

UDE arc vs TUD spark Zinc NPs (theoretical 100% material yield)

NP Aluminum

Data: UDE May 2014

Case studies in the Buonapart‐e project

cooling agent

Production of nanoparticulate zinc

– Pure metallic zinc is shipped by containership to the NP production plant – Liquid argon is shipped by truck and used as carrier gas – Electricity is Spanish grid mix for consumers < 1kV

LCI of NP zinc production

Nanoparticulate Zn integration in polypropylene

atmosphere (MNL OSU)

– NP’s mixed with PP using twin screw extruder – NP loading 0.1‐5 % by weight – Power need: 200 kWh per 500 kg product

– PP is produced off‐site ‐ shipped 500 km by truck – NPs are produced on‐site ‐ no shipping – Electricity is Spanish grid mix for consumers < 1kV

Nanoparticulate Zn 5 %‐wt integration in polypropylene

Nanoparticulate Zn 2.5 %‐wt integration in polypropylene

Nanoparticulate Zn 0.1 %‐wt integration in polypropylene

Nanoparticulate Zn 5 %‐wt integration in polypropylene

Nanoparticulate Zn 0.1 %‐wt integration in polypropylene

Conclusions

the wet processes in most cases

the nanoparticle concentration

Thank you!
