Liebert GXT3 Solution by GSE UPS Topologies Stand-by / Offline Line Interactive On-Line Double Conversion UPS Topologies Stand-by Inexpensive, economical Effective Power Conditioner TRANSFER TVSS & SWITCH EMI /

slide-1
SLIDE 1

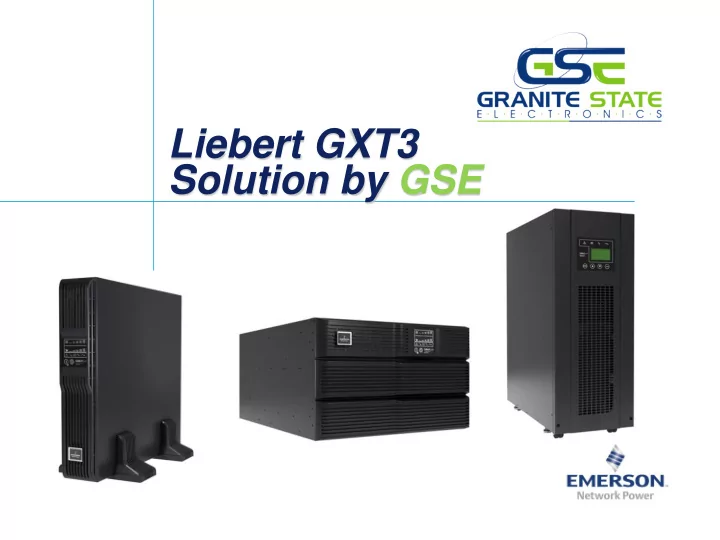

Liebert GXT3 Solution by GSE

slide-2
SLIDE 2

UPS Topologies

 Stand-by / Offline  Line Interactive  On-Line Double Conversion

slide-3
SLIDE 3

UPS Topologies Stand-by

Inexpensive, economical

Effective Power Conditioner

TRANSFER SWITCH Battery TVSS & EMI / RFI FILTER Inverter Charger

slide-4
SLIDE 4

UPS Topologies Line Interactive

Moderate Cost

Highly Effective Power Conditioner

Input Buck and Boost (AVR) Circuitry

Can be designed for extended battery operation

AVR & TRANSFER SWITCH BATTERY BI- DIRECTIONAL CONVERTER TVSS & EMI / RFI FILTER

slide-5
SLIDE 5

UPS Topologies On-Line Double Conversion

  • Highest level of power protection
  • Double conversion
  • Zero transfer time
  • Dynamic bypass for critical bus
  • Recommended for mission-critical applications
  • Recommended for generator applications
  • Allows for extended battery options

TVSS & Filters

PFC / Rectifier Inverter

Charger

DC - to - DC Converter

Battery Output Input

Bypass

slide-6
SLIDE 6

Liebert Product Topologies Single Phase UPS

Liebert PSP – Stand-by (step-wave)

– Models:

  • 350VA – 500VA, 120 VAC
  • 500VA – 650VA, 230 VAC

Liebert PSA – Line Interactive (step-wave)

– Models:

  • 500VA – 1000VA, 120 VAC
  • 500VA – 1000VA, 230 VAC

Liebert PSI – Line Interactive (sinewave)

– Models:

  • 1000VA – 3000VA, 120 VAC
  • 1000VA – 3000VA, 230 VAC

Liebert GXT3 – On-Line (sinewave)

– Models:

  • 500VA – 3000VA, 120 VAC
  • 500VA – 3000VA, 230 VAC
  • 3000 VA, 208 VAC
  • 5-10 kVA, 208/120 VAC
  • 5-10 kVA, 230 VAC
slide-7
SLIDE 7

On-Line Topology Benefits

 UPS continuously generates and regulates precise

sinewave output

– Continuous, no-break power – Reduces stress on connected equipment

  • Provides stable output voltage
  • Provides stable output frequency

– Uses battery only when utility fails

  • Can not discharge AND charge simultaneously

 Input Power Factor Correction circuitry

– Reduces reflected distortion to building service – Improves operating efficiency – Reduces peak currents caused by electronic loads

slide-8
SLIDE 8

Liebert GXT3 Micro Product Range

Model 500VA 700VA 1000VA 1500VA 2000VA 3000VA 120V RT

     

MT

208V RT

MT 230V RT

    

MT

slide-9
SLIDE 9

Liebert GXT3 Micro Specifications

Feature GXT3 Output PF 0.9 Input PF 0.99 Input Protection Circuit Breaker Voltage Regulation +3% steady state Input THDi 5% Audible Noise ≤ 47dBA Recharge Time 3 hours to 90% Overload 105% to 125% - 60 seconds 125% to 150% - 50 seconds 150% to 200% - 2 seconds >200% - 250ms

slide-10
SLIDE 10

Liebert GXT3 Micro Specifications

Variable Input Voltage Window – Input voltage transfer level is dependent upon load level

  • Prolongs battery life as there are fewer transfers to battery for brown out

conditions at lighter loads

Load Level 500-1000 VA 120 VAC Input Voltage 1500-3000 VA 120 VAC Input Voltage 3000 VA 208 VAC Input Voltage 700-2000 VA 230 VAC Input Voltage 3000 VA 230 VAC Input Voltage 100% 90 VAC 102 VAC 177 VAC 177 VAC 196 VAC 90% 86 VAC 96 VAC 168 VAC 168 VAC 184 VAC 80% 81 VAC 90 VAC 159 VAC 159 VAC 173 VAC 70% 77 VAC 84 VAC 150 VAC 150 VAC 161 VAC 60% 73 VAC 78 VAC 142 VAC 142 VAC 150 VAC 50% 69 VAC 72 VAC 133 VAC 133 VAC 138 VAC 40% 64 VAC 66 VAC 124 VAC 124 VAC 127 VAC 30% 60 VAC 60 VAC 115 VAC 115 VAC 115 VAC

slide-11
SLIDE 11

Battery Level / Fault Status Load Level Battery Bypass Inverter Model VA Standby / Manual Bypass On / Alarm Silence / Manual Battery Test AC Input Fault

Liebert GXT3 Micro LED Display

slide-12
SLIDE 12

Liebert GXT3 Micro Internal Battery

Hot-swappable Internal Battery Kit

Battery Management includes efficient three-stage charging technique and comprehensive discharging protection

– Automatically raise EOD voltage for lighter loads to protect against over discharging Model Load % Runtime (minutes) 500VA 700VA 1000VA 1500VA 2000VA 3000VA GXT3 RT/MT 50 % 34 27 17 11 11 11 100% 17 11 7 4 3 3

slide-13
SLIDE 13

Liebert GXT3 External Battery options

 500 VA through 2000 VA

– 48V, 2U Matching Battery Cabinet – Up to (4) can be applied for extended backup time

 3000 VA

– 72V, 2U Matching Battery Cabinet – Up to (4) can be applied for extended backup time

 External Battery Cabinets, with separate charger is

available for longer runtime requirements

 GXT3-1000MT120 doesn’t have external battery

capability

slide-14
SLIDE 14

3kVA 120V 2kVA 120V ≤1.5kVA 120V 1kVA 120V

Liebert GXT3 Micro Rear Panel View

slide-15
SLIDE 15

Liebert GXT3 Communication Options

Terminal Block

USB Port

– Used for Configuration Program and MultiLink software

Intellislot Communication Port

– IS-RELAY – IS-MULTIPORT – IS-WEBCARD – OC-485 Intellislot Port

USB

Any Mode Shut Down Battery Mode Shut Down On Battery Low Battery

slide-16
SLIDE 16

Liebert MicroPOD

MicroPOD Model Number Output Distribution Model Compatibility UPS Model VA Utility Voltage MP2-115A (8) 5-15R 500 - 1500 120 MP2-120C (8) 5-20R (T-slot) 2000 120 MP2-130C (8) 5-20R (T-slot) 3000 120 MP2-130E (2) 5-15R, (4) 5-20R (T-slot), (1) L5-30R 3000 120 MP2-130P (4) 5-15R, (2) L5-20R 3000 120 MP2-220N (2) L6-15R, (2) L6-20R

  • r Hardwired

3000 208 MP2-210K (8) EN 60320/C13 700 - 1500 230 MP2-220K (8) EN 60320/C13 2000 230 MP2-220L (6) EN 60320/C13 (1) EN 60320/C19 3000 230 MP2-115HW Hardwired 500 - 1500 120 MP2-120HW Hardwired 2000 120 MP2-130HW Hardwired 3000 120

Maintenance Bypass

slide-17
SLIDE 17

Configuration Program To Customize Your UPS Settings

Windows™ based configuration program included with each Liebert GXT3 UPS

Customization without the need for special part numbers

– Selectable output voltages 110, 115, and 127 – Enable or disable auto restart feature – Enable or disable Line-Neutral reversal detection circuit – Setup UPS as a frequency converter

  • (60Hz-50Hz or 50Hz-60Hz)

– Change default Low Battery Time Warning

  • From 2 minutes up to a maximum of 30 minutes

– Change default Auto Battery test time

  • From 14 days to 7, 21, or 28 days or Disable

– Program number of Extended Battery Cabinets for more accurate run time reporting

slide-18
SLIDE 18

Configuration Program Menu

This Configuration Utility is included with all GXT3 models Install Configuration Utility on your PC and connect the included USB cable between any USB port on your PC and the USB Port on the GXT3

Pull down menus and selection boxes make custom configuration easy to do

slide-19
SLIDE 19

Liebert GXT3 Small Product Range

Model 5000VA 6000VA 8000VA 10000VA 120/208V Rack-Tower

Tower

208V Rack-Tower

Tower 230V Rack-Tower

  

Tower

slide-20
SLIDE 20

Liebert GXT3 Small Specifications

Feature Liebert GXT3 Output PF 0.7 - 0.9 Input PF 0.99 AC-AC Efficiency 92% Recharge Time 3 hours to 90% Communications USB, Terminal Block, Intellislot

slide-21
SLIDE 21

Liebert GXT3 Small Specifications

Variable Input Voltage Window – Input voltage transfer level is dependent upon load level

  • Prolongs battery life as there are fewer transfers to battery for brown out

conditions at lighter loads

Load Level 5 & 8 kVA 208/120 VAC Input Voltage 6 kVA 208/120 VAC Input Voltage 10 kVA 208/120 VAC Input Voltage 5 & 10 kVA 230 VAC 6 kVA 208 VAC Input Voltage 6 kVA 230 VAC 10 kVA Tower Input Voltage 100%-91% 153 VAC 170 VAC 161 VAC 176 VAC 185 VAC 90%-71% 146 VAC 153 VAC 146 VAC 159 VAC 167 VAC 70%-31% 121 VAC 128 VAC 121 VAC 139 VAC 139 VAC 30%-0% 104 VAC 104 VAC 104 VAC 100 VAC 100 VAC

slide-22
SLIDE 22

Liebert GXT3 Small LED Display

slide-23
SLIDE 23

Liebert GXT3 5 & 6 kVA, 208/120 VAC Models

 Configurable as a Tower or Rackmount model

– Requires only 4U of rack space

 Dual inverter design provides 208/120 or 240/120 VAC

– 0.8 output power factor rating

 Hardwired input/output

– Removable I/O section for use with optional PODs

 External battery cabinet

– Only requires 2U of rack space – Up to 4 can be connected

slide-24
SLIDE 24

Liebert GXT3 5 & 6 kVA, 208/120 VAC Models

Removable Power Output Distribution (POD) Options

– Models ship with hardwire input and output POD standard – Optional PODs include wrap around maintenance bypass and plug-n-play connect-ability

slide-25
SLIDE 25

Liebert GXT3 5 & 6 kVA, 208/120 VAC Models

Model Number Rating Output Receptacles Shipping Weight lbs kg Power Output Distribution (POD) PD2-HDWR 30A, No Bypass Input – Hardwired Output - Hardwired 7.3 3.3 PD2-HDWR-MBS 30A, With Bypass Input – Hardwired Output - Hardwired 8.2 3.7 PD2-001 30A, With Bypass Input – L14-30P Output – (1) L6-30R, (1) L14-30R, (4) 5-15/20R T-slot 11.0 5.0 PD2-002 30A, With Bypass Input – L14-30P Output – (2) L6-20R, (2) 5-15/20R T-slot 10.8 4.9 PD2-003 30A, With Bypass Input – L14-30P Output – (2) L6-30R, (4) 5-15/20R T-slot 10.8 4.9 PD2-004 30A, With Bypass Input – L14-30P Output – (4) L5-20R, (2) L5-30R 12.1 5.5 PD2-005 30A, With Bypass Input – L14-30P Output – (4) L5-20R, (2) L6-30R 12.8 5.8 PD2-006 30A, With Bypass Input – L14-30P Output – (4) L6-20R 11.7 5.3

slide-26
SLIDE 26

Liebert GXT3 5 & 6 kVA, 208/120 VAC Models

 Internal Battery Kit

– Internal battery modules are Hot Swappable – Battery ships separately for easy installation in rack applications – (1) GXT3-144BATKIT is required for complete UPS system

slide-27
SLIDE 27

Liebert GXT3 5 & 6 kVA, 208/120 VAC Models

Rear Panel View

Intellislot Port USB Port REPO Terminal Block Communication Input Breaker Knockout for Hardwired Power Input External Battery Connector

slide-28
SLIDE 28

Liebert GXT3 6 kVA 208VAC Only L6-30 Model

 Configurable as a Tower or Rackmount model

– Requires only 5U of rack space

 Single inverter design provides 208 or 240 VAC

– 0.7 output power factor

 L6-30P input; (2)L6-20R / (2)L630-R output

receptacles

 External battery cabinet

– Only requires 3U of rack space – Up to 4 can be connected

slide-29
SLIDE 29

Liebert GXT3 6000VA 208V Only Model

 Internal Battery Kit

– Internal battery modules are Hot Swappable – Battery trays ship separately for easy installation in rack applications – (2) GXT3-240BATKIT are required for complete UPS system

slide-30
SLIDE 30

Liebert GXT3 6 kVA 208V Only Model

Rear Panel Liebert Intellislot Port USB Port REPO Terminal Block Communication Removable L630 Power Output Distribution (POD) External Battery Connector

slide-31
SLIDE 31

Liebert GXT3 8 & 10 kVA, 208/120 VAC Models

 Configurable as a Tower or Rackmount model

– Requires only 6U of rack space

 Dual inverter design provides 208/120 or 240/120

– 0.9 output power factor

 Hardwired input/output

– Removable I/O section for use with optional PODs

 External battery cabinet

– Only requires 4U of rack space – Up to 4 can be connected

slide-32
SLIDE 32

Liebert GXT3 8 & 10 kVA, 208/120 VAC Models

Removable Power Output Distribution (POD) Options

– Models ship with hardwire input and output POD standard – Optional PODs provide plug-n-play connect-ability

slide-33
SLIDE 33

Liebert GXT3 8 & 10 kVA, 208/120 VAC Models

Model Number Rating Output Receptacles Shipping Weight lbs kg Power Output Distribution (POD) PD2-101 60A Output – (8) 5-20R T-type, (2) L6-30R 6.6 3.0 PD2-102 60A Output – (4) 5-20R T-type, (4) L6-20R 8.8 4.0 PD2-103 60A Output – (4) 5-20R T-type, (4) L6-30R 8.8 4.0 PD2-104 60A Output – (4) 5-20R T-type, (2) L6-30R, (2) L6-20R 8.8 4.0 PD2-105 60A Output – (4) 5-20R T-type, (2) L5-30R, (2) L5-20R 6.6 3.0 PD2-106 60A Output – (4) L5-20R, (4) L6-20R 8.8 4.0

slide-34
SLIDE 34

Liebert GXT3 8 & 10 kVA, 208/120 VAC Models

Rear Panel View

Liebert Intellislot Port USB Port REPO Terminal Block Communication Power Output Distribution Knockout for Hardwired Input/Output External Battery Connector Input Breaker Bypass Breaker Output Breaker

slide-35
SLIDE 35

Liebert GXT3 8 & 10 kVA, 208/120 VAC Models

 Replaceable Power Module

– Modular design allows power module replacement while still providing power to the connected equipment – Wrap around bypass built into UPS frame

slide-36
SLIDE 36

Liebert GXT3 8 & 10 kVA, 208/120 VAC Models

 Internal Battery Kit

– Internal battery modules are Hot Swappable – Battery trays ship separately for easy installation in rack applications – (2) GXT3-288BATKIT are required for complete UPS system

slide-37
SLIDE 37

Liebert GXT3 10 kVA 220/110 (240/120) VAC Model

 Tower model  Includes output isolation

transformer to provide 220/110 (240/120)

– 0.9 output power factor

 LCD Display  Dual source input supply

capable

 External battery cabinet option

slide-38
SLIDE 38

Liebert GXT3 10 kVA 208/120 VAC Model

Rear View Input / Output Terminal Block Terminal Block Communication, REPO, USB Port Liebert Intellislot Port Extended Battery Cabinet Bypass Input Breaker Maintenance Bypass Breaker 120V Output Breaker Input Breaker

slide-39
SLIDE 39

Liebert GXT3 Summary

 Liebert GXT3 – On-Line topology

– Models:

  • 500VA – 3000VA, 120 VAC
  • 500VA – 3000VA, 230 VAC
  • 3000 VA, 208 VAC
  • 5-10 kVA, 208/120 VAC
  • 5-10 kVA, 230 VAC

 Rack-Tower design

– Facilitates multiple applications in one design

 Variety of distribution options with integrated

maintenance bypass

 Customizable

– Units can be tailored to specific application needs

slide-40
SLIDE 40

Liebert GXT3

 For more information please contact:

Joseph Minai V.P. Sales/Business Development Granite State Electronics Office: 603-821-4755 jminai@gs-elect.com www.gs-elect.com
