LP33 Series 2 UPS 208/120V, 3Phase, 60Hz, UL Version Product Presentation April 2016 LP33 Series 2 UPS Systems Spec/Feature Summary TOPOLOGY KEY FEATURES On-Line, Double Conversion UPS Up to 98% Efficiency 208/120V 3ph 4w RPA


slide-1
SLIDE 1

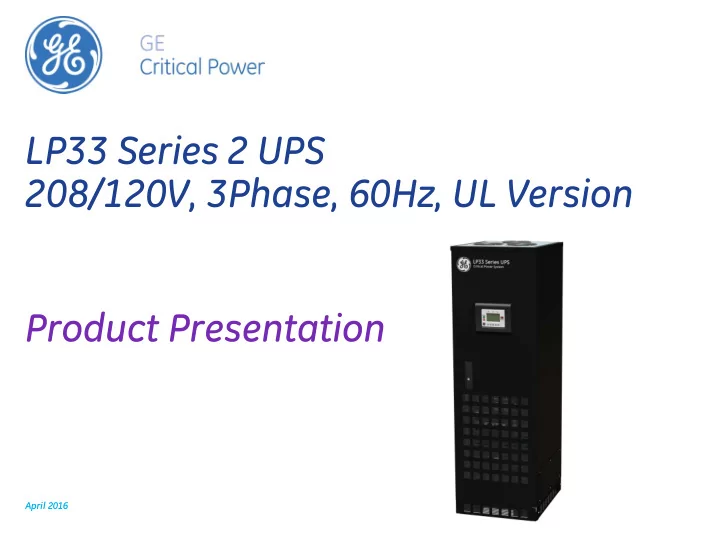

April 2016

LP33 Series 2 UPS 208/120V, 3Phase, 60Hz, UL Version Product Presentation

slide-2
SLIDE 2

LP33 Series 2 UPS Systems Spec/Feature Summary

TOPOLOGY

  • On-Line, Double Conversion UPS
  • 208/120V 3ph 4w
  • 15, 20, 30, 50, 60, 80, 100 kVA
  • All at 0.9 Output Power Factor
  • IGBT Rectifier & Inverter
  • Transformer-less Technology
  • Fully Rated Bypass Static Switch
  • Internal MBP Sw
  • Dual or Single Input
  • Bottom or Top Feed

KEY SPECS

  • Wide Input Voltage, 166-240V L-L
  • Wide Input Frequency, 54-66 Hz
  • Low Acoustic Noise, 50-65dbA
  • Input Current THD < 10%
  • Input PF > 0.98
  • 150% Overload for 1 min (module)
  • Output Voltage THD < 3% (NL)

2

KEY FEATURES

  • Up to 98% Efficiency
  • RPA Paralleling Technology

up to 4 modules

  • SBM Battery Monitoring
  • Remote Connectivity

via SNMP, BMS, RASP

  • Seismic Certifications
  • 15kva w/11min Int Batt Opt
  • Matching Battery Cabs
  • Matching MBP Cabs
  • Matching Input Xfmr Cabs
slide-3
SLIDE 3

3

LP33 Series 1 change to Series 2 Physical Improvements

Stiffened Door, 3-Point Latch, better Handle/Lock Bottom Front side cable access Optional slim Top Entry Sidecar Rear Slip Brackets For ease of seismic installations Bottom Kickplates REAR REAR

slide-4
SLIDE 4

LP33 S2 UPS: System Block Diagram

  • 100% Fully-Rated Bypass Static Switch
  • Internal Manual Bypass
  • Backfeed Protection via K6 Contactor (fail safe design)
  • Dual Input option is available
slide-5
SLIDE 5

5

LP33 S2 UPS : Accessory Cabinets

  • Matching Battery Cabinets
  • DC String Breakers
  • Multi-Cabinet interconnect

cabling

  • Cable to UPS Module
  • Matching or Non-Matching

MBP Cabinets

  • 3CB or 2CB Type
  • Mech Kirk Key & Elect SKRU

Interlock Schemes

  • Interconnect Cable to UPS

Module

  • Matching Input Xfmr Cabinets
  • 600 or 480V Primary
  • Interconnect Cable to UPS

Module

  • Combo Input Xfmr & MBP

Cabinets

  • 3-5 Week Leadtime on all

Cabinets

Promote UPS System Solutions, not just UPS Modules

slide-6
SLIDE 6

LP33 S2 UPS: Operating Modes/Efficiency

AC AC DC DC Static Bypass

Rectifier Inverter Utility Input Utility Input Battery Output Filter Load

Up to 98% Efficiency Up to 91% Efficiency

DOUBLE CONVERSION MODE:

  • Output Voltage generated independent of Input Voltage
  • Normal Switching losses in Rectifier & Inverter Stages
  • Rectifier keeps Battery Plant charged

ECO MODE:

  • Load is supplied by bypass line, where utility statistically

provides computer grade power 97% of the time

  • Rectifier keeps Battery Plant charged.
  • Inverter switched off. Life extension on Caps, Fans, IGBTs
  • Input Voltage/Frequency constantly monitored
  • Transfers back to Inverter output when utility out of

tolerance, within 4-6msec.

  • Eco Mode can be automatically or manually engaged.

Completely programmable.

slide-7
SLIDE 7

7

LP33 S2 UPS : User-Friendly Display Panel, Menu Driven

  • System status one-line
  • Load Levels per phase
  • Battery capacity and remaining

runtime

  • Alarm messages
  • Parameter adjustment
slide-8
SLIDE 8

8

LP33 : Redundant Parallel Architecture (RPA)

  • Parallel up to (4) LP33

UPS Modules

  • Maximizes Reliability
  • Reduces System Cost
  • Reduces Footprint
  • Maximizes I/O Feeder
  • Length Flexibility
  • Maximizes Output

Switchgear Flexibility

  • Over 8,000 parallel

UPS installed WW

slide-9
SLIDE 9

9

UPS Remote Monitoring: GE Status & Diagnostic Solutions

GE Data Protection Software

  • Standard RS232, USB
  • Optional SNMP Card
  • Status on UPS info/measurements
  • Controlled shutdowns on low battery
  • Send messages/emails on alarms

GE iUPSGuard Diagnostics

  • Cloud-based 7x24 monitoring system
  • Communicate thru Web/SNMP cards
  • Highly secure, SSL encrypted, unidirectional communication
  • Provides status/alarms via email or SMS
  • Comprehensive technical data collection and analysis
  • Predictive algorithms to anticipate issues
  • Detailed reporting on equipment conditions and trends
  • Provided to End User free during year 1 of operation
slide-10
SLIDE 10

SBM is programmable management, monitoring and testing system that protects the UPS battery string life. The UPS Battery String is prevented from overcharging and deep discharging

UPS Battery Monitoring: GE Superior Battery Mgmt (SBM)

  • During UPS startup, the SBM is programmed in the LP33

UPS Module with specific battery information

  • Calculates true battery autonomy and remaining battery

backup time during utility outage.

  • Measures the volts per cell of the battery system

and compensates for temperature and load

  • Programmable features allow the user to select

the frequency and type of battery tests that are performed. − Frequency range can be from once per week to annually. − Test type range can be from deep cycle to 3-min discharges. − All tests done automatically with UPS on-line.

  • All tests logged in the UPS events menu and any

failure is reported on the UPS front alarm panel.

  • Manual tests can be performed at any time.
  • Remote programming and configuration is available through

the SG Series UPS protection software.

  • Automatic Battery Test - ensures no surprises

when the mains fails.

  • Deep Calibration Test - provides battery

performance tracking.

  • Boost Charging - enables fast recharging
  • f batteries.
  • Temperature compensated battery charger –

prevents overcharging.

  • Load dependent end of discharge voltage –

protects against deep discharge.

  • No load shutdown - allows battery saving in

no-load conditions.

GE’s Battery Monitoring System removes the need for a 3rd party bolt-on monitoring system, which are prone to software & wiring issues, thus reducing overall UPS System reliability.

slide-11
SLIDE 11

11

LP33 S2 UPS Collateral Documentation

DOCUMENTATION AVAILABLE:

(Posted on the GECP Website for 3phase UPS)

  • Brochure
  • Technical Data Sheets
  • Template Specifications
  • Installation Manuals
  • User Manuals
  • UPS Module, Battery Cab, MBP Cab Drawings
