LEE et.al Rajesh Zele LEE et.al Rajesh Zele Razavi book Rajesh - PowerPoint PPT Presentation

Apr 08, 2023 •293 likes •569 views

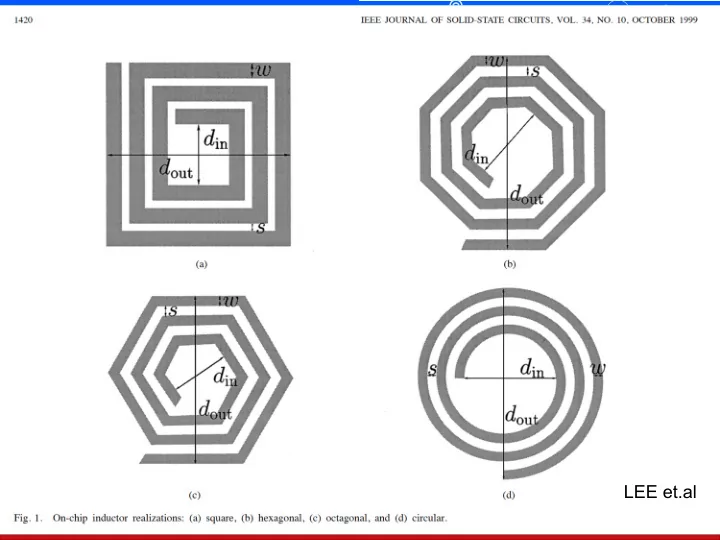

LEE et.al Rajesh Zele LEE et.al Rajesh Zele Razavi book Rajesh Zele Load inductors in a diff. pair with (a) Mirror symmetry (b) Step symmetry L eq = L 1 + L 2 2M L eq = L 1 + L 2 + 2M Lower Q Higher Q

LEE et.al Rajesh Zele
LEE et.al Rajesh Zele
Razavi book Rajesh Zele
Load inductors in a diff. pair with (a) Mirror symmetry (b) Step symmetry Ø L eq = L 1 + L 2 – 2M Ø L eq = L 1 + L 2 + 2M Ø Lower Q Ø Higher Q Razavi book Rajesh Zele
Razavi book Rajesh Zele
L tot = L 1 + L 2 + 2M M = L 1 = L 2 L tot = 4L Razavi book Rajesh Zele
Razavi book Rajesh Zele
Rajesh Zele
Razavi book Rajesh Zele
Weaker mutual coupling factor Stronger mutual coupling factor Razavi book Rajesh Zele
Niknejad Rajesh Zele
Niknejad Rajesh Zele
Niknejad Rajesh Zele
Niknejad Rajesh Zele
Niknejad Rajesh Zele
Niknejad Rajesh Zele
1 ZELE EE619 LECTURE 7 25 JAN 2019
L-7 ZELE EE619 2
L-7 ZELE EE619 3
L-7 ZELE EE619 4
L-7 ZELE EE619 5
L-7 ZELE EE619 6
L-7 ZELE EE619 7
L-7 ZELE EE619 8
L-7 ZELE EE619 9
L-7 ZELE EE619 10
L-7 ZELE EE619 11
