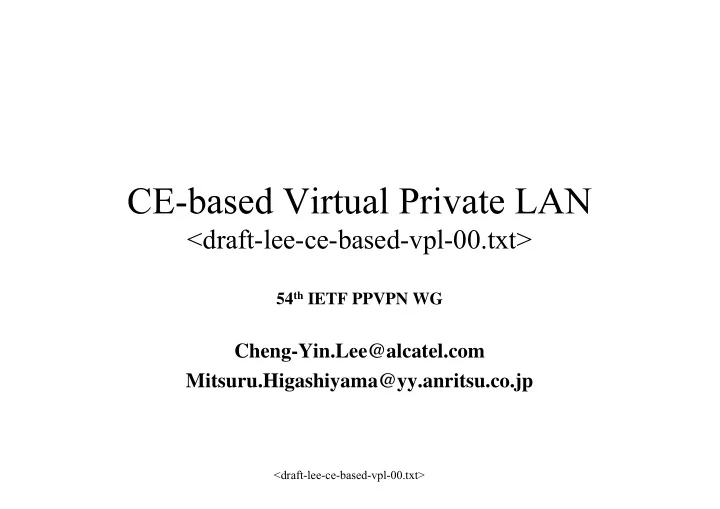

SLIDE 1
<draft-lee-ce-based-vpl-00.txt>
<draft-lee-ce-based-vpl-00.txt>
PE-based CE-based L2-VPN L3-VPN
site-to-site IPsec VPNs RFC2547 VR VPLS Martini Kompella
CE-based VPL
(modified diagram courtesy of Jeremy DeClercq)
<draft-lee-ce-based-vpl-00.txt> 54 th IETF PPVPN WG - - PowerPoint PPT Presentation
<draft-lee-ce-based-vpl-00.txt> 54 th IETF PPVPN WG - - PowerPoint PPT Presentation
<draft-lee-ce-based-vpl-00.txt> 54 th IETF PPVPN WG Cheng-Yin.Lee@alcatel.com Mitsuru.Higashiyama@yy.anritsu.co.jp <draft-lee-ce-based-vpl-00.txt> Martini RFC2547 PE-based Kompella VPLS VR CE-based site-to-site CE-based VPL
SLIDE 2
SLIDE 3
<draft-lee-ce-based-vpl-00.txt>
Ethernet/IP/MPLS Cloud CE1 PE1 CE5 CE2 CE4 CE3 PE3 PE2 PE4 CEs forming a virtual bridge (a broadcast domain or VPL)
CE-based VPL
P P P
Eth Eth Eth Eth Eth
SLIDE 4
<draft-lee-ce-based-vpl-00.txt>
SLIDE 5
<draft-lee-ce-based-vpl-00.txt>
Ethernet/IP Cloud CE1 CE5 CE2 CE4 CE3 VPL
1)Simplify VPL config over multiple MAN
MAN MAN
- Reduces provisioning required - No need to resort to stacking VLAN tags, or
setting up an LSP per VPL between MANs to stitch multiple MANs together Note: CEs are IP reachable and edge to edge MPLS is not mandatory for VPL connectivity
SLIDE 6
<draft-lee-ce-based-vpl-00.txt>
IP/MPLS Cloud CE1 CE5 CE2 CE4 CE3 VPL
2) Agnostic to access technology
eMAN
ADSL
- A CE at one end may access the provider’s network using Ethernet, the other
end may be via ADSL Note: different access networks are connected to an IP network, CEs are reachable using one common addressing (i.e. IP),
FR/ATM Access ?
SLIDE 7
<draft-lee-ce-based-vpl-00.txt>
What does CE-based VPL enable? (cont)
3) If a provider runs out of VLAN IDs to support more VPLs, this solution can be used to increase the number of VPLs supported 4) new VPLs can be offered over an existing VLAN network. VPLS will likely require a separate network infrastructure
SLIDE 8
<draft-lee-ce-based-vpl-00.txt>
What does CE-based VPL enable? (cont)
5) leverages connectivity (between CEs) infrastructure provided by Ethernet (802.1d)/IP/MPLS, no need to signal specifically for VPL connectivity in the network cf the use
- f LDP in MPLS VPLS or GVRP in VLAN 802.1q
→ auto-provisioning/setup of VPL connectivity at CEs
- nly
6) Easier troubleshooting of VPL service - if service is not terminated by CE managed by provider and a provider has no access to a customer owned CE, a provider can’t easily determine whether the VPL service is working or not, and a customer may have to debug VPL service problem
SLIDE 9
<draft-lee-ce-based-vpl-00.txt>
- Higher frame header overhead cf VLAN 802.1q &
MPLS VPLS, similar tradeoff in PWE’s Ethernet over L2TP
SLIDE 10
<draft-lee-ce-based-vpl-00.txt>
- evaluate suitability of other tunneling technologies and
compare header overhead (Ethernet directly over L2TP or
- ver PPP, GRE, IP)
- select a small number of suitable CE auto-provisioning
