Lecture 17 PID: Tuning and Practial Issues Process Control Prof. Kannan M. Moudgalya IIT Bombay Monday, 2 September 2013 1/30 Process Control PID: Tuning and Practical Issues Outline 1. Recalling PI controller 2. Derivative mode 3. PID


slide-1
SLIDE 1

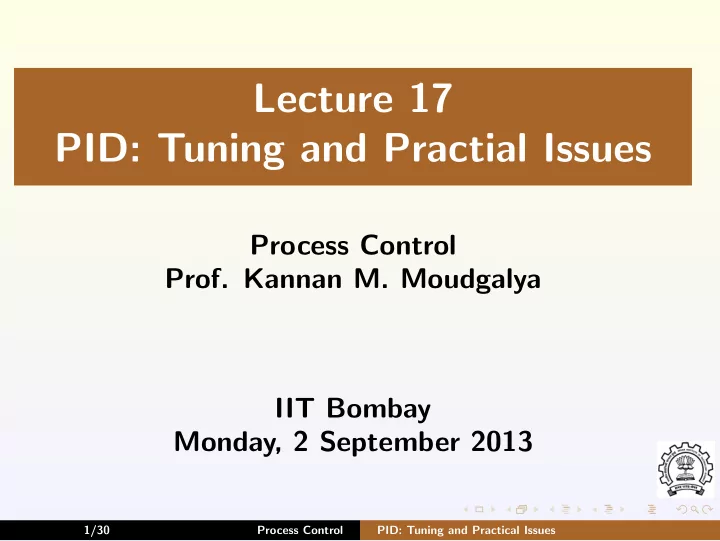

Lecture 17 PID: Tuning and Practial Issues

Process Control

  • Prof. Kannan M. Moudgalya

IIT Bombay Monday, 2 September 2013

1/30 Process Control PID: Tuning and Practical Issues

slide-2
SLIDE 2

Outline

  • 1. Recalling PI controller
  • 2. Derivative mode
  • 3. PID controller

2/30 Process Control PID: Tuning and Practical Issues

slide-3
SLIDE 3
  • 1. Recalling PI controller

3/30 Process Control PID: Tuning and Practical Issues

slide-4
SLIDE 4

I order system and proportional controller

ysp

Gc u G −

e

y

◮ Take proportional controller, i.e., Gc = Kc ◮ Take first order system, i.e., G =

K τs + 1

◮ Steady state error =

1 1 + KKc

◮ SS error can be made small by making Kc large ◮ Because of unmodelled dynamics, G may

actually be a second order system!

◮ Recall SBHS!

4/30 Process Control PID: Tuning and Practical Issues

slide-5
SLIDE 5

Shortcomings of indefinite increase in Kc

× ×

◮ Increase Kc to bring the closed loop poles

inside desired region

◮ Indefinite increase of Kc will take root locus

  • utside desired region

◮ Large overshoot and lots of oscillations in this

case!

5/30 Process Control PID: Tuning and Practical Issues

slide-6
SLIDE 6

Trade off between offset & control action

Recall the closed loop system:

∆Ysp

Kc ∆U G −

E

∆Y

◮ Zero error E ⇒ ∆U = 0 ◮ This implies zero control action with respect to

nominal value of U

◮ Servo/tracking control (set point changes)

cannot be implemented

◮ Can we have both E = 0 and ∆U = 0 with

finite Kc?

6/30 Process Control PID: Tuning and Practical Issues

slide-7
SLIDE 7

Introducing Integral Mode

u(t) = u + 1 τi t e(w)dw

◮ Even a 0 value of e(t) can give rise to nonzero

values of u(t)!

◮ τi is reset time or integral time ◮ Recall u(t) ↔ U(s) ◮

∆U(s) = 1 τisE(s)

◮ Normally, we use a proportional-integral (PI)

controller

7/30 Process Control PID: Tuning and Practical Issues

slide-8
SLIDE 8

PI controller

PI controller: u(t) = u + Kc

  • e(t) + 1

τi t e(w)dw

  • r

∆U(s) = Kc

  • 1 + 1

τis

  • E(s)

◮ What is the steady state offset now?

8/30 Process Control PID: Tuning and Practical Issues

slide-9
SLIDE 9

MCQ on PI controller terminology

Consider the PI controller: ∆U(s) = Kc

  • 1 + 1

τis

  • E(s)

Integral action/effort increases implies

  • 1. τi increases
  • 2. τi decreases
  • 3. This has nothing to do with τi

Answer: 2

9/30 Process Control PID: Tuning and Practical Issues

slide-10
SLIDE 10

Integral mode generalises proportional mode

PI controller: ∆U(s) = Kc

  • 1 + 1

τis

  • E(s)
  • r

∆u(t) = Kc

  • e(t) + 1

τi t e(w)dw

  • = Kce(t) + Kc

1 τi t e(w)dw With e constant, after every t = τi, Kce gets added!

10/30 Process Control PID: Tuning and Practical Issues

slide-11
SLIDE 11

MCQ on PI Controller

A PI controller is put in a closed loop with a first

  • rder system. A step input is given in the set point.
  • 1. As the integral mode generalises the

proportional mode, increasing the integral action makes the error very small, but not zero

  • 2. As the integral mode generalises the

proportional model, increasing the integral efforts results in larger oscillations in response and also the offset - the offset does not reach a steady state

  • 3. The offset goes to zero

11/30 Process Control PID: Tuning and Practical Issues

slide-12
SLIDE 12

Why not use integral mode ALONE?

Covered in the last class: integral windup

12/30 Process Control PID: Tuning and Practical Issues

slide-13
SLIDE 13
  • 2. Derivative mode

13/30 Process Control PID: Tuning and Practical Issues

slide-14
SLIDE 14

Derivative Mode

y(t) tr tp ts

Mp ◮ Often need to reduce the oscillations ◮ Need to use the slope information

14/30 Process Control PID: Tuning and Practical Issues

slide-15
SLIDE 15

Derivative Mode - ctd

◮ Derivative mode is given by

u(t) = u + τd de(t) dt τd is the derivative time

◮ Intuitive explanation in B. C. Kuo ◮ Problem: noise; so used with prop. cont. ◮ For an open loop stable system, increase in

derivative mode generally results in

◮ decreased oscillations. ◮ Will it have any effect at steady state?

◮ Remember this while tuning the derivative

mode

15/30 Process Control PID: Tuning and Practical Issues

slide-16
SLIDE 16

PD Controller

◮ Derivative mode is not used alone ◮ PD controller is usually used ◮ Reason: noise ◮ ∆U(s) = Kc (1 + τds) E(s) ◮ What is the effect of this controller on

  • verdamped second order system?

16/30 Process Control PID: Tuning and Practical Issues

slide-17
SLIDE 17

PD control to II order overdamped system

◮ G(s) =

1 (s + 1)(s + 2) = 1 s2 + 3s + 2

◮ What is the effect of PD controller:

Gc = Kc (1 + τds)

◮ Use root locus ◮ But root locus works only with Kc ◮ Answer: Combine the zero with G ◮ Study root locus of G1 =

(1 + τds) (s + 1)(s + 2)

◮ Effect of derivative mode can be studied by

addition of zeros!

17/30 Process Control PID: Tuning and Practical Issues

slide-18
SLIDE 18

Derivative mode on an oscillating system

× ×

◮ Try the PD controllers for

G(s) = 1 (s + 1)(s + 2)

  • 1. Kc(1 + 0.5s)
  • 2. Kc(1 + 1.5s)
  • 3. Kc(1 + 3s)

18/30 Process Control PID: Tuning and Practical Issues

slide-19
SLIDE 19

Zero to the left of poles

asymptotic directions

  • pen loop poles
  • pen loop zeroes
  • 2.0
  • 1.5
  • 1.0
  • 0.5

0.0 0.5 1.0 1.5 2.0

  • 6
  • 5
  • 4
  • 3
  • 2
  • 1

Evans root locus Real axis Imaginary axis 19/30 Process Control PID: Tuning and Practical Issues

slide-20
SLIDE 20

Zero to the left of poles

asymptotic directions

  • pen loop poles
  • pen loop zeroes
  • 2.0
  • 1.5
  • 1.0
  • 0.5

0.0 0.5 1.0 1.5 2.0

  • 6
  • 5
  • 4
  • 3
  • 2
  • 1

Evans root locus Real axis Imaginary axis

◮ Only Kc: poles would have gone to ∞ ◮ The zero brings the locus back to real axis ◮ Can make it as damped as required ◮ What happens to other locations?

20/30 Process Control PID: Tuning and Practical Issues

slide-21
SLIDE 21

Effect of zero on an overdamped II order system

◮ G(s) =

1 (s + 1)(s + 2) = 1 s2 + 3s + 2

◮ Gc = Kc (1 + τds) ◮ Zero < −2 results in a root locus plot as given

in the previous page

◮ 0 > Zero > −2 results in the root locus lying

entirely on real axis, making the closed loop system overdamped and stable

◮ An example of the derivative mode reducing

  • scillations

21/30 Process Control PID: Tuning and Practical Issues

slide-22
SLIDE 22

Effect of derivative mode on oscillating system

A system oscillates a lot and reaches a steady state with offset. Increase in derivative action is expected to

  • 1. Increase the oscillations
  • 2. Decrease the oscillations and offset
  • 3. Decrease the oscillations only
  • 4. Increase both oscillations and offset

Ans: 3

22/30 Process Control PID: Tuning and Practical Issues

slide-23
SLIDE 23
  • 3. PID controller

23/30 Process Control PID: Tuning and Practical Issues

slide-24
SLIDE 24

PID controller

PID controller has proportional, integral and derivative modes: u(t) = u + Kc

  • e(t) + 1

τi t e(w)dw + τd de(t) dt

  • ◮ e is error, u is control effort and u is the steady

state value of u

◮ It has three tuning parameters, Kc, τi, τd ◮ Recall the tuning guidelines to change these

parameters

24/30 Process Control PID: Tuning and Practical Issues

slide-25
SLIDE 25

How does one design the PID controller?

◮ By trial and error, using tuning methods ◮ By direct synthesis ◮ Using advanced control techniques and

implementing them as PID

◮ Will study the most popular tuning method

25/30 Process Control PID: Tuning and Practical Issues

slide-26
SLIDE 26

Reaction Curve - Ziegler Nichols Tuning

◮ Applicable only to stable systems ◮ Give a unit step input and get R = K/τ L τ K

  • 1. the time lag after which the system starts

responding (L),

  • 2. the steady state gain (K) and
  • 3. the time the output takes to reach the steady

state, after it starts responding (τ)

26/30 Process Control PID: Tuning and Practical Issues

slide-27
SLIDE 27

Reaction Curve - Ziegler Nichols Tuning

R = K/τ L τ K

Calculate slope, R = K/τ

27/30 Process Control PID: Tuning and Practical Issues

slide-28
SLIDE 28

Reaction Curve Method Ctd.

R = K/τ L τ K

PID settings are given below: Kc τi τd P 1/RL PI 0.9/RL 3L PID 1.2/RL 2L 0.5L Consistent units should be used

28/30 Process Control PID: Tuning and Practical Issues

slide-29
SLIDE 29

What we learnt today

◮ P, I, D modes ◮ Guidelines for tuning ◮ Ziegler-Nichols methods

29/30 Process Control PID: Tuning and Practical Issues

slide-30
SLIDE 30

Thank you

30/30 Process Control PID: Tuning and Practical Issues
