Lean Manufacturing Toolbox Tim Conway tconway@mnasq.org 13 - - PDF document

Lean Manufacturing Toolbox Tim Conway tconway@mnasq.org 13 November, 2018 Are You A Lean Practitioner? Do you Have a drop zone for your keys, wallet, purse, etc.? Organize your kitchen silverware by type and size? Have a set


slide-1

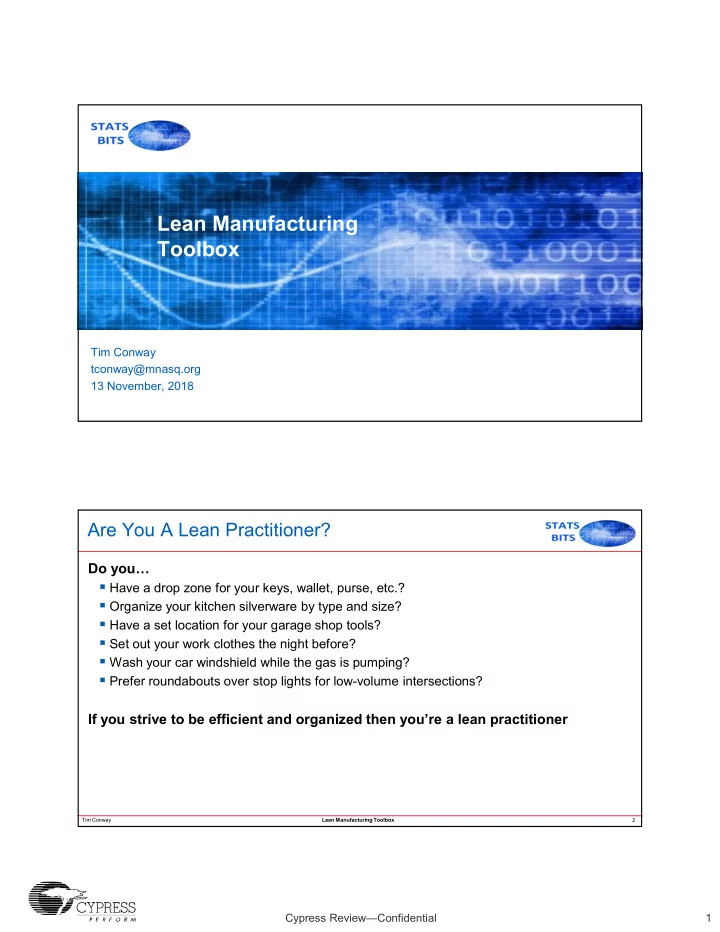

SLIDE 1

Cypress Review—Confidential 1

Lean Manufacturing Toolbox

Tim Conway tconway@mnasq.org 13 November, 2018

Lean Manufacturing Toolbox 2 Tim Conway

Are You A Lean Practitioner?

Do you…

  • Have a drop zone for your keys, wallet, purse, etc.?
  • Organize your kitchen silverware by type and size?
  • Have a set location for your garage shop tools?
  • Set out your work clothes the night before?
  • Wash your car windshield while the gas is pumping?
  • Prefer roundabouts over stop lights for low-volume intersections?

If you strive to be efficient and organized then you’re a lean practitioner

slide-2
SLIDE 2

Cypress Review—Confidential 2

Lean Manufacturing Toolbox 3 Tim Conway

Agenda

This workshop covers the following topics:

  • Lean Manufacturing Concepts
  • Lean Tools

Desired outcomes; upon completion of this presentation, you will be able to:

  • Define the concept of a Value Stream
  • Define Value-Added, Non-Value-Added and Incidental activities
  • Define 7 types of wastes
  • Discuss 4 strategies to remove waste
  • Describe the usage of several lean tools

Lean Manufacturing Toolbox 4 Tim Conway

Lean Manufacturing Concepts

slide-3
SLIDE 3

Cypress Review—Confidential 3

Lean Manufacturing Toolbox 5 Tim Conway

Lean Manufacturing

Lean Manufacturing is derived from the Toyota Production System (TPS) Objective:

  • Create maximum value for the customer by continual

focus on elimination of waste

Areas of focus:

  • Improve the flow of work to expose waste and quality

problems

  • Eliminate waste

“The Machine that Changed the World” MIT researchers coined the term “lean manufacturing” in this 1990 book to describe the Toyota Production System

Lean Manufacturing Toolbox 6 Tim Conway

Lean Focus: Value Stream

Value Stream is the set of key actions required to create and deliver a product

  • r service to the customer.

Everything not in the value stream is potential waste

“Whenever there is a product (or service) for a customer, there is a value stream. The challenge lies in seeing it.”

Suppliers Fab Processing Customers

slide-4
SLIDE 4

Cypress Review—Confidential 4

Lean Manufacturing Toolbox 7 Tim Conway

Lean’s Core Strategies

  • 1. Eliminate waste

Waste Variability Inflexibility

  • 3. Maximize flexibility

and synchronization to customer demand

  • 2. Control variability

Lean Manufacturing Toolbox 8 Tim Conway

Types of Activities

Three types of activities in Lean Thinking

10% 40% 50%

Non-Value Added (Waste) Incidental Value-Added

Elements

  • f work
slide-5
SLIDE 5

Cypress Review—Confidential 5

Lean Manufacturing Toolbox 9 Tim Conway

Value-Added

  • Activity that directly affects the

end product in a way that the customer is willing to pay for

  • Typically 10-15% of activity

before optimization Examples:

  • Impacts form, fit or function of

the product, such as adding layer to a semiconductor chip

  • Gathering data that enhances

the value of the product

Types of Activities

Lean Manufacturing Toolbox 10 Tim Conway

Incidental

  • Activity that does not directly

add value but is necessary to ensure completion or integrity

  • f value-added tasks
  • Adds cost and in theory could

be reduced without affecting the product.

  • Typically 30-50% of activity

before optimization Examples:

  • Product inspection and testing
  • Tool qualification testing

Types of Activities

slide-6
SLIDE 6

Cypress Review—Confidential 6

Lean Manufacturing Toolbox 11 Tim Conway

Non-Value Added

  • Activity that does not add value
  • Waste

Examples:

  • Reworking or redoing
  • Building finished good inventory
  • Providing more data than the

customer ordered Types of Waste:

  • Transportation
  • Inventory
  • Motion
  • Waiting
  • Overproduction
  • Over-processing
  • Defects

Types of Activities

Lean Manufacturing Toolbox 12 Tim Conway

Non-Value Add & Incidental

90%

Non-Value Add & Incidental

81%

Value Add

10%

Value Add

19%

Why Waste Elimination is Important

Eliminating 10% of non-value added activity can nearly double the productivity

slide-7
SLIDE 7

Cypress Review—Confidential 7

Lean Manufacturing Toolbox 13 Tim Conway

Inventory Motion Waiting Over- processing Defects Over- production

WASTE

Types of Lean Wastes: “TIM WOOD”

Transportation

Lean Manufacturing Toolbox 14 Tim Conway

Waste – Transportation

  • Transport of raw materials or completed

product

  • Excessive transportation slows down the

production pace

  • Handoffs between areas increases risks of

errors

  • Handoffs also increase risk of

miscommunication between areas

  • Visual management of the line is difficult

Painting deck

Material flow

5 1 3 8 4 2 7 6 Excess distance from Stop 4 to Stop 5

slide-8
SLIDE 8

Cypress Review—Confidential 8

Lean Manufacturing Toolbox 15 Tim Conway

Waste – Inventory

  • Excess inventory increases manufacturing

cycle time and customer lead time

  • Inventory increases operational costs (e.g.,

storage cost, risk of obsolescence)

  • High inventory levels are a symptom of
  • ther problems in the system
  • System inflexibility
  • Poor line pacing
  • Poor process capability
  • Variation in machine availability

Lean Manufacturing Toolbox 16 Tim Conway

Waste – Motion

  • Unnecessary or excessive motion of

people or machines

  • Example: operator has to go to the
  • ffice to phone the inspector every

time a product lot is completed

  • Motion waste is usually caused by the

layout not being optimized for the process

Office Distance= 70 ft Frequency = 30 times per shift Walking time = 2 minutes 1 hour walking time per shift

slide-9
SLIDE 9

Cypress Review—Confidential 9

Lean Manufacturing Toolbox 17 Tim Conway

Waste – Waiting

  • Waiting on parts, tools, people or

information

  • Waiting can also be within-process
  • Symptom: production pace is highly

variable

  • Symptom: workload is not leveled among
  • perations
  • Excess capacity and high WIP levels

compensate for the variable pace Waiting time

4 8 12 16 20 24 28 32 36 40 Takt time: 40 seconds Operation 1 Operation 2 Operation 3 Operation 4 Operation 5 Operation 6 Operation 7 Operation 8 Time (seconds)

Lean Manufacturing Toolbox 18 Tim Conway

Waste – Overproduction

  • Overproduction occurs when product at

any step of the process is processed sooner, faster, or in greater quantities than customers demand

  • Examples: batch processing, pushing

product bubble to next step

  • Overproduction can increase the impact of
  • ther types of wastes such as inventory,

waiting and defects

slide-10
SLIDE 10

Cypress Review—Confidential 10

Lean Manufacturing Toolbox 19 Tim Conway

Waste – Overprocessing

  • Overprocessing is performing additional

processing over and above the true customer requirements

  • Examples: over-etching, over-polishing,

double-checks

  • May result from internal standards that

are tighter than the true customer requirements in order to provide risk mitigation

Lean Manufacturing Toolbox 20 Tim Conway

Waste – Defects

  • Defect is anything that prevents the

product, service or process from performing its intended function

  • Requires additional resources, line

capacity and buffer inventory to avoid major disruption to the production pace

50 100 150 200 250 300 350 400 1 4 7 10 13 16 19 22 25 28

Reworked

Quantity Day

slide-11
SLIDE 11

Cypress Review—Confidential 11

Lean Manufacturing Toolbox 21 Tim Conway

The 8th Type of Waste

Under-utilization of resources and talents

“Are there online training resources that we can use so we don’t have to wait for a class.” “I spend a lot of time doing paperwork that really has no benefit.” “I waste time each day waiting on reports to be delivered from other departments.” “Our team spends a lot

  • f time collecting

metric data that we feel is not relevant.” 1 7 5 4 3 2 The 8th type of waste is under- utilization of people 6

Lean Manufacturing Toolbox 22 Tim Conway

Lean Manufacturing: Principles

Flow: Near Continuous Flow, Small Batch Sizes Pace: Synchronized Between Steps, Aligned to Customer Needs Pull: Scheduling at Each Step Linked to Customer Demand Level: Resources Balanced to Reduce Over or Under-Utilization Stability: Enabler of Flow, Pace, Pull & Level, Leading to Decreased Waste and Increased Business Impact

slide-12
SLIDE 12

Cypress Review—Confidential 12

Lean Manufacturing Toolbox 23 Tim Conway

  • Map out entire business process
  • Identify waste and incidental steps
  • Eliminate waste and streamline incidental tasks/steps
  • Eliminate other blockages to flow (e.g. batching)

1 2 3 4 5 Wait Wait Value add Internal buffer A 1 2 3 4 5 Value add

From To

Flow

Lean Manufacturing Toolbox 24 Tim Conway

  • Determine the rate of customer demand
  • Synchronize all process steps to that rate
  • Only produce what is needed when needed without waiting or inventory

1 2 3 4 5 WIP (Work in progress) 1 2 3 4 5 WIP

From To

Pace

slide-13
SLIDE 13

Cypress Review—Confidential 13

Lean Manufacturing Toolbox 25 Tim Conway

  • Only produce what the customer wants when they want it
  • Set up clear system to produce on customer orders

From To 1 2 3 4 5

From

Push WIP Push WIP Push WIP Push WIP Signal to do work Flow of work

1 2 3 4 5

To

Pull Signal Pull Signal Pull Signal Pull Signal Signal to do work Flow of work

Pull

Lean Manufacturing Toolbox 26 Tim Conway

Level

  • No asset or person under or over utilized
  • This requires work standards and cross training

1 2 3 4 5 From

Time per activity 2 1 5 4 3

1 2 3 4 5

To

Time per activity 2 1 5 4 3

slide-14
SLIDE 14

Cypress Review—Confidential 14

Lean Manufacturing Toolbox 27 Tim Conway

Lean Tools

Lean Manufacturing Toolbox 28 Tim Conway

Lean Tools

Common lean tools include:

  • 1. Value Stream Mapping (VSM)
  • 2. Spaghetti Diagrams
  • 3. Continuous Flow Manufacturing; Theory of Constraints (TOC)
  • 4. Visual Factory
  • 5. 5S
  • 6. Poka-Yoke
  • 7. Total Productive Maintenance (TPM)
  • 8. Setup Reduction
  • 9. Kaizen
slide-15
SLIDE 15

Cypress Review—Confidential 15

Lean Manufacturing Toolbox 29 Tim Conway

Value Stream Mapping (VSM)

Objective: Identify and Eliminate Waste

  • 1. Map the process; identify the current state. Include relevant data such as processing

and waiting times and failure rates.

  • 2. Classify activities as Value-Added (green), Non-Value-Added (red) or Incidental (yellow)
  • 3. Identify the desired future state. Eliminate, combine, streamline tasks.
  • 4. Define action plan to achieve the future state

Lean Manufacturing Toolbox 30 Tim Conway

Final VSM (Current & Future State Maps)

slide-16
SLIDE 16

Cypress Review—Confidential 16

Lean Manufacturing Toolbox 31 Tim Conway

VSM is called “Material and Information Flow” by Toyota The top part of the map is for information flow ( from right to left) The bottom part of the map is for material flow (from left to right)

VSM with Information Flow (Toyota System)

Lean Manufacturing Toolbox 32 Tim Conway

Spaghetti Diagrams

Spaghetti diagrams show the path taken by a person or product through a portion of the processing flow

  • Highlights handoffs and potentially wasted motion in the process
slide-17
SLIDE 17

Cypress Review—Confidential 17

Lean Manufacturing Toolbox 33 Tim Conway

Continuous Flow Manufacturing

Continuous Flow Manufacturing (CFM) Objective: move material one piece (process unit) at a time, at a rate determined by the needs of the customer

  • Supports the Flow, Pace, Pull and Level objectives of Lean Manufacturing

Utilizes a number of techniques

  • Kanban (pull system) to signal when the next operation needs product
  • Poka-Yoke (mistake proofing) to prevent defects from proceeding
  • Inspections and self-checks to catch defects
  • Total Productive Maintenance to ensure high line capability
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • WIP (Work in progress)

Lean Manufacturing Toolbox 34 Tim Conway

Theory of Constraints (TOC)

Developed by Eli Goldratt

  • “The Goal” (1986) and “Theory of Constraints” (1990)

Objective

  • Maximize throughput and minimize cycle time

Three basic measures

  • Throughput
  • Inventory
  • Operational Expense

Focus

  • Identify bottleneck constraint and reduce it’s impact
slide-18
SLIDE 18

Cypress Review—Confidential 18

Lean Manufacturing Toolbox 35 Tim Conway

Theory of Constraints (cont.)

Procedure

  • Identify the system constraint
  • Ensure non-constraints are managed to provide materials and resources to the constraint
  • Work to resolve the root causes of the constraint
  • Repeat; look for new constraints

Drum – Buffer - Rope

  • Goal: Ensure a smooth flow of material to the constraint
  • Drum: The pace of the operation as determined by the constraint
  • Buffer: Inventory at the bottleneck to ensure it never waits
  • Rope: Feedback mechanism to ensure buffer is maintained at the proper inventory level

TOC promotes the Flow, Pace, Pull and Level principles

Lean Manufacturing Toolbox 36 Tim Conway

Visual Factory

Visual Factory communicates critical information quickly Objective: Make relevant problems obvious to all in real time R O U T E

Relevant Engage Obvious Understand Quickly Timely

  • Key

Performance Indicators

  • Key Steps
  • Key Locations
  • In Plain Site
  • Simple (e.g.,

light tower)

  • Show Status

vs Standard or Goal

  • Colors to

Highlight Issues

  • Emphasize

Visual Displays (not numbers)

  • Update

Regularly

  • Ideally Update

Automatically

  • Create

Urgency

  • Create

Ownership

  • Drive Action
slide-19
SLIDE 19

Cypress Review—Confidential 19

Lean Manufacturing Toolbox 37 Tim Conway

Visual Factory (cont.)

Visual Factory examples

Light Tower allows real time visual notification of problems Blue tape makes it

  • bvious when

setup is not per standard

Lean Manufacturing Toolbox 38 Tim Conway

5S

5S is an important element of visual control

  • Enables detection of non-standard practices

Instills order and cleanliness in the workplace by:

  • Establishing orderly workplace
  • Sustaining the new order

Achieved by:

  • Sort: clear out unnecessary items
  • Set in Order: arrange & mark optimum work area layout
  • Shine: clean workplace regularly
  • Standardize: document best practices
  • Sustain: maintain workplace best practices
slide-20
SLIDE 20

Cypress Review—Confidential 20

Lean Manufacturing Toolbox 39 Tim Conway

Poka-Yoke (Mistake Proofing)

Pronounced POH-kah YOH-kay

  • It is a translation of a shortened Japanese phrase meaning “to make mistakes impossible”

Developed by S. Shingo of Toyota

  • Shingo calls it “Zero Quality Control” (ZQC)

Why is Poka-Yoke important?

  • It has extremely high impact, usually at little cost
  • Conceptually is one of the simplest tools to learn

Poka-Yoke has two parts:

  • Making mistakes impossible (prevention and solution)
  • Making mistakes immediately obvious (detection)

Example

  • Part design only allows the correct install orientation

Lean Manufacturing Toolbox 40 Tim Conway

Total Productive Maintenance (TPM)

Total Productive Maintenance (TPM) originated in Japan as a method for improved machine availability through better utilization of maintenance and production resources. TPM is a critical adjunct to lean manufacturing.

TPM enhances lean efforts and facilitates productivity

  • 1. Starts with 5S / Visual Factory
  • 2. Analyzes downtime events by cause,

frequency, and duration

  • 3. Prevents downtime using effective

Preventive Maintenance (PM)

  • 4. Predicts downtime using Predictive

Maintenance

  • 5. Expands role of Operator as first point of

early warning and prevention

slide-21
SLIDE 21

Cypress Review—Confidential 21

Lean Manufacturing Toolbox 41 Tim Conway

Total Productive Maintenance (TPM)

TPM eliminates waste and lost time:

  • Due to equipment downtime and setup
  • Due to idling and minor stoppages
  • Due to discrepancies between designed and

actual speed of equipment

  • Due to process defects
  • Due to quality problems at startup

Photo source: http://blogs.rhsmith.umd.edu/stephen/2010/10/

Maintenance losses

  • Maintenance labor parts & supplies
  • Outside resources

Defect Losses

  • Process defects
  • Reduced yield

Downtime Losses

  • Equipment breakdown
  • Setup and adjustment

Speed Losses

  • Idling and minor

stoppages

  • Reduced
  • perating speed

Lean Manufacturing Toolbox 42 Tim Conway

TPM: Overall Equipment Effectiveness

Total Time Availability A Operations Time (Scheduled Time) *Non- scheduled Time B Uptime *UPDT, PDT *Setup Performance C Manufacturing Time D Productive Time * Speed Losses * Idle Time Quality E Actual output F Good output *Scrap/rework *Startup losses OEE = B/A x D/C x F/E = F/A Availability Rate x Performance Rate x Quality Rate

slide-22
SLIDE 22

Cypress Review—Confidential 22

Lean Manufacturing Toolbox 43 Tim Conway

Setup Reduction

Setup Reduction (SUR)

  • Also known as Single Minute Exchange of Die (SMED) or Quick Changeover

Objective

  • Reduce changeover and setup times to <10 min

Benefits

  • Increases operational flexibility, especially for high-mix, low-WIP
  • Reduces waste (waiting, inventory)
  • Increase area utilization and capacity

Lean Manufacturing Toolbox 44 Tim Conway

Setup Reduction (cont.)

Techniques

  • Convert Internal Setup (IS) activities to External Setup (ES)
  • Internal Setup must be performed while the machine/process is stopped
  • External Setup can be performed while the machine/process is still running
  • Remove useless setup steps, adjustments and quals
  • Simplify tooling (jigs, clamps, interlocks, etc.)
  • Simplify procedures
  • Do procedures in parallel
  • Standardize (checklists)
slide-23
SLIDE 23

Cypress Review—Confidential 23

Lean Manufacturing Toolbox 45 Tim Conway

Kaizen

Definition

  • “Kai” means “change.” “Zen” means “good” (for the better).
  • Kaizen typically means small improvements, carried out on a continual basis and involving

all people in an organization.

Objective

  • Reduce losses and inefficiencies in the workplace

Example:

  • Idea System

A version of Kaizen called Kaizen Blitz is a focused, short-term effort to resolve a specific issue. Typically <1-2 wks.

Lean Manufacturing Toolbox 46 Tim Conway

Lean Summary

Lean Principles: Flow, Pace, Pull, Level Lean Tools

Kaizen Kaizen

On-time Delivery Goals

Setup Reduction Setup Reduction TPM TPM Poka Poka-

  • Yoke

Yoke 5 5 S S Visual Factory Visual Factory

  • Cont. Flow Mfg
  • Cont. Flow Mfg

VSM VSM

Lean Focus: Enhance Value Stream

Lean Strategies: Eliminate Waste, Control Variability, Increase Flexibility & Synchronize to Customer Demand

slide-24
SLIDE 24

Cypress Review—Confidential 24

Lean Manufacturing Toolbox 47 Tim Conway

Summary

Thank you for attending! This presentation has covered the following:

  • The concepts of Lean Manufacturing and Value Stream
  • Types of activities: Value-Added, Non-Value-Added and Incidental
  • The 7 types of wastes
  • 4 strategies to remove waste
  • Several lean tools

Questions?

Lean Manufacturing Toolbox 48 Tim Conway

Attachment: To Batch or Not To Batch

slide-25
SLIDE 25

Cypress Review—Confidential 25

Lean Manufacturing Toolbox 49 Tim Conway

Small Queue Batches Reduce Inter-Step Wait Times

Lean Manufacturing Toolbox 50 Tim Conway

Small Queue Batches Reduce Inter-Step Wait Times

7 10 16

5 10 15 20 1-pc 2-pc 4-pc Cycle Time (min) Queue Batch Size

Cycle Time vs Queue Batch Size

slide-26
SLIDE 26

Cypress Review—Confidential 26

Lean Manufacturing Toolbox 51 Tim Conway

Process Batching Capacity Allows Units to Process in Parallel

To minimize cycle time, match the queue batches to the process capacity

7 10 16

5 10 15 20 1-pc 2-pc 4-pc Cycle Time (min) Queue Batch Size

Cycle Time vs Queue Batch Size (Process Batch Capacity = 1)

7 5 8

5 10 15 20 1-pc 2-pc 4-pc Cycle Time (min) Queue Batch Size

Cycle Time vs Queue Batch Size (Process Batch Capacity = 2)

7 5 4

5 10 15 20 1-pc 2-pc 4-pc Cycle Time (min) Queue Batch Size

Cycle Time vs Queue Batch Size (Process Batch Capacity = 4)
