Largest concrete pile driven? Russian designed- Chinese built quad vibro driving 15 foot diameter concrete piles 120 feet long. Date: Jun 1953 Brief specs: Eccentric moment: 128,000 in-lbs. Timed electrically Each vibro had 32,000

slide-1
SLIDE 1

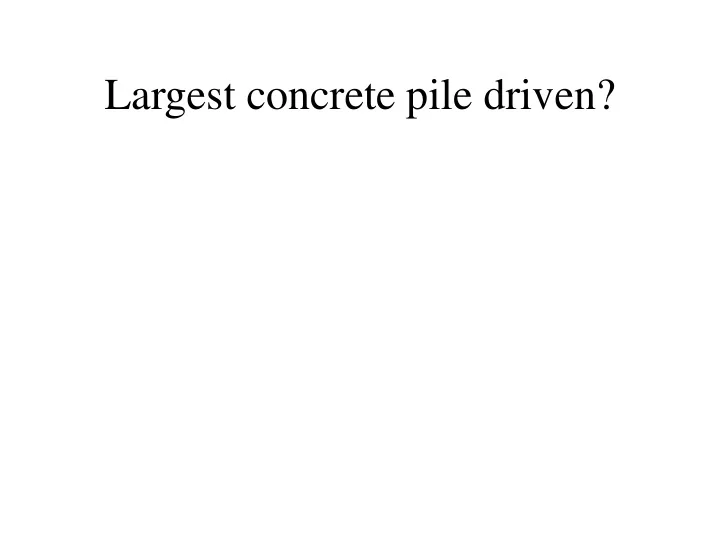

Largest concrete pile driven?

slide-2
SLIDE 2

Russian designed- Chinese built quad vibro driving 15 foot diameter concrete piles 120 feet long. Date: Jun 1953

slide-3
SLIDE 3

Brief specs: Eccentric moment: 128,000 in-lbs. Timed electrically Each vibro had 32,000 in-lbs.

slide-4
SLIDE 4

Do not under estimate Russian or Chinese technology.

slide-5
SLIDE 5

Press Pile Drivers

slide-6
SLIDE 6

Press rig driving 550 mm concrete piles.

slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9

Press Pile Drivers

slide-10
SLIDE 10

Reaction weight for 600 ton pile.

slide-11
SLIDE 11

Pressing makes no noise or vibration.

slide-12
SLIDE 12

Press Pile Drivers

slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15

Self Loading Rig

slide-16
SLIDE 16

Self Loading Rig with 500 Ton capacity.

slide-17
SLIDE 17

Up to 800 ton capacity
