Large Synoptic Survey Telescope Project Ranpal Gill Head of Communications Getting Ready for LSST: SMW1.4 19 th September 2019 #ranpalgill #ranpalgill EPSC-DPS Joint Meeting 2019 Geneva, Switzerland 19 September, 2019 EPSC-DPS Joint


slide-1
SLIDE 1

1

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

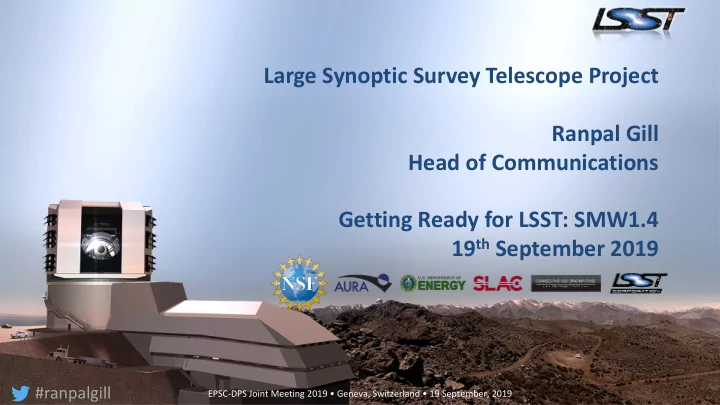

Large Synoptic Survey Telescope Project Ranpal Gill Head of Communications Getting Ready for LSST: SMW1.4 19th September 2019

slide-2
SLIDE 2

2

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

Overview

LSST’s mission is to build a well-understood system that provides a vast astronomical dataset for unprecedented discovery of the deep and dynamic universe.

slide-3
SLIDE 3

3

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

Total Solar Eclipse over Cerro Pachon, July 2, 2019 Photo: K. Reil LSST/DOE/SLAC

Large Synoptic Survey Telescope

10 year survey starting 2022 A ground based 8.4m optical telescope Site construction began April 2015 Located in Chile on Cerro Pachón Construction budget of US$671,000,000

slide-4
SLIDE 4

5

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

Four Science Goals

slide-5
SLIDE 5

6

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

LSST’s survey will be a 10-year log of half the sky LSST will image the entire Southern sky (18k sq deg) every few nights, taking an image every ~40 seconds, for 10 years. The result: an 825-frame movie in 6-filter technicolor of every

  • bject present

3.5 degrees

(Full moon is 0.5 degrees)

slide-6
SLIDE 6

7

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

To build an observing facility, conduct 10-year survey, process, archive, and serve images and data products

7

+

8.4m Telescope 3.2Gpix Camera Peta-scale Data Management Science and Public user Interfaces

slide-7
SLIDE 7

8

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

Mirrors

Mirror in Summit Storage May 11, 2019 M1M3 Mirror Polishing Completed in 2015

M2 Optic coated with Science-Grade final coating

slide-8
SLIDE 8

9

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

Telescope mount assembly development by Empresarios Agrupados / Asturfeito On the summit since Saturday!

slide-9
SLIDE 9

10

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

A Camera to Capture 3.5 degrees of Sky

Camera Parameters Property Value 15 years Incident half-angle in air 14.2o-23.6o Focal plane diameter 634 mm Maximum mass 3060 kg Maximum diameter 1650 mm Total length 3732 mm

slide-10
SLIDE 10

11

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

63 CM Diameter Focal Plane with 3.2 GigaPixels

4K x 4K Science Sensor Raft Sensor Assembly Raft Electronics Board (REB) with Custom Integrated circuits make a 144M Pix camera

189 sensors packed in 21 rafts of 9 sensors

M i l e s t

  • n

e !

slide-11
SLIDE 11

12

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

− Collaboration with IN2P3 labs in France for key Camera elements − Filter Autochanger, Manual loader (6th filter) and carousel completed & being tested

Filter Exchange Systems

Filter loader on transport cart Filter Autochamber 5 Filter capacity carousel Shutter prototype

slide-12
SLIDE 12

13

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

Science themes Online investigations for formal education.

  • Surveying the Solar System: Students make
  • bservations of newly-discovered solar

system objects using an orbit visualizer to determine the object type.

  • Hazardous Asteroids: Students evaluate the

potential threat of an Earth impact by making repeated observations of a newly- discovered Near-Earth Object.

slide-13
SLIDE 13

14

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

Data Product Categories

slide-14
SLIDE 14

15

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

− Alert stream immediately public (60 seconds after observation) − Small bodies data -> Minor Planet Center (MPC) − All data public after two years − Data rights for in-kind contributors: – Funding agencies (NSF and DOE) have committed to fully support LSST

  • perations BUT have given guidance to LSST to seek international

partners.

  • LSST has produced high level models/menu of options for in-kind
  • perations offsets.
  • Host of “really good to have” added value options being

considered

Data Rights & Data Access

slide-15
SLIDE 15

16

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

Large Synoptic Survey Telescope (LSST) Status

2012 Rendering 2019 September

slide-16
SLIDE 16

17

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

Project & Community 2019 Next meeting: 10-14 August 2020 in Tucson! Come along!

slide-17
SLIDE 17

18

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

Overview

On schedule for First Light in 2021 and start of 10-year Survey in 2022

slide-18
SLIDE 18

19

EPSC-DPS Joint Meeting 2019 • Geneva, Switzerland • 19 September, 2019

#ranpalgill

Keep in touch with us!

communications-team@lists.lsst.org @myLSST @lsst lsst_astronomy http://ls.st/z6u large-synoptic-survey-telescope-lsst- www.lsst.org community.lsst.org

Subscribe to our “Newsletter” Send blank email to: lsst-digest-join@lists.lsst.org
