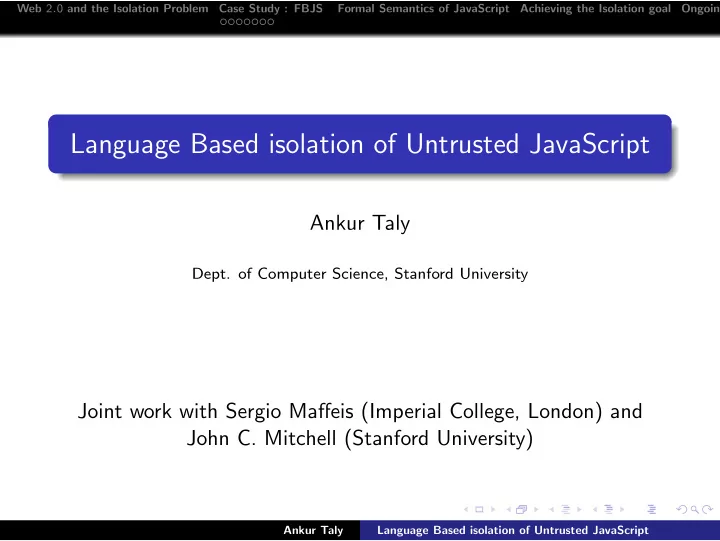

Language Based isolation of Untrusted JavaScript

Ankur Taly

• Dept. of Computer Science, Stanford University

Joint work with Sergio Maffeis (Imperial College, London) and John C. Mitchell (Stanford University)

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

1 Web 2.0 and the Isolation Problem 2 Case Study : FBJS

Design Attacks and Challenges

3 Formal Semantics of JavaScript 4 Achieving the Isolation goal 5 Ongoing and Future Work

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Web 2.0 and the Isolation Problem

Web 2.0 : All about mixing and merging content (data and code) from multiple content providers in a users browser, to provide high-value applications Extensive Client-side scripting - lots of JavaScript. Systems have complex trust boundaries. Security Issues This work Focus on the simple case where content providers are either trusted or untrusted : Third party Advertisements , Widgets, Social Networking site - applications. Assume the publisher has access to untrusted content before it adds it to the page. Focus on JavaScript content present in untrusted code.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Web 2.0 and the Isolation Problem

Web 2.0 : All about mixing and merging content (data and code) from multiple content providers in a users browser, to provide high-value applications Extensive Client-side scripting - lots of JavaScript. Systems have complex trust boundaries. Security Issues This work Focus on the simple case where content providers are either trusted or untrusted : Third party Advertisements , Widgets, Social Networking site - applications. Assume the publisher has access to untrusted content before it adds it to the page. Focus on JavaScript content present in untrusted code.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Web 2.0 and the Isolation Problem

Isolation Problem Design security mechanisms which allow untrusted code to perform valuable interactions and at the same time prevent intrusion and malicious damage.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Web 2.0 and the Isolation Problem

Isolation Problem Design security mechanisms which allow untrusted code to perform valuable interactions and at the same time prevent intrusion and malicious damage.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

IFrames

Placing all untrusted content in separate IFrames seems to be a safe solution . Social network site applications and Ads : IFrames are sometimes too restrictive

Restricts the ad to a delineated section of the page. Social network applications need more permissive interaction with the host page.

Some publishers prefer to not use IFrames

Gives better control over untrusted code. Easier to restrict same-origin untrusted code.

This Work Design isolation mechanisms for untrusted code not placed in separate IFrames.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Program Analysis Problem

Program Analysis Problem Given an untrusted JavaScript program P and a Heap H (corresponding to the trusted page), design a procedure to either statically or dynamically via run time checks, guarantee that P does not access any security critical portions of the Heap. Design static analysis and/or code instrumentation techniques Very hard problem to solve for whole of JavaScript as all code that gets executed may not appear textually !

var m = ”toS”; var n = ”tring”; Object.prototype[m + n] = function(){return undefined};

Approach Solve the above problem for subsets of JavaScript that are more amenable to static analysis.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Program Analysis Problem

Program Analysis Problem Given an untrusted JavaScript program P and a Heap H (corresponding to the trusted page), design a procedure to either statically or dynamically via run time checks, guarantee that P does not access any security critical portions of the Heap. Design static analysis and/or code instrumentation techniques Very hard problem to solve for whole of JavaScript as all code that gets executed may not appear textually !

var m = ”toS”; var n = ”tring”; Object.prototype[m + n] = function(){return undefined};

Approach Solve the above problem for subsets of JavaScript that are more amenable to static analysis.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Case Study : FBJS

FBJS is a subset of JavaScriptfor writing Facebook applications which are placed as a subtree of the page. Restrictions Applied Filtering : Application code must be written in FBJS Forbid eval, Function constructs. Disallow explicit access to properties (via the dot notation

• o.p)

parent , constructor, . . . .

Rewriting

this is re-written to ref(this) ref(x) is a function defined by the host (Facebook) in the global object such that ref(x) = x if x = window else ref(x) = null Prevents application code form accessing the global object.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Case Study : FBJS

FBJS is a subset of JavaScriptfor writing Facebook applications which are placed as a subtree of the page. Restrictions Applied Filtering : Application code must be written in FBJS Forbid eval, Function constructs. Disallow explicit access to properties (via the dot notation

• o.p)

parent , constructor, . . . .

Rewriting

this is re-written to ref(this) ref(x) is a function defined by the host (Facebook) in the global object such that ref(x) = x if x = window else ref(x) = null Prevents application code form accessing the global object.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Case Study : FBJS

Rewriting (contd):

• [p] is rewritten to o[idx(p)] : Controls access to dynamically

generated property names.

idx(p) is a function defined by the host (Facebook) in the global object such that idx(p) = bad if p ∈ Blacklist else idx(p) = p. Blacklist contains sensitive property names like parent , constructor, . . .

Add application specific prefix to all top-level identifiers.

Example : o.p is renamed to a1234 o.p Separates effective namespace of an application from others. Facebook provides libraries, accessible within the application namespace, to allow safe access to certain parts of the global

• bject.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Case Study : FBJS

Rewriting (contd):

• [p] is rewritten to o[idx(p)] : Controls access to dynamically

generated property names.

idx(p) is a function defined by the host (Facebook) in the global object such that idx(p) = bad if p ∈ Blacklist else idx(p) = p. Blacklist contains sensitive property names like parent , constructor, . . .

Add application specific prefix to all top-level identifiers.

Example : o.p is renamed to a1234 o.p Separates effective namespace of an application from others. Facebook provides libraries, accessible within the application namespace, to allow safe access to certain parts of the global

• bject.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

An attack on FBJS (Nov’08)

Goal of the Attack Get a handle to the global object in the application code. Main Idea : Get a handle to the current scope object and shadow the ref method.

1 Getting the current scope: GET SCOPE.

try {throw (function(){return this;});} catch (f){ curr scp = f();}

Other tricks : Use named recursive functions (see our CSF’09 paper)

2 Shadow ref : curr scp.ref = function(x){return x;}. 3

this will now evaluate to the global object !

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Another attack on FBJS (Mar’09)

Goal of the attack Access a black-listed property name Main Idea The Facebook IDX(e) does the following check :

1

Evaluate e2.

2

Convert result(1) to string and check it is blacklisted

3

If result(2) is false, return result(1) else return ”bad”.

Observe e2 will get converted to string twice. Almost works

e := {toString : function(){this.toString = function(){return ’constructor’} ;return ’foo’}}

FBJS has a check e instanceOf Object ? ”bad”

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Attack contd

In Safari, scope objects have a null prototype and hence they escape the instanceOf check. Attack !!! (Safari)

var obj = GET SCOPE;

• bj.toString=function(){this.toString = function(){return ’constructor’}

;return ’foo’};

var f=function(){}; f[obj](’alert(0)’)();

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Vulnerabilities Disclosed

To defend against the first attack, Facebook renamed idx and

ref methods to $FBJS.idx and $FBJS.ref .

To defend against the second attack, Facebook modified idx function to check the browser and decide if the object can escape the ”instanceOf” check. Does this fix the problem once and for all ? Are more attacks possible on these lines ?

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Summary of our analysis of FBJS

We realize the following three fundamental issues :

1 The ultimate goal is to ensure that a piece of untrusted code

(that satisfies a certain syntactic criterion), does not access certain global variables.

2 There are a number of subtleties related to the expressiveness

and complexity of JavaScript.

3 Finding temporary fixes to the currently known attacks is

NOT sufficient.

4 Several million users : Impact value of a single attack is

VERY high. Formal Analysis !! It is important to do a formal analysis based on traditional programming language foundations to design provable secure isolation techniques

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

1 Web 2.0 and the Isolation Problem 2 Case Study : FBJS

Design Attacks and Challenges

3 Formal Semantics of JavaScript 4 Achieving the Isolation goal 5 Ongoing and Future Work

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

A bit about JavaScript

Key language features First class functions, Prototype based language, redefinable

• bject properties.

Can convert string to code :eval, Function Implicit type conversions

var y = ”a”; var x = {toString : function(){ return y;}} x = x + 10; js> ”a10”

ECMA262-3 : Standardized for browser compatibility. Does not include DOM and other browser extensions. Sufficient for ’understanding’ the language but insufficient for rigorously proving properties about it. We need a formal semantics for representing the meaning of every possible JavaScript program.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Our Approach

For now, focus on ECMA-262-3rd edition. This is already quite non-trivial !

1 Convert Informal semantics(ECMA262-3) into a Formal

• semantics. (APLAS’08)

Specifies meaning in a Mathematically rigorous way. The very act of formalization revealed subtle aspects of the language and helped us devise attacks on FBJS.

2 Systematically design subsets of JavaScript to achieve the

isolation goal.

3 Use the formal semantics to rigorously prove that the isolation

goal is attained for all programs within the subset (CSF’09, W2SP’09 and Ongoing) .

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Structural Operational Semantics

Meaning of a program ⇔ sequence of actions that are taken during its execution. Specify sequence of actions as transitions of an Abstract State machine State Program state is represented as a triple H, l, t. H : Denotes the Heap, mapping from the set of locations(L) to objects. l : Location of the current scope object (or current activation record). t : Term being evaluated.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Semantic Rules

Small step style semantics (Gordon Plotkin) Three semantic functions

e

− → ,

s

− → ,

P

− → for expressions, statements and programs. Small step transitions : A semantic function transforms one state to another if certain conditions (premise) are true. General form : Premise S

t

→ S′ Atomic Transitions : Rules which do have another transition in their premise (Transition axioms). Context rules : Rules to apply atomic transitions in presence

• f certain specific contexts.

Complete set of rules (in ASCII) span 70 pages.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

1 Web 2.0 and the Isolation Problem 2 Case Study : FBJS

Design Attacks and Challenges

3 Formal Semantics of JavaScript 4 Achieving the Isolation goal 5 Ongoing and Future Work

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Back to Isolation Problem

Isolation Problem Ensure that a piece of untrusted code written in a safe subset does not access certain security-critical global variables. Let Access(P) be the set of property names accessed when program P is executed. Reduce the isolation problem to the following 2 sub problems. Problem 1 (Isolation from library code) Given a blacklist B, design a meaningful sublanguage and an enforcement mechanism so that for all enforced programs P in the sublanguage, Access(P) ∩ B = ∅ Isolating host library methods : Create a blacklist B of all security critical methods in the library code .

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Back to Isolation Problem

Isolation Problem Ensure that a piece of untrusted code written in a safe subset does not access certain security-critical global variables. Let Access(P) be the set of property names accessed when program P is executed. Reduce the isolation problem to the following 2 sub problems. Problem 1 (Isolation from library code) Given a blacklist B, design a meaningful sublanguage and an enforcement mechanism so that for all enforced programs P in the sublanguage, Access(P) ∩ B = ∅ Isolating host library methods : Create a blacklist B of all security critical methods in the library code .

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Isolation from other untrusted code ?

Key Idea : Rename identifiers to separate namespace of untrusted code. But does this preserve the semantics ? Not for Jt. Issue : Variables are essentially properties of the current scope object (activation object).

var x = 42; this.x returns 42 in the global scope. var a123 x = 42; this.x returns ”reference error x not defined”. Disallow access to scope object !

Problem 2 (Isolating scope objects) Define a meaningful sublanguage so that no program P in the sublanguage can return a pointer to a scope object.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Isolation from other untrusted code ?

Key Idea : Rename identifiers to separate namespace of untrusted code. But does this preserve the semantics ? Not for Jt. Issue : Variables are essentially properties of the current scope object (activation object).

var x = 42; this.x returns 42 in the global scope. var a123 x = 42; this.x returns ”reference error x not defined”. Disallow access to scope object !

Problem 2 (Isolating scope objects) Define a meaningful sublanguage so that no program P in the sublanguage can return a pointer to a scope object.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Plan

Isolating Solution 1 Solution 2 (Static) (Static + Runtime) Blacklist (Problem 1) Scope (Problem 2) Solution 1 is a sublanguage with pure static enforcement for achieving the goals in problem 1 and 2. Solution 2 is a sublanguage with static and runtime enforcement for achieving the goals in problem 1 and 2.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Isolating blacklist with syntactic enforcement

Design a sublanguage such that for any program P, all property names that can potentially be accessed appear textually in the code. Fundamental issue : Strings (m), Property Names (pn) and Identifiers (x) are implicitly converted to each other Terms whose reduction trace involves conversion from Strings − → Property names (like e[e]) Strings − → Code (like eval) are evil. Get rid of them ! Subset Jt Jt is defined as ECMA-262 MINUS: all terms containing the identifiers eval, Function, hasOwnProperty, propertyIsEnumerable,

constructor and expressions e[e], e in e; the statement for (e in e) s;

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Isolating blacklist with syntactic enforcement

Design a sublanguage such that for any program P, all property names that can potentially be accessed appear textually in the code. Fundamental issue : Strings (m), Property Names (pn) and Identifiers (x) are implicitly converted to each other Terms whose reduction trace involves conversion from Strings − → Property names (like e[e]) Strings − → Code (like eval) are evil. Get rid of them ! Subset Jt Jt is defined as ECMA-262 MINUS: all terms containing the identifiers eval, Function, hasOwnProperty, propertyIsEnumerable,

constructor and expressions e[e], e in e; the statement for (e in e) s;

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Results

Isolating Solution 1 Solution 2 (Static) (Static + Runtime) Blacklist Subset Jt

Filter P if Id(P) ∩ B = ∅

Scope Id(P) : Set of identifiers in P. Some property names are accessed implicitly (Recall type conversions). Denote these property names by Pnat. Includes {toString, toNumber, valueOf }, Object, Array, RegExp} Result Any property name accessed by a program P in Jt when executed with respect to the initial heap is either contained in Id(P) or in Pnat. Can also enforce whitelists !

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Isolating scope object with syntactic enforcement

Isolating the scope object For initial empty heap state, global object is only accessible via @scope and @this properties Dereferencing @this is the only way of returning the current scope object.

Object.prototype.valueOf, Array.prototype.sort/concat/reverse can

potentially deference the @this property. Subset Js The subset Js is defined as Jt, MINUS: all terms containing the expression this; all terms containing the identifiers valueOf, sort,

concat and reverse;

Js ⊂ Jt : Sufficient for imposing the restriction that properties

valueOf, sort, concat and reverse are never accessed

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Isolating scope object with syntactic enforcement

Isolating the scope object For initial empty heap state, global object is only accessible via @scope and @this properties Dereferencing @this is the only way of returning the current scope object.

Object.prototype.valueOf, Array.prototype.sort/concat/reverse can

potentially deference the @this property. Subset Js The subset Js is defined as Jt, MINUS: all terms containing the expression this; all terms containing the identifiers valueOf, sort,

concat and reverse;

Js ⊂ Jt : Sufficient for imposing the restriction that properties

valueOf, sort, concat and reverse are never accessed

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Results

Isolating Solution 1 Solution 2 (Static) (Static + Runtime) Blacklist (Problem 1) Subset Jt

Filter P if Id(P) ∩ B = ∅

Scope (Problem 2) Subset Js⊆ Jt

Filter P if Id(P) ∩ B = ∅

Result No program in the language Js when executed with respect to the initial heap evaluates to the address of a scope object.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Isolating blacklist with runtime enforcement

Jt is fairly restrictive. Disallows [] operator altogether ⇒ No array access In principle, solution to problem 1 should allow o[p] where p / ∈ B. Runtime Check : e1[e2] − → e1[IDX(e2)] (along the lines of FBJS) How do we design for IDX which enforces property that No property name from blacklist B ever gets accessed. Semantics is preserved for all programs P for which Access(P) ∩ B = ∅.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Subset Jtrun

e1[e2] −

→ va1[e2] − → va1[va2] − → o[va2] − → o[m] Observe that first e1 and e2 are converted to a value and only then e2 is converted to a string. Ideally, IDX(e2) should return a value which

• n being converted to a string, checks if the string obtained

from e2 is outside the blacklist and returns it. IDX ($=e2,{toString:function(){return ($=TOSTRING($),FILTER($))}}) where TOSTRING($) = (new $String($)).valueOf() FILTER($) = ($blacklist[$]?”bad”:$) Subset Jtrun The subset Jtrunis defined as as Jtplus e[e] minus all terms with identifiers beginning with $ redImportant : Add $String to blacklist B.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Subset Jtrun

e1[e2] −

→ va1[e2] − → va1[va2] − → o[va2] − → o[m] Observe that first e1 and e2 are converted to a value and only then e2 is converted to a string. Ideally, IDX(e2) should return a value which

• n being converted to a string, checks if the string obtained

from e2 is outside the blacklist and returns it. IDX ($=e2,{toString:function(){return ($=TOSTRING($),FILTER($))}}) where TOSTRING($) = (new $String($)).valueOf() FILTER($) = ($blacklist[$]?”bad”:$) Subset Jtrun The subset Jtrunis defined as as Jtplus e[e] minus all terms with identifiers beginning with $ redImportant : Add $String to blacklist B.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Subset Jtrun

Isolating Solution 1 Solution 2 (Static) (Static + Runtime) Blacklist (Problem 1) Subset Jt Subset Jtrun

Filter P if Id(P) ∩ B = ∅ Filter P if Id(P) ∩ B = ∅

e1[e2] → e1[IDX(e2)]

Scope (Problem 2) Subset Js

Filter P if Id(P) ∩ B = ∅

Result For all programs P in Jtrun such that Id(P) ∩ B = ∅, the program

$String=String; Rew(P) when executed with respect to the initial

heap does not access any property from B.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Isolating global object with runtime enforcement

Js disallows this Heavily used in object oriented programming. In principle, solution to problem 2 must allow this if it does not point to a scope object. Runtime check : this − → NOSCOPE(this) How can we check if a given object is a scope object ? Not straightforward in general, Use NOGLOBAL(this) = (this==$?null;this).

NOSCOPE(this) is definable for Firefox, see paper.

Subset Jsrun Define the subset Jsrun as Js plus : all terms containing this minus all terms with identifiers beginning with $

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Isolating global object with runtime enforcement

Js disallows this Heavily used in object oriented programming. In principle, solution to problem 2 must allow this if it does not point to a scope object. Runtime check : this − → NOSCOPE(this) How can we check if a given object is a scope object ? Not straightforward in general, Use NOGLOBAL(this) = (this==$?null;this).

NOSCOPE(this) is definable for Firefox, see paper.

Subset Jsrun Define the subset Jsrun as Js plus : all terms containing this minus all terms with identifiers beginning with $

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Results

Isolating Solution 1 Solution 2 (Static) (Static + Runtime) Blacklist (Problem 1) Subset Jt Subset Jtrun

Filter P if Id(P) ∩ B = ∅ Filter P if Id(P) ∩ B = ∅

e1[e2] → e1[IDX(e2)]

Global Object Subset Js Subset Jsrun (Problem 2 weak)

Filter P if Id(P) ∩ B = ∅ Filter P if Id(P) ∩ B = ∅

e1[e2] → e1[IDX(e2)] this → NOGLOBAL(this)

Result For all programs P in Jsrun such that Id(P) ∩ B = ∅, the program

$=window; Rew(P) when executed with respect to the initial heap,

never evaluates to the global object and does not access any blacklisted property.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Results

Isolating Solution 1 Solution 2 (Static) (Static + Runtime) Blacklist (Problem 1) Subset Jt Subset Jtrun

Filter P if Id(P) ∩ B = ∅ Filter P if Id(P) ∩ B = ∅

e1[e2] → e1[IDX(e2)]

Global Object Subset Js Subset Jsrun (Problem 2 weak)

Filter P if Id(P) ∩ B = ∅ Filter P if Id(P) ∩ B = ∅

e1[e2] → e1[IDX(e2)] this → NOGLOBAL(this)

Result For all programs P in Jsrun such that Id(P) ∩ B = ∅, the program

$=window; Rew(P) when executed with respect to the initial heap,

never evaluates to the global object and does not access any blacklisted property.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Solution for FBJS

Define $FBJS.ref and $FBJS.IDX in a different name-space. Use the version of IDX proposed by us.

Preserves semantics. Prevents access to blacklisted properties

Given a library blacklist B, use subset Jsrun. Appropriately rename all identifiers Finally, parse the text of the code to disallow identifier names beginning with ”$” or any blacklisted identifiers.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Ongoing and Future Work

Design suitable run-time checks for eval, Function. Given a set of sensitive property names, design a procedure to analyze the library code and automatically generate the minimal blacklist which will guarantee property isolation. Write the semantics in machine readable format so that the proofs can be automated. Extend the above results to apply to JavaScript supported by various browsers which include features beyond the ECMA-262 spec, such as getter, setters,

proto

etc.

Ankur Taly Language Based isolation of Untrusted JavaScript

Web 2.0 and the Isolation Problem Case Study : FBJS Formal Semantics of JavaScript Achieving the Isolation goal Ongoing

Thank You !

Ankur Taly Language Based isolation of Untrusted JavaScript
