459 14TH STREET Proposed Window Replacement Park Slope, Brooklyn Landmarks Preservation Commission Public Hearing Presentation 11 /14/ 2017 L-01 Matter of Architecture 540 President Street, 2J Brooklyn NY 11215 HISTORIC CONTEXT - District

SLIDE 1

L-01

Matter of Architecture 540 President Street, 2J Brooklyn NY 11215

459 14TH STREET

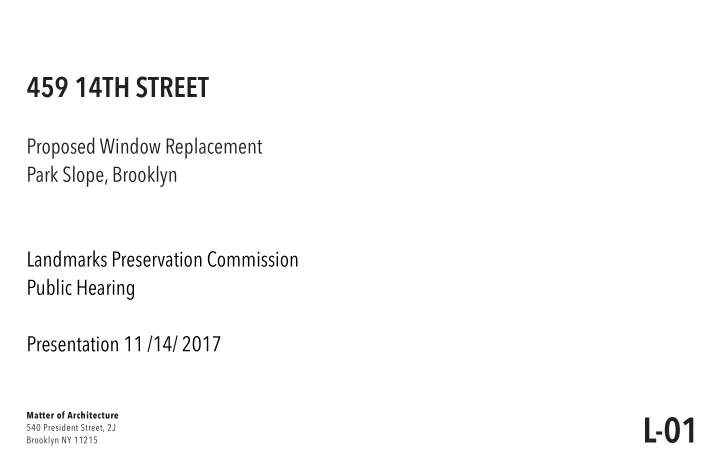

Proposed Window Replacement Park Slope, Brooklyn Landmarks Preservation Commission Public Hearing Presentation 11 /14/ 2017

SLIDE 2

L-02

Exterior Modifications 459 14th Street, Brooklyn NY 11215

187 210 4 9 6 4 9 8 4 6 9 3 4 1 440 1324 1401 3 7 2 4 4 2 3 6 9 3 8 8 4 4 8 4 4 5 A 4 6 2 4 2 3 8 5 4 3 4 6 5 5 8 2 5 7 9 4 8 1 4 8 6 1111 1 1 5 3 2 6 4 6 3 5 2 5 9 1 1 7 1 5 2 4 4 4 4 4 3 5 5 1 7 4 9 4 2 4 1 9 5 9 5 4 6 4 5 8 294 2 8 9 4 7 4 4 5 5 3 8 8 3 5 5 4 3 5 7 2 5 7 4 5 8 4 6 9 5 7 5 1 4 2 151 4 3 9 4 2 2 4 9 4 4 1503 8 St 9 St 7 St 8 Av 7 Av 6 Av 16 St 11 St 14 St 12 St 13 St 10 St 15 St Prospect Pk W

Park Slope Historic District Extension

Park Slope Historic District Extension Boundary of District Extension Tax Map Lots, District Extension

Park Slope Historic District Extension Borough of Brooklyn, NY [LP-2443] Calendared: August 10, 2010 Public Hearing: October 26, 2010 Designated: April 17, 2012

Existing Historic Districts Historic District Extension Graphic Source: MapPLUTO, Edition 09v1, 2009. Author: Landmarks Preservation Commission, JM. Date: April 17, 2012. 300 Feet

¯

Boundary of Existing District

Landmarks Preservation Commission

Queens Brooklyn Manhattan P a r k S l

e H i s t

i c D i s t r i c t

HISTORIC CONTEXT - District and Location

LO CAT I O N O F 459 14T H ST RE E T PA R K S LO P E EXTEN SIO N - H ISTORIC DISTRICT

SLIDE 3

L-03

Exterior Modifications 459 14th Street, Brooklyn NY 11215

EXISTING CONTEXT - 14th Street

1 4 T H S T R E E T

2 1

459 457 455 453 461

1. ) 1 4 t h St re et Ro w o f 5 Ho u ses Bu i l t together (ABABA Pa tter n)
2. ) 459 14t h St re e t a nd Ne ig h b o r s

1979 U C RS

459 457 455 461

SLIDE 4

L-04

Exterior Modifications 459 14th Street, Brooklyn NY 11215

FRONT FACADE - Existing and Historic Photographs

EXISTIN G FRONT P HOTO 1940’ S TAX P HOTO

SLIDE 5

L-05

Exterior Modifications 459 14th Street, Brooklyn NY 11215

FRONT FACADE - Existing and Proposed Elevations

P RO P O S E D F RO NT FACAD E S CA L E : 3 / 1 6 ” = 1 ’ - 0 ” EXISTING FRONT FACADE S CA L E : 3 / 1 6 ” = 1 ’ - 0 ”

N E W B E W I S O W O O D W I N D O W S I N E X I ST I N G M A S O N R Y O P E N I N G S , T Y P. N E W R O O F TO P A D D I T I O N O N S E PA R AT E A P P L I CAT I O N . N OT V I S I B L E F R O M ST R E E T A L L N E W T R I M TO M ATC H H I STO R I CA L P R O F I L E , T Y P. E X I ST. E N T R Y D O O R TO R E M A I N E X I ST. L I G H T TO R E M A I N E X I ST. FACA D E TO R E M A I N

SLIDE 6

L-06

Exterior Modifications 459 14th Street, Brooklyn NY 11215

PROPOSED WINDOWS - Elevations and Details

EXISTING STONE LINTEL EXISTING MASONRY OPENING EXISTING BRICK FACADE EXISTING STONE SILL EXISTING MASONRY OPENING NEW WOOD BRICK MOLD TO MATCH HISTORIC PROFILE ,

TYP. EXACT PROFILE TO BE

CONFIRMED DURING CONSTRUCTION NEW BEWISO WINDOW UNIT IN EXISTING MASONRY OPENING 1 7/8" 1/4" 1/8" 2 1/4" WINDOW COLOR: ALL WINDOWS AND MOLDINGS TO BE PAINTED WITH SPECIFIED PAINT TO MATCH BENJAMIN MOORE "UNIVERSAL BLACK 2118-10" HANNO 3E EXPANSION TAPE 1/2" EXISTING STONE SILL EXISTING MASONRY FACADE AIR-SEALING TAPE (TESCON PROFIL) TAPED TO AIR-BARRIER AND WINDOW FRAME DENSE PACK CELLULOSE INSULATION AIR TIGHT MEMBRANE (INTELLO PLUS) NEW PLYWOOD BLOCKING NEW SOLID WOOD SILL NEW WALL ASSEMBLY. SEE EXTERIOR WALL SECTIONS FOR DETAILS NEW WOOD WALL AS REQ’D TO SUPPORT WINDOW REPAIR, REPOINT AND PARGE MASONRY TO CREATE PLUMB SURFACE WOOD BLOCKING AS REQUIRED 1" 2 3/4" 2 1/8" 7 1/4" MASONRY OPENING BEYOND NEW TRIPLE GLAZED BEWISO WOOD SIMULATED DOUBLE-HUNG WINDOW (OPERABLE LOWER SASH) 2 1/2" 2" 2" 1/2" HANNO 3E EXPANSION TAPE PAINTED WOOD BRICK MOLD TO MATCH HISTORIC PROFILE, TYP. EXISTING STONE LINTEL . EXACT DETAIL UNKNOW EXISTING MASONRY FACADE NEW TRIPLE GLAZED BEWISO WOOD SIMULATED DOUBLE-HUNG WINDOW (FIXED UPPER SASH) NEW WALL ASSEMBLY. SEE EXTERIOR WALL SECTIONS FOR DETAILS NEW PLYWOOD BLOCKING NEW SOLID WOOD FRAME 1" 1" 1/4" 2 1/4" NEW PLYWOOD BLOCKING NEW SOLID WOOD FRAME NEW WOOD FRAME BELOW NEW WALL ASSEMBLY. SEE EXTERIOR WALL SECTIONS FOR DETAILS 1/2" EXISTING STONE SILL BELOW EXISTING MASONRY FACADE 7 1/4" 1/4" 1" 3 7/8" 2" 1 1/8" 1/4" 2" 1" 1 7/8" PAINTED WOOD BRICK MOLD TO MATCH HISTORIC PROFILE, TYP. AIR-SEALING TAPE (TESCON PROFIL) TAPED WINDOW FRAME AND MASONRY HANNO 3E EXPANSION TAPE 3 1/2" 1 1/2" 11 5/8" EXISTING MASONRY (VIF) 5" 2 1/2" 8 1/8" AIR-SEALING TAPE (TESCON PROFIL) TAPED TO AIR-BARRIER AND WINDOW FRAME REPAIR, REPOINT AND PARGE MASONRY TO CREATE PLUMB SURFACE DENSE PACK CELLULOSE INSULATION AIR TIGHT MEMBRANE (INTELLO PLUS) NON-CONTINUOUS WOOD BLOCKING 2 1/4" 1/8" 1/4"

P R O PO SED W IN DOW E LE VAT ION S CA L E : 1 ” = 1 ’ - 0 ” P RO P O S E D WI NDO W P L AN DE TAI L S S CA L E : 1 - 1 / 2 ” = 1 ’ - 0 ” P RO P O S E D WI NDO W S E CT I O N DE TAI L S CA L E : 1 - 1 / 2 ” = 1 ’ -0 ”

SLIDE 7

L-07

Exterior Modifications 459 14th Street, Brooklyn NY 11215

7" VIF 1/4" 1/4" 1" NEW EXTERIOR TRIM TO MATCH HISTORICAL PROFILE . EXACT DETAIL TO BE CONFIRMED DURING CONSTRUCTION EXTERIOR INTERIOR +/- 4'-11" 2'-3 1/2"

DIM. TO MATCH HISTORICAL PROPOR

NEW EXTERIOR TRIM TO MATCH HISTORICAL PROFILE. EXACT DETAIL TO BE CONFIRMED DURING CONSTRUCTION

PROPOSED WINDOWS - Elevations and Details

PR O POSE D WINDOW E LE VATION S CA L E : 1 ” = 1 ’ - 0 ” P RO P O S E D CAS I NG DE TAI L S S CAL E : 1 - 1 / 2 ” = 1 ’ - 0 ”

EXISTING MASONRY OPENING EXISTING BRICK FACADE EXISTING STONE SILL EXISTING MASONRY OPENING NEW BEWISO WINDOW UNIT IN EXISTING MASONRY OPENING 1 7/8" 1/4" 1/8" 2 1/4" NEW WOOD BRICK MOLD TO MATCH HISTORIC PROFILE ,

TYP. EXACT PROFILE TO BE

CONFIRMED DURING CONSTRUCTION NEW WOOD TRIM TO MATCH HISTORIC PROFILE, TYP. EXACT PROFILE TO BE CONFIRMED DURING CONSTRUCTION

SLIDE 8

L-08

Exterior Modifications 459 14th Street, Brooklyn NY 11215

PROPOSED WINDOWS - Images

B EWISO SIM ULATED D OU BLE HU NG 4 7 5 MO C K-U P B E WI S O S I MU L AT E D D O U B L E HU NG
