KOHA at OSA: Experiences and the road ahead Katalin Dob (Senior Librarian) dobok@ceu.hu Jzsef Gbor Bn (Database Developer) bonej@ceu.hu Integrated library system standards-compliant records: AACR2, MARC21, LCSH Books Periodicals


slide-1
SLIDE 1

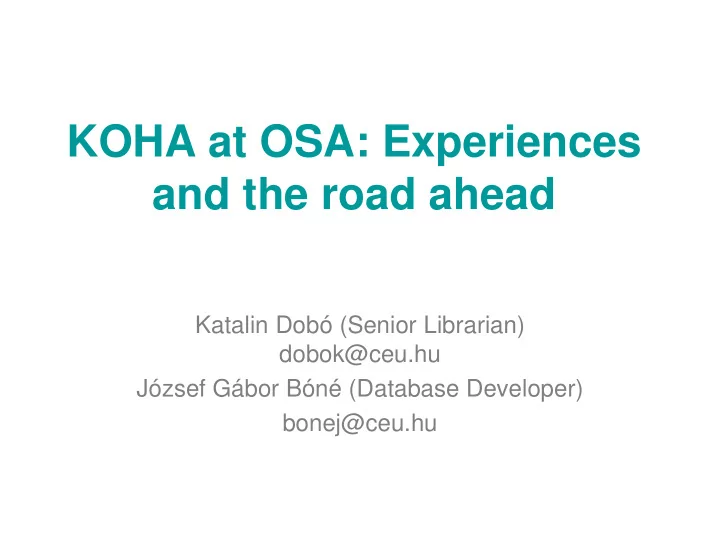

KOHA at OSA: Experiences and the road ahead

Katalin Dobó (Senior Librarian) dobok@ceu.hu József Gábor Bóné (Database Developer) bonej@ceu.hu

slide-2
SLIDE 2

Integrated library system

standards-compliant records: AACR2, MARC21, LCSH

Books

25.000 volumes Processed: 10% New acquisitions expected MARC compliant records LCSH

Periodicals

8.500 titles 42 languages represented Standardization: ongoing Inventory: ongoing Processed: 100% MARC compliant records

Film Library

2.800 titles Standardization: ongoing Processed: 100% New acquisitions expected Dublin core compliant records

slide-3
SLIDE 3

Current Architecture - Disadvantages

  • Separate databases, with different data

structure

  • OPAC data source isn’t updated

automatically

  • Standardized data export isn’t available
  • No support for advanced indexing and

searching

  • No support for data harvesting
slide-4
SLIDE 4

Koha: Supported Standards

Z39.50 client and server: LOC maintained standard which specifies a protocol for searching and retrieving information from remote databases SRU/W client and server: Search/Retrieval Via URL – XML focused search protocol for internet search queries OAI-PMH server: Open Archives Initiative – Protocol for Metadata Harvesting Metadata Standards for describing content: UNIMARC, MARC21 Export options: Bibtex, DC (XML), MARCXml, MARC, MODS (XML), RIS

slide-5
SLIDE 5

Installing Koha - Software Requirements

Operating System: Linux (Debian recommended) Windows (Possible, but unstable) Database engine: Mysql Zebra (Included in the package) Programming Language: PERL Web Server: Apache

slide-6
SLIDE 6

Installing Koha – Difficulties / Possible problems

  • Requires root access to the server, so it’s not a DIY, unless you are

the system administrator.

  • Installing PERL modules could be tricky.

(Pre-configured, CPAN, install from source)

  • Pay attention to user and group settings of the Linux when

configuring cron jobs. (Especially in case of zebra indexing)

  • Example data seems helpful at the beginning, but mostly it just

generates a lot of „cleaning” task.

  • Be careful when choosing UNIMARC or MARC21, you can’t change

it afterwards.

slide-7
SLIDE 7

Koha: An overview

Developed in New Zealand by Katipo Communications. The first installation went live in January

  • 2000. http://koha-community.org/

2002: support for MARC21, Z39.50 (developed by Nelsonville PL): increased interest in the

  • States. 2006: Zebra. 2003-2005: Serials, Statistics, Import tools and an advanced OPAC.

Commercial support firms — including LibLime, 2005- (www.liblime.com/), Equinox Software (www.esilibrary.com/esi/), ByWater Solutions, 2009-, Index Data in Copenhagen (www.indexdata.com/), or BibLibre in France, 2007- (www.biblibre.com/) Model of „sponsored benefit”. „Coopetition”. NGOs, non-profit institutions: EIFL promotes Koha and Evergreen in developing countries. www.eifl.net/foss Case studies: http://www.eifl.net/koha-foss-integrated-library-system or the Raoul Wallenberg Institution in Lund www.rwi.lu.se/library/workshopchrp.shtml National user groups: in Europe, Asia, Africa. KUDOS (Koha Users and Developers Open Source Group): http://kudos.koha.org/

slide-8
SLIDE 8

Community tools and resources

When talking about open source the answer is never "can't handle" -- it's "can't handle it yet" :) Nicole C. Engard Mailing lists: Koha-community.org/support/koha-mailing-lists IRC chat: Koha-community.org/get-involved/irc Bug tracker: Bugs.koha-community.org/bugzilla3/ Git repository: Git.koha-community.org Koha wiki: Wiki.koha-community.org Wiki.koha-community.org/wiki/IRC_Meetings Demos: http://koha-community.org/demo/ Video tutorials: http://www.bywatersolutions.com/section/learning-open-source

slide-9
SLIDE 9

Manuals, guides, tutorials

Tutorials, how-tos, FAQ

http://koha.org/documentation

Wayne State University 3.0 Reference Manual Developed by the LIS 7435 Integrated Library Systems class at the Library and Information Science School at Wayne State University in Detroit, Michigan in Winter 2010

http://koha.org/documentation/manual/wayne- state-university-koha-3.0-reference-manual

slide-10
SLIDE 10

Koha Translation Project

http://translate.koha-community.org/projects/32/

  • Koha 3.2 documentation

is being translated into 41 languages

  • Completed: Danish,

French, German, Icelandic, Spanish

  • Over 80 %: Greek, Italian,

Portuguese

  • Russian, Ukrainian,

Arabic, etc.

slide-11
SLIDE 11

Evaluation of the community

Source: Tristan Müller, OCLC Systems & Services. International digital library perspectives. Vol. 27, no. 1, 2011 www.emeraldinsight.com/1065-075X.htm

Koha: 19 companies offer software counselling, support, training, etc. Adopts two Marc formats (Marc21, Unimarc), available in more than 25 languages. Effectively structured community and contributions. Different administrator for each version. The size of its community: over 50 developers and contributors in dozens of countries. Evergreen: Rapid growth of its community. From consortia of public and academic libraries in the US and Canada. High level of user satisfaction.

slide-12
SLIDE 12
slide-13
SLIDE 13

Functionality

Available moduls

Administration (reports) Shared administration applies to bibliographic/authority records, patron records/preferences, budgetary funds, etc. All branches can be treated as independent, sharing a common catalog. Has a report generator. Options for assigning user privileges. Cataloging Works with both MARC21 and UNIMARC. Allows direct cataloging into MARC

  • format. Makes possible to set, add, modify zones and subzones.

Set of frameworks for different material types. Authority control Used for titles/names/subject headings. Authority control is based on MARC21. Authorized values for item or local use fields.

slide-14
SLIDE 14

Functionality: OPAC

OPAC: Functionality checklist

SEARCH

  • Basic search / simple keyword
  • Advanced search
  • Faceted navigation
  • Built-in spell-check feature (does not suggest alternative

spelling)

BROWSE

  • Browse collection
  • Shelf/call number browse

DISPLAY

  • Brief display list
  • Full record display
  • MARC display
  • Relevancy sorting of results
  • Book jacket display
  • Download / save records
  • E-mail records
  • Place/cancel hold/reservation
  • Patron login and account
  • RSS delivery of search results

My Koha For registered users only Aggregate records in a temporary collection (OPAC Cart)

  • r in a permanent collection (private or public OPAC

List). Add purchase suggestions Social cataloging features (Built-in ‘Web 2.0”) Catalog mashups: Displays book cover images (Amazon, Google) Tags and reviews from LibraryThing User contributions: tags, reviews, comments Clouds RSS feeds Zotero

„Open-source OPACs, especially that of Koha, seem to be

more innovative than their long-established proprietary counterparts as our investigation shows.” Yang & Hofmann, Information Technology and Libraries, Sept. 2010

slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17

Functionality (cont.)

Circulation functions

Real-time verification and validation Account expiration data Supports borrowing, renewal and return of materials Includes automated e-mails based on circulation requests or the receipts of circulation transactions Generates specific batch mailings or e-mail notices to patrons. Personal accounts (My Koha)

Acquisitions

Order tracking: limited to ordered-received-completed commands

Serials

Koha can link journal titles to full text via Serials Solutions. Supports: Routing periodicals Inventory control Check-in function Authorities Tracks internal routing lists to patrons. Manages subscription data and claims information.

slide-18
SLIDE 18

Integrated library system

standards-compliant records: AACR2, MARC21, LCSH

Books

25.000 volumes Processed: 10% New acquisitions expected MARC compliant records LCSH

Periodicals

8.500 titles 42 languages represented Standardization: ongoing Inventory: ongoing Processed: 100% MARC compliant records

Film Library

2.800 titles Standardization: ongoing Processed: 100% New acquisitions expected Dublin core compliant records

slide-19
SLIDE 19

Migration Steps

  • 1. Data Mapping
  • 2. Exporting MARC data
  • 3. Converting MARC data
  • 4. Staging MARC records
  • 5. Import to KOHA
slide-20
SLIDE 20

Migration Steps

Step 1. – Data Mapping Mapping Table Cataloger’s Reference Shelf -www.itsmarc.com/crs Step 2. – Data Export VBA Function Export result – MARC mnemonic text file (UTF-8) Bibliographic Records + Item Data Records (MARC 952)

slide-21
SLIDE 21

MARC mnemonic file - example

=LDR 00000nam 2200000 a 4500 =008 \\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\eng\\\ =041 \\$aeng =100 1\$aCook, Michael Garnet. =245 \0$aManaging records in records centres /$cMichael Cook. =260 \\$aLondon :$bInternational Records Management Trust ; International Council on Archives, $c1999. =300 \\$a94 p. =440 \0$aManaging public sector records : a study programme =952 \\$8ARC$aOSA$bOSA$eOSA Holdings$t1$yBK

slide-22
SLIDE 22

Migration Steps

Step 3. – Converting MARC text file to MARC records MarcEdit – MarcMaker Tool

http://people.oregonstate.edu/~reeset/marcedit/html/index.php

Step 4. – Stage MARC records Step 5. – Import Data

slide-23
SLIDE 23

Stage MARC records

slide-24
SLIDE 24

The road ahead

Final issues to be addressed before full migration takes place:

  • Setting up Authority control and Authorized values;
  • Migrating Russian & Ukrainian periodicals: solve the

problem of multiscript records;

  • Consolidating, mapping and migrating film library

records.

  • OPAC customization and design;
  • Documentation on local practices, training materials.
slide-25
SLIDE 25

The road ahead

  • Explore the functions and install an open-source cataloguing application,

developed by LibLime, called Biblios, which can be embedded in Koha.

  • It is a browser-based cataloging editor. Includes export function, so, records

can be exported in MARC21 or XML format.

  • Has a central Target Registry, seeded with over 2,000 Z39.50 servers.

Helps catalogers to find, create and share Z39.50 targets.

  • Hosted database of free records. Enables access to eight-million authority

records and over 25-million bibliographic records, through a free, downloadable database on biblios.net. Offers social cataloging features such as forums, private messaging, and chat.

  • Targets lower-budget customers with smaller collections than OCLC

members.

  • Koha is currently the only integrated library system that supports this API.
slide-26
SLIDE 26

The road ahead

Electronic resource management? Integrate social networks? Open Library
