Motivation Modeling Variant with cameras Discussion and conclusion Knowledge and seeing Franois Schwarzentruber (joint work with Philippe Balbiani, Olivier Gasquet and Valentin Goranko) cole Normale Suprieure Rennes May 13, 2019 1 /

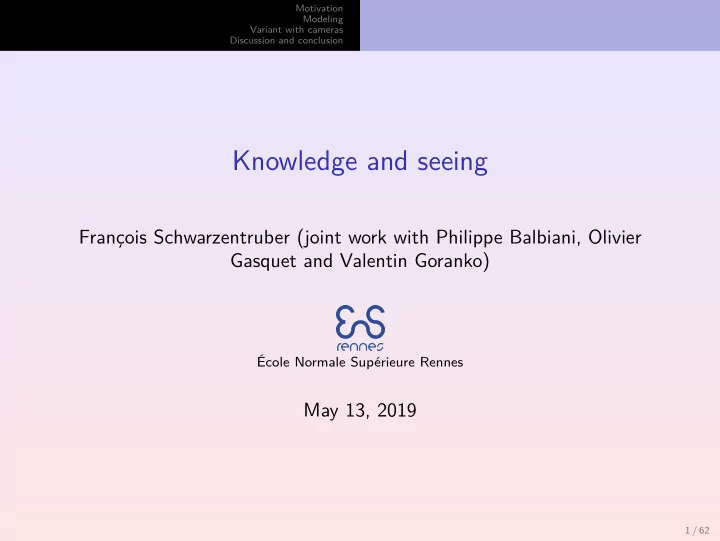

slide-1
SLIDE 1

Motivation Modeling Variant with cameras Discussion and conclusion

Knowledge and seeing

François Schwarzentruber (joint work with Philippe Balbiani, Olivier Gasquet and Valentin Goranko)

École Normale Supérieure Rennes

May 13, 2019

1 / 62

slide-2
SLIDE 2

Motivation Modeling Variant with cameras Discussion and conclusion

Outline

1

Motivation

2

Modeling

3

Variant with cameras

4

Discussion and conclusion

2 / 62

slide-3
SLIDE 3

Motivation Modeling Variant with cameras Discussion and conclusion

Scenario: agents equipped with vision devices, positioned in the plane / space.

c a b d

3 / 62

slide-4
SLIDE 4

Motivation Modeling Variant with cameras Discussion and conclusion

Scenario: agents equipped with vision devices, positioned in the plane / space.

c a b d (E.g., robots that cooperate)

4 / 62

slide-5
SLIDE 5

Motivation Modeling Variant with cameras Discussion and conclusion

Scenario: agents equipped with vision devices, positioned in the plane / space.

c a b d (E.g., robots that cooperate) Aim: To represent and compute visual-epistemic reasoning of the agents.

5 / 62

slide-6
SLIDE 6

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Outline

1

Motivation

2

Modeling Axiomatization Model checking

3

Variant with cameras

4

Discussion and conclusion

6 / 62

slide-7
SLIDE 7

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Modeling

Each agent has a sector (cone) of vision. a b c d e Assumptions (common knowledge): Agents are transparent points in the plane All objects of interest are agents Agents see infinite sectors Angles of vision are the same α No obstacles (yet)

7 / 62

slide-8
SLIDE 8

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Possible worlds

Let U be the set of unit vectors of R2. Definition A geometrical possible world is a tuple w = (pos, dir) where: pos : Agt → R2 dir : Agt → U dir(a) is the bisector of the sector of vision with angle α: pos(a) dir(a) α

8 / 62

slide-9
SLIDE 9

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Possible worlds

Let U be the set of unit vectors of R2. Definition A geometrical possible world is a tuple w = (pos, dir) where: pos : Agt → R2 dir : Agt → U dir(a) is the bisector of the sector of vision with angle α: pos(a) dir(a) α Cp,u,α: the closed sector with vertex at the point p, angle α and bisector in direction u. The region seen by a is Cpos(a),dir(a),α.

9 / 62

slide-10
SLIDE 10

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

An agent sees another one

Definition a sees b in w = (pos, dir) if pos(b) ∈ Cpos(a),dir(a),α. pos(a) pos(b) pos(c) dir(a) Example a sees a, a sees b. a does not see c.

10 / 62

slide-11
SLIDE 11

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Epistemic model Mflatland

Definition Mflatland = (W , (∼a)a∈AGT, V ) with: W is the set of all geometrical possible worlds; w ∼a u if agents a see the same agents in both w and u and these agents have the same position and direction in both w and u; V (w) = {a sees b | agent a sees b in w}. d b a c e ∼a b d e a c w u

In Hintikka’s World: Flatland

11 / 62

slide-12
SLIDE 12

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Outline

1

Motivation

2

Modeling Axiomatization Model checking

3

Variant with cameras

4

Discussion and conclusion

12 / 62

slide-13
SLIDE 13

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Disjunctive surprises!

| = (Kaa sees b) ∨ (Kaa✘✘ sees b); | = Ka(b sees c ∨ d sees e) ↔ Ka(b sees c) ∨ Ka(d sees e);

13 / 62

slide-14
SLIDE 14

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Some formulas are... Boolean

KaKbCKc,d,e(f sees g) a b c d e f g

14 / 62

slide-15
SLIDE 15

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

In 1D, only qualitative positions matter

a d c b a d c b Expressivity Qualitative positions are expressible in the language. sameDir(a, b) := (a sees b ↔ b✘✘ sees a) a isBetween b, c := (a sees b ↔ a✘✘ sees c);

15 / 62

slide-16
SLIDE 16

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Abstraction of the Kripke model in 1D

Definition abs(w) = {b sees c | Mrobots,1D, w | = b sees c} w u abs(w) abs(u) ∼a ∼abs

a

abstraction abstraction

16 / 62

slide-17
SLIDE 17

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Axiomatization in 1D

Propositional tautologies; (sameDir(a, b) ↔ sameDir(b, c)) → sameDir(a, c); ¬(a isBetween b, c) ∨ ¬(b isBetween a, c); (Kaa sees b) ∨ (Kaa✘✘ sees b); a sees b → ((Kab sees c) ∨ (Kab✘✘ sees c)); χ → ˆ Kaψ where χ and ψ are completely descriptions with χ ∼abs

a

ψ; Kaϕ → ϕ. [Balbiani et al. Agents that look at one another. Logic Journal of IGPL. 2012] Definition A complete decription is a conjunction that: contains a sees b or a✘✘ sees b for all agents a, b; is satisfiable.

17 / 62

slide-18
SLIDE 18

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

In 2D, the qualitative representation is a open issue

Example Kb(a sees b ∧ a sees d → a sees c) a b c d a b c d true false

18 / 62

slide-19
SLIDE 19

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Abstraction of the Kripke model in 2D

Definition abs(w) = {b sees c | Mrobots,2D, w | = b sees c} w u abs(w) abs(u) ∼a ∼abs

a

abstraction abstraction

19 / 62

slide-20
SLIDE 20

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Outline

1

Motivation

2

Modeling Axiomatization Model checking

3

Variant with cameras

4

Discussion and conclusion

20 / 62

slide-21
SLIDE 21

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Model checking

Input: a description of a world w (and not a WHOLE Kripke model!); a formula ϕ. Output: yes if w | = ϕ.

21 / 62

slide-22
SLIDE 22

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Complexity

lineland flatland PSPACE-complete PSPACE-hard, in EXPSPACE translation to R-FO-theory

22 / 62

slide-23
SLIDE 23

Motivation Modeling Variant with cameras Discussion and conclusion Axiomatization Model checking

Reduction to R-FO-theory

Standard translation from modal logic to first-order logic Kap rewrites in ∀u, (wRu) → p(u) [Blackburn et al., modal logic, 2001] Adapted translation from modal logic with seeing to the R-FO-theory Ka(b sees c) rewrites in ∀pos′

a∀pos′ b...∀dir ′ a∀dir ′ b...

{

b∈AGT[(posb ∈ Cpos(a),dir(a),α) → (pos′ b = posb ∧ dir ′ b = dirb)]∧

[(posb ∈ Cpos(a),dir(a),α) → (pos′

b ∈ Cpos(a),dir(a),α)}

→ (pos′

c ∈ Cpos(b),dir(b),α)

23 / 62

slide-24
SLIDE 24

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Outline

1

Motivation

2

Modeling

3

Variant with cameras Semantics Abstraction works! A PDL variant for cameras Model checking

4

Discussion and conclusion

24 / 62

slide-25
SLIDE 25

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Outline

1

Motivation

2

Modeling

3

Variant with cameras Semantics Abstraction works! A PDL variant for cameras Model checking

4

Discussion and conclusion

25 / 62

slide-26
SLIDE 26

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Agents are cameras

Cameras Can turn; Can not move. Common knowledge

  • f the positions of agents;
  • f the abilities of perception;

26 / 62

slide-27
SLIDE 27

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Semantics: restricted set of worlds

Set of worlds Given a fixed pos′ : AGENTS → R2, worlds are w = (pos, dir) s. th. pos = pos′ a b c d e

27 / 62

slide-28
SLIDE 28

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Semantics: restricted set of worlds

Set of worlds Given a fixed pos′ : AGENTS → R2, worlds are w = (pos, dir) s. th. pos = pos′ a b c d e

28 / 62

slide-29
SLIDE 29

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Semantics: restricted set of worlds

Set of worlds Given a fixed pos′ : AGENTS → R2, worlds are w = (pos, dir) s. th. pos = pos′ a b c d e

29 / 62

slide-30
SLIDE 30

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Semantics: restricted set of worlds

Set of worlds Given a fixed pos′ : AGENTS → R2, worlds are w = (pos, dir) s. th. pos = pos′ a b c d e

30 / 62

slide-31
SLIDE 31

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Semantics: Mcameras

Definition Mcameras is Mflatland where we publicly announced the current positions

  • f the agents.

d b a c e ∼a d b e a c w u In Hintikka’s World: Flatland with common knowledge of the positions

31 / 62

slide-32
SLIDE 32

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Outline

1

Motivation

2

Modeling

3

Variant with cameras Semantics Abstraction works! A PDL variant for cameras Model checking

4

Discussion and conclusion

32 / 62

slide-33
SLIDE 33

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Abstraction of the Kripke model Mcameras

Definition abs(w) = {b sees c | Mcameras, w | = b sees c} w u abs(w) abs(u) ∼a ∼abs

a

abstraction abstraction

33 / 62

slide-34
SLIDE 34

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

34 / 62

slide-35
SLIDE 35

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

35 / 62

slide-36
SLIDE 36

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

36 / 62

slide-37
SLIDE 37

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

37 / 62

slide-38
SLIDE 38

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

38 / 62

slide-39
SLIDE 39

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

39 / 62

slide-40
SLIDE 40

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

40 / 62

slide-41
SLIDE 41

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

41 / 62

slide-42
SLIDE 42

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

42 / 62

slide-43
SLIDE 43

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

43 / 62

slide-44
SLIDE 44

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

44 / 62

slide-45
SLIDE 45

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

45 / 62

slide-46
SLIDE 46

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

46 / 62

slide-47
SLIDE 47

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

47 / 62

slide-48
SLIDE 48

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

48 / 62

slide-49
SLIDE 49

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

49 / 62

slide-50
SLIDE 50

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

50 / 62

slide-51
SLIDE 51

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

51 / 62

slide-52
SLIDE 52

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f

52 / 62

slide-53
SLIDE 53

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Spectrum of vision

Family of vision sets of agent a Sa = {{b}, ∅, {c}, {d}, {d, f }, {d, f , e}, {f , e}, {e}}. a b c d e f NB: each Sa is computed in O(k log k) steps, where k = #(Agt).

53 / 62

slide-54
SLIDE 54

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Outline

1

Motivation

2

Modeling

3

Variant with cameras Semantics Abstraction works! A PDL variant for cameras Model checking

4

Discussion and conclusion

54 / 62

slide-55
SLIDE 55

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

PDL Language

Grammar for formulas ϕ, ψ, . . . ::= a sees b | ¬ϕ | ϕ ∨ ψ | [π]ϕ [π]ϕ: after all executions of program π, ϕ holds.

55 / 62

slide-56
SLIDE 56

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Programs

Grammar for programs π . . . ::=

  • a

| ϕ? | π; π′ | π ∪ π′ | π∗

  • a : a turns;

ϕ?: the program succeeds when ϕ is true;

56 / 62

slide-57
SLIDE 57

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Translating epistemic operators in programs

Ka is simulated by:    

  • a sees b1? ∪ (a✘✘

sees b1?; b1 )

  • ; . . . ;
  • a sees bn? ∪ (a✘✘

sees bn?; bn )

  • πa

   

57 / 62

slide-58
SLIDE 58

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Outline

1

Motivation

2

Modeling

3

Variant with cameras Semantics Abstraction works! A PDL variant for cameras Model checking

4

Discussion and conclusion

58 / 62

slide-59
SLIDE 59

Motivation Modeling Variant with cameras Discussion and conclusion Semantics Abstraction works! A PDL variant for cameras Model checking

Model checking

Theorem Model checking of PDL for cameras is PSPACE-complete. [Gasquet, Goranko, et al. Big Brother Logic: Logical modeling and reasoning about

agents equipped with surveillance cameras in the plane, AAMAS 2014]

[JAAMAS2015]

59 / 62

slide-60
SLIDE 60

Motivation Modeling Variant with cameras Discussion and conclusion

Outline

1

Motivation

2

Modeling

3

Variant with cameras

4

Discussion and conclusion

60 / 62

slide-61
SLIDE 61

Motivation Modeling Variant with cameras Discussion and conclusion

Summary: Visual-epistemic reasoning of agents

Epistemic language involving atomic propositions ‘a sees b’. Semantics in geometric and Kripke models. 1D case and 2D case with cameras (spectrum of vision):

Finite abstraction in the 1D case and in the 2D case with cameras (spectrum of vision). Optimal PSPACE model checking.

Open problem for the full 2D case: finite abstraction?

61 / 62

slide-62
SLIDE 62

Motivation Modeling Variant with cameras Discussion and conclusion

Future work

Obstacles; Moving agents/cameras in the plane: mathematically more complex, finite abstractions may not work; Agents/cameras in the 3D space.

62 / 62
