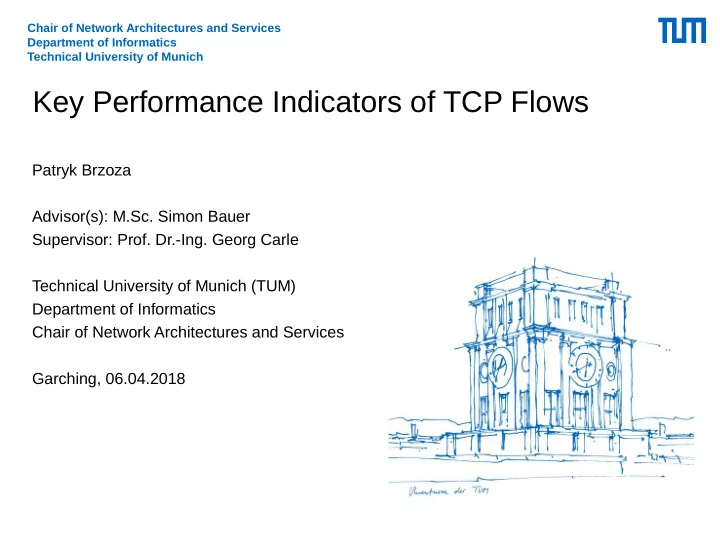

Chair of Network Architectures and Services Department of Informatics Technical University of Munich Key Performance Indicators of TCP Flows Patryk Brzoza Advisor(s): M.Sc. Simon Bauer Supervisor: Prof. Dr.-Ing. Georg Carle Technical

slide-1
SLIDE 1

Chair of Network Architectures and Services Department of Informatics Technical University of Munich

Key Performance Indicators of TCP Flows

Patryk Brzoza Advisor(s): M.Sc. Simon Bauer Supervisor: Prof. Dr.-Ing. Georg Carle Technical University of Munich (TUM) Department of Informatics Chair of Network Architectures and Services Garching, 06.04.2018

slide-2
SLIDE 2

2

Patryk Brzoza | Key Performance Indicators of TCP Flows

Agenda

Introduction Protocol Background KPI Overview Measurement Methods Data Processing Deriving Network Events Conclusion

slide-3
SLIDE 3

3

Patryk Brzoza | Key Performance Indicators of TCP Flows

Introduction

  • Studies: 95% of total traffic volume provided by TCP [1]
  • TCP Flows play crucial role for overall performance

 How to evaluate this and which metrics are important?

slide-4
SLIDE 4

4

Patryk Brzoza | Key Performance Indicators of TCP Flows

Protocol Background: Transport Control Protocol (TCP)

  • Reliable and connection-oriented communication
  • Connection: two unidirectional flows
slide-5
SLIDE 5

5

Patryk Brzoza | Key Performance Indicators of TCP Flows

KPI Overview

  • Performance of TCP constrained by its features

 Deriving metrics: Key Performance Indicators (KPIs)

Latency Indicators TCP Flow KPIs Throughput Indicators Other Indicators Packet Loss Indicators

slide-6
SLIDE 6

6

Patryk Brzoza | Key Performance Indicators of TCP Flows

KPI Overview: Latency Indicators

Temporal quality and responsiveness metrics of flows Round Trip Time (RTT):

  • Interval between sending segment and receiving

acknowledgement Connection Setup Time (CST):

  • Interval for establishing

connection

slide-7
SLIDE 7

7

Patryk Brzoza | Key Performance Indicators of TCP Flows

KPI Overview: Packet Loss Indicators

slide-8
SLIDE 8

8

Patryk Brzoza | Key Performance Indicators of TCP Flows

KPI Overview: Throughput Indicators

slide-9
SLIDE 9

9

Patryk Brzoza | Key Performance Indicators of TCP Flows

KPI Overview: Other Indicators

Metrics that do not fit in previous categories Response Time (RT):

  • Processing time between last packet of response and first packet
  • f request

Reset Rate (RT):

  • Relation of RST segments to overall transmitted segments
slide-10
SLIDE 10

10

Patryk Brzoza | Key Performance Indicators of TCP Flows

Measurement Methods

  • Data must be measured first before processing it:

Measurement Methods Active Passive Generate probe segments Capture segments from link ✘ ✔

slide-11
SLIDE 11

11

Patryk Brzoza | Key Performance Indicators of TCP Flows

Measurement Methods

  • How many monitors should be set up and at which location? [3]

 Algorithms can determine good solutions

slide-12
SLIDE 12

12

Patryk Brzoza | Key Performance Indicators of TCP Flows

Measurement Methods

  • Possible measurement setup [4]:
  • Differentiation between bidirectional and unidirectional

measurement

slide-13
SLIDE 13

13

Patryk Brzoza | Key Performance Indicators of TCP Flows

Measurement Methods

Bidirectional approach:

  • Extract KPIs by correlating segments

Unidirectional approach:

  • Determine flow type first [4]:

Feedback Download Unknown

?

slide-14
SLIDE 14

14

Patryk Brzoza | Key Performance Indicators of TCP Flows

Data Processing

  • Measurements can generate vast amounts of data
  • Use data mining approaches to reduce it [5]:

− Find relationships − Filter out unnecessary packets

slide-15
SLIDE 15

15

Patryk Brzoza | Key Performance Indicators of TCP Flows

Data Processing: RTT calculation

slide-16
SLIDE 16

16

Patryk Brzoza | Key Performance Indicators of TCP Flows

Data Processing: RTT calculation

Unidirectional measurements: − SYN-based method: determine segment distance depending on flow type − Flight method: group packets by inter-arrival time, measure distance of groups

slide-17
SLIDE 17

17

Patryk Brzoza | Key Performance Indicators of TCP Flows

Network Event Derivation

  • KPIs give valuable information for intrusion detection, e.g.:

− Throughput spikes: flood-based DoS attacks [5]

− High Reset Rate: port scan attacks

  • Can also expose errors and misconfigurations
slide-18
SLIDE 18

18

Patryk Brzoza | Key Performance Indicators of TCP Flows

Conclusion

  • TCP flow performance constrained
  • Measurable with various classifiable KPIs
  • Collect data with either active or passive measurements
  • Reduce data amount with mining approaches
  • Extract KPIs from bi- or unidirectional measurements
  • Detect intrusion attacks or network errors using KPIs
slide-19
SLIDE 19

19

Patryk Brzoza | Key Performance Indicators of TCP Flows

Questions? Thank you for your attention! Any questions?

Contact: brzoza@in.tum.de

slide-20
SLIDE 20

20

Patryk Brzoza | Key Performance Indicators of TCP Flows
