Kk aml ca TV and Radio Tower 1/69 BALKAR Engineering & Consulting Ltd. Co. Founded in early 70s by rfan Bal oglu Involved in structural designing of many significant national&international projects 2/69

slide-1
SLIDE 1

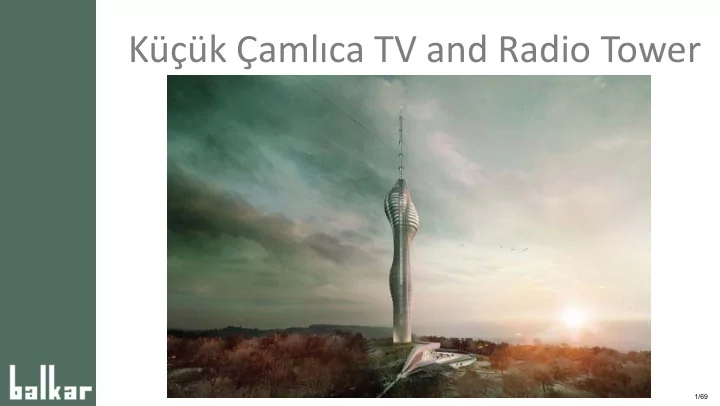

Küçük Çamlıca TV and Radio Tower

1/69

slide-2
SLIDE 2

BALKAR Engineering & Consulting Ltd. Co.

‐ Founded in early 70’s by İrfan Balıoglu ‐ Involved in structural designing of many significant national&international projects

2/69

slide-3
SLIDE 3

Küçük Çamlıca TV and Radio Tower

On behalf of Ministry of Transport Maritime Affairs & Communication Istanbul Metropolitan Municipality lead the project Architects of the project

3/69

slide-4
SLIDE 4

Küçük Çamlıca TV and Radio Tower

CONTENT ‐ Building Information ‐ Design Philosophy ‐ Relevant Standards of Practice ‐ Material Properties & Geological Conditions ‐ Loads, Assumptions & Serviceability Criteria ‐ Structural System ‐ Design Stages & Analysis Methods

  • Performance Acceptance Criteria
  • Linear Analysis
  • Nonlinear Analysis

‐ Summary & Conclusions

4/69

slide-5
SLIDE 5

Building Information

‐ Located in Küçük Çamlıca Peak in Uskudar District ‐ Planned for digital broadcasting of TV, Radio, GSM etc. ‐ 383.50 m height from foundation level ‐18.00 to the antenna top level +365.50 ‐ Consist of three main parts;

  • Reinforced Concrete Shaft
  • Transition Zone
  • Stainless Steel Antenna

5/69

slide-6
SLIDE 6

Parts of the Tower

Stainless Steel Antenna Transition Zone Reinforced Concrete Shaft

6/69

slide-7
SLIDE 7

Design Philosophy

7/69

slide-8
SLIDE 8

Standarts of Practice

Governing Codes;

  • İstanbul Seismic Design Code for Tall Buildings 2008
  • İstanbul Wind Design Code for Tall Buildings 2008
  • Specification for Buildings to be Built in Seismic Zones 2007
  • TS 500 Requirements for Design and Construction of RC Structures 2000
  • TS 648 Guidelines for Design and Construction of Steel Structures 1980
  • ANSI TIA‐222 Structural Standard for Antennas 2009
  • TS 498 Design Loads for Buildings 1997

8/69

slide-9
SLIDE 9

Standarts of Practice

International Codes;

  • ACI 318‐11 Building Code Requirements for Structural Concrete & Commentary
  • ASCE 7‐10 Minimum Design Loads for Buildings and Other Structures
  • ASCE 41‐13 Seismic Evaluation and Retrofit of Existing Buildings
  • AISC Steel Construction Manual
  • Los Angeles Tall building Code
  • San Francisco Tall Building Code
  • TBI Design guidelines for Performance‐Based Design of Tall Buildings 2010
  • IBC 2012 International Building Code
  • ACI MCP 2012 Manual of Concrete Practice
  • AISC 360‐10 Specifications for Structural Steel Buildings
  • AISC 341‐10 Seismic provisions for Structural Steel Buildings

9/69

slide-10
SLIDE 10

Material Properties & Geological Survey

‐ Material Properties Concrete;

10/69

slide-11
SLIDE 11

Material Properties & Geological Survey

‐ Material Properties Reinforcement;

11/69

slide-12
SLIDE 12

Material Properties & Geological Survey

‐ Material Properties Structural Steel;

12/69

slide-13
SLIDE 13

Material Properties & Geological Survey

‐ Material Properties Stainless Steel;

13/69

slide-14
SLIDE 14

Material Properties & Geological Survey

‐ Geological Conditions

  • Soil Classification(Based on SBBSZ‐2007)

: Z1

  • Spectrum Characteristic Periods

: TA = 0.10 s TB = 0.30 s

  • Unit Weight of Soil

: γ =25.00 kN/m3

  • Allowable Soil Stress

: σem = 130.00 kN/m3

  • Vertical Soil Subgrade Coefficient

: Kv = 200 000 kN/m3

  • Horizontal Soil Subgrade Coefficient

: Kh = 20 000‐80 000 kN/m3 (varying with depth)

  • Internal Friction Angle

: ϕ = 39°

  • Cohesion

: c=30 kN/m2

  • Friction Angle between soil and base. wall :

δ = 0.0

  • Seismic Zone

: 1

  • Peak Ground Acceleration

: A0 = 0.4g

14/69

slide-15
SLIDE 15

Load, Assumptions & Serviceability Criteria

‐Load Cases

Descriptions of the design loads; DL : Dead Loads SDL : Super Imposed Dead Loads LL : Live Loads WX : Wind Loads(X direction) WY : Wind Loads(Y direction) WMZ : Wind Loads(Z direction) SNW : Snow Loads HS : Static Soil Loads HD : Dynamic Soil Loads HW : Hydrostatic Loads IYBDYD2X : Earthquake Loads(X direction) IYBDYD2Y : Earthquake Loads(Y direction) EQ Records : Nonlinear Time History(X and Y directions)

15/69

slide-16
SLIDE 16

Load, Assumptions & Serviceability Criteria

‐Load Assumptions Wind loads;

COMPARATIVE SUMMARY OF WIND LOADS STORY Story Height Story Level Fx (kN) Fy (kN) Mz (kNm) RWDI 1. IYBRY RWDI 2. Aeroe. RWDI 1. IYBRY RWDI 2. Aeroe. RWDI 1. IYBRY RWDI 2. Aeroe. FOUND. 0.00 0.00 0.00 0.00 2.60 2.40 0.00 0.00 2.10 2.00 0.00 ‐ 9.00 9.00 STORY1 4.50 4.50 39.20 32.60 2.00 1.80 30.30 109.00 1.60 1.40 109.00 ‐ 17.00 17.00 STORY2 4.50 9.00 39.30 52.27 3.50 3.10 30.50 125.00 2.80 2.50 125.00 ‐ 44.00 44.00 STORY3 4.50 13.50 39.40 65.14 94.00 113.40 30.90 121.00 91.20 100.50 121.00 ‐ 62.00 62.00 ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ STORY76 5.00 355.50 7.30 9.14 12.50 11.40 13.40 1.00 18.00 15.50 0.00 ‐ 0.70 0.70 STORY77 5.00 360.50 7.60 9.17 13.20 12.30 14.70 1.00 19.40 16.70 0.00 ‐ 0.70 0.70 STORY78 5.00 365.50 7.70 9.20 8.80 8.00 14.80 1.00 13.60 11.60 0.00 ‐ 0.50 0.50 SUM 6299.20 9963.51 8495.50 8030.70 5671.90 10392.00 6225.00 5970.50 9934.00 0.00 11961.80 11961.80 16/69

slide-17
SLIDE 17

Load, Assumptions & Serviceability Criteria

‐Load Assumptions Code Spectrum for Design Stage‐II;

17/69

slide-18
SLIDE 18

Load, Assumptions & Serviceability Criteria

‐Load Assumptions EQ Records for Design Stage‐III;

18/69

slide-19
SLIDE 19

Load, Assumptions & Serviceability Criteria

‐ Other Assumptions

  • Effective Cracked Section Stiffness;
  • Mass Assumption;

M = 1.0DL+1.0SDL+0.1LL

  • Damping Ratio;

5% for Design Stage‐I 2.5% for Design Stage‐II

19/69

slide-20
SLIDE 20

Load, Assumptions & Serviceability Criteria

‐ Serviceability Criteria

  • Vertical Deflections

; For imposed loads : L/360 For total loads : L/240

  • Deflection in Tower Core;
  • Deflection in Antenna; a relative horizontal displacement of 1.5% of the

cantilever height

20/69

slide-21
SLIDE 21

Structural System

CONCRETE STEEL ‐ Foundation Design ‐ Podium Roof Design ‐ Basement Wall Design ‐ Platform Steel Design ‐ Tower Core Design ‐ Observation Deck Design ‐ Buttress Design ‐ Vertical Deflections & Floor Vibrations ‐ Link Beam Design ‐ Transition Zone Design ‐ Drift Check ‐ Antenna Design ‐ Backstay Effects ‐ Horizontal Deflection Checks

21/69

slide-22
SLIDE 22

Design Stages & Analysis Methods

22/69

slide-23
SLIDE 23

Performance Exceptance Criteria

23/69

slide-24
SLIDE 24

Linear Analysis

‐ Design Stage II ‐ Operational Performance Criteria ‐ D2 Event (%10/50) ‐ Structure remains almost elastic ‐ Mode combination method(Response spectrum analysis) for 5% damped spectrum under D2 event. ‐ Response modification factor of 1.5 will be used. ‐ Shear walls are modeled by shell element with cracked section stiffness of 0.8 times the gross section stiffness. ‐ Coupling beams are modeled by frame element with cracked section stiffness of 0.15 times the gross section stiffness. ‐ Flexural beams are modeled by frame element with cracked section stiffness of 0.30 times the gross section stiffness. ‐ Execute with ETABS2013

24/69

slide-25
SLIDE 25

Foundation

25/69

slide-26
SLIDE 26

Foundation

26/69

slide-27
SLIDE 27

Basement Wall

27/69

slide-28
SLIDE 28

Basement Wall

28/69

slide-29
SLIDE 29

Basement Wall

29/69

slide-30
SLIDE 30

Evaluation of The Tower Core

ORIGINAL STAGE‐1 STAGE‐2

30/69

slide-31
SLIDE 31

Tower Core

31/69

slide-32
SLIDE 32

Tower Core

32/69

slide-33
SLIDE 33

Tower Core

33/69

slide-34
SLIDE 34

Tower Core

34/69

slide-35
SLIDE 35

Buttress

35/69

slide-36
SLIDE 36

Buttress

36/69

slide-37
SLIDE 37

Buttress

37/69

slide-38
SLIDE 38

Buttress

38/69

slide-39
SLIDE 39

Buttress

39/69

slide-40
SLIDE 40

Link Beam

40/69

slide-41
SLIDE 41

Link Beam

Story Spandrel bw(m) d(m) ln(m) Vd(kN) <1.5bwdfctde Check Asw/s (cm2/m) Mp(kNm) Ve=2Mp/ln (kN) <0.22bwdfcde Check Vw(kN) Check STORY45 S1‐S2 0.40 2.10 1.20 927.47 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY44 S1‐S2 0.40 2.10 1.20 1609.25 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY43 S1‐S2 0.40 2.10 1.20 1560.73 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY42 S1‐S2 0.40 2.10 1.20 1477.21 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY41 S1‐S2 0.40 2.10 1.20 1421.78 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY40 S1‐S2 0.40 2.10 1.20 1354.03 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY39 S1‐S2 0.40 2.10 1.20 1322.70 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY38 S1‐S2 0.40 2.10 1.20 1283.98 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY37 S1‐S2 0.40 2.10 1.20 1249.23 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY36 S1‐S2 0.40 2.10 1.20 1248.36 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY35 S1‐S2 0.40 2.10 1.20 1232.35 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY34 S1‐S2 0.40 2.10 1.20 1203.94 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY33 S1‐S2 0.40 2.10 1.20 1147.75 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY32 S1‐S2 0.40 2.10 1.20 882.93 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY31 S1‐S2 0.40 2.10 1.20 722.16 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY21 S1‐S2 0.40 2.10 1.20 1086.34 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY20 S1‐S2 0.40 2.10 1.20 1254.01 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY19 S1‐S2 0.40 2.10 1.20 1343.12 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY18 S1‐S2 0.40 2.10 1.20 1460.28 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY17 S1‐S2 0.40 2.10 1.20 1482.71 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY16 S1‐S2 0.40 2.10 1.20 1465.11 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY15 S1‐S2 0.40 2.10 1.20 1513.29 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY14 S1‐S2 0.40 2.10 1.20 1455.63 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK STORY13 S1‐S2 0.40 2.10 1.20 1175.82 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK BASE1 S1‐S2 0.40 2.10 1.20 2253.92 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK BASE2 S1‐S2 0.40 2.10 1.20 2184.94 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK BASE3 S1‐S2 0.40 2.10 1.20 1829.12 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK BASE4 S1‐S2 0.40 2.10 1.20 1617.69 4154.46 OK 76.00 3600.00 6000.00 9609.60 OK 6800.3 OK

41/69

slide-42
SLIDE 42

Drift Check & Backstay Effect

42/69

slide-43
SLIDE 43

Podium Roof

43/69

slide-44
SLIDE 44

Podium Roof

44/69

slide-45
SLIDE 45

Observation Deck

45/69

slide-46
SLIDE 46

Observation Deck

46/69

slide-47
SLIDE 47

Vertical Deflection & Floor Vibration

47/69

slide-48
SLIDE 48

Vertical Deflection & Floor Vibration

48/69

slide-49
SLIDE 49

Transition Zone

49/69

slide-50
SLIDE 50

Antenna

50/69

slide-51
SLIDE 51

Horizontal Deflection

51/69

slide-52
SLIDE 52

Nonlinear Analysis

‐ Design Stage III ‐ Damage Control Performance Criteria ‐ D3 Event (%2/50) ‐ Concrete core wall and coupling beams will be allowed to exercise plastic

  • deformation. The rest of the structural elements, such as steel platforms and

antennas, will remain elastic. ‐ Nonlinear time‐history analysis will be performed with at least 7 pairs of strong ground motion record . ‐ Shear walls are modeled by spread plasticity model(Shell‐fiber). ‐ Coupling beams are modeled by frame element with lumped plasticity model. ‐ Flexural beams are modeled by frame element with lumped plasticity model. ‐ Execute with PERFORM3D

52/69

slide-53
SLIDE 53

Tower Core

53/69

slide-54
SLIDE 54

Tower Core

54/69

slide-55
SLIDE 55

Tower Core

55/69

slide-56
SLIDE 56

Tower Core

56/69

slide-57
SLIDE 57

Buttress

57/69

slide-58
SLIDE 58

Buttress

58/69

slide-59
SLIDE 59

Buttress

59/69

slide-60
SLIDE 60

Drift Check

60/69

slide-61
SLIDE 61

Observation Deck

61/69

slide-62
SLIDE 62

Observation Deck

62/69

slide-63
SLIDE 63

Transition Zone

63/69

slide-64
SLIDE 64

Transition Zone

64/69

slide-65
SLIDE 65

Antenna

65/69

slide-66
SLIDE 66

Antenna

66/69

slide-67
SLIDE 67

Drift Check

Drifts are about 6%

67/69

slide-68
SLIDE 68

Summary & Conclusion

Progress of the Project; ‐ Detailed&Superposed Architectural Drawing ‐ Seismic Hazard Report & Soil Investigation Report ‐ Formwork Plans with Approvals ‐ Basis of Design ‐ Mathematic Modelling & Analysis ‐ Preliminary Reports ‐ Checks & Section Design(RC or Steel) ‐ Structural Details(Slabs,Beams, Columns) Drawing ‐ Final Reports

68/69

slide-69
SLIDE 69

Thank You For Your Patience...

69/69
