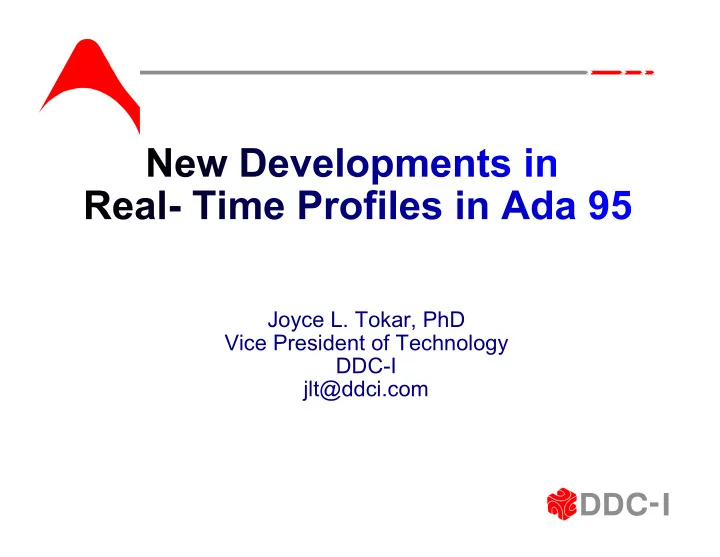

Joyce L. Tokar, PhD Vice President of Technology DDC-I - - PowerPoint PPT Presentation

Joyce L. Tokar, PhD Vice President of Technology DDC-I jlt@ddci.com

Programming Domains

• Numerics
• Information Systems
• Systems Programming
• Real-Time Systems
• Distributed Systems
• Safety and Security

Profiles

• Implementer Defined
• User Defined
• Ravenscar
• Extensible Protected Types
• Dynamic Ceiling Priorities
• Others

ISO Standard and Addendums

SCORE

ISO/IEC 8652:1995 – Ada Reference Manual

Core

• Basic Features
• Real-Time Features
• Object-Oriented Enhancements
• Megaprogramming Support
• Interfaces

Annexes

• Numerics
• Information Systems
• Systems Programming
• Real-Time
• Safety and Security
• Distribution

SCORE

Systems Programming

Access to the underlying hardware (machine instructions, hardware devices, etc.); Access to the underlying operating or runtime system; Low-level, direct interrupt handling; Unchecked access to parts of the run-time model of the implementation; Specifying the representation and allocation of program data structures; Access to shared variables in a multitasking program; Access to the identity of tasks and the allocation of data on a per- task basis.

SCORE

Real-Time Systems

Priority Model Dispatch scheduling model entry queue discipline Specification of the effect of the abort statement Restrictions on the tasking model Resolution of a number of timing issues A distinct monotonic clock Synchronous and asynchronous task control protocols.

SCORE

Safety and Security

Understanding program execution Reviewing object code Restricting language constructs whose usage might complicate the demonstration of program correctness

SCORE

Distributed Systems

Partitions Communication Between Partitions

• Remote Call Interface (RCI)
• Remote Procedure Calls (RPCs)

Partition Communication Subsystem Consistency of A Distributed System

SCORE

Programming Domains

• Numerics
• Information Systems
• Systems Programming
• Real-Time Systems
• Distributed Systems
• Safety and Security

Profiles

• Implementer Defined
• User Defined
• Ravenscar
• Extensible Protected Types
• Dynamic Ceiling Priorities
• Others

ISO Standard and Addendums

SCORE

Implementer Defined

A definition of an execution profile by an Ada vendor that uses the pragma Restrictions and other characteristics of the Special Needs Annexes to refine the behavior of the Ada Execution Environment to meet the needs of a specific domain. Such a system, generally results in an Ada Run-Time System (RTS) which is optimized to meet the requirements specified. DDC-I

• Tasking with FIFO Queuing, Heap Management and Exception

Handling

• Tasking with Priority Queuing, Heap Management and

Exception Handling

• No Tasking, No Heap Management and Exception Handling
• No Tasking, No Heap Management and No Exception

Handling

SCORE

Domain Defined

A definition that uses the pragma Restrictions and

• ther characteristics of the Special Needs Annexes to

refine the behavior of the Ada Execution Environment to meet the needs of a specific domain. The user expects that a vendor suppling such a system will provide an Ada Run-Time System (RTS) which is

• ptimized to meet the requirements specified. The

user community expects common implementations from all suppliers. Aonix – Raven University of Madrid (GNAT) – GNAT/ORK

SCORE

Ravenscar Profile

The Ravenscar Profile was defined at the International Real-Time Ada Working Group (IRTAWG-8) meeting to meet the needs of the hard real-time, safety-critical, high-integrity community. This profile was reviewed and refined at IRTAWG-9. The Ravenscar Profile defines an execution environment that supports the use of a simple subset

• f Ada tasking and protected types which may be

analyzed for their timing properties and which demonstrate deterministic execution. The suggested profile was reviewed and refined at IRTAWG-10 in September 2000.

SCORE

During the IRTAWG-10 meeting, a number of extensions were considered for Ravenscar. The following are the recommendations from this session:

• Potentially Blocking Operations – While executing within a

protected object, a Ravenscar compliant implementation shall raise Program_Error for all potentially blocking operations except those which occur in a foreign language domain.

SCORE

More recommendations from IRTAWG-10:

• Heap – A Ravenscar compliant implementation shall make

no explicit use of the heap in the RTS. The implementation shall not use the storage pool other than for the execution of allocations ==> No_Implicit_Heap_Allocations is added to the Ravenscar Restrictions.

• Dynamic Interrupt Handlers – When using the

No_Dynamic_Interrupt_Handlers restriction, the user does not use any of the subprograms defined in the package Ada.Interrupts. Therefore, an implementation may provide a package that does not include the procedures or that only provides null bodies for these routines or raises Program_Error.

SCORE

Silence

The Ravenscar Profile shall stay silent on the following items at this time:

• Standard Storage Pools – the Ravenscar Profile will say

nothing on the issue of the use of standard storage pools at this time.

• Priority Range – the Ravenscar Profile does not suggest

any change to the definition of the range of values for type priority.

• Floating Point Types – there are no recommendations in

the profile on floating point types.

SCORE

A number of items were considered for further investigation as candidates for inclusion in the Ravenscar profile. None of these items are in the recommended profile at this time:

• Exceptions – what should be done about exceptions?
• Shared Variables – it would be nice to require an

implementation to specify how long an atomic

• peration will be non-preemptible.
• Controlled Types – should the

No_Nested_Finalization restriction be required by Ravenscar? Currently viewed as being implicit by some members of IRTAWG.

SCORE

More research is needed in the following areas:

• Dynamic Priorities – needed for earliest deadline first

scheduling.

• Dynamic Task Creation & Destruction – library level access

types and dynamic arrays of tasks are interesting features for the profile.

• Protected Object Entries – multiple entries and multiple

elements in the entry queue are desirable extensions.

• Task entries – the addition of task entries and the select

statement should be evaluated.

• Conditional entry calls – maybe in the future.
• Dynamic Protected Objects – maybe in the future at the

library level.

• Timed entry calls – maybe in the future.

SCORE

Extensible Protected Types

The objective here is to provide better integration between the concurrent features of Ada and the object-oriented features. The basic model is to supply the syntax and semantics needed to extend protected types in much the same manner as is done for tagged types:

SCORE

protected type T1 is new T with procedure W(...); – overrides T.W procedure Z(...); – a new method private .... end T1; protected type T is tagged procedure W(...); procedure X(...); entry Y(...); private .... end T; type PT is access protected type T’Class; P : PT := new ...; – some type in the hierarchy ..... P.X(...); – all external calls dispatch

A key component is the extension of barrier conditions. As a protected object is extended, the barrier condition on an entry that overrides a parent entry must strengthen the parent's entry barrier condition. A child can call a parent entry as a "procedure" and therefore the call is not potentially suspending.

SCORE

Outstanding Issues

Whether a call to the parent entry should check the barrier and raise Program_Error when there is a failure; presently, the EPT model does not check the parent barrier; Post processing of a requeue to a parent's entry call should

• r should not be done; presently, the EPT forbids post-

processing; Should abstract entries have a guard, an optional guard, or should the guard be forbidden; presently, the EPT model forbids guards on abstract entries; Are the mix-in inheritance characteristics sufficient; Integration with the features in the Real-Time, Systems Programming, and Safety and Security Annexes; EPTs and interrupt handlers needs to be studied further as does the entire priority model.

SCORE

Dynamic Ceiling Priorities

Changing the Ceiling Priority of a Protected Object dynamically is one effective way to implement mode change. Several issues arise when considering this model in light of the entire Ada language as well as within the domain defined by the Ravenscar Profile.

SCORE

Issues to be Considered

How do changes of the ceiling priority occur? What are the effects of changing the ceiling priority

• f a protected object during the execution of a

protected action? What is the behavior for the interactions between the change in the ceiling priority of a protected object and the requeue operation?

SCORE

Recommendations

The proposed solution should not require an additional lock. It should minimize the potential for priority inversion. The behavior of nested protected objects also needs to be studied and worked out. Finally, the rules should be consistent with the dynamic task priorities and should result in minimum impact on the existing semantics for requeue, tasking, etc.

SCORE

Other Options

Generic Formal Task Types Round-Robin Scheduling, FIFO within priority Sporadic Server Scheduling Non-preemptive, FIFO within priority CPU Time Accounting

SCORE

Programming Domains

• Numerics
• Information Systems
• Systems Programming
• Real-Time Systems
• Distributed Systems
• Safety and Security

Profiles

• Implementer Defined
• User Defined
• Ravenscar
• Extensible Protected Types
• Dynamic Ceiling Priorities
• Others

ISO Standard and Addendums

SCORE

What is the next step? Following the Technical Corrigenda ...

• Amendments
• Technical Reports
• Independent Standards

Input ideas to the Ada Rapporteur Group (ARG)

SCORE
