Japans experience in incentivizing the development of high-efficiency coal-fired power plants 13 November , 2012 SAKANASHI, Yoshihiko Electric Power Development Co., Ltd. (J-POWER) Contents 1.Japans High-Efficiency Technology 1-1

SLIDE 1

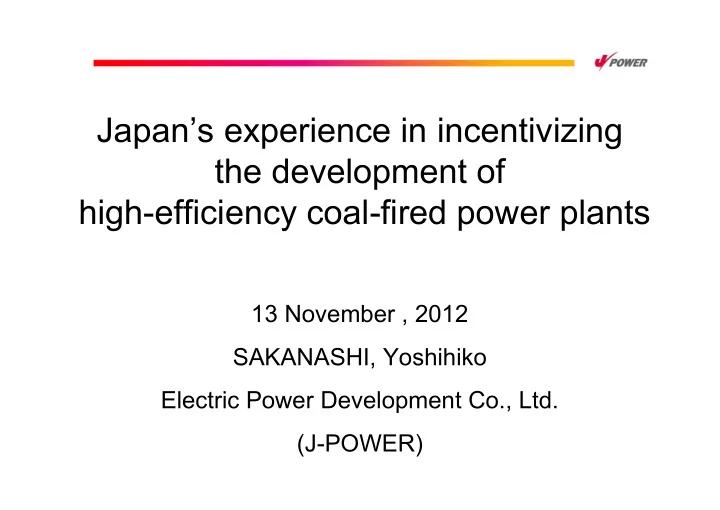

Japan’s experience in incentivizing the development of high-efficiency coal-fired power plants

13 November , 2012 SAKANASHI, Yoshihiko Electric Power Development Co., Ltd. (J-POWER)

SLIDE 2

1.Japan’s High-Efficiency Technology 1-1 Energy Efficiency of Coal-Fired Power Plants 1-2 SOx and NOx emissions of Coal-Fired Power Plants 1-3 J-POWER’s Thermal Efficiency Development 1-4 Maintaining Thermal Efficiency at its Designed Level 2.Power Mix before Fukushima 3.Power Mix after Fukushima 3-1 Power Mix after Fukushima 3-2 Opposition to the “Strategy” and Reaction of the Cabinet 4.J-POWER’s challenges 4-1 Coal-Fired Power to be Re-valued in Japan 4-2 Future Technology Development for High-Efficiency 4-3 Technology Development for CCS-Ready 4-4 Contribute to Worldwide CO2 Emissions Cut through CCTs 5.Summary

SLIDE 3

3 1-1 Energy Efficiency of Coal-Fired Power Plants

27% 29% 31% 33% 35% 37% 39% 41% 43% 45%

1989 1991 1993 1995 1997 1999 2001 2003 2005 2007

J-POWER Japan Germany UK+Ireland United States China India

Source: Ecofys International Comparison of Fossil Power Efficiency and CO2 Intensity 2010

Thermal Efficiency of Coal-Fired Power Generation （LHV basis）

SLIDE 4

4

3.3 1.2 3.4 1.6 1.4 1.4 3.4 3.5 0.7 0.8 0.8 0.6 0.2 0.2 0.01 0.06

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0

USA （2005） Canada （2005） UK （2005） France （2005） Germany （2005） Italy （2005） Japan （2007） Isogo （2007） Sulfer Oxide (SOx) Nitrogen Oxide (NOx)

〔g/kWh〕

Source: Federation of Electric Power Companies, Japan (and actual data for Isogo) J-POWER’s Isogo Power Station

1-2 SOx and NOx emissions of Coal-Fired Power Plants

SLIDE 5

石炭火力蒸気条件の推移

35 40 45 1965年 1970年 1975年 1980年 1985年 1990年 1995年 2000年 2005年 2010年

蒸気条件

Development of Coal Power plant steam conditions

500ＭＷ（1981） 1,000ＭＷ（1990） 1,050ＭＷ（2000）

Transition of single unit capacity

Takehara #1 （250MW） 566／538℃ 16.6MPa Matsushima （500MW） 538／538℃ 24.1MPa Matsuura #1 （1000MW） 538／566℃ 24.1MPa Matsuura #2 （1000MW） 593／593℃ 24.1MPa Tachibanawan （1050MW×2U） 600／610℃ 25.0MPa Isogo New #1 （600MW） 600／610℃ 25.0MPa Isogo New #2 （600MW） 600／620℃ 25.0MPa

Designed energy Efficiency (%) (Gross / HHV)

41～43％ 40～42％ 38～40％

Sub-Critical（Drum type） Super-Critical（SC）

Ultra-Super-Critical (USC）

1-3 J-POWER’s Thermal Efficiency Development

Improved Thermal Efficiency through ■ Upgrading steam condition ■ Scale-up

5

1965 1970 1975 1980 1985 1990 1995 2000 2005 2010

Vertical Line: Steam Condition ; primary/ reheat temperature & pressure

SLIDE 6

6 1-4 Maintaining Thermal Efficiency at its Designed Level

20 30 35 36 37 38 39 40 Thermal Efficiency (%, HHV) 10 20 30 40 Year since Commissioning Takasago Power Station Unit 1(red) & Unit 2(blue) Coal-fired Plant in Country-X Designed Efficiency Efficiency Degradation

Source: Federation of Electric Power Companies, Japan (actual data for Takasago)

SLIDE 7

7

2. Power Mix before Fukushima

After Oil Crisis (1973,1979)  Away from Oil : Development of Nuclear and Renewables  High-efficiency power technology development

Kyoto Protocol (1997) : CO2 emissions 6% cut from 1990 level
Law of Alternative Energy (2009) : Non-fossil power portfolio regulation
“Basic Energy Plan” (June 2010) :

13% 29% LNG-fired Oil-fired Coal-fired Nuclear Renewable 11% 25% 53% 29% 2% 7% 21% 9% Power mix ▲30% ▲6%（～2012） CO2 emissions （compared to1990） 2030 2009

SLIDE 8

3-1 Power Mix after Fukushima

8 Japan’s “Innovative Energy and Environment Strategy” (Sep 2012)

Realization of a society without nuclear power

→ Mobilize all policy resources to enable zero operation of nuclear power plants in the 2030’s

38% 29% LNG-fired Oil-fired Coal-fired Nuclear Renweable 21% 24% 0% 26% 6% 10% 35% 10% Power mix 2030’s 2010

SLIDE 9

3-2 Opposition to the “Strategy” and Reaction of the Cabinet 9 The Cabinet in disarray

“Strategy” failed to be endorsed by the Cabinet.
Retardation of formulating new “Basic Energy Plan”

Uncertainty of Japan's energy policy Oppositions from Keidanren and other organizations

Jeopardizes stable power supply
Inconsistency with economic growth strategy
Loss of contribution opportunities to peacefully use of nuclear

energy worldwide Concerns from various countries

USA: Nuclear proliferation problems
France: Nowhere to go for the fuel reprocessed in France

SLIDE 10

4-1 Coal-Fired Power to be Re-valued in Japan

10 Continuous efforts for;

・Development of High-Efficiency Coal Power ・Readiness for CCS ・Contribution to worldwide CO2 emissions reduction through CCTs

Critical Path: Demonstrate Potential of Coal for Climate Change Issue Energy-Mix to be ■Well-balanced-mix ■Flexibility and Substitutability Time for Coal to be Re-valued in Japan

SLIDE 11

4-2 Future Technology Development for High-Efficiency 11

（Coal gasification）（Pulverized coal-fired）

IGFC

(Integrated Coal Gasification Fuel Cell Combined Cycle)

IGCC

(Integrated Coal Gasification Combined Cycle)

A-USC

(Advanced-USC)

USC

(Ultra Super Critical)

Sub-Critical

Efficiency: at least 55% Efficiency: 46～48% Efficiency: 46% Efficiency: 41% Efficiency: 36% (Net / HHV basis)

Next generation coal-fired power plant Latest coal-fired Ageing coal-fired

F iscal Y ear 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021

O ptim ization Su rvey R e seach

Environm ental Assessm ent Construction & Dem onstration T est

Prepa ration O ptim ization

P repa ra tio n

E nvironm ental A ss ess me nt

D esign & C onstruction D em ons tration T est D esign & C onstruction

D e m o ns tration T es t

CO 2 separation & recovery IG CC

Osaki project ~Oxygen-blown Coal Gasification~

Osaki (Hiroshima Pref.)

Future Technology Development

Demonstration project for large scale IGCC[170MWe] Construction starts in 2013, demonstration from 2016 J-POWER and Chugoku-Electric joint project

SLIDE 12

4-3 Technology Development for CCS-Ready

12

1. Osaki Project
2. Australia Callide Project (Oxy-Fuel and CCS)

3.Japan CCS Co., Ltd.

Established in 2008 by Japanese leading companies (J-POWER participates)  Investigating the operability of large-scale CCS demonstration projects in Japan Conducting surveys and studies on 3 sites

Power plant site: Callide A Power Station (30 MW) Potential site for CO2 storage: about 300 km west of the power station

Demonstration project for oxy-fuel CO2 capture and storage Japan and Australia joint project (J-POWER participates) Demonstration project for large scale IGCC CO2 capture

Demo. Site

SLIDE 13

Proven CCTs with Preferred Finance, Technical Transfer, Joint Venture etc. Wide deployments

f latest CCTs

Coal saving and CO2 emissions reduction

CCTs Commercialization

Further Development of CCTs Cash Return, CO2 Credit etc. Major Coal-use Countries

Japan

4-4 Contribute to Worldwide CO2 Emissions Cut through CCTs

Government Bilateral /Multilateral agreement

Support

Government

13

New Coal-fired Project in Indonesia Large scale base-load power plant in Central Java 1000MW X 2units, one of the largest scale Asian IPP USC for the first time in Indonesia

Project Location: 250 km east of Jakarta

SLIDE 14

14 5 Summary Demonstrating the potential of coal

Development of Higher-Efficiency Coal Power
Development of CCS technology
Dissemination of High-Efficiency technology to the world

Before Fukushima : Nuclear Dependency / Coal-Phasing-out

Time for Coal to be re-valued in Japan

Energy-Mix to be ■Well-balanced-mix ■Flexibility and Substitutability After Fukushima : Nuclear-Phasing-

ut, Confusion
