Investment Analysts And Fund Managers Visit Union Platinum Mine 7 May 2004 Agenda Location Safety and Environment Geology Resources and Reserves Mining Method Production Metallurgy Operating Cost Capital

slide-1
SLIDE 1
slide-2
SLIDE 2

Investment Analysts And Fund Managers Visit

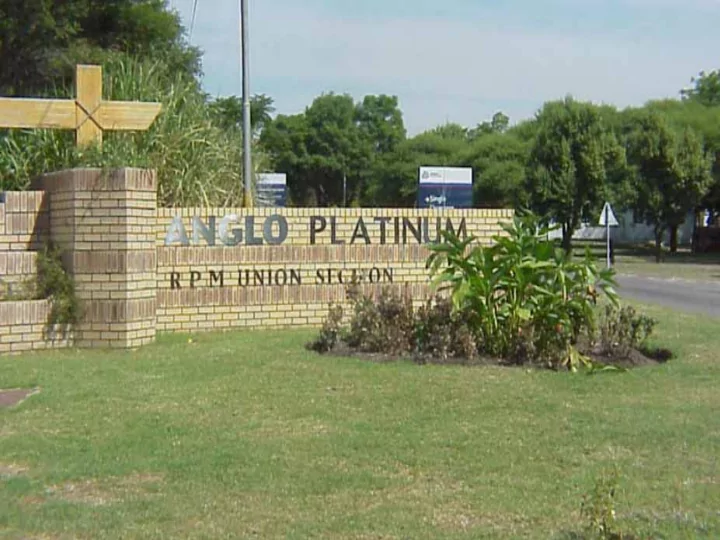

Union Platinum Mine

7 May 2004

slide-3
SLIDE 3

Agenda

  • Location
  • Safety and Environment
  • Geology
  • Resources and Reserves
  • Mining Method
  • Production
  • Metallurgy
  • Operating Cost
  • Capital Program
  • Human Resources
  • Key Business Issues
slide-4
SLIDE 4

Location

slide-5
SLIDE 5

% U % U % U % U % U % U % U % U % U

AMANDELBULT UNION BAFOKENG/RASIMONE STYLDRIFT JV RUSTENBURG POTGIETERSRUST PLATINUMS LIMITED TWICKENHAM DER BROCHEN LEBOWA PLATINUM MINES

ð

LIMPOPO MPUMALANGA GAUTENG NORTH-WEST

RUSTENBURG

PRETORIA

WITBANK MOKOPANE (POTGIETERSRUS) POLOKWANE (PIETERSBURG) BELA BELA (WARMBATHS)

JOHANNESBURG

NORTHAM PANDORA JV BOOYSENDAL JV MODIKWA

BURGERSFORT LYDENBURG

PASCHASKRAAL JV

Legend

Bushveld Complex Anglo Platinum Anglo Platinum - Joint Venture Impala Platinum Mines Lonmin PLC Northam Platinum Limited Southern Era Merensky UG2 Platreef

UNKI PROJECT

Botswana Zimbabwe Mozambique Namibia

±

Republic

  • f

South Africa Polokwane Smelter

20 10 Kilometres

UNION LOCATION

slide-6
SLIDE 6

Plan of RPM Union

slide-7
SLIDE 7

SHE Strategy

slide-8
SLIDE 8

! Creating a culture of safety, participation, quality, excellence and being performance driven.

  • By being focused on:-
  • Safe and sound mining practices
  • Employee development
  • Employee relations
  • Cost efficiency
  • Care for the environment
  • Strategic management which will ensure ore body optimization,

sustainable delivery and growth

Union Section’s Vision

We at Union Section Support the Vision & Values of Anglo Platinum by:

slide-9
SLIDE 9
  • Care for our people
  • Environmental care
  • Consistent performance
  • Continuous improvement
  • Ensure sustainability

Union Section’s Ethos

slide-10
SLIDE 10

RECENT SAFETY MILESTONES ON THE ROAD TO EXCELLENCE

  • 1.4 Million underground fatality free shifts.
  • Surface Section
  • 6,5 million fatality free shifts
  • fatality free for more than 9 years.
  • Achieved ISO 14001 accreditation.
slide-11
SLIDE 11

Union Section LTIFR– 2000 to 2003

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

ACTUAL 4.42 3.17 1.31 1.25 2000 2001 2002 2003

slide-12
SLIDE 12

Safety Strategy

Greater participation by all Behaviour Based Safety Restructuring of SHE resource Safer methods and equipment Permanent Engineering solutions Contractor Management Fall of Ground prevention strategy

slide-13
SLIDE 13

Geology

slide-14
SLIDE 14

! (

AMANDELBULT UNION ROODERAND BAFOKENG/RASIMONE RUSTENBURG PANDORA JV RUSTENBURG

´

10 Kilometres

UNION LOCATION ON LANDSAT IMAGE

slide-15
SLIDE 15

Merensky - 20 Year Plan

Union Section

2004 - 08 2009 - 13 2014 - 18 2019 - 23

N

slide-16
SLIDE 16

Union Section

UG2 - 20 Year Plan

2004 - 08 2009 - 13 2014 - 18 2019 - 23

N

slide-17
SLIDE 17

ALL DRILLING SPACING

LEGEND UNDERGROUND DRILLHOLES SURFACE DRILLHOLES

slide-18
SLIDE 18

m

36 18 54

CONTACT REEF LENS REEF

MERENSKY REEF

MAIN REEF SINGLE CHROME POTHOLE REEF POTHOLE REEF SHALLOW SLUMP REEF SLUMP REEF

Pseudo Marker TARENTAAL XENOLITH PYROXENITE PYROXENITE

UG1 CHROMITITE LAYER UG2 CHROMITITE LAYER UG2 SLUMP

Mottled Anorthosite NORITE

PYROXENITE

DOWNDIP UPDIP

UNION ECONOMIC STRATIGRAPGY

slide-19
SLIDE 19

MINERALISATION

" Merensky Reef Mining predominantly Regional Pothole Merensky Reef. Consistent width and grade Dip angle 18 degrees

" UG2 Reef

Consistent width and grade Leaders mined with main seam The UG2 structure on the flanks is more complex than the central area. Minor slumping Dip angle 18 degrees

slide-20
SLIDE 20

HW PYROXENITE MAIN REEF PEGMATOID FOOTWALL ANORTHOSITE

5 15 10 20 25

MAIN REEF CHARACTERISTICS

AVE~220CM

slide-21
SLIDE 21

10 20 30 40 50 60

g/t

  • o o
  • o o

O /\ /\ O O /\ /\ O O /\ /\ O O /\ /\ O O /\ /\ O O /\ /\ O O /\

FELSPATHIC HARTZBURGITE PEGMATOIDAL FELSPATHIC PYROXENITE PYROXENITE

POTHOLE REEF CHARACTERISTICS

20CM

slide-22
SLIDE 22

5 10 15

g/t

O O O O O O O O

  • /\

/\ O Feldspathic Harzburgite Chromitite Chromitite Chromitite Pyroxenite Pyroxenite Pegmatoidal Felspathic Pyroxenite

Main Seam Leader seams

80CM 155CM

UG2 CHARACTERISTICS

slide-23
SLIDE 23

MAJOR STRUCTURAL FEATURES

DYKES FAULTS

30M 25M 200M 150M 500M

slide-24
SLIDE 24

Resources and Reserves

slide-25
SLIDE 25

RESOURCES

8.16 31.7 Total Resources 9.00 3.8 Indicated Resources 8.04 27.9 Inferred Resources Merensky Reef 4E Ounces 4E In situ Grade Tonnage (Mt) Category Ore Body 4.63 159.4 Total Resources 4.38 5.8 Indicated Resources 4.64 153.6 Inferred Resources UG2 Reef 4E Ounces 4E In situ Grade Tonnage (Mt) Category Ore Body 1.16 78.4 Indicated Resources

Tailings

4E Ounces 4E In situ Grade Tonnage (Mt) Category Ore Body

slide-26
SLIDE 26

Reserves

6. 6.67 67 20 20.0 .0 Total Reserves 6. 6.64 64 15 15.1 .1 Probable Reserves 6. 6.75 75 4. 4.9 Proved Reserves Merensky Reef 4E Ounces 4E Head Grade Tonnage (Mt) Category Ore Body 3. 3.93 93 47 47.1 .1 Total Reserves 3. 3.90 90 34 34.1 .1 Probable Reserves 4. 4.01 01 13 13.1 .1 Proved Reserves UG2 Reef 4E Ounces 4E Head Grade Tonnage (Mt) Category Ore Body

slide-27
SLIDE 27

MONTHS AVAILABLE ORE RESERVES

5 10 15 20 25 1999 2000 2001 2002 2003

YEAR MONTHS

slide-28
SLIDE 28

Mining Method

slide-29
SLIDE 29

Mining Methods Mine Design

Scattered Merensky Breast special precautions

Mined Conventional Breast Mined

Mechanised Low Profile with Belts

Mined Low Profile Breast mining Decline Section Spud & Richard Shaft UG2

Merensky

Mining Methods

Mechanised F/W Access with conventional Mining

slide-30
SLIDE 30

Tamrock Low Profile Roof Bolter

slide-31
SLIDE 31

Sulzer Rig

slide-32
SLIDE 32

4 South Portal

slide-33
SLIDE 33

4 B Portal 4 B Portal

slide-34
SLIDE 34

Production

slide-35
SLIDE 35

Equivalent Refined Pt Ounces 250000 260000 270000 280000 290000 300000 310000 320000 330000 Ounces Ounces 307300 291,100 269,500 276,700 318,200 1999 2000 2001 2002 2003

Union Section

slide-36
SLIDE 36

Tons Milled 2000000 2500000 3000000 3500000 4000000 4500000 5000000 5500000 6000000 6500000 Tons Milled Tons Milled 3749000 4159000 4466000 4562000 5882000 1999 2000 2001 2002 2003

History

slide-37
SLIDE 37

Metallurgy

slide-38
SLIDE 38

Metallurgical processing

UG2 Mer 4E % of 4E Total % 100.00% 100.00% 4E Platinum (% of 4E split) 60.74% 61.73% 4E Palladium (% of 4E split) 27.52% 28.96% 4E Rhodium (% of 4E split) 11.18% 7.34% 4E Gold (% of 4E split) 0.56% 1.96% Pt Iridium (% of Pt split) 6.37% 3.89% Pt Osmium (% of Pt split)

  • Pt

Ruthenium (% of Pt split) 24.24% 17.20% Prill Splits

slide-39
SLIDE 39

Ivan Plant Tailings Retreatment

slide-40
SLIDE 40

Operating Costs

slide-41
SLIDE 41

RPM Union Section

Cash on-mine cost per equivalent refined ounces

500 1,000 1,500 2,000 2,500 3,000 3,500 4,000 4,500 Cash on-mine cost per equivalent refined ounce 2786 3489 3876 4232 2000 2001 2002 2003

slide-42
SLIDE 42

RPM Union Section

Cash on-mine cost per ton milled

150 175 200 225 250 Cash on-mine cost per ton milled 195 211 235 229 2000 2001 2002 2003

slide-43
SLIDE 43

Pie Graph - Cost Comparison 2003

Labour 40% Contractors 9% Stores 31% Utilities 6% Sundries 6% Amortisation 8%

Labour Contractors Stores Utilities Sundries Amortisation

slide-44
SLIDE 44

COST INITIATIVES

  • Concentration of Production
  • Lower Cost Decline Production
  • On-mine Cost Reduction
slide-45
SLIDE 45
  • Move from deep mining to shallow mining.
  • Move from conventional mining to safer, mechanised mining where

appropriate and cost effective.

  • Convert current high profile mechanised to low profile mechanised.
  • Increase UG2 M2 production at Spud shaft and Declines.
  • Extra UG2 to be milled at Ivan plant.
  • Mining, Metallurgical, People optimisation.

STRATEGY STRATEGY

slide-46
SLIDE 46

Capital Programmes

slide-47
SLIDE 47

Capital Expenditure 2000 to 2003

100000 200000 300000 400000 500000 600000 700000 2000 2001 2002 2003 R'000

slide-48
SLIDE 48
  • 4B and 4South
  • Mortimer plant
  • Airfields tailings dam
  • Infrastructure

Capital Programs

Main items 2002 and 2003

slide-49
SLIDE 49

4 South Portal

slide-50
SLIDE 50
slide-51
SLIDE 51

Fully Automatic Low Profile Roof Bolter Fully Automatic Low Profile Roof Bolter

slide-52
SLIDE 52

Tamrock EJC Low Profile Loader

slide-53
SLIDE 53

Tip-point chain feeder

slide-54
SLIDE 54

Mortimer UG2 Expansion to 230000 tpm

slide-55
SLIDE 55

Slag Flotation Plant

slide-56
SLIDE 56

Airfields Tailings Dam & Tailings Thickener

slide-57
SLIDE 57

Larox Filter

slide-58
SLIDE 58

Surface Railway

slide-59
SLIDE 59

Northam Road Upgrades

slide-60
SLIDE 60

Human Resources

slide-61
SLIDE 61

Human Resources strategy

Union HR Summary of Strategic Thrusts

  • Business Planning
  • Performance Management
  • Employee Communications
  • Work Design
  • Human Resources Development
  • Recruitment Selection & Assessments
  • Employment Equity
  • Employee Relations
  • Socio-Economic Development
slide-62
SLIDE 62

Human Resources

  • Employee Relations

– Employee relations are sound and are guided by the employee relations policy which has been signed and accepted by all players.

  • Employment of local employees.

– 43.5 % of the UNION SECTION’S labour is from local communities

  • Contractors

– Contractors will be utilized in accordance with established policies and procedures when and where it can be done in the most cost effective way.

  • Training

– UNION SECTION has both underground and surface training centers. – Anglo Platinum training department is certified ISO9001 compliant. (The

  • n mine facility compliance audit is scheduled for 13 May 2004.)

– Focus for 2004 will be supervisory development, mentorship, implementation of FOG regulations, Strata Control and Rock Engineering training.

slide-63
SLIDE 63

Key Business Issues

  • Efficiency Improvements
  • Cost Optimisation
  • HIV/Aids
  • Charter Compliance
