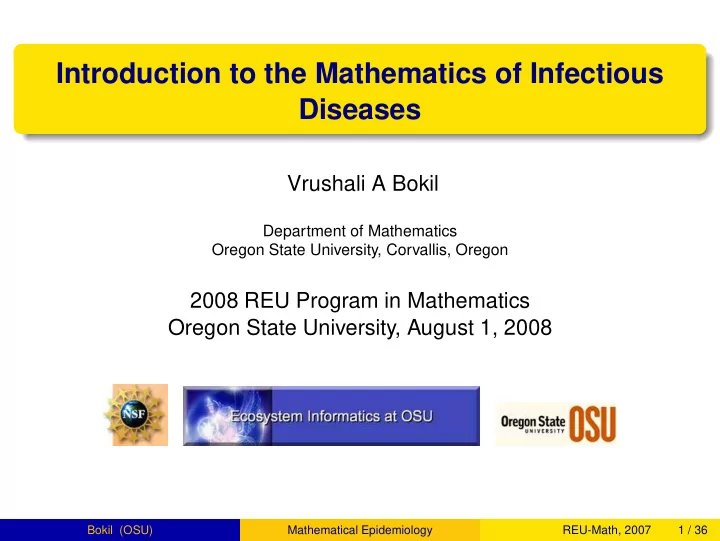

Introduction to the Mathematics of Infectious Diseases

Vrushali A Bokil

Department of Mathematics Oregon State University, Corvallis, Oregon

2008 REU Program in Mathematics Oregon State University, August 1, 2008

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 1 / 36

slide-2
SLIDE 2

Outline

1

The Beginnings of Mathematical Epidemiology

2

Importance of Mathematical Modeling

3

Basic Compartmental Deterministic Models Basic Ideas and Assumptions The SIS, SIR, SEIR Models

4

The SIR Epidemic Model Numerical Simulations Conditions for an Epidemic The Basic Reproduction Number

5

The SIR Endemic Model Computing Endemic Equilibrium Numerical Example

6

Limitations

7

Conclusions

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 2 / 36

slide-3
SLIDE 3

The Beginnings of Mathematical Epidemiology

1

Bernoulli: 1760

Daniel Bernoulli formulated and solved a model for smallpox in 1760 Using his model, he evaluated the effectiveness of inoculating of healthy people against the smallpox virus.

2

Hamer: 1906

Hamer formulated and analyzed a discrete time model in 1906 to understand the recurrence of measles epidemics.

3

Ross: 1911

Ross developed differential equation models for malaria as a host-vector disease in 1911. He won the second nobel prize in medicine

4

Kermack and McKendrick: 1926

Extended Ross’s models. Obtained the epidemic threshold results.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 3 / 36

slide-4
SLIDE 4

Main Scope of Mathematical Modeling in Epidemiology Bailey We need to develop models that will assist the decision making process by helping to evaluate the consequences of choosing one of the alternative strategies available. Thus, mathematical models of the dynamics of a communicable disease can have a direct bearing on the choice of an immunization program, the optimal allocation of scarce resources, or the best combination of control or eradication techniques.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 4 / 36

slide-5
SLIDE 5

Main Scope of Mathematical Modeling in Epidemiology Okubo A mathematical treatment is indispensable if the dynamics of ecosystems are to be analyzed and predicted quantitatively. The method is essentially the same as that used in such fields as classical and quantum mechanics, molecular biology and biophysics... One must not be enamoured of mathematical models; there is no mystique associated with them... physics and mathematics must be considered as tools rather than sources of knowledge, tools that are effective, but nonetheless dangerous if misused.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 5 / 36

slide-6
SLIDE 6

Why do Mathematical Modeling? Clarification

The model formulation process clarifies assumptions, variables, and parameters Models provide conceptual results such as thresholds: basic reproduction numbers, contact numbers, and replacment numbers. Thresholds are critical values for quantities such as population size

  • r vector density that must be exceeded in order for an epidemic to
  • ccur.

Simulated Experimentation

Mathematical models and computer simulations are useful experimental tools for building and testing theories, assesing quantitative conjectures, answering specific questions, determining sensitivities to changes in parameter values and estimating key parameters from data

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 6 / 36

slide-7
SLIDE 7

Why do Mathematical Modeling? (cont) Complex Transmission Interactions

Transmission Interactions in a Population are very complex: It is difficult to comprehend the large scale dynamics of disease spread. Understanding these interaction characteristics can lead to better approaches to decreasing the transmission of diseases. Mathematical models are used in comparing, planning implementing, evaluating, and optimizing various detection, prevention, therapy and control programs.

Realistic Experimenting is Impossible

Experiments with Infectious disease spread in human populations are often impossible, Unethical or expensive. Data is sometimes available after the fact from naturally occurring epidemics and is incomplete due to under reporting. Epidemiological modeling can contribute to the design and analysis

  • f episdemiological surveys, suggest crucial data that should be

collected, identify trends, make general forecasts, and estimate the uncertainty in forecasts.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 7 / 36

slide-8
SLIDE 8

Basic Ideas and Assumptions Deterministic Models For a given model structure, chosen (fixed) parameter values, and particular initial conditions, the model produces the same output each time it is simulated. This is one way of simulating infectious disease dynamics Reasonable if the sizes of the populations are large. Compartmental Models Populations under study are divided into compartments. Assumptions are made about the nature and time rate of transfer from one compartment to another. Rates of transfer between compartments are expressed mathematically as derivatives with respect to time of the sizes of the compartments. Models are systems of differential equations

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 8 / 36

slide-9
SLIDE 9

Basic Ideas and Assumptions (cont) Crucial Idea!!! The derivative function represents the rate of change of that function Assumptions The community size is constant over the duration of the epidemic and is a large number, call it N. The infection is transmitted primarily by person-to person contacts (e.g., measles) Individuals are homogeneous and mix uniformly. Transmission rates, removal rates are constant.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 9 / 36

slide-10
SLIDE 10

Basic Compartmental Deterministic Models

SIS, SIR, SEIR

SIS Model S I SIR Model S I R SEIR Model S E I R

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 10 / 36

slide-11
SLIDE 11

Basic Compartmental Deterministic Models

SIS, SIR, SEIR

SIS Model S I SIR Model S I R SEIR Model S E I R The choice of which compartments to include in a model depends on the characteristics of the particular disease being modeled and the purpose of the model.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 10 / 36

slide-12
SLIDE 12

The SIR Epidemic Model Additional Assumptions Ignore demography, i.e., births and deaths The SIR Epidemic Model S I R

Transmission Recovery

Compartments Susceptibles (S): Individuals susceptible to the disease Infectious (I): Infected Individuals able to transmit the parasite to

  • thers

Recovered (R): Individuals that have recovered, are immune or have died from the disease and do not contribute to the transmission of the disease S = S(t), I = I(t), R = R(t) and N = S(t) + I(t) + R(t)

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 11 / 36

slide-13
SLIDE 13

The Basic SIR Epidemic Model: Contact Rates The SIR Epidemic Model S I R β α Let s = S/N, i = I/N and r = R/N. Let β = Average number of adequate contacts (i.e., contacts sufficient for transmission) of a person per unit time. βI N = βi = Average number of contacts with infectives per unit time of one susceptible. βI N

  • S = βNis = Number of new cases per unit time due to the

S = Ns susceptibles. (Horizontal Incidence)

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 12 / 36

slide-14
SLIDE 14

Assumptions of the SIR Epidemic Model Consider the “cohort” of members who were all infected at one time and let u(q) denote the number of these who are still infective q units after having been infected. If a fraction α of these leave the infective class in unit time, then u′ = −αu whose solution is u(q) = u(0)e−αq The fraction of infectives remaining infective q time units after having become infective is e−αq The length of the infective period is distributed exponentially with mean ∞ e−αqdq = 1/α

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 13 / 36

slide-15
SLIDE 15

The Basic SIR Epidemic Model: Waiting Times The SIR Epidemic Model S I R β α The deterministic SIR epidemic model for this process is dS dt = −βI S N dI dt = βI S N − αI dR dt = αI The parameters of the model are β = the transmission rate (effective contact rate) α = the recovery or removal rate

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 14 / 36

slide-16
SLIDE 16

The Basic SIR Deterministic Epidemic Model The SIR Epidemic Model S I R β α Let s = S/N, i = I/N and r = R/N. Dividing the equations for S, I and R by N we get the deterministic SIR epidemic model for this process in the form ds dt = −βsi di dt = βsi − αi dr dt = αi

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 15 / 36

slide-17
SLIDE 17

Assumptions of the SIR Epidemic Model The SIR Epidemic Model S I R β α An average infective makes contact sufficient to transmit infection with β others in unit time. A fraction α of infectives leave the infective class in unit time. There is no entry or departure from the population except possibly through death from the disease.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 16 / 36

slide-18
SLIDE 18

The Basic SIR Deterministic Epidemic Model: A Numerical Simulation Example 1 Initial values are: i(0) = 0.001, s(0) = 0.999, r(t) = 0, Parameter values are: β = 0.3, α = 0.1.

50 100 0.2 0.4 0.6 0.8 1 Time t (Days) s, i, and r SIR Model s i r 50 100 0.1 0.2 0.3 Time t (Days) Fraction of Infectives Infectives in SIR Model

Model predicts that there is an epidemic.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 17 / 36

slide-19
SLIDE 19

The Basic SIR Epidemic Model: Phase Plane Portrait for Example 1

Parameter values are: β = 0.3, α = 0.1. The contact number R0 = β α = 3

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Susceptible Fraction (s) Infective Fraction (i) R0 = 3 Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 18 / 36

slide-20
SLIDE 20

The Basic SIR Deterministic Epidemic Model: A Numerical Simulation Example 2 Initial values are: i(0) = 0.001, s(0) = 0.999, r(t) = 0, Parameter values are: β = 0.3/4, α = 0.1.

100 200 300 2 4 6 8 10 x 10

−4

Time t (Days) Fraction of Infectives Infectives in SIR Model 100 200 300 0.996 0.997 0.998 0.999 Time t (Days) Fraction of Susceptibles Susceptibles in SIR Model

Model predicts that the disease dies out

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 19 / 36

slide-21
SLIDE 21

The Basic SIR Epidemic Model: Phase Plane Portrait for Example 2

Parameter values are: β = 0.3/4, α = 0.1. The contact number R0 = β α = 0.75

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Susceptible Fraction (s) Infective Fraction (i) R0 = 0.75 Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 20 / 36

slide-22
SLIDE 22

SIR Epidemic Model:

Two Types of Outcomes

We have seen two types of outcomes R0 = 3

50 100 0.1 0.2 0.3 Time t (Days) Fraction of Infectives Infectives in SIR Model

R0 = 0.75

100 200 300 2 4 6 8 10 x 10

−4

Time t (Days) Fraction of Infectives Infectives in SIR Model

What values of parameters determine the behavior of the model?

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 21 / 36

slide-23
SLIDE 23

What do Real Curves Look Like?

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 22 / 36

slide-24
SLIDE 24

Conditions for an Epidemic Equation for Infecteds di dt = βsi − αi = (βs α − 1)αi Initially s(0) ≈ 1 An epidemic occurs if the number of infecteds increases initially di dt > 0 = ⇒ β α > 1 The disease dies out if the number of infecteds decreases initially di dt < 0 = ⇒ β α < 1 Example 1: β α = 3 > 1 Example 2: β α = 0.75 < 1 The number β α = R0, is called The Basic Reproduction Number

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 23 / 36

slide-25
SLIDE 25

The Basic Reproduction Number R0 for the Basic SIR Model R0 = β α = β × 1 α = (average # of adequate contacts of a person/unit time) × (mean waiting time in the infectious compartment) Definition of R0 The mean number of secondary infections generated by a single infected in a completely susceptible population Conditions for an Epidemic If R0 > 1 an epidemic occurs in the absence of intervention. If R0 < 1 the disease dies out.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 24 / 36

slide-26
SLIDE 26

What Else Does the Model Tell Us? Preventing Epidemics If R0 > 1 an epidemic is prevented when R0s(0) < 1. Thus, if the initial susceptible fraction has been reduced to less than 1/R0, for example by immunization, then an epidemic can be prevented. How large Will the Outbreak be? We can calculate this from the equations.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 25 / 36

slide-27
SLIDE 27

The SIR Endemic Model Additional Assumptions Include demography, i.e., births and deaths The SIR Endemic Model

Births

S I R

Deaths Deaths Deaths Transmission Recovery Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 26 / 36

slide-28
SLIDE 28

The Basic SIR Deterministic Endemic Model An infection is endemic in a community when transmission persists. It requires replenishment of susceptibles. This happens by births, so we add births and deaths. We are now working on longer time scales. Let s = S/N, i = I/N and r = R/N. The SIR endemic model is ds dt = λ − λs − βsi di dt = βsi − αi − λi dr dt = αi − λr The parameters of the model are β = the transmission rate (effective contact rate) α = the recovery or removal rate λ = birth, death rate

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 27 / 36

slide-29
SLIDE 29

SIR Endemic Model: Phase Portrait, Disease-Free Equilibrium

Parameter values are: λ = 1/60, β = 1.05, α = 1/3. The contact number R0 = β α + λ = 0.5

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Susceptible Fraction (s) Infective Fraction (i) R0 = 0.5 Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 28 / 36

slide-30
SLIDE 30

SIR Endemic Model: Phase Plane Portrait, Endemic Equilibrium

Parameter values are: λ = 1/60, β = 1.05, α = 1/3. The contact number R0 = β α + λ = 3

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Susceptible Fraction (s) Infective Fraction (i) R0 = 3 Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 29 / 36

slide-31
SLIDE 31

The Basic SIR Deterministic Endemic Model Endemic Equilibrium The solution to the endemic SIR model eventually settles down to a steady state. We determine this steady state by solving the equations ds dt = 0, and di dt = 0 At equilibrium we have se = α + λ β = 1 R0 and ie = λ(R0 − 1) β

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 30 / 36

slide-32
SLIDE 32

The Basic SIR Deterministic Endemic Model

A Numerical Example

Example N = 1, 000, 000, R0 = 15 (e.g., measles) λ = 1/(70 ∗ 365) (life expectancy of 70 years) α = 1/7 (mean infectious period of 1 week) Equilibrium Values se = 1/15, i.e., 1, 000, 000/15 = 66, 667 susceptibles ie = [7/(70 ∗ 365)] ∗ (1 − 1/15), i.e., 256 infecteds In practice, numbers fluctuate around these values because of random fluctuations and seasonal variations in β.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 31 / 36

slide-33
SLIDE 33

Limitations of Models The two classic models presented assume that the total population size remains constant They assume that the population is uniform and homogeneously

  • mixing. Mixing depends on many factors including age.

Different geographic and social-economic groups have different contact rates. These models ignore random effects, which can be very important when s or i are small, e.g., during early stages.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 32 / 36

slide-34
SLIDE 34

Conclusions Different deterministic models can be constructed by choosing different number and types of compartments. Analysis based on theory of dynamical systems. Modeling clarifies what the underlying assumptions are Model analysis and simulation predictions suggest crucial data that should be gathered Model analysis and simulation suggest control strategies that could be implemented. Estimates of R0 for various diseases, although crude ballpark estimates for the vaccination-acquired immunity level in a community required for herd immunity, are useful for comparing diseases.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 33 / 36

slide-35
SLIDE 35

Present and Future Work: A Model for BYDV

Undergraduate student: Samuel Potter (U. of Minnesota, Mathematics) PhD students: Carrie Manore (Mathematics), Sean Moore (Zoology) OSU Faculty: Elizabeth Borer (Zoology), Phil Rossignol (Fisheries and Wildlife) and Vrushali Bokil (Mathematics) Outside Faculty: Parviez Hosseini (Princeton, Ecology and Evolutionary Biology) Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 34 / 36

slide-36
SLIDE 36

References and Further Reading I

  • N. T. J. Bailey.

The Mathematical Theory of Infectious Diseases. Griffin, London 1975.

  • A. Okubo.

Diffusion and Ecological Problems: Mathematical Models. Springer-Verlag, Berlin, Heidelberg, 1980. Herbert W. Hethcote. The Mathematics of Infectious Diseases. SIAM Review, 42(4):599-653, 2000. Fred Brauer. Basic Ideas of Mathematical Epidemiology. Mathematical Approaches for Emerging and Reemerging Infectious diseases: An Introduction, pp 31-65, Springer, May 2002.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 35 / 36

slide-37
SLIDE 37

References and Further Reading II Niels G Becker How does mass immunization affect disease incidence? Mathematical Modeling of Infectious Diseases: Dynamics and Control, Workshop organized by Institute for Mathematical Sciences (NUS) and Regional Emerging Diseases Intervention (REDI) Centre, Singapore, Oct 2005.

Bokil (OSU) Mathematical Epidemiology REU-Math, 2007 36 / 36
