EV Charging Infrastructure and Standards in China By Yaming Zhang www.caeri.com.cn Agenda EV Development and Demonstration in China EV Charging infrastructure in China EV charging Safety

slide-1
SLIDE 1

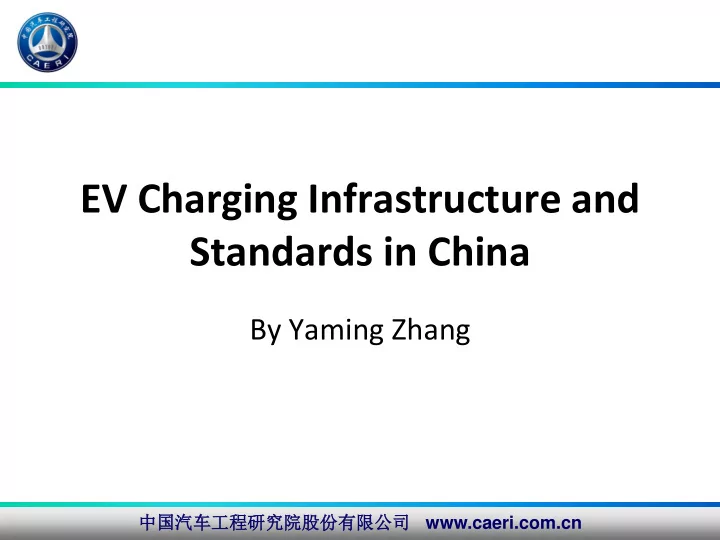

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging Infrastructure and Standards in China

By Yaming Zhang

slide-2
SLIDE 2

中国汽车工程研究院股份有限公司 www.caeri.com.cn

Agenda

  • EV Development and Demonstration in China
  • EV Charging infrastructure in China
  • EV charging Safety Technology
  • EV charging standards in China
  • Summary
slide-3
SLIDE 3

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Development and Demonstration

Pure Electric Vehicle Hybrid Electric Vehicle Fuel Cell Electric Vehicle

  • China included EV and other new energy vehicles in the 863

Program (National High Technology Research and Development Program) in the past decades, and a comprehensive R&D framework is in place, focusing on the powertrain control, drive motor, power battery for PEV, HEV and FCEV.

Powertrain Control Drive Motor Power Battery

slide-4
SLIDE 4

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Development and Demonstration

No Load Mass 1720kg Gasoline Engine 113kW/240Nm Electric Motor 110kW/ 250Nm Fuel Consumption 1.6L/100km Battery 13kWh Electric Range 70km

slide-5
SLIDE 5

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Development and Demonstration

Vehicle length 12m Full Load Mass 17,500kg Engine CNG Engine 140kW ISG Electric Motor 850Nm/ 135kW Electric Motor 2100Nm /150kW Battery 560V 15kWh Electric Range ≥30km Fuel Saving ≥40%

slide-6
SLIDE 6

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Development and Demonstration

2009-2012 Subsidy (RMB per vehicle) 2013-2015 Subsidy (RMB per vehicle) Comparison Electric Passenger Car 60,000 60,000 0% Hybrid Electric Passenger Car 32,000 100% Plug-in Hybrid Electric Passenger Car 50,000 35,000 30% Electric Bus (length≥10m) 500,000 500,000 0% Hybrid Electric Bus (length≥10m) 420,000 100% Plug-in Hybrid electric bus (length≥10m) 420,000 250,000 40%

slide-7
SLIDE 7

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Development and Demonstration

  • Nearly 28,000 Electric & Hybrid Electric Vehicles demonstrated
slide-8
SLIDE 8

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Development and Demonstration

  • Different kinds of vehicles
slide-9
SLIDE 9

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Development and Demonstration

  • Top ten cities data
slide-10
SLIDE 10

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Development and Demonstration

  • About 330,000 vehicles will be demonstrated in 40 cities, 2013-

2015

slide-11
SLIDE 11

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Development and Demonstration

  • By Sept., 38, 616 vehicles demonstrated
slide-12
SLIDE 12

中国汽车工程研究院股份有限公司 www.caeri.com.cn

Agenda

  • EV Development and Demonstration in China
  • EV Charging infrastructure in China
  • EV charging Safety Technology
  • EV charging standards in China
  • Summary
slide-13
SLIDE 13

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging infrastructure in China

  • AC charging point
  • DC charging point
  • Battering Charging station
  • Battery swapping station
  • On board charger
slide-14
SLIDE 14

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging infrastructure in China

  • The charging point mainly applies slow

charging mode with low current, concerning to the safety and battery life cycle.

  • Charging point covers less areas,

approximately 1 m2, and costs less as well.

  • However, long time of charging could

not meet the instant use requirement.

slide-15
SLIDE 15

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging infrastructure in China

  • The charging station with fast charging mode

is more efficient and time-saving in charging. It would charge 50%-80% of electricity in 10-30 minutes.

  • Whereas, the construction and management
  • f charging station are relatively higher,
  • Present battery technology is not fully

developed, thus the fast charging mode has great potential hazard on battery.

slide-16
SLIDE 16

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging infrastructure in China

整车充 电机1 整车充 电机2 整车充 电机n

……

充电平 台 充电平 台 充电平 台

……

监控室 电池更换库 （按车编组）

配电室

10KV 电网 通讯网络 充电机供电 接地 高压配电 照明及 设备用电 备用电池库 充电间 维护车间 计量设备 计量设备 380V 电网 需要更换电 池的电动车

更换电池区 充 电 区 维护区

筛选 和维护 需要 应急 充电 的电 动车

延 长 线

  • In general, a full function charging

station is consist of

  • Electricity Distribution Area
  • Monitoring Area
  • Charging Area
  • Battery Swapping Area
  • Battery Maintenance Area
slide-17
SLIDE 17

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging infrastructure in China

  • Due to the electricity would be supplied by charging and

battery swapping, hence the construction of charging station have much more flexibility than conventional gasoline station.

  • by construction and structure, the charging station could be

divided into: 1.Integrated Battery Swapping Station 2.Master-servant Battery Swapping Station 3.Parking Vehicle Charging Station

slide-18
SLIDE 18

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging infrastructure in China

  • According to the position of workshop layout, integrated Battery Swapping Station would be

divided into: 1.Ground integrated Battery Swapping and Charging Station 2.Underground integrated Battery Swapping and Charging Station 3.Vertical integrated Battery Swapping and Charging Station

slide-19
SLIDE 19

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging infrastructure in China

  • Master-servant Battery Swapping Station
  • Low-electricity battery are gathered to charge all together in the master work station,

while battery swapping is executed servant work station.

  • The distribution system transfers fully charged battery to servant work station and

returns low-electricity battery to master work station. It could also provide emergency charging service.

slide-20
SLIDE 20

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging infrastructure in China

  • Parking Vehicle Charging Station

It refers to a charging station which provide regular charging or emergency fast charging service. It could be considered as a parking field with a plenty of chargers.

slide-21
SLIDE 21

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging infrastructure in China

  • Charging station in Beijing
  • Charging station in Shanghai
  • DC charging points
slide-22
SLIDE 22

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging infrastructure in China

  • Swapping station in Hanzhou
  • Swapping station in Beijing Olympic Games
  • DC charger
  • Battery swapping robot
  • Monitoring room
slide-23
SLIDE 23

中国汽车工程研究院股份有限公司 www.caeri.com.cn

81 8 12 69 14 62 7 7 12 1 218 6 50 107 16 42 66 10 11 16 2

Charging Station Planning Charging Station

EV Charging infrastructure in China

  • Until Sept. 2014
  • 217 charging station has been built, 939 for DC fast charge and 221 for AC fast

charge

  • 13,754 AC slow charging points has been built
slide-24
SLIDE 24

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging infrastructure in China

Shenzhen Hefei Shanghai Chengdu Hanzhou Tianjing Wuhu Taiyuan Chongqing Kunming 3,000 2,000 1,460 880 620 471 461 300 200 150 39,526 5,000 5,000 3,000 3,500 6,700 6,000 1,750 275 300

Charing Point Number Planning Charing Point Number

  • In 2004, the first charging station was built in Beijing for electric bus.
  • In 2006, There was a charging station in Shenzhen for electric bus.
  • In 2008, the station of battery change and charging was built in Beijing.
slide-25
SLIDE 25

中国汽车工程研究院股份有限公司 www.caeri.com.cn

Agenda

  • EV Development and Demonstration in China
  • EV Charging infrastructure in China
  • EV charging Safety Technology
  • EV charging standards in China
  • Summary
slide-26
SLIDE 26

中国汽车工程研究院股份有限公司 www.caeri.com.cn

Charging safety technology

  • Monitoring technology
  • Charging technology
  • Battery pack safety technology
slide-27
SLIDE 27

中国汽车工程研究院股份有限公司 www.caeri.com.cn

Charging safety technology

  • Charging monitoring： real-time monitoring of the battery,

charger and electricity supply system.

  • Electric vehicle status monitoring：the inspection and the

scheduling system for remote monitoring of electric vehicles and batteries.

  • Smoke detection and monitoring system in the charging station
slide-28
SLIDE 28

中国汽车工程研究院股份有限公司 www.caeri.com.cn

Charging safety technology

  • Closed loop control for charging management, to prevent

the potential damage of single cell.

  • Battery pack resistance detection : real-time test after the

pack assembled in the vehicle

slide-29
SLIDE 29

中国汽车工程研究院股份有限公司 www.caeri.com.cn

Charging safety technology

  • Structure safety technology of power battery pack

– Double layer plate structure, isolation between electric parts and battery; – Inner insulation layer, insulating material roller, insulation fixed etc. – Inner pack with security architecture

  • Multilevel insulating with car body and the battery holder.
slide-30
SLIDE 30

中国汽车工程研究院股份有限公司 www.caeri.com.cn

Agenda

  • EV Development and Demonstration in China
  • EV Charging infrastructure in China
  • EV charging Safety Technology
  • EV charging standards in China
  • Summary
slide-31
SLIDE 31

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging Standards in China

  • China has published 19 related standards , including 7

national standards , 10 enterprise standard of National Grid( 6 enterprise standard have been released ) and 2 military standards.

slide-32
SLIDE 32

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging Standards in China

  • GB/T 18487.1-2001 Electric vehicle conductive charging system Part 1:General

requirement

  • GB/T 18487.2-2001 Electric vehicle conductive charging system Part 2:Electric

vehicles requirements for conductive connection to an AC/DC supply

  • GB/T 18487.3-2001 Electric vehicle conductive charging system Part 3:AC/DC

Electric vehicle charging station These standards equivalent to IEC 61851,they are the first electric vehicles charging station standards have been formulated of china . At that time the electric vehicles industry has not been developed , so there are some provisions

  • f the standards are fuzzy or unsuitable , most of the provisions are aimed

at electric vehicles and charger , the requirement of charging stations is little.

slide-33
SLIDE 33

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging Standards in China

  • Q/GDW 235-2009 Electric vehicle off-board charger Communication

protocol Standard specifies the communication protocol of off-board charger , including the communication frame format , data encoding and transmission rules of charger and BMS, charger and charging monitoring system.

  • Q/GDW 236-2009 Electric vehicle charging station General technical

requirements Standard specifies the functional requirement, technical requirements, safety requirements, marks and logos of the electric vehicle charging station.

  • Q/GDW 237-2009 Electric vehicle charging station Guide of layout design

Standard specifies the location principle and inside layout requirements

  • f electric vehicle charging
slide-34
SLIDE 34

中国汽车工程研究院股份有限公司 www.caeri.com.cn

EV Charging Standards in China

  • Q/GDW 238-2009 Electric vehicle charging station Power supply system

specification Standard specifies the requirements of technical ,safety, environment of electric vehicle charging stations dedicated power supply system.

  • Electric vehicle charging station Charging monitoring system

Standard specifies the basic composition, function requirements and technical requirements of charging monitoring system.

  • Electric vehicle off-board charger Metering requirement

Standard specifies the technical requirements of off-board charger DC energy metering section.

  • Electric vehicle on-board charger Meter requirement

Standards specifies the energy metering function and related technical requirements of electricity power facilities for on-board charger ( AC input : 220V, ≤30A) .

slide-35
SLIDE 35

中国汽车工程研究院股份有限公司 www.caeri.com.cn

Agenda

  • EV Development and Demonstration in China
  • EV Charging infrastructure in China
  • EV charging Safety Technology
  • EV charging standards in China
  • Summary
slide-36
SLIDE 36

中国汽车工程研究院股份有限公司 www.caeri.com.cn

Summary

  • China highly emphasize the EV research development and

demonstration.

  • Different charging modes are applied in China.
  • Charging infrastructure is to be built soon to fit for the electric

vehicle development.

slide-37
SLIDE 37

中国汽车工程研究院股份有限公司 www.caeri.com.cn

Thanks for your attention !
