Telephone Charging Systems Charging CDR (Call detail Records) IP-DR (IP Detail Records) Petri Noponen, 60136B Charging 3GPP :Charging A function where whereby information related to chargeable operation is

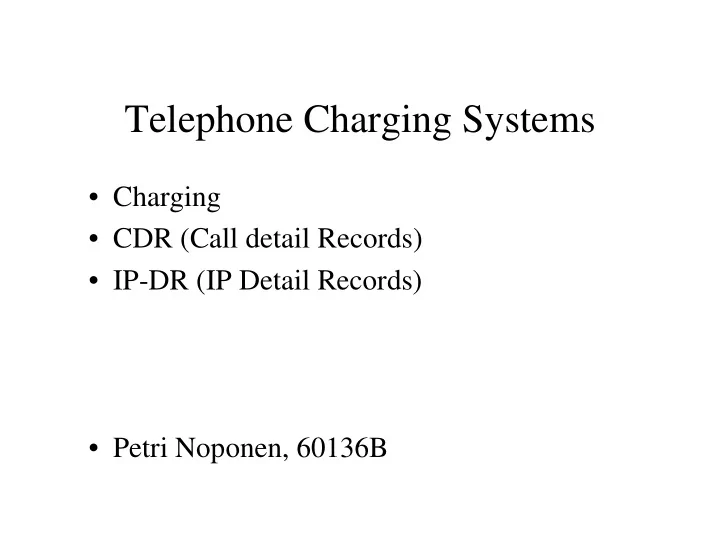

SLIDE 1

Telephone Charging Systems

Charging
CDR (Call detail Records)
IP-DR (IP Detail Records)
Petri Noponen, 60136B

SLIDE 2

Charging

3GPP :Charging
“A function where whereby information related to chargeable operation is

formatted and transferred in order to make it possible to determine usage for which the charged party may be billed”

OMA(Open Mobile Alliance): Payment
A mechanism by which funds are moved from the customer to the merchant in

exchanged for goods and/or services. It may be on a per transaction basis, or may be aggregated over a number of transactions”

Charging – separates
payment for the content
payment for the use of mobile domain (wireless bearer, mobile

context: presence)

Accounting means gathering also non-charging data.

SLIDE 3

Charging

3GPP CHARGING (Course book)
generating
formatting
transferring of data records
Charging (Course book)
Generated charging info
Transformation
Normalization
Correlation of usage data
Charging Might focus also prerating -> prepaid accounts (prepaid SIM, mobile wallet)
3GPP TS 32.240 V6.0.0 (2004-09) Release 6
charging: a function within the telecommunications network and the

associated OCS/BD components whereby information related to a chargeable event is collected, formatted, transferred and evaluated in order to make it possible to determine usage for which the charged party may be billed.

SLIDE 4

Billing

Billing process:
Bill or invoice presentation, settlements, clearing, taxation, general ledger entries
Postpaid or prepaid (IN)
Offline or online (hotbilling)
Mediation
Raw CDR- TAP file –clearing house –operators – billing system

SLIDE 5

Case: GSM roaming

raw-CDR storage Mediator Clearing house Billing system Billing system

Operator 1 Operator 2 Telecom network Customer

Invoice Mediator raw-CDR storage

SLIDE 6

CDR

3GPP Release 6

SLIDE 7

3GPP TS 32.240 V6.0.0 (2004-09), Release 6 Charging architecture

SLIDE 8

3GPP TS 32.240 V6.0.0 (2004-09), Release 6 Charging documents

SLIDE 9

3GPP TS 32.298 V1.0.0 (2004-09) Release 6 Charging Data Record (CDR) CDR parameters

Generic parameters
Bearer level parameters
CS domain parameters (circuit data/speech)
PS domain parameters (GPRS)
WLAN parameters
Subsystem level (IMS)
Service level (MMS,LCS)

SLIDE 10

IP-DR

www.ipdr.org

SLIDE 11

IPDR High level model

http://www.ipdr.org/public/DocumentMap/BSR-NDM-U3.5.0.1.pdf

SLIDE 12

Reference model for exchanging IPDRs

http://www.ipdr.org/public/DocumentMap/BSR-NDM-U3.5.0.1.pdf

SLIDE 13

IPDR record flow

http://www.ipdr.org/public/DocumentMap/BSR-NDM-U3.5.0.1.pdf

SLIDE 14

IPDR parameters

http://www.ipdr.org/public/DocumentMap/BSR-NDM-U3.5.0.1.pdf

Who responsible for the usage

– User ID

When

– End time or Event time

What

– Service, usage measures/quantities, QoS measures, state info, event code

Where

– traceability/context, Source/Destination/service element(originator) identifiers

– Event trigger type (service/network element)

SLIDE 15

IP-DR : (VOIP)

http://www.ipdr.org/public/Service_Specifications/3.X/VoIP3.5-A.0.1.pdf

SLIDE 16

IP-DR : (VOIP)

http://www.ipdr.org/public/Service_Specifications/3.X/VoIP3.5-A.0.1.pdf

SLIDE 17

IPDR elements

http://www.ipdr.org/public/DocumentMap/BSR-NDM-U3.5.0.1.pdf

SLIDE 18

Case:WiFi roaming

http://www.ipdr.org/public/DocumentMap/BSR-NDM-U3.5.0.1.pdf
