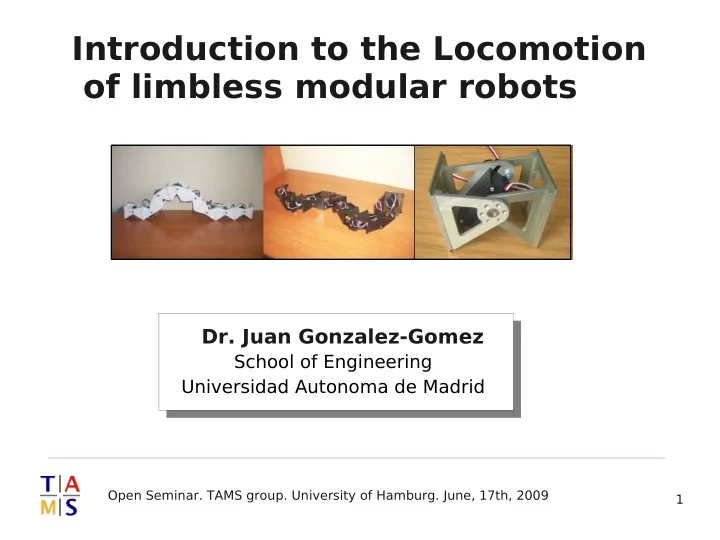

Introduction to the Locomotion of limbless modular robots Dr. Juan Gonzalez-Gomez School of Engineering Universidad Autonoma de Madrid Open Seminar. TAMS group. University of Hamburg. June, 17th, 2009 1 Introduction to the locomotion of snake

slide-1
SLIDE 1

1

School of Engineering Universidad Autonoma de Madrid

  • Dr. Juan Gonzalez-Gomez

Introduction to the Locomotion

  • f limbless modular robots

Open Seminar. TAMS group. University of Hamburg. June, 17th, 2009

slide-2
SLIDE 2

2

Outline

  • 1. Introduction
  • 2. Modules
  • 3. Oscillators
  • 4. Locomotion in 1D
  • 5. Locomotion in 2D
  • 6. Simulation
  • 7. Conclusions and current work

Introduction to the locomotion of snake modular robots Open Seminar. TAMS group. University of Hamburg. June, 17th, 2009

slide-3
SLIDE 3

3

Higher level

  • Environment perception
  • Path planning
  • Navigation
  • Making decision

Lower level

  • Coordination of the joints
  • Robot morphology
  • Gaits

Robot architecture

The Locomotion Problem (I)

  • Development of a very versatile robot with the full capability of moving on

different terrains.

slide-4
SLIDE 4

4

Classic approach:

  • Study the terrain
  • Design the mechanics
  • Gait realization

(Ambler, Krotkov et al, 1989)

Locomotion problem (II)

(Dante II, Bares et al, 1994)

  • NASA interested in this problem
  • Planet exploration
  • Ex. Ambler and Dante II Robots
slide-5
SLIDE 5

5

Locomotion problem (III)

Bio-inspired approach:

  • Copying the animals in nature

(BigDog, Raibert et al. 2008)

Boston Dynamics

(Scorpio, Dirk et al. 2007) (Aramies, Sastra. 2008)

Robotic Lab at DFKI Bremen Videos: 1,2

slide-6
SLIDE 6

6

Locomotion problem (IV)

(Polybot G1, Yim et al. 1997) (Polybot G2, Yim et al. 2000)

Modular self-reconfigurable approach:

  • The robots change their morphology to adapt to the terrain

Simple reconfiguration with Polybot G1. From wheel to snake Complex reconfiguration with Polybot G2. From wheel to a snake and finally to a 4-legged robot

slide-7
SLIDE 7

7

Modular Robotics

  • Two important aspects:
  • Robot morphology
  • Controller
slide-8
SLIDE 8

8

Morphology (I)

1D Topology 2D Topology 3D Topology Modular Robot classification Snakes Robots

  • Each morphology has its own locomotion capabilities
  • The number of configurations growth exponentially with the number of

modules

  • A classification is needed
slide-9
SLIDE 9

9

Morphology (II)

Pitch-Pitch Yaw-yaw Pitch-yaw 1D topology sub-classification (snakes robots) For studying the locomotion in 1D For studying the locomotion in 2D This robots need a special skin or passive wheels to move

slide-10
SLIDE 10

10

Modular robots and solid objects

  • Building solids objects using modules
  • Ej. RoomBot, (Arredondo et al.). Bioinspired Robotics Lab at EPFL
  • Self reconfigurable Furnitures with locomotion capabilities :-)
slide-11
SLIDE 11

11

Controllers

Calculation of the joint's angles to realize a gait: it 

  • Classic approach: Mathematical modeling
  • Calculation by inverse kinematics
  • Disadvantages: The equations are only valid for an specific morphology
  • Coordination problem:

CPG CPG CPG

  • Bio-inspired controllers: CPGs
  • Central Pattern Generators
  • CPGs control the rhythmic activities
  • Ej. The locomotion of the lamprey
slide-12
SLIDE 12

12

Sinusoidal oscillators

  • CPGs are replaced by a Simplified model

it=A i s in 2 T iOi

  • Sinusoidal oscillators:
  • Advantages:
  • Few resources required

CPG CPG CPG

slide-13
SLIDE 13

13

Outline

  • 1. Introduction
  • 2. Modules
  • 3. Oscillators
  • 4. Locomotion in 1D
  • 5. Locomotion in 2D
  • 6. Simulation
  • 7. Conclusions and current work

Introduction to the locomotion of snake modular robots Open Seminar. TAMS group. University of Hamburg. June, 17th, 2009

slide-14
SLIDE 14

14

First generation: Y1 modules

  • One degree of freedom
  • Easy to build
  • Cheap
  • Servo: Futaba 3003
  • Material: Plastic 3mm width
  • Size: 52x52x72mm
  • Open and “Free”
slide-15
SLIDE 15

15

Building the Y1 modules

slide-16
SLIDE 16

16

Electronics & control

slide-17
SLIDE 17

17

Servos E x p a n s i

  • n

p

  • r

t Power supply RS232 Connection to the PC

Electronics

  • 8-bit microcontroller (PIC16F876A from Microchip)

E x p a n s i

  • n

p

  • r

t s

slide-18
SLIDE 18

18

Cube-M module(I)

  • Low cost mechanical design
  • Simple robust modules assembling

manually and in a quick-to-build, easy-to- handle design

  • On-board electronics and sensors

Electronics

slide-19
SLIDE 19

19

Outline

  • 1. Introduction
  • 2. Modules
  • 3. Oscillators
  • 4. Locomotion in 1D
  • 5. Locomotion in 2D
  • 6. Simulation
  • 7. Conclusions and current work

Introduction to the locomotion of snake modular robots Open Seminar. TAMS group. University of Hamburg. June, 17th, 2009

slide-20
SLIDE 20

20

t=Asin2 T 0

  • Bending angle:
  • Sinusoidal oscillator:

The initial phase determines the bending angle in the begining.

One Oscillator (I)

The bending angle is changed following this equation: It is the angle between the two parts of the module Bending angle Amplitude

t∈[−90,90] A∈[0,90] 0∈[−180,180]

Initial phase Period Degrees Degrees Seconds Degrees

slide-21
SLIDE 21

21

One Oscillator (II)

Demo

Example:

  • A=45 degrees
  • 0=0
slide-22
SLIDE 22

22

Two oscillators (I)

1t=Asin2 T 0 2t=Asin2 T 0 

New parameter:

  • Phase difference:

∈[−180,180]

It determines the oscillation of one module relative to the other Phase difference

slide-23
SLIDE 23

23

=0 =180 =90

Two oscillators (II)

Demo

slide-24
SLIDE 24

24

Outline

  • 1. Introduction
  • 2. Modules
  • 3. Oscillators
  • 4. Locomotion in 1D
  • 5. Locomotion in 2D
  • 6. Simulation
  • 7. Conclusions and current work

Introduction to the locomotion of snake modular robots Open Seminar. TAMS group. University of Hamburg. June, 17th, 2009

slide-25
SLIDE 25

25

Locomotion in 1D

Is this control scheme valid? How does the oscillators parameters affect the locomotion? How many modules are needed at least to achieve locomotion? Control scheme: Questions:

slide-26
SLIDE 26

26

Minicube-I

  • Morphology

2 modules with a Pitch- pitch connection

  • Controller:
  • Two generators
  • Parameters:

Demo

A , ,T

slide-27
SLIDE 27

27

Minicube-I (I)

Oscillators and locomotion Typical values for locomotion:

  • Period --> Velocity
  • Amplitud --> Step
  • Phase difference --> Coordination

Wired model Control space

  • Two dimensions:
  • Period is a constant

A , A=40,=120

slide-28
SLIDE 28

28

Cube Revolutions (I)

  • Morphology:

8 modules with pitch-pitch connection

  • Controller:
  • 8 equal oscillators
  • Parameters:

Videos A , ,T

slide-29
SLIDE 29

29

Locomotion mechanism

x V=x T

  • Locomotion performed by the

body wave propagation

  • Step:
  • Mean Speed:
  • Serpenoid curve
  • Step calculation:

x= l k −∫0

l k c

  • s c
  • s 2k

l sds

slide-30
SLIDE 30

30

3 Modules caterpillar

Demo

Most effiency when:

  • A=40 degrees
  • =125
  • Application of modular robots to caterpillar-like locomotion research
slide-31
SLIDE 31

31

Outline

  • 1. Introduction
  • 2. Modules
  • 3. Oscillators
  • 4. Locomotion in 1D
  • 5. Locomotion in 2D
  • 6. Simulation
  • 7. Conclusions and current work

Introduction to the locomotion of snake modular robots Open Seminar. TAMS group. University of Hamburg. June, 17th, 2009

slide-32
SLIDE 32

32

Locomotion in 2D

Is this model feasible? How many locomotion gaits can be achieved? How many modules are needed for achieving locomotion in 2D? Control scheme: Questions: What is the relationship between the oscillators and the gaits?

slide-33
SLIDE 33

33

Minicube-II

  • Morphology:

3 modules with Pitch-yaw- pitch connection

  • Controller:
  • 3 oscillators
  • Parameters:

A v,A h,v,vh,T Demo

slide-34
SLIDE 34

34

Av=40, Ah=0

Forward

v=120 Av=Ah40 vh=90,v=0

Lateral shifting Turning

Av=40, Ah=0 Oh=30,v=120

Rotating

Av=10, Ah=40 vh=90,v=180

Rolling

Av=Ah60 vh=90,v=0

Locomotion gaits

slide-35
SLIDE 35

35

Hypercube (I)

  • Morphology

8 modules with pitch-yaw connection

  • Controller:
  • 4 vertical oscillators
  • 4 horizontal oscillators
  • Parameters:

A h,A v ,h,v,vh ,T Demo

slide-36
SLIDE 36

36

Locomotion gaits

  • Searching: Genetic algorithms
  • 5 categories of gaits
  • Characterized by the 3D body wave
slide-37
SLIDE 37

37

  • 3D Body wave propagation
  • Linear Step:
  • Angular Step:
  • Dimensions: width (w) x length (lx) x heigth (h)

Locomotion mechanism

 r 

slide-38
SLIDE 38

38

Summary of the robots

Locomotion in 1D Locomotion in 2D Snakes robots

slide-39
SLIDE 39

39

Cube-M module

Video

slide-40
SLIDE 40

40

Outline

  • 1. Introduction
  • 2. Modules
  • 3. Oscillators
  • 4. Locomotion in 1D
  • 5. Locomotion in 2D
  • 6. Simulation
  • 7. Conclusions and current work

Introduction to the locomotion of snake modular robots Open Seminar. TAMS group. University of Hamburg. June, 17th, 2009

slide-41
SLIDE 41

41

Software

  • 1D topology simulator (Based on Open Dynamics Engine [ODE])
  • Generics algorithms: PGAPack
  • Mathematical models in Octave/Matlab

Demo

slide-42
SLIDE 42

42

Outline

  • 1. Introduction
  • 2. Modules
  • 3. Oscillators
  • 4. Locomotion in 1D
  • 5. Locomotion in 2D
  • 6. Simulation
  • 7. Conclusions and current work

Introduction to the locomotion of snake modular robots Open Seminar. TAMS group. University of Hamburg. June, 17th, 2009

slide-43
SLIDE 43

43

The controller based on sinusoidal oscillators is valid for the locomotion of the 1D-topology modular robots

Conclusions

  • Very few resources are required for its implementation
  • The locomotion gaits are very smooth and natural
  • At least 5 different gaits can be achieved

it =Aisin 2 T iOi

slide-44
SLIDE 44

44

Current work

Modular grasping Locomotion of 2D Topology modular robots New module design Climbing caterpillar

slide-45
SLIDE 45

45

School of Engineering Universidad Autonoma de Madrid

  • Dr. Juan Gonzalez-Gomez

Introduction to the Locomotion

  • f limbless modular robots

Open Seminar. TAMS group. University of Hamburg. June, 17th, 2009
