Introduction to Software Testing (Paul deGrandis) [Reading assignment: Chapter 15, pp. 231-252 and notes by Paul deGrandis] Overview Terms and Definitions Tool Overview Static Checkers Unit Testing Coverage and Profiling

slide-1
SLIDE 1

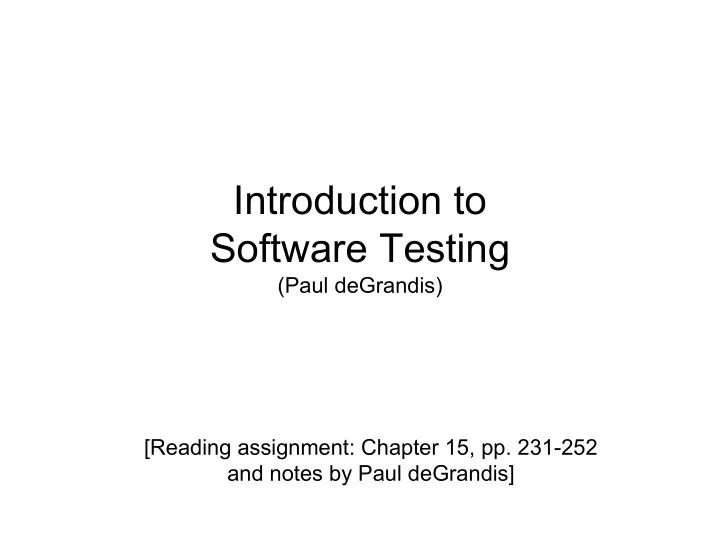

Introduction to Software Testing

(Paul deGrandis) [Reading assignment: Chapter 15, pp. 231-252 and notes by Paul deGrandis]

slide-2
SLIDE 2

Overview

  • Terms and Definitions
  • Tool Overview
  • Static Checkers
  • Unit Testing
  • Coverage and Profiling
  • Memory Analysis
  • Bug Reporting and Tracking
  • Continuous Integration
slide-3
SLIDE 3

NOTE

  • All the material and examples from

here on are generated using a single makefile.

  • Log into tux, then:

wget http://www.pauldee.org/vandvmakefile mv vandvmakefile Makefile

  • Export your classpath:

export CLASSPATH=`pwd`/junit/junit-4.4.jar:`pwd`/emma/emma.jar:.

  • To make and download all tools and

examples:

make

slide-4
SLIDE 4

Tool Overview

  • Verification
  • Static Checking
  • Unit Tests for code correctness
  • Memory and performance specifications
  • Validation
  • Unit Tests for behavior and requirements
slide-5
SLIDE 5

Static Checkers

  • Does not execute the code
  • Finds suspicious code or

security vulnerabilities

  • Tools
  • C - SPLINT,

GCC Warnings

  • Java - FindBugs, PMD

Cyclone - a safe C GNU Compiler Collection FindBugs - Find Bugs in Java

slide-6
SLIDE 6

Static Checkers - C

Screenshots

slide-7
SLIDE 7

Static Checkers - C

Demo

  • Installation of SPLINT
  • Compiling using GCC Warning
  • Running Splint
slide-8
SLIDE 8

Static Checkers - C

Demo

  • Installation of SPLINT
  • Download

wget http://www.splint.org/downloads/splint-3.1.2.src.tgz

  • Untar

tar -xzvf splint-3.1.2.src.tgz

  • Make (during make, splint checks itself)

cd splint-3.1.2/ ./configure make

slide-9
SLIDE 9

Static Checkers - C

Demo

  • Compiling using GCC Warnings
  • see the screenshot three slides back
slide-10
SLIDE 10

Static Checkers - C

Demo

  • Running SPLINT
  • Simple and Basic

splint -preproc +weak +show-summary +stats ../src/*.c

  • Dependable Software

splint -preproc +checks +show-summary +stats ../src/*.c

slide-11
SLIDE 11

Static Checkers - Java

Screenshots

slide-12
SLIDE 12

Static Checkers - Java

Demo

  • Installation of FindBugs
  • Running FindBugs
slide-13
SLIDE 13

Static Checkers - Java

Demo

  • Installation of FindBugs
  • Download

wget http://prdownloads.sourceforge.net/findbugs/findbugs-1.2.1.tar.gz

  • Untar

tar -xvzf findbugs-1.2.1.tar.gz cd findbugs-1.2.1

slide-14
SLIDE 14

Static Checkers - Java

Demo

  • Running FindBugs
  • Run It

./findbugs

slide-15
SLIDE 15

Unit Tests

  • Validate a unit of code; smallest testable

part

  • Executes the code in a sandboxed

environment

  • Testing mostly for functional requirements
  • can also test some non-functional requirements
  • Many approaches and schools of thought
  • History Based, Risk Based, Data Path, DOE
slide-16
SLIDE 16

Unit Tests Frameworks-C

Screenshots

Check Unit Test Framework http://check.sourceforge.net

slide-17
SLIDE 17

Demo

Unit Tests Frameworks-C

  • Installation of Check
  • Writing a Check unit test
  • Compiling your test(s)
  • Running your test(s)

http://check.sourceforge.net/doc/check.html/index.html

slide-18
SLIDE 18

Demo

Unit Tests Frameworks-C

  • Installation of Check
  • Download

wget http://downloads.sourceforge.net/check/check-0.9.5.tar.gz

  • Untar

tar -xvzf check-0.9.5.tar.gz

  • Make (notice the GCC warnings passed)

cd check-0.9.5 ./configure make

slide-19
SLIDE 19

Demo

Unit Tests Frameworks-C

  • Writing a Check unit test
  • Write your test fixtures
  • Write your test(s)
  • Write your test suite
  • Write your main method (execute your

suite)

slide-20
SLIDE 20

Demo

Unit Tests Frameworks-C

  • Writing a Check unit test
  • Write your test fixtures
slide-21
SLIDE 21

Demo

Unit Tests Frameworks-C

  • Writing a Check unit test
  • Write your test(s)
slide-22
SLIDE 22

Demo

Unit Tests Frameworks-C

  • Writing a Check unit test
  • Write your test suite
slide-23
SLIDE 23

Demo

Unit Tests Frameworks-C

  • Writing a Check unit test
  • Write your main method (execute your

suite)

slide-24
SLIDE 24

Demo

Unit Tests Frameworks-C

  • Compiling your test(s)
  • See README in check/check-

example/square

slide-25
SLIDE 25

Demo

Unit Tests Frameworks-C

  • Running your test(s)
  • See README in check/check-

example/square

slide-26
SLIDE 26

Unit Tests Frameworks-Java

Screenshots

slide-27
SLIDE 27

Demo

Unit Tests Frameworks-Java

  • Installation of Junit
  • Writing a Junit unit test
  • Compiling your test(s)
  • Just use javac
  • Running your test(s)
  • just use java

http://junit.sourceforge.net/ (look at the cookbook)

slide-28
SLIDE 28

Demo

Unit Tests Frameworks-Java

  • Installation of Junit
  • Download

wget http://downloads.sourceforge.net/junit/junit-4.4.jar

  • Add the jar to your classpath

export CLASSPATH=$CLASSPATH:`pwd`/junit-4.4.jar:.

slide-29
SLIDE 29

Demo

Unit Tests Frameworks-Java

  • Writing a Junit unit test
  • Write your test fixtures
  • Write your test(s)
  • Write your test suite
  • Write your main method (execute your suite)
slide-30
SLIDE 30

Demo

Unit Tests Frameworks-Java

  • Writing a Junit unit test
  • Write your test fixtures
slide-31
SLIDE 31

Demo

Unit Tests Frameworks-Java

  • Writing a Junit unit test
  • Write your test(s)
slide-32
SLIDE 32

Demo

Unit Tests Frameworks-Java

  • Writing a Junit unit test
  • Write your test suite(s)
slide-33
SLIDE 33

Demo

Unit Tests Frameworks-Java

  • Writing a Junit unit test
  • Write your main method
slide-34
SLIDE 34

Code Coverage

  • Degree to how much code was tested

(E.g., How confident are we in our tests and code)

  • Criteria:
  • Statement - Has each line been executed
  • Condition - Every evaluation (if/else, try/catch, switch, loop)
  • Path - Every route of code
slide-35
SLIDE 35

Code Coverage - C

Screenshots

GCC - GCOV

slide-36
SLIDE 36

Demo

Code Coverage - C

See the Screenshot one slide back

slide-37
SLIDE 37

Code Coverage - Java

Screenshots

EMMA

http://emma.sourceforge.net/intro.html

slide-38
SLIDE 38

Demo

Code Coverage - Java

  • Installation of Emma
  • Download

wget http://downloads.sourceforge.net/emma/emma-2.0.5312-lib.zip

  • Unzip

unzip emma-2.0.5312-lib.zip

  • Instrument Your Code

java -cp emma.jar:./sample:../junit/junit-4.4.jar emma instr -outdir ./sampleout -cp ./sample/ SimpleTest

  • Run Your Code and Generate a report

java SimpleTest java -cp emma.jar emma report -r html -in sampleout/coverage.em,sampleout/coverage.ec

slide-39
SLIDE 39

Memory Analysis

  • Sandboxes an application in a VM
  • Uses:
  • Memory Leak - allocate memory, but don’t free
  • Buffer Overflow - access memory outside of a fixed buffer
  • Profiling - performance analysis
slide-40
SLIDE 40

Memory Analysis - C

Screenshots

Valgrind

slide-41
SLIDE 41

Demo

Memory Analysis - C

  • Installation of Valgrind
  • Download

wget http://downloads.sourceforge.net/check/check-0.9.5.tar.gz

  • Untar

tar -xvjf valgrind-3.2.3.tar.bz2

  • Make (notice the GCC warnings passed)

cd valgrind-3.2.3 ./configure make

slide-42
SLIDE 42

Demo

Memory Analysis - C

  • Running of Valgrind
  • Compile with debugging enabled

gcc -g myprog.c

  • Run Valgrind

valgrind --leak-check=yes myprog arg1 arg2

  • Full tutorial and infoformation

http://valgrind.org/docs/manual/quick-start.html#quick-start.intro

slide-43
SLIDE 43

Memory Analysis - Java

Screenshots

JConsole

slide-44
SLIDE 44

Issue and Bug Tracking

  • Organizes and tracks issues,

enhancements, features, and bugs in a software system

  • Usually contains a database backend

and a web frontend

  • Generate report of project and team

metrics and productivity

slide-45
SLIDE 45

Issue and Bug Tracking

  • Trac (http://trac.edgewall.org/)
  • Roundup (http://roundup.sourceforge.net/)
  • Tracker (http://tracker.rubyforge.org/)
slide-46
SLIDE 46

Continuous Integration

  • Committing changes early and often
  • Building and testing at least nightly
  • If code breaks, revert
  • Integration issues discovered early as

developers work with the latest code

slide-47
SLIDE 47

You now know …

  • … static checkers
  • … unit testing tools
  • … coverage and profiling tools
  • … memory analysis tools
  • … Bug reporting and tracking tools
