Introducing the OSA Display Technology Technical Group Presented by: Dr. Daniel Smalley Chair of the OSA Display Technology Technical Group Turkey Farming Elroy Pearson MIT Mark II Origin Story []() Polarization Rotation Polarization

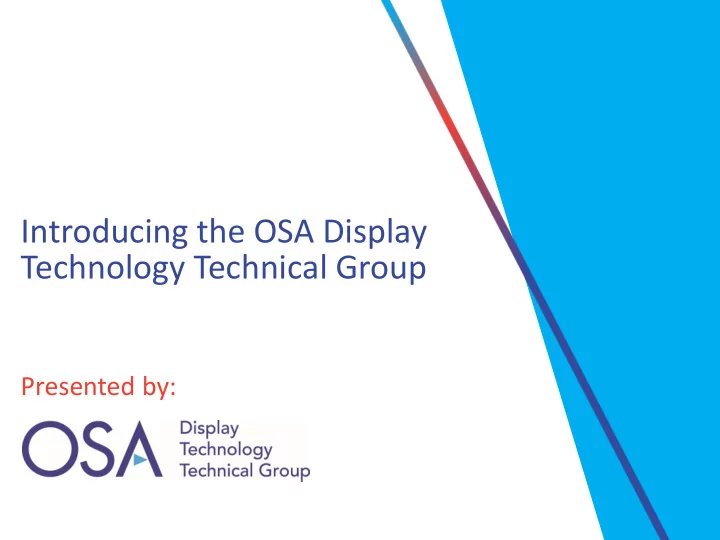

  1. Introducing the OSA Display Technology Technical Group Presented by:

  2. Dr. Daniel Smalley Chair of the OSA Display Technology Technical Group

  3. Turkey Farming

  4. Elroy Pearson

  5. MIT

  6. Mark II

  7. Origin Story

  8. []()

  9. Polarization Rotation Polarization Rotation

  10. High Angular Deflection

  11. Frequency Division Color

  12. Holographic Stereograms

  13. Low cost

  14. Success!

  15. Sadness

  16. Bigger!

  17. IL ILLUMINA UMINATI TI-CON CON Advanced 3D and World Domination Clandestine meeting to be held during Heidelberg DH 2016. Admittance by password only.

  18. Dr. T.C. Poon Mentor of the OSA Display Technology Technical Group

  19. Holographic 3D Display – One of Future Ultimate Display Precision optoelectronic metrology and Information Display Technologies Research Center Shanghai University

  20. Outlines 1. Holographic 3D TV 2. Holographic 3D Projection 3. Analog Hologram 4. Digital Hologram Print

  21. Holographic 3D Display Object Coherent light Object beam Reference beam Hologram Holographic material Holographic recording Intensity Information Readout Light Holographic Hologram material Reconstructed 3D image Phase Information Holographic reconstruction Holography is a true 3D technique

  22. Real-time dynamic holographic 3D display Refresh time : ~2 ms Experimental setup for R/G/B holographic display R/G/B holographic display videos

  23. Real-time dynamic holographic 3D display Real time dynamic display Holographic 3D 3D video display Full-parallax 3D display applications display in materials Large size and high definition display

  24. Real-time dynamic holographic 3D display Invited Talk at OSA Digital Holography and Society for Information Display Symposium 2012 Technical Highlights 3D Imaging 2013 in USA 20 Plenary and Invited Talks at International Conferences in USA, Russia, Japan, Singapore, Taiwan, and China

  25. Real-time dynamic holographic 3D display Top 5 download OSA Digital Holography and 3D Imaging Meeting Papers Cover Paper in SID Information Display

  26. Holographic 3D TV 3D model Hologram Holographic 3D display without pixelation

  27. Holographic 3D projection Images from different angles Computer generated holograms

  28. Holographic 3D projection Holographic 3D projection

  29. Analog hologram Static analog hologram of real object

  30. Holographic print Hologram print system Holographic print 3D model Reconstructed 3D image CGH from printed hologram

  31. Future holographic 3D display Precision optoelectronic metrology and Information Display Technologies Research Center Future holographic 3D display

  32. Thank you for your attention!

  33. Webinar presentation Edward Buckley March 2016

  34. About me • Dr. Edward Buckley • Born London, England • Education – University College London (1997-2001) • MEng. Electrical and Electronic Engineering • First class with Honours – Cambridge University (2003-2006) • Ph.D. Computer Generated Holography for Displays and Sensors • Sponsored by BAE Systems • Arsenal season ticket holder 55

  35. Career highlights • Have taken two novel display technologies from lab bench to product revenue • Recognized expert in display technologies, optics and image processing with 50 publications and 17 patents • Invented Light Blue Optics’ holographic projection technology and span out business from the University of Cambridge, raising $45m VC funding • Created ecosystem and supply chain to support laser projection business; created automotive, defense and aerospace business from scratch • Architected Pixtronix’ ground -breaking DMS display (entire architecture including color processing, backlight, backplane and power saving techniques) • Drove DMS technology through $175m acquisition by Qualcomm and eventual production and use in a 7” tablet PC 56

  36. Light Blue Optics (LBO) – phase-only projector 57

  37. LBO – technical highlights • Novel architecture and hologram generation algorithm to exploit HVS properties and hence reduce required calculation by six orders of magnitude • Highly novel optical system and projection lens assembly – At the time, delivered lowest speckle contrast of all laser projectors • Developed custom FLCOS microdisplay 5  m pixels, high tilt FLC material, binary modulation – • Laser development programs – Green laser (808nm pump diode) – Green laser (1064nm pump DBR) – 642nm red laser development • 8 million gate 90nm ASIC • Two Asian ODMs making complete subsystems 58

  38. Pixtronix / Qualcomm – 7” MEMS / IGZO panel 59

  39. Pixtronix – technical highlights (1) • DMS RGB field-sequential technology was extremely constrained – Critical image and power consumption quality problems, all counter-opposing – Yield issues made these problems even worse (achievable bit depth was low, for example) • Developed two generations of display architecture: – Generation 1: RGB, scalar dither, multiple display modes – Generation 2: RGBW multi-primary, vector dither, local tone correction, 50% power of Gen. 1 • Solved critical image quality problems – Rigorous modeling, simulation and optimization program – Color breakup, false contouring, dither artifacts, 30 Hz / 60 Hz flicker – Completely novel panel drive and image processing chain • Solved critical power problems – Novel FSC dimming algorithms (Generation 1) – Artifact-free RGBW mode, real-time gamut mapping (Generation 2) 60

  40. Pixtronix – technical highlights (2) • Designed display architecture to provide maximum flexibility – MEMS and TFT reliability issues were never fully solved – Display architectures anticipated this and provided variable bit depth, display timing, etc. to ease yield and fabrication constraints – Accurate LED control over dimming range, even with relatively wide binning • Designed and implemented two novel color pipelines in 40 nm ASICs – HW and ARM core embedded SW • Production of 7” “Momiji” tablet – Four different display modes (wide gamut, narrow gamut, monochrome) – Interface to Android host • Improved yield by an order of magnitude – Perception-led analysis to determine allowable cluster size of flickering pixels – Dark pixel correction to hide particulate defects 61

  41. Nanolumens

  42. Current research interests • Multi-primary displays – Resolving FSC artifacts, enhancing image quality • Display modeling, simulation and characterization – Perceptually accurate measurements, benchmarking, competitive analysis • Halftoning and dithering – Aggressively reducing bit depth while maintaining image quality • Wide dynamic range, backlight control and local tone correction – Focus on efficient chipset implementations • Novel light sources for lower cost / enhanced efficiency – 405nm blue lasers, phosphors, OLEDs • Gamut mapping – Techniques for large and small gamuts (RGB LEDs enable both) • Subpixel rendering 63

  43. Dr. Joshua Kvavle Executive Committee Member of OSA Display Technology Technical Group

  44. Bio Bio Husband and Father

  45. US Navy Work • Engineer at SPAWAR Systems Center Pacific (San Diego) • 2009 to present • Focus Areas • Photonics • Non-linear Optics • Fiber Optic Gyroscopes • Augmented Reality • Grassroots S&T Learn Sailor Needs Enhanced Visualization • Ocean Augmented Reality – Google Glass Project • Navy Augmented Reality Roadmap

  46. OCEAN AR N NE .7 k m) Contact 1(1.3 km) Proof of Concept with Google Glass

  47. Navy AR Roadmap

  48. A Vision for the Future • “The summation of human experience is being expanded at a prodigious rate, and the means we use for threading through the consequent maze to the momentarily important item is the same as we used in the days of square- rigged ships.” • “The hope is that, in not too many years, human brains and computing machines will be coupled together very tightly, and that the resulting partnerships will think as no human brain has ever thought and process data in a way not approached by the information-handling machines we know today.”

  49. A Vision for the Future • “The summation of human experience is being expanded at a prodigious rate, and the means we use for threading through the consequent maze to the momentarily important item is the same as we used in the days of square- rigged ships.” - Vannevar Bush, 1945 • “The hope is that, in not too many years, human brains and computing machines will be coupled together very tightly, and that the resulting partnerships will think as no human brain has ever thought and process data in a way not approached by the information-handling machines we know today.” - J.C.R. Licklider, 1960

  50. Role of Displays in the Man + Machine Revolution? Sheridan & Verplank (1978)
