Geometric Representations of Graphs Intersection Graphs of Maximal Convex Sub-Polygons of k -Lizards Caroline Daugherty Josh Laison Rebecca Robinson Kyle Salois Willamette Mathematics Consortium REU Willamette REU k -MSP Intersection Graphs

slide-1

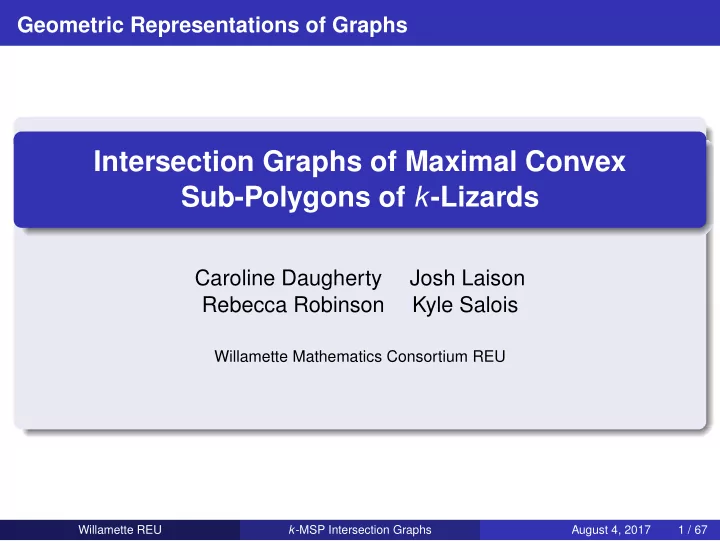

SLIDE 1

Geometric Representations of Graphs

Intersection Graphs of Maximal Convex Sub-Polygons of k-Lizards

Caroline Daugherty Josh Laison Rebecca Robinson Kyle Salois

Willamette Mathematics Consortium REU

Willamette REU k-MSP Intersection Graphs August 4, 2017 1 / 67

slide-2
SLIDE 2

Outline

1

Introduction Intersection Graphs Definitions Useful Lemmas

2

Results Graphs that are k-MSP Graphs Separating Examples Generalizations and Conjectures

3

Future Research

Willamette REU k-MSP Intersection Graphs August 4, 2017 2 / 67

slide-3
SLIDE 3

Intersection Graphs A graph G is a set V(G) of points called vertices, alongside a set of edges, which connect the vertices and form a set E(G). An intersection graph H is a graph formed by a family of sets where each vertex represents a set, and two vertices have an edge between them whenever the corresponding sets intersect.

A B C D E a b c d e Willamette REU k-MSP Intersection Graphs August 4, 2017 3 / 67

slide-4
SLIDE 4

Maximal Rectangles of a Polyomino: Shearer 1982, Maire 1993 A polyomino is a geometric figure formed by joining unit squares in the plane.

Willamette REU k-MSP Intersection Graphs August 4, 2017 4 / 67

slide-5
SLIDE 5

Maximal Rectangles of a Polyomino: Shearer 1982, Maire 1993 A polyomino is a geometric figure formed by joining unit squares in the plane. We can draw an intersection graph by creating a vertex for every maximal rectangle and connecting two vertices with an edge if their maximal rectangles intersect.

Willamette REU k-MSP Intersection Graphs August 4, 2017 4 / 67

slide-6
SLIDE 6

Maximal Rectangles of a Polyomino: Shearer 1982, Maire 1993 A polyomino is a geometric figure formed by joining unit squares in the plane. We can draw an intersection graph by creating a vertex for every maximal rectangle and connecting two vertices with an edge if their maximal rectangles intersect.

Willamette REU k-MSP Intersection Graphs August 4, 2017 4 / 67

slide-7
SLIDE 7

Maximal Rectangles of a Polyomino: Shearer 1982, Maire 1993 A polyomino is a geometric figure formed by joining unit squares in the plane. We can draw an intersection graph by creating a vertex for every maximal rectangle and connecting two vertices with an edge if their maximal rectangles intersect.

Willamette REU k-MSP Intersection Graphs August 4, 2017 4 / 67

slide-8
SLIDE 8

Maximal Rectangles of a Polyomino: Shearer 1982, Maire 1993 A polyomino is a geometric figure formed by joining unit squares in the plane. We can draw an intersection graph by creating a vertex for every maximal rectangle and connecting two vertices with an edge if their maximal rectangles intersect.

Willamette REU k-MSP Intersection Graphs August 4, 2017 4 / 67

slide-9
SLIDE 9

Maximal Rectangles of a Polyomino: Shearer 1982, Maire 1993 A polyomino is a geometric figure formed by joining unit squares in the plane. We can draw an intersection graph by creating a vertex for every maximal rectangle and connecting two vertices with an edge if their maximal rectangles intersect.

Willamette REU k-MSP Intersection Graphs August 4, 2017 4 / 67

slide-10
SLIDE 10

Maximal Rectangles of a Polyomino Shearer 1982, Maire 1993 All intersection graphs formed by the maximal rectangles of a polyomino are perfect.

Willamette REU k-MSP Intersection Graphs August 4, 2017 5 / 67

slide-11
SLIDE 11

Maximal Rectangles of a Polyomino Shearer 1982, Maire 1993 All intersection graphs formed by the maximal rectangles of a polyomino are perfect. In a perfect graph, the chromatic number of every induced subgraph equals the size of the largest clique of that subgraph.

Willamette REU k-MSP Intersection Graphs August 4, 2017 5 / 67

slide-12
SLIDE 12

Maximal Rectangles of a Polyomino Shearer 1982, Maire 1993 All intersection graphs formed by the maximal rectangles of a polyomino are perfect. In a perfect graph, the chromatic number of every induced subgraph equals the size of the largest clique of that subgraph. An induced subgraph is a set of vertices of a graph G that are connected by all the same edges that connect them in G.

Willamette REU k-MSP Intersection Graphs August 4, 2017 5 / 67

slide-13
SLIDE 13

Maximal Rectangles of a Polyomino Shearer 1982, Maire 1993 All intersection graphs formed by the maximal rectangles of a polyomino are perfect. In a perfect graph, the chromatic number of every induced subgraph equals the size of the largest clique of that subgraph. An induced subgraph is a set of vertices of a graph G that are connected by all the same edges that connect them in G. A clique in a graph is a set of vertices where every pair has an edge.

Willamette REU k-MSP Intersection Graphs August 4, 2017 5 / 67

slide-14
SLIDE 14

Definitions A k-lizard is a simply connected polygon such that each side has slope in the set {i⇡/k, i⇡/k, 0 | 1  i  k}.

An example of a 4-lizard.

Willamette REU k-MSP Intersection Graphs August 4, 2017 6 / 67

slide-15
SLIDE 15

Definitions The direction of a side on a k-lizard P is a member of the set {✓0, ✓1, ..., ✓2k1}, where ✓i = i⇡/k, and the angle between two sides is a measure of the interior angle of the k-lizard, and will also be a member of the set {✓0, ✓1, ..., ✓2k1}.

θ0 θ1 θ0 θ1 θ2 θ1 θ0 θ2 θ3 θ2 θ0 θ1 θ3 θ4

A reflex angle is an angle of measure larger than ⇡ but less than 2⇡.

Willamette REU k-MSP Intersection Graphs August 4, 2017 7 / 67

slide-16
SLIDE 16

Definitions The direction of a side on a k-lizard P is a member of the set {✓0, ✓1, ..., ✓2k1}, where ✓i = i⇡/k, and the angle between two sides is a measure of the interior angle of the k-lizard, and will also be a member of the set {✓0, ✓1, ..., ✓2k1}.

θ0 θ1 θ0 θ1 θ2 θ1 θ0 θ2 θ3 θ2 θ0 θ1 θ3 θ4

A reflex angle is an angle of measure larger than ⇡ but less than 2⇡.

θ1 Willamette REU k-MSP Intersection Graphs August 4, 2017 7 / 67

slide-17
SLIDE 17

Definitions The direction of a side on a k-lizard P is a member of the set {✓0, ✓1, ..., ✓2k1}, where ✓i = i⇡/k, and the angle between two sides is a measure of the interior angle of the k-lizard, and will also be a member of the set {✓0, ✓1, ..., ✓2k1}.

θ0 θ1 θ0 θ1 θ2 θ1 θ0 θ2 θ3 θ2 θ0 θ1 θ3 θ4

A reflex angle is an angle of measure larger than ⇡ but less than 2⇡.

θ1 θ2 Willamette REU k-MSP Intersection Graphs August 4, 2017 7 / 67

slide-18
SLIDE 18

Definitions The direction of a side on a k-lizard P is a member of the set {✓0, ✓1, ..., ✓2k1}, where ✓i = i⇡/k, and the angle between two sides is a measure of the interior angle of the k-lizard, and will also be a member of the set {✓0, ✓1, ..., ✓2k1}.

θ0 θ1 θ0 θ1 θ2 θ1 θ0 θ2 θ3 θ2 θ0 θ1 θ3 θ4

A reflex angle is an angle of measure larger than ⇡ but less than 2⇡.

θ1 θ5 θ2 Willamette REU k-MSP Intersection Graphs August 4, 2017 7 / 67

slide-19
SLIDE 19

Definitions A region Q ✓ P is a maximal convex sub-polygon, or scale, of P if Q is a convex k-lizard that is maximal in P.

Willamette REU k-MSP Intersection Graphs August 4, 2017 8 / 67

slide-20
SLIDE 20

Definitions A region Q ✓ P is a maximal convex sub-polygon, or scale, of P if Q is a convex k-lizard that is maximal in P.

Willamette REU k-MSP Intersection Graphs August 4, 2017 8 / 67

slide-21
SLIDE 21

Definitions A region Q ✓ P is a maximal convex sub-polygon, or scale, of P if Q is a convex k-lizard that is maximal in P.

Willamette REU k-MSP Intersection Graphs August 4, 2017 8 / 67

slide-22
SLIDE 22

Definitions A region Q ✓ P is a maximal convex sub-polygon, or scale, of P if Q is a convex k-lizard that is maximal in P. A graph G is a k-maximal sub-polygon graph or k-MSP graph if it is the intersection graph of the scales of a k-lizard.

Willamette REU k-MSP Intersection Graphs August 4, 2017 8 / 67

slide-23
SLIDE 23

Convex Subset Lemma Lemma Let R be a convex k-lizard contained within a k-lizard L. Then R is contained within at least one scale of L.

R S

Willamette REU k-MSP Intersection Graphs August 4, 2017 9 / 67

slide-24
SLIDE 24

Convex Subset Lemma Lemma Let R be a convex k-lizard contained within a k-lizard L. Then R is contained within at least one scale of L.

R S

Proof.

If R is maximal, then R is a scale. If R is not maximal, then we can extend the sides of R in at least one of the k directions to a side of L to create S within which R is contained.

Willamette REU k-MSP Intersection Graphs August 4, 2017 9 / 67

slide-25
SLIDE 25

A reflex angle in 3-MSP Consider a ✓4 angle in the following 3-lizard. There are 3 scales touching this reflex angle.

θ4 Willamette REU k-MSP Intersection Graphs August 4, 2017 10 / 67

slide-26
SLIDE 26

A reflex angle in 3-MSP Consider a ✓4 angle in the following 3-lizard. There are 3 scales touching this reflex angle.

Willamette REU k-MSP Intersection Graphs August 4, 2017 10 / 67

slide-27
SLIDE 27

A reflex angle in 3-MSP Consider a ✓4 angle in the following 3-lizard. There are 3 scales touching this reflex angle.

Willamette REU k-MSP Intersection Graphs August 4, 2017 10 / 67

slide-28
SLIDE 28

A reflex angle in 3-MSP Consider a ✓4 angle in the following 3-lizard. There are 3 scales touching this reflex angle.

Willamette REU k-MSP Intersection Graphs August 4, 2017 10 / 67

slide-29
SLIDE 29

A reflex angle in 3-MSP Consider a ✓4 angle in the following 3-lizard. There are 3 scales touching this reflex angle.

Willamette REU k-MSP Intersection Graphs August 4, 2017 10 / 67

slide-30
SLIDE 30

A reflex angle in 3-MSP Consider a ✓4 angle in the following 3-lizard. There are 3 scales touching this reflex angle. We define a proto-scale to be a line segment contained in the interior

  • f the k-lizard in a ✓i direction which touches the boundary of the

k-lizard at a reflex angle.

Willamette REU k-MSP Intersection Graphs August 4, 2017 10 / 67

slide-31
SLIDE 31

Definitions Let r be a reflex angle in a k-lizard L with internal angle measure ✓k+j. Then there exist j + 1 proto-scales, with each one contained in at least

  • ne scale.

θ7 A ✓k+3 reflex angle in 4-MSP yielding 4 proto-scales

Willamette REU k-MSP Intersection Graphs August 4, 2017 11 / 67

slide-32
SLIDE 32

Definitions Let r be a reflex angle in a k-lizard L with internal angle measure ✓k+j. Then there exist j + 1 proto-scales, with each one contained in at least

  • ne scale.

θ7 A ✓k+3 reflex angle in 4-MSP yielding 4 proto-scales

Willamette REU k-MSP Intersection Graphs August 4, 2017 11 / 67

slide-33
SLIDE 33

Definitions Let r be a reflex angle in a k-lizard L with internal angle measure ✓k+j. Then there exist j + 1 proto-scales, with each one contained in at least

  • ne scale.

θ7 A ✓k+3 reflex angle in 4-MSP yielding 4 proto-scales

Willamette REU k-MSP Intersection Graphs August 4, 2017 11 / 67

slide-34
SLIDE 34

Definitions Let r be a reflex angle in a k-lizard L with internal angle measure ✓k+j. Then there exist j + 1 proto-scales, with each one contained in at least

  • ne scale.

θ7 A ✓k+3 reflex angle in 4-MSP yielding 4 proto-scales

Willamette REU k-MSP Intersection Graphs August 4, 2017 11 / 67

slide-35
SLIDE 35

Definitions Let r be a reflex angle in a k-lizard L with internal angle measure ✓k+j. Then there exist j + 1 proto-scales, with each one contained in at least

  • ne scale.

p

θ7 A ✓k+3 reflex angle in 4-MSP yielding 4 proto-scales

Willamette REU k-MSP Intersection Graphs August 4, 2017 11 / 67

slide-36
SLIDE 36

Proto-scales Lemma We define a g-region of a k-lizard L as a region where g scales intersect. Lemma (Proto-scales) In a k-lizard at a reflex interior angle ✓k+j, there is a g-region, where g j + 1.

p

θ7

Willamette REU k-MSP Intersection Graphs August 4, 2017 12 / 67

slide-37
SLIDE 37

Proto-scales Lemma We define a g-region of a k-lizard L as a region where g scales intersect. Lemma (Proto-scales) In a k-lizard at a reflex interior angle ✓k+j, there is a g-region, where g j + 1.

p

θ7

Proof. By definition, at a reflex angle ✓k+j, there are j + 1 distinct proto-scales that each belong to at least one scale in L. Each of these proto-scales intersect at p, so the scales formed by them must intersect as well, so there is a g-region at p.

Willamette REU k-MSP Intersection Graphs August 4, 2017 12 / 67

slide-38
SLIDE 38

Ray Lemma Lemma Given three vertices a, b, c in a k-MSP graph with corresponding scales A, B, C such that a $ b and b $ c, but a = c, and from every point on the boundary of B A there exists a ray in a ✓i direction that intersects A, then there exists a scale D intersecting A, B, and C.

A B p r C

Willamette REU k-MSP Intersection Graphs August 4, 2017 13 / 67

slide-39
SLIDE 39

Ray Lemma Lemma Given three vertices a, b, c in a k-MSP graph with corresponding scales A, B, C such that a $ b and b $ c, but a = c, and from every point on the boundary of B A there exists a ray in a ✓i direction that intersects A, then there exists a scale D intersecting A, B, and C.

A B p r C

Proof. Since b $ c, but a = c, C must intersect boundary(B A) at two distinct points. Consider a point p on the boundary of both B A and and C \ B and a ray r originating at p with ✓i direction that intersects A.

Willamette REU k-MSP Intersection Graphs August 4, 2017 13 / 67

slide-40
SLIDE 40

Ray Lemma

A B C p l q p’ ε D

Let ✏ > 0 such that B✏(p) is contained within P. Since B is convex, we can extend r by length ✏ into C B at direction ✓k+i to form a line segment ` with one endpoint p0. The opposite endpoint of ` should lie at a point q in A By Convex Subset Lemma, ` is contained in at least one scale and since it cannot be wholly contained in A, B, or C, there must exist an additional scale D that contains `.

Willamette REU k-MSP Intersection Graphs August 4, 2017 14 / 67

slide-41
SLIDE 41

Parallel Sides Lemma Lemma Given scales A, B, C in a lizard, if a $ b, b $ c, and a and b have no shared neighbors, then the region B A C that borders both A and C has parallel boundary components s1 and s2 extending from the corners of A \ B to the corners of B \ C. A B C s1 s2

Willamette REU k-MSP Intersection Graphs August 4, 2017 15 / 67

slide-42
SLIDE 42

Parallel Sides Lemma Let 1 be a boundary component between B A and B \ A, and consider the angle ↵ formed where 1 reaches a side s2 of B. If ↵  ✓k2, then we can use the ray lemma to show that some scale intersects A and B. A B C s1 s2 δ1

A B s1 s2 δ1

Willamette REU k-MSP Intersection Graphs August 4, 2017 16 / 67

slide-43
SLIDE 43

End Regions In a k-lizard L, we say that for a scales A and B, A \ B is an end region of A if A B is connected.

A B

A B

In a 3-lizard: an end region (left) and not an end region (right).

Willamette REU k-MSP Intersection Graphs August 4, 2017 17 / 67

slide-44
SLIDE 44

End Regions In a k-lizard L, we say that for a scales A and B, A \ B is an end region of A if A B is connected.

A B

A B

In a 3-lizard: an end region (left) and not an end region (right).

On the left, A \ B is an end region of A and B. Additionally, A \ B is a 2-region since it is contained in 2 different scales. We then say A \ B is an end 2-region of A.

Willamette REU k-MSP Intersection Graphs August 4, 2017 17 / 67

slide-45
SLIDE 45

End 2-Regions Lemma Lemma (End 2-Regions) Any scale has at most two end 2-regions.

A B C

Willamette REU k-MSP Intersection Graphs August 4, 2017 18 / 67

slide-46
SLIDE 46

End 2-Regions Lemma Lemma (End 2-Regions) Any scale has at most two end 2-regions.

A B C

Proof. Suppose B has three end 2-regions; B \ A, B \ C, and B \ D.

Willamette REU k-MSP Intersection Graphs August 4, 2017 18 / 67

slide-47
SLIDE 47

End 2-Regions Lemma Lemma (End 2-Regions) Any scale has at most two end 2-regions.

A B C

Proof. Suppose B has three end 2-regions; B \ A, B \ C, and B \ D. The sides between B \ A and B \ C must be parallel by the Parallel Sides Lemma.

Willamette REU k-MSP Intersection Graphs August 4, 2017 18 / 67

slide-48
SLIDE 48

End 2-Regions Lemma Lemma (End 2-Regions) Any scale has at most two end 2-regions.

A B C D

Proof. Suppose B has three end 2-regions; B \ A, B \ C, and B \ D. The sides between B \ A and B \ C must be parallel by the Parallel Sides Lemma. The sides between B \ A and B \ D must be parallel; thus B \ D is either not an end region, or not a 2-region.

Willamette REU k-MSP Intersection Graphs August 4, 2017 18 / 67

slide-49
SLIDE 49

End 2-Regions Lemma Lemma (End 2-Regions) Any scale has at most two end 2-regions.

A B C D

Proof. Suppose B has three end 2-regions; B \ A, B \ C, and B \ D. The sides between B \ A and B \ C must be parallel by the Parallel Sides Lemma. The sides between B \ A and B \ D must be parallel; thus B \ D is either not an end region, or not a 2-region.

Willamette REU k-MSP Intersection Graphs August 4, 2017 18 / 67

slide-50
SLIDE 50

Summary of Lemmas Convex Subset Lemma Let R be a convex k-lizard contained within a k-lizard L. Then R is contained within at least one scale of L.

R S

Willamette REU k-MSP Intersection Graphs August 4, 2017 19 / 67

slide-51
SLIDE 51

Summary of Lemmas Convex Subset Lemma Let R be a convex k-lizard contained within a k-lizard L. Then R is contained within at least one scale of L. Proto-Scale Lemma In a k-lizard at a reflex interior angle ✓k+j, there is a g-region, where g j + 1.

p

θ7

Willamette REU k-MSP Intersection Graphs August 4, 2017 19 / 67

slide-52
SLIDE 52

Summary of Lemmas Ray Lemma Given scales A, B, C in a k-lizard, if a $ b, b $ c, and a = c, and from every point on the boundary of B A there exists a ray in a ✓i direction that intersects A, then there exists a scale D intersecting A, B, and C.

A B p r C

Willamette REU k-MSP Intersection Graphs August 4, 2017 20 / 67

slide-53
SLIDE 53

Summary of Lemmas Ray Lemma Given scales A, B, C in a k-lizard, if a $ b, b $ c, and a = c, and from every point on the boundary of B A there exists a ray in a ✓i direction that intersects A, then there exists a scale D intersecting A, B, and C. Parallel Sides Lemma Given scales A, B, C in a k-lizard, if a $ b, b $ c, and a and b have no shared neighbors, then the region B A C has parallel boundary components s1 and s2 from A \ B to B \ C.

A B C s1 s2

Willamette REU k-MSP Intersection Graphs August 4, 2017 20 / 67

slide-54
SLIDE 54

Summary of Lemmas Ray Lemma Given scales A, B, C in a k-lizard, if a $ b, b $ c, and a = c, and from every point on the boundary of B A there exists a ray in a ✓i direction that intersects A, then there exists a scale D intersecting A, B, and C. Parallel Sides Lemma Given scales A, B, C in a k-lizard, if a $ b, b $ c, and a and b have no shared neighbors, then the region B A C has parallel boundary components s1 and s2 from A \ B to B \ C. End 2-Region Lemma Any scale has at most two end 2-regions.

A B C

Willamette REU k-MSP Intersection Graphs August 4, 2017 20 / 67

slide-55
SLIDE 55

Separating Examples

2-MSP 3-MSP 4-MSP

Willamette REU k-MSP Intersection Graphs August 4, 2017 21 / 67

slide-56
SLIDE 56

Graphs that are k-MSP Graphs Proposition (Complete Graphs). The complete graph Kn is a k-MSP graph for all n, k 2 N, where k 2. K4 in 2-MSP , K5 in 3-MSP , and 4-MSP

Willamette REU k-MSP Intersection Graphs August 4, 2017 22 / 67

slide-57
SLIDE 57

Graphs that are k-MSP Graphs Proposition (Complete Graphs). The complete graph Kn is a k-MSP graph for all n, k 2 N, where k 2. K4 in 2-MSP , K5 in 3-MSP , and 4-MSP

Willamette REU k-MSP Intersection Graphs August 4, 2017 22 / 67

slide-58
SLIDE 58

Graphs that are k-MSP Graphs Proposition (Complete Graphs). The complete graph Kn is a k-MSP graph for all n, k 2 N, where k 2. K4 in 2-MSP , K5 in 3-MSP , and 4-MSP

Willamette REU k-MSP Intersection Graphs August 4, 2017 22 / 67

slide-59
SLIDE 59

Graphs that are k-MSP Graphs Proposition (Complete Graphs). The complete graph Kn is a k-MSP graph for all n, k 2 N, where k 2. K4 in 2-MSP , K5 in 3-MSP , and 4-MSP

Willamette REU k-MSP Intersection Graphs August 4, 2017 22 / 67

slide-60
SLIDE 60

Graphs that are k-MSP Graphs Proposition (Complete Graphs). The complete graph Kn is a k-MSP graph for all n, k 2 N, where k 2. K4 in 2-MSP , K5 in 3-MSP , and 4-MSP

Willamette REU k-MSP Intersection Graphs August 4, 2017 22 / 67

slide-61
SLIDE 61

Graphs that are k-MSP Graphs Proposition (Complete Graphs). The complete graph Kn is a k-MSP graph for all n, k 2 N, where k 2. K4 in 2-MSP , K5 in 3-MSP , and 4-MSP

Willamette REU k-MSP Intersection Graphs August 4, 2017 22 / 67

slide-62
SLIDE 62

Graphs that are k-MSP Graphs Proposition (Complete Graphs). The complete graph Kn is a k-MSP graph for all n, k 2 N, where k 2. For k = 2, construct the "staircase" as shown previously, with n "stairs". For k 3, construct the first scale A as a triangle with two ✓1 angles and one ✓k2 angle. Add n 1 bumps to the longest side of A, alternating directions of the other two sides of A.

θ1 θk-2 θ1 θk-2

The construction of the 6-MSP representation of K4.

Willamette REU k-MSP Intersection Graphs August 4, 2017 23 / 67

slide-63
SLIDE 63

Graphs that are k-MSP Graphs Proposition (Path Graphs). Pj is a k-MSP graph for all j, k 2 N, and k 2.

The 2- and 3-MSP representation of P6.

Willamette REU k-MSP Intersection Graphs August 4, 2017 24 / 67

slide-64
SLIDE 64

Graphs that are k-MSP Graphs Proposition (Path Graphs). Pj is a k-MSP graph for all j, k 2 N, and k 2.

The 2- and 3-MSP representation of P6.

For all k, construct the k-lizard with consecutive parallelograms Q1, ..., Qn, intersecting such that for all 1  a  n, Qa [ Qa+1 is a polygon containing one reflex angle with measure ✓k+1.

Willamette REU k-MSP Intersection Graphs August 4, 2017 24 / 67

slide-65
SLIDE 65

Separating Examples

2-MSP 3-MSP 4-MSP

Kn Pn

Willamette REU k-MSP Intersection Graphs August 4, 2017 25 / 67

slide-66
SLIDE 66

Cycles are not k-MSP Graphs Theorem Cj is not a k-MSP graph when j 4 and k 2.

Willamette REU k-MSP Intersection Graphs August 4, 2017 26 / 67

slide-67
SLIDE 67

Cycles are not k-MSP Graphs Theorem Cj is not a k-MSP graph when j 4 and k 2. Proof. Assume there exists a k-MSP representation of Cj. j scales must intersect two "neighbor" scales. Connect one point in each intersection with line segments. Note that each line segment must be contained in one of the j scales. The j points and j line segments must form a closed path P, which must be contained in the k-lizard.

P A B C

Willamette REU k-MSP Intersection Graphs August 4, 2017 26 / 67

slide-68
SLIDE 68

Cycles are not k-MSP Graphs Theorem Cj is not a k-MSP graph when j 4 and k 2. Proof cont. Construct a convex k-lizard R such that R ✓ P is maximal inside P. The vertices of R must intersect at least three distinct sides of P, thus R must contain points from at least three distinct scales.

P R

Willamette REU k-MSP Intersection Graphs August 4, 2017 27 / 67

slide-69
SLIDE 69

Cycles are not k-MSP Graphs Theorem Cj is not a k-MSP graph when j 4 and k 2. Proof cont. R must be contained in a scale S of L by the Convex Subset Lemma. S corresponds to a vertex with degree at least three, but all vertices in Cj must have degree two. So Cj is not a k-MSP graph.

R S

Willamette REU k-MSP Intersection Graphs August 4, 2017 28 / 67

slide-70
SLIDE 70

Separating Examples

2-MSP 3-MSP 4-MSP

Kn Pn Cn (n>3)

Willamette REU k-MSP Intersection Graphs August 4, 2017 29 / 67

slide-71
SLIDE 71

Induced Cycles in k-MSP Graphs Theorem C5 is an induced subgraph for 3 and 4-MSP but not for 2-MSP . Proof (C5 is not an induced subgraph for 2-MSP). Recall from Shearer 1982 and Maire 1993, all 2-MSP graphs are perfect. C5 is not perfect, so it cannot be a subgraph of a 2-MSP graph.

Willamette REU k-MSP Intersection Graphs August 4, 2017 30 / 67

slide-72
SLIDE 72

Induced Cycles in k-MSP Graphs Theorem C5 is an induced subgraph for 3 and 4-MSP but not for 2-MSP . Proof (C5 is not an induced subgraph for 2-MSP). Recall from Shearer 1982 and Maire 1993, all 2-MSP graphs are perfect. C5 is not perfect, so it cannot be a subgraph of a 2-MSP graph. Maire also proved that C4 is the largest induced cycle that can be made in 2-MSP .

Willamette REU k-MSP Intersection Graphs August 4, 2017 30 / 67

slide-73
SLIDE 73

Induced Cycles in k-MSP Graphs Theorem C5 is an induced subgraph for 3 and 4-MSP but not for 2-MSP . Proof (C5 is an induced subgraph for 3 and 4-MSP). See the constructions for an induced C5 with 3 and 4-MSP .

Willamette REU k-MSP Intersection Graphs August 4, 2017 31 / 67

slide-74
SLIDE 74

Separating Examples

2-MSP 3-MSP 4-MSP

Kn Pn Cn (n>3) induced C5

Willamette REU k-MSP Intersection Graphs August 4, 2017 32 / 67

slide-75
SLIDE 75

Induced Cycles in k-MSP Graphs Proposition Cn is an induced subgraph of a k-MSP graph when n 3 and k 5. Along one "direction," alternate two types of triangles: one with angle measures (✓1, ✓1, ✓k2), and another with angle measures (✓1, ✓2, ✓k3) Construct n 3 of these triangles, then complete the cycle with 3 paralellograms

θ1 θk-3 θ2 θ1 θ1 θk-2

Willamette REU k-MSP Intersection Graphs August 4, 2017 33 / 67

slide-76
SLIDE 76

Induced Cycles in k-MSP Graphs

Willamette REU k-MSP Intersection Graphs August 4, 2017 34 / 67

slide-77
SLIDE 77

Induced Cycles in k-MSP Graphs Conjecture In 3-MSP and 4-MSP , there is an upper bound on the size of the largest possible induced cycle. Alternating triangle construction fails because there is only one triangle possible in each case (60, 60, 60 in 3-MSP or 45, 45, 90 in 4-MSP) k-MSP Maximum Induced Cycle 2-MSP 4 (Maire) 3-MSP 12 4-MSP 16 (5+)-MSP unbounded

Willamette REU k-MSP Intersection Graphs August 4, 2017 35 / 67

slide-78
SLIDE 78

Tree Graphs Theorem All tree graphs are 2-MSP graphs.

a b c d e A B C D E

Willamette REU k-MSP Intersection Graphs August 4, 2017 36 / 67

slide-79
SLIDE 79

Tree Graphs Theorem All tree graphs are 2-MSP graphs.

a b c d e f A B C D E F

Willamette REU k-MSP Intersection Graphs August 4, 2017 36 / 67

slide-80
SLIDE 80

Tree Graphs Theorem All tree graphs are 2-MSP graphs.

a b c d e f g A B C D E F G

Willamette REU k-MSP Intersection Graphs August 4, 2017 36 / 67

slide-81
SLIDE 81

Tree Graphs Theorem Tree graphs are k-MSP graphs for all k 3 if and only if they are caterpillars.

Willamette REU k-MSP Intersection Graphs August 4, 2017 37 / 67

slide-82
SLIDE 82

Tree Graphs Theorem Tree graphs are k-MSP graphs for all k 3 if and only if they are caterpillars. Proof (()

Recall the construction for Pn for any k. We can extend any scale corresponding to any vertex of P. On any of the scales, we can add triangles with interior angles equal to ✓k+1.

A 3-lizard whose graph is a caterpillar

Willamette REU k-MSP Intersection Graphs August 4, 2017 37 / 67

slide-83
SLIDE 83

Tree Graphs Proof ()), by contradiction. a b c d e f g Recall that NC7 (the smallest non-caterpillar with 7 vertices) is a subgraph of every tree that is not a caterpillar, so it suffices to show that NC7 is not a k-MSP graph for all k 3. By the End 2-Regions Lemma, the corresponding scale C has at most two end 2-regions and has parallel sides.

Willamette REU k-MSP Intersection Graphs August 4, 2017 38 / 67

slide-84
SLIDE 84

Tree Graphs Proof ()) cont. By the Proto-scales Lemma, the only angle that creates a 2-region is ✓k+1.

θk+1 θk+1

C F

Note that from any point on boundary(F C), there exists a ray in a ✓i direction that intersects C. By the Ray Lemma, we cannot form another scale intersecting F without creating a scale that intersects both C and F. So a k-MSP tree graph G must be a caterpillar.

Willamette REU k-MSP Intersection Graphs August 4, 2017 39 / 67

slide-85
SLIDE 85

Separating Examples

2-MSP 3-MSP 4-MSP

Kn Pn NC7 Cn (n>3) induced C5

Willamette REU k-MSP Intersection Graphs August 4, 2017 40 / 67

slide-86
SLIDE 86

Seagull Graphs We define the family of seagull graphs, Seagulln, to be a clique with n vertices joined to the third vertex of P5, with a pendant vertex adjacent to a different vertex of the clique.

Seagull2(NC7) (left) and Seagull3 (right)

Willamette REU k-MSP Intersection Graphs August 4, 2017 41 / 67

slide-87
SLIDE 87

Seagull Graphs Theorem Seagullk1 is not a k-MSP graph, but is a (k 1)-MSP graph.

Willamette REU k-MSP Intersection Graphs August 4, 2017 42 / 67

slide-88
SLIDE 88

Seagull Graphs Theorem Seagullk1 is not a k-MSP graph, but is a (k 1)-MSP graph. Proof (Seagullk1 is not a k-MSP graph).

C G

{

Kk-1

Since C has two end 2-regions, it must have parallel sides between them (by Parallel Sides Lemma), so C G cannot be an end region. Therefore, we just need to consider the reflex angles at C [ G.

Willamette REU k-MSP Intersection Graphs August 4, 2017 42 / 67

slide-89
SLIDE 89

Seagull Graphs Case I: C [ G has one reflex angle.

Willamette REU k-MSP Intersection Graphs August 4, 2017 43 / 67

slide-90
SLIDE 90

Seagull Graphs Case I: C [ G has one reflex angle. G must intersect C at at least two points, one of which is the reflex angle. To avoid second reflex angle, G must intersect at a corner of C. However, this causes G to intersect an end 2-region of C, making it no longer a 2-region. θk+1

C D G

Willamette REU k-MSP Intersection Graphs August 4, 2017 43 / 67

slide-91
SLIDE 91

Seagull Graphs Case II: C [ G has two reflex angles with measures ✓k+i and ✓k+j.

Willamette REU k-MSP Intersection Graphs August 4, 2017 44 / 67

slide-92
SLIDE 92

Seagull Graphs Case II: C [ G has two reflex angles with measures ✓k+i and ✓k+j. We do not want to create any more than k 2 scales (not including C) for the k 1 clique of the seagull, so each angle cannot create more than k 2 proto-scales. This implies the maximum value for either i or j is k 3. The minimum value for i or j is 1, else the angles would not be reflex. We then split Case II into three subcases.

Willamette REU k-MSP Intersection Graphs August 4, 2017 44 / 67

slide-93
SLIDE 93

Seagull Graphs Case II.a: i + j < k

Willamette REU k-MSP Intersection Graphs August 4, 2017 45 / 67

slide-94
SLIDE 94

Seagull Graphs Case II.a: i + j < k

θk+i θk+j C G

If i + j < k, the sides of G are not parallel and point towards each

  • ther.

This means G C forms a shape such that from every point on the boundary of G C, we can construct a ray that intersects C. By the Ray Lemma, this means any scale intersecting G would also intersect C.

Willamette REU k-MSP Intersection Graphs August 4, 2017 45 / 67

slide-95
SLIDE 95

Seagull Graphs Case II.b: i + j = k If i + j = k, the sides of G are parallel. We create ij scales with construction of G.

C

θk+2 θk+3

Willamette REU k-MSP Intersection Graphs August 4, 2017 46 / 67

slide-96
SLIDE 96

Seagull Graphs Case II.b: i + j = k If i + j = k, the sides of G are parallel. We create ij scales with construction of G.

C

θk+2 θk+3

Willamette REU k-MSP Intersection Graphs August 4, 2017 46 / 67

slide-97
SLIDE 97

Seagull Graphs Case II.b: i + j = k If i + j = k, the sides of G are parallel. We create ij scales with construction of G.

C

θk+2 θk+3

Willamette REU k-MSP Intersection Graphs August 4, 2017 46 / 67

slide-98
SLIDE 98

Seagull Graphs Case II.b: i + j = k If i + j = k, the sides of G are parallel. We create ij scales with construction of G.

C

θk+2 θk+3

Willamette REU k-MSP Intersection Graphs August 4, 2017 46 / 67

slide-99
SLIDE 99

Seagull Graphs Case II.b: i + j = k If i + j = k, the sides of G are parallel. We create ij scales with construction of G.

C

θk+2 θk+3

Willamette REU k-MSP Intersection Graphs August 4, 2017 46 / 67

slide-100
SLIDE 100

Seagull Graphs Case II.b: i + j = k If i + j = k, the sides of G are parallel. We create ij scales with construction of G.

C

θk+2 θk+3

Willamette REU k-MSP Intersection Graphs August 4, 2017 46 / 67

slide-101
SLIDE 101

Seagull Graphs Case II.b: i + j = k If i + j = k, the sides of G are parallel. We create ij scales with construction of G.

C

θk+2 θk+3

Willamette REU k-MSP Intersection Graphs August 4, 2017 46 / 67

slide-102
SLIDE 102

Seagull Graphs Case II.b: i + j = k If i + j = k, the sides of G are parallel. We create ij scales with construction of G.

C

θk+2 θk+3

Willamette REU k-MSP Intersection Graphs August 4, 2017 46 / 67

slide-103
SLIDE 103

Seagull Graphs Recall that we cannot create any more than k 2 scales, so we need ij  k 2. Since i + j = k, without a loss of generality, we can make the substitution i = k j into the inequality to yield j k 2. However, we know that j must be smaller than k 3. )(

Willamette REU k-MSP Intersection Graphs August 4, 2017 47 / 67

slide-104
SLIDE 104

Seagull Graphs Case II.c: i + j > k, in other words i + j k + 1

Willamette REU k-MSP Intersection Graphs August 4, 2017 48 / 67

slide-105
SLIDE 105

Seagull Graphs Case II.c: i + j > k, in other words i + j k + 1

C G

θk+i

θk+j

If i + j k + 1, the sides of G are not parallel and point in directions away from each other. WLOG, the minimum number for i is 4, since if i were any smaller, i + j 6 k + 1.

Willamette REU k-MSP Intersection Graphs August 4, 2017 48 / 67

slide-106
SLIDE 106

Seagull Graphs Case II.c: i + j > k, in other words i + j k + 1

C G

θk+i

θk+j

If i + j k + 1, the sides of G are not parallel and point in directions away from each other. WLOG, the minimum number for i is 4, since if i were any smaller, i + j 6 k + 1. If i = 4, then 4 + j k + 1, which implies j k 3. However, we know j  k 3, so we just consider the case where j = k 3. After substitution, we determine that ij > k 1. )(

Willamette REU k-MSP Intersection Graphs August 4, 2017 48 / 67

slide-107
SLIDE 107

Seagull Graphs Case III: There are three or more reflex angles at C [ G.

Willamette REU k-MSP Intersection Graphs August 4, 2017 49 / 67

slide-108
SLIDE 108

Seagull Graphs Case III: There are three or more reflex angles at C [ G. We know that no matter the angle measurements, any two reflex angles create too many scales. Adding an additional reflex angle will never remove scales. Thus, it directly follows that three or more reflex angles would also create too many scales. Therefore, Seagullk1 is not a k-MSP graph.

Willamette REU k-MSP Intersection Graphs August 4, 2017 49 / 67

slide-109
SLIDE 109

Seagull Graphs Proof (Seagullk1 is a (k 1)-MSP graph.) We propose the following construction: Let m = k 1. Construct the representation for P5 in m-MSP .

Willamette REU k-MSP Intersection Graphs August 4, 2017 50 / 67

slide-110
SLIDE 110

Seagull Graphs Construct G such that the two reflex angles at the intersection are ✓2m1 and ✓m+1.

θ2m-1 θm+1

Willamette REU k-MSP Intersection Graphs August 4, 2017 51 / 67

slide-111
SLIDE 111

Seagull Graphs Construct G such that the two reflex angles at the intersection are ✓2m1 and ✓m+1.

θ2m-1 θm+1

Willamette REU k-MSP Intersection Graphs August 4, 2017 51 / 67

slide-112
SLIDE 112

Seagull Graphs Construct G such that the two reflex angles at the intersection are ✓2m1 and ✓m+1.

θ2m-1 θm+1

Willamette REU k-MSP Intersection Graphs August 4, 2017 51 / 67

slide-113
SLIDE 113

Seagull Graphs Construct G such that the two reflex angles at the intersection are ✓2m1 and ✓m+1.

θ2m-1 θm+1

Willamette REU k-MSP Intersection Graphs August 4, 2017 51 / 67

slide-114
SLIDE 114

Seagull Graphs Construct G such that the two reflex angles at the intersection are ✓2m1 and ✓m+1.

θ2m-1 θm+1

We have formed m = k 1 total scales.

Willamette REU k-MSP Intersection Graphs August 4, 2017 51 / 67

slide-115
SLIDE 115

Seagull Graphs We know that we can create the pendant vertex since G has parallel sides.

θ2m-1 θm+1

Willamette REU k-MSP Intersection Graphs August 4, 2017 52 / 67

slide-116
SLIDE 116

Seagull Graphs Example. Seagull3 is a 2- and 3-MSP graph but not a 4-MSP graph.

a b c d e f g h A B C D E F G H

A B C D E F G H

Conjecture Seagullk is a j-MSP graph for all j  k.

Willamette REU k-MSP Intersection Graphs August 4, 2017 53 / 67

slide-117
SLIDE 117

Separating Examples

2-MSP 3-MSP 4-MSP

Kn Pn NC7 Seagull3 Cn (n>3) induced C5

Willamette REU k-MSP Intersection Graphs August 4, 2017 54 / 67

slide-118
SLIDE 118

Turtle Graphs We define the family of turtle graphs, Turtlen, p, to be a clique with n vertices, to which p pendant vertices are attached, each to distinct vertices of the clique.

Turtle6,4

Willamette REU k-MSP Intersection Graphs August 4, 2017 55 / 67

slide-119
SLIDE 119

Turtle Graphs Theorem Turtlen,k is a k-MSP graph for all k and some n.

Willamette REU k-MSP Intersection Graphs August 4, 2017 56 / 67

slide-120
SLIDE 120

Turtle Graphs Theorem Turtlen,k is a k-MSP graph for all k and some n.

Turtle9,4 in 4-MSP

Willamette REU k-MSP Intersection Graphs August 4, 2017 56 / 67

slide-121
SLIDE 121

Turtle Graphs Theorem Turtlen,k is a k-MSP graph for all k and some n.

Turtle9,4 in 4-MSP

Willamette REU k-MSP Intersection Graphs August 4, 2017 56 / 67

slide-122
SLIDE 122

Turtle Graphs Theorem Turtlen,k is a k-MSP graph for all k and some n.

Turtle9,4 in 4-MSP

Willamette REU k-MSP Intersection Graphs August 4, 2017 56 / 67

slide-123
SLIDE 123

Turtle Graphs Theorem Turtlen,k is a k-MSP graph for all k and some n.

Turtle9,4 in 4-MSP

Willamette REU k-MSP Intersection Graphs August 4, 2017 56 / 67

slide-124
SLIDE 124

Turtle Graphs Theorem Turtlen,k+1 is not a k-MSP graph for any n 2 N Proof. Assume by way of contradiction that there exists a k-lizard which gives the k-MSP graph Turtlen,k+1. Let p1, ..., pk+1 be the pendant vertices in Turtlen,k+1, and q1, ..., qk+1 the vertices in the graph adjacent to each pendant vertex.

pa qa qb pb

Willamette REU k-MSP Intersection Graphs August 4, 2017 57 / 67

slide-125
SLIDE 125

Turtle Graphs Theorem Turtlen,k+1 is not a k-MSP graph for any n 2 N Proof cont. By the parallel sides lemma, since pa $ qa, and qa has another neighbor qb, Qa Pa Qb contains a pair of parallel sides. For each qa, 1  a  k + 1, the lemma holds, so we have k + 1 pairs

  • f parallel sides. Since we have k

directions for the sides, two pairs of parallel sides share a direction.

pa qa qb pb s1 s2 s3 s4 Qa Qb

Willamette REU k-MSP Intersection Graphs August 4, 2017 58 / 67

slide-126
SLIDE 126

Turtle Graphs Theorem Turtlen,k+1 is not a k-MSP graph for any n 2 N Proof cont. Case 1: If the sides are arranged s1, s2, s3, s4, then Qa and Qb do not intersect.

pa qa qb pb s1 s2 s3 s4 Qa Qb

Willamette REU k-MSP Intersection Graphs August 4, 2017 59 / 67

slide-127
SLIDE 127

Turtle Graphs Theorem Turtlen,k+1 is not a k-MSP graph for any n 2 N Proof cont. Case 1: If the sides are arranged s1, s2, s3, s4, then Qa and Qb do not intersect. Case 2: If the sides are arranged s1, s3, s2, s4, then there is a scale Qc between s3 and s2. By the ray lemma, a scale attached to Qa also intersects Qc, so Qa cannot have a pendant vertex.

pa qa qb pb

s1 s2 s3 s4 Qa Qb Pb Pa Qc

Willamette REU k-MSP Intersection Graphs August 4, 2017 59 / 67

slide-128
SLIDE 128

Turtle Graphs Theorem Turtlen,k+1 is not a k-MSP graph for any n 2 N Proof cont Case 3: If the sides are arranged s1, s3, s4, s2, then we can draw a ray from any point along s1 or s2 that intersects Qa and Qb. By the ray lemma, a scale Pa intersecting Qa creates a scale that intersects Pa, Qa, and Qc, so Qa cannot have a pendant vertex.

pa qa qb pb

s1 s2 s3 s4 Qb Qa Pa

Willamette REU k-MSP Intersection Graphs August 4, 2017 60 / 67

slide-129
SLIDE 129

Turtle Graphs Theorem Turtlen,k+1 is not a k-MSP graph for any n 2 N Proof cont Case 4: If two sides intersect, we have two subcases:

If in s1, s2, s3, s4, if s2 and s3 intersect, then Qa and Qb don’t intersect. If in s1, s3, s4, s2, if s1 and s3 intersect, then again by the ray lemma, a scale Pa intersecting Qa creates a scale that intersects Pa, Qa, and Qb, so Qa cannot have a pendant vertex.

s1 s2 s3 s4 Qa Qb

s1 s2 s3 s4 Qb Qa Pa

Willamette REU k-MSP Intersection Graphs August 4, 2017 61 / 67

slide-130
SLIDE 130

Separating Examples

2-MSP 3-MSP 4-MSP

Kn Pn NC7 Seagull3 Cn (n>3) Turtlen,4

Turtlen,3 induced C5

Willamette REU k-MSP Intersection Graphs August 4, 2017 62 / 67

slide-131
SLIDE 131

Separating Examples

2-MSP 3-MSP 4-MSP

Kn Pn NC7 Seagull3 Cn (n>3) ??? ??? Turtlen,4

Turtlen,3 induced C5

Willamette REU k-MSP Intersection Graphs August 4, 2017 63 / 67

slide-132
SLIDE 132

Generalized Separating Examples

(k-1)-MSP k-MSP (k+1)-MSP

Kn Pn Seagullk-1 Seagullk Cn (n>3) Turtlen, k Ø Turtle Seagulln, k Turtlen, k+1

Willamette REU k-MSP Intersection Graphs August 4, 2017 64 / 67

slide-133
SLIDE 133

Seagull-Turtle Graph Conjecture The Seagull-Turtle Graph, SeaTurtk,n,k, is a k-MSP graph but not j-MSP for j 6= k.

Willamette REU k-MSP Intersection Graphs August 4, 2017 65 / 67

slide-134
SLIDE 134

Seagull-Turtle Graph Conjecture The Seagull-Turtle Graph, SeaTurtk,n,k, is a k-MSP graph but not j-MSP for j 6= k.

Willamette REU k-MSP Intersection Graphs August 4, 2017 65 / 67

slide-135
SLIDE 135

Future Research There are several other things we would like to consider: Considering k-snakes, which require integer side lengths (Kaplan, 2017) Requiring maximal sub-polygons also have integer side lengths

Does 4-MSP reduce to 2-MSP?

Non-simply connected k-lizards

Willamette REU k-MSP Intersection Graphs August 4, 2017 66 / 67

slide-136
SLIDE 136

Acknowledgements We gratefully acknowledge: Josh Laison for his invaluable contributions to the project Richard Moy for his ideas, uplifting spirit and encouragement to have fun Erin McNicholas and Josh Laison for organizing the Willamette Mathematics Consortium REU The support of NSF grant DMS 1460982

Willamette REU k-MSP Intersection Graphs August 4, 2017 67 / 67
