The University of Iowa Department of Mathematics

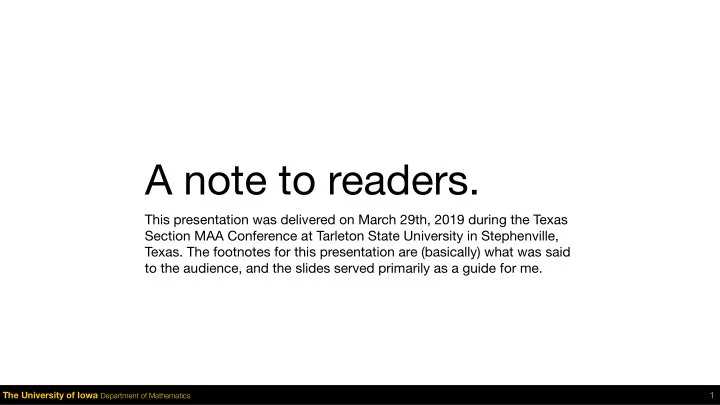

A note to readers.

This presentation was delivered on March 29th, 2019 during the Texas Section MAA Conference at Tarleton State University in Stephenville,

  • Texas. The footnotes for this presentation are (basically) what was said

to the audience, and the slides served primarily as a guide for me.

1

slide-2
SLIDE 2

The University of Iowa Department of Mathematics

seeds of democracy

a k-medoids approach to exploring districting plans

2

Anthony Pizzimenti • Texas MAA Section Conference @ Tarleton State • March 29th, 2019

slide-3
SLIDE 3

The University of Iowa Department of Mathematics 3

in this talk

slide-4
SLIDE 4

The University of Iowa Department of Mathematics 3

in this talk

  • 1. brief districting overview
slide-5
SLIDE 5

The University of Iowa Department of Mathematics 3

in this talk

  • 1. brief districting overview
  • 2. what is gerrymandering?
slide-6
SLIDE 6

The University of Iowa Department of Mathematics 3

in this talk

  • 1. brief districting overview
  • 2. what is gerrymandering?
  • 3. maps, MCMC random walks, and seeding
slide-7
SLIDE 7

The University of Iowa Department of Mathematics 3

in this talk

  • 1. brief districting overview
  • 2. what is gerrymandering?
  • 3. maps, MCMC random walks, and seeding
  • 4. k-medoids and its results
slide-8
SLIDE 8

The University of Iowa Department of Mathematics 4

  • 1. brief districting overview
slide-9
SLIDE 9

The University of Iowa Department of Mathematics 5

  • 1. census and apportionment
slide-10
SLIDE 10

The University of Iowa Department of Mathematics 6

  • 2. subdividing
slide-11
SLIDE 11

The University of Iowa Department of Mathematics 7

  • 3. districting!
slide-12
SLIDE 12

The University of Iowa Department of Mathematics 8

  • 2. what is gerrymandering?
slide-13
SLIDE 13

The University of Iowa Department of Mathematics 9

partisan gerrymandering

slide-14
SLIDE 14

The University of Iowa Department of Mathematics 9

partisan gerrymandering

  • a process wherein politicians are able to draw

district boundaries that benefit their party

slide-15
SLIDE 15

The University of Iowa Department of Mathematics 9

partisan gerrymandering

  • a process wherein politicians are able to draw

district boundaries that benefit their party

  • a tactic for political parties to retain power
slide-16
SLIDE 16

The University of Iowa Department of Mathematics 9

partisan gerrymandering

  • a process wherein politicians are able to draw

district boundaries that benefit their party

  • a tactic for political parties to retain power
  • a means for politicians to pick their voters
slide-17
SLIDE 17

The University of Iowa Department of Mathematics 9

partisan gerrymandering

  • a process wherein politicians are able to draw

district boundaries that benefit their party

  • a tactic for political parties to retain power
  • a means for politicians to pick their voters
  • a threat to any representative democracy
slide-18
SLIDE 18

The University of Iowa Department of Mathematics 10

q: can we tell when a districting plan is gerrymandered?

slide-19
SLIDE 19

The University of Iowa Department of Mathematics 10

q: can we tell when a districting plan is gerrymandered? a: no, but we can make a really good guess.

slide-20
SLIDE 20

The University of Iowa Department of Mathematics 11

  • 3. maps, MCMC random walks, and seeding
slide-21
SLIDE 21

The University of Iowa Department of Mathematics 12

gerrymandering measurement heuristic

slide-22
SLIDE 22

The University of Iowa Department of Mathematics 12

gerrymandering measurement heuristic

  • 1. get a map of the state’s subdivisions
slide-23
SLIDE 23

The University of Iowa Department of Mathematics 12

gerrymandering measurement heuristic

  • 1. get a map of the state’s subdivisions
  • 2. create the dual graph of the map
slide-24
SLIDE 24

The University of Iowa Department of Mathematics 12

gerrymandering measurement heuristic

  • 1. get a map of the state’s subdivisions
  • 2. create the dual graph of the map
  • 3. impose a districting plan on the dual graph (i.e. assign

each vertex to a district)

slide-25
SLIDE 25

The University of Iowa Department of Mathematics 12

gerrymandering measurement heuristic

  • 1. get a map of the state’s subdivisions
  • 2. create the dual graph of the map
  • 3. impose a districting plan on the dual graph (i.e. assign

each vertex to a district)

  • 4. run an MCMC random walk on the dual graph
slide-26
SLIDE 26

The University of Iowa Department of Mathematics 12

gerrymandering measurement heuristic

  • 1. get a map of the state’s subdivisions
  • 2. create the dual graph of the map
  • 3. impose a districting plan on the dual graph (i.e. assign

each vertex to a district)

  • 4. run an MCMC random walk on the dual graph
  • 5. compare real-life plans to the distribution found by

the MCMC random walk

slide-27
SLIDE 27

The University of Iowa Department of Mathematics 13

q: how much of the sample space do we explore?

slide-28
SLIDE 28

The University of Iowa Department of Mathematics 13

q: how much of the sample space do we explore? a: we usually don’t know.

slide-29
SLIDE 29

The University of Iowa Department of Mathematics 14

q: how can we explore more of the sample space?

slide-30
SLIDE 30

The University of Iowa Department of Mathematics 14

q: how can we explore more of the sample space? a: we can pick good starting points.

slide-31
SLIDE 31

The University of Iowa Department of Mathematics 15

  • 4. k-medoids and its results
slide-32
SLIDE 32

The University of Iowa Department of Mathematics 16

k-medoids

like k-means, but the centroids must be points in the cluster.

slide-33
SLIDE 33

The University of Iowa Department of Mathematics 17

k-medoids on graphs: an algorithm

slide-34
SLIDE 34

The University of Iowa Department of Mathematics 17

k-medoids on graphs: an algorithm

  • 1. take in a dual graph
slide-35
SLIDE 35

The University of Iowa Department of Mathematics 17

k-medoids on graphs: an algorithm

  • 1. take in a dual graph
  • 2. find a spanning tree of the dual graph
slide-36
SLIDE 36

The University of Iowa Department of Mathematics 17

k-medoids on graphs: an algorithm

  • 1. take in a dual graph
  • 2. find a spanning tree of the dual graph
  • 3. pick an initial set of medoids, where each medoid is a

vertex of the dual graph

slide-37
SLIDE 37

The University of Iowa Department of Mathematics 17

k-medoids on graphs: an algorithm

  • 1. take in a dual graph
  • 2. find a spanning tree of the dual graph
  • 3. pick an initial set of medoids, where each medoid is a

vertex of the dual graph

  • 4. based on the medoids, assign each vertex to an initial

cluster, which partitions the tree into subtrees

slide-38
SLIDE 38

The University of Iowa Department of Mathematics 17

k-medoids on graphs: an algorithm

  • 1. take in a dual graph
  • 2. find a spanning tree of the dual graph
  • 3. pick an initial set of medoids, where each medoid is a

vertex of the dual graph

  • 4. based on the medoids, assign each vertex to an initial

cluster, which partitions the tree into subtrees

  • 5. pick new medoids
slide-39
SLIDE 39

The University of Iowa Department of Mathematics 17

k-medoids on graphs: an algorithm

  • 1. take in a dual graph
  • 2. find a spanning tree of the dual graph
  • 3. pick an initial set of medoids, where each medoid is a

vertex of the dual graph

  • 4. based on the medoids, assign each vertex to an initial

cluster, which partitions the tree into subtrees

  • 5. pick new medoids
  • 6. re-cluster vertices according to new medoids
slide-40
SLIDE 40

The University of Iowa Department of Mathematics 17

k-medoids on graphs: an algorithm

  • 1. take in a dual graph
  • 2. find a spanning tree of the dual graph
  • 3. pick an initial set of medoids, where each medoid is a

vertex of the dual graph

  • 4. based on the medoids, assign each vertex to an initial

cluster, which partitions the tree into subtrees

  • 5. pick new medoids
  • 6. re-cluster vertices according to new medoids
  • 7. have we seen this clustering k times in a row?
slide-41
SLIDE 41

The University of Iowa Department of Mathematics 17

k-medoids on graphs: an algorithm

  • 1. take in a dual graph
  • 2. find a spanning tree of the dual graph
  • 3. pick an initial set of medoids, where each medoid is a

vertex of the dual graph

  • 4. based on the medoids, assign each vertex to an initial

cluster, which partitions the tree into subtrees

  • 5. pick new medoids
  • 6. re-cluster vertices according to new medoids
  • 7. have we seen this clustering k times in a row?
  • 8. if yes, we’re done!
slide-42
SLIDE 42

The University of Iowa Department of Mathematics 17

k-medoids on graphs: an algorithm

  • 1. take in a dual graph
  • 2. find a spanning tree of the dual graph
  • 3. pick an initial set of medoids, where each medoid is a

vertex of the dual graph

  • 4. based on the medoids, assign each vertex to an initial

cluster, which partitions the tree into subtrees

  • 5. pick new medoids
  • 6. re-cluster vertices according to new medoids
  • 7. have we seen this clustering k times in a row?
  • 8. if yes, we’re done!
  • 9. if no, go back to (5).
slide-43
SLIDE 43

The University of Iowa Department of Mathematics 18

how do we pick new medoids?

slide-44
SLIDE 44

The University of Iowa Department of Mathematics 19

method 1: median vertex

find the vertex at the midpoint of each cluster.

slide-45
SLIDE 45

The University of Iowa Department of Mathematics 20

method 2: tree balance

for each cluster, find the vertex such that the distance from it to each other vertex is minimized.

slide-46
SLIDE 46

The University of Iowa Department of Mathematics 21

method 1 method 2

slide-47
SLIDE 47

The University of Iowa Department of Mathematics 22

Note: in between steps, the clusters are colored differently.

slide-48
SLIDE 48

The University of Iowa Department of Mathematics 23

slide-49
SLIDE 49

The University of Iowa Department of Mathematics 24

slide-50
SLIDE 50

The University of Iowa Department of Mathematics 25

slide-51
SLIDE 51

The University of Iowa Department of Mathematics 26

slide-52
SLIDE 52

The University of Iowa Department of Mathematics 27

slide-53
SLIDE 53

The University of Iowa Department of Mathematics 28

slide-54
SLIDE 54

The University of Iowa Department of Mathematics 29

a final word…

slide-55
SLIDE 55

The University of Iowa Department of Mathematics 30

thank you!

slide-56
SLIDE 56

The University of Iowa Department of Mathematics 31

questions?
