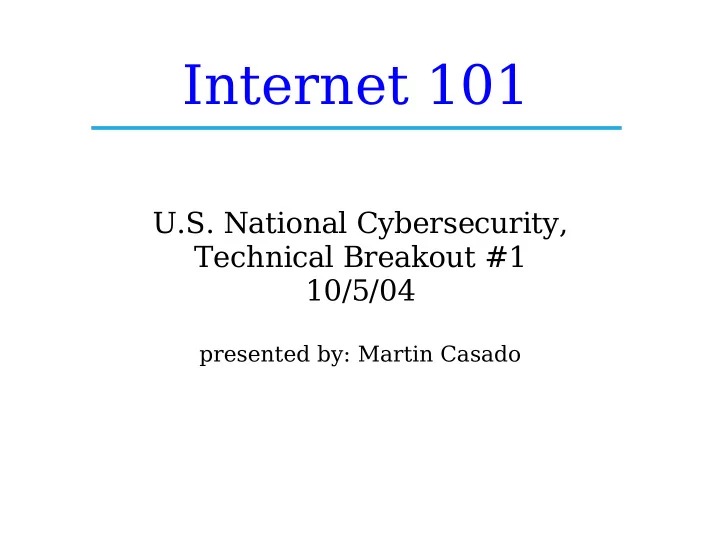

Internet 101

U.S. National Cybersecurity, Technical Breakout #1 10/5/04

presented by: Martin Casado

Network vs. Internet

• a network is a system of computers

that talk over some communication medium: phone line (analogue modem, DSL), cable, fiber etc.

• the Internet is a global network owned

and operated by many different groups with often conflicting interests, ideals, goals, agendas, and policies

Today ...

• What makes up the Internet
• How the Internet works
• How the Internet doesn't work

.. and remember ... the information presented here is a GROSS oversimplification.

Core vs. Edge

• The Internet can be roughly broken

into the “Core” and the “Edge”

• The Internet “Edge” is composed of

computers used by people to send or receive content

• The “Core” are all the computers that

move traffic between computers on the “Edge”

“Edge” Computers

• home computers
• computers that host web pages
• educational computers
• business computers
• governmental computers
• Internet Cafe's

“Core” computers

• Routers : try to figure out how traffic

goes from point A to point B (on the Internet)

• In the core, routers use a mechanism

called BGP to figure out where to send the packets next (this is a big technical and political rathole!)

Core vs. Edge

router End Host Core Edge Edge

Who Owns the Core?

• Mostly owned by private companies

(ISPs)

• Can think of Internet as an aggregation
• f smaller networks
• Companies are often multi-national

(what might be the implications of this?)

• Many names you've heard of, AT&T,

MCI, Sprint

Edge is you, me and aunt Bev

(and business, and gov and edu)

• Plug into Internet though an ISP
• ISP charges us to use their bandwidth
• ISPs charge other ISPs to lease lines

IP Addresses

• Any computer on the Internet can talk

to any other (mostly)

(yeeks! Once you plug in, everyone is your neighbor!)

• Computers “find” each other through

virtual addresses” called “IP addresses”

• If someone knows the IP address of

your computer, can talk to you

What are IP Addresses?

• Just numbers (with dots)

123.114.23.4 10.15.46.32

• Really just a value from 1 to (2^32 - 1)

represented 4 in octets (chunks of 2^8)

IP Addresses Cont ...

Note: Since so many computers are on the Internet; a person, or computer program, can choose an IP at random (just a number remember!) and it will likely be assigned to a computer

• this process of iterating through lots of

IP Addressess looking for a target is called “SCANNING”

How Computers Talk

• Send “packets” of information (called IP

packets or IP datagrams)

• Packets contain IP address of recipient

and sender, plus data

data ip src | ip dst Packet “header”

Packets in the Core

• Packets are moved or “routed” from the

sender to the receiver based on the destination IP address

• Note that, routers (computers in the

core) ONLY look at the destination

• Sources can lie about who they are:

“source spoofing”

IP Packets Cannot be Used for Reliable Services

• If a computer (router, sender, end-host)

is too busy, will drop packets

• If the header gets corrupted, packet

gets dropped

• Data can get corrupted
• If a router dies, packets will get lost

Transmission Control Protocol (TCP)

• Almost all communications on the

Internet use higher-level mechanism (TCP)

• TCP uses IP packets plus black magic to

ensure...

– Data will not be corrupted – Data will not be lost – Data will arrive in the order it was sent

• Plus! TCP black magic makes source

forging REALLY hard!

(just fyi)

User Datagram Protocol (UDP)

• Sometimes want to send data quickly,

and don't need so much magic

• Who cares if you loose a bullet or two

while playing Quake?

• Who cares if bullets come out of order?
• Not used very often (except for DNS)

Servers

• Some computers are only used to house

services such as web pages or email

• Typically only offer services and aren't

used like home computers

• Often located as close to the core as

possible (in some basement downtown)

Servers cont ...

• When connecting to a website,

connecting to a server

• When getting your email, connecting to

a server

• When listening to music online,

connecting to a server

Clients

• Programs that connect to services on

servers (used by you, me and Aunt Bev)

• Web browsers (mozilla, ie, safari etc.)
• Email clients (outlook, Eudora, ... )

Domain Name System (DNS)

• IP addresses are hard to remember

(and boring) ... why not use names instead?

• Computers in the core map names to IP

addresses

– www.google.com – www.stanford.edu – Called DNS servers

• “root” name servers most important!

– Only 13! – Heavily guarded in unmarked buildings

Checking News on the Web

(putting it all together)

• Sit down at computer and load web browser
• Type in “news.google.com”
• My computer asks DNS server to map

news.google.com to IP address

• DNS server responds with “64.233.167.99” (what

could happen if server lies?!)

• Computer then uses TCP to ask Google's web server

for news

• Google's web server responds
• I procrastinate

Ports

• A server can host multiple services (e.g.

Web and email)

• Each service has a unique “port” (just

another number) that clients connect to

• Ports are standardized on the Internet

(80 www, 25 sending email, 21 ftp)

• Hackers see look to see what services

are on a host by “port scanning”

The Layered Model

(another way to look at things) Physical Network Transport Application

Web, email, ICQ TCP/UDP IP Analogue modem, ethernet, fiber etc.

Has an Hour Glass Shape?

Ethernet | FDDI | Token Ring IP UDP | TCP Web | Email | Chat | Doom IP runs on everything, everything runs on IP What happens if there is a problem here?

Each Layer Has its Own Vulnerabilities

• Physical

– I chop your wires or bomb your building

• Network

– I forge my source address

• Transport

– I send too many TCP connection requests and

freeze your computer

• Application

– I send a bad request to your web server that

makes it croak

Oh ... and Don't Forget the Weakest Layer of All

Humans Physical Network Transport Application You, me aunt Bev

Humans are Vulnerable!

• Susceptible to beer, chocolate and the
• pposite sex
• Not experts (and shouldn't be!)
• Often don't care
