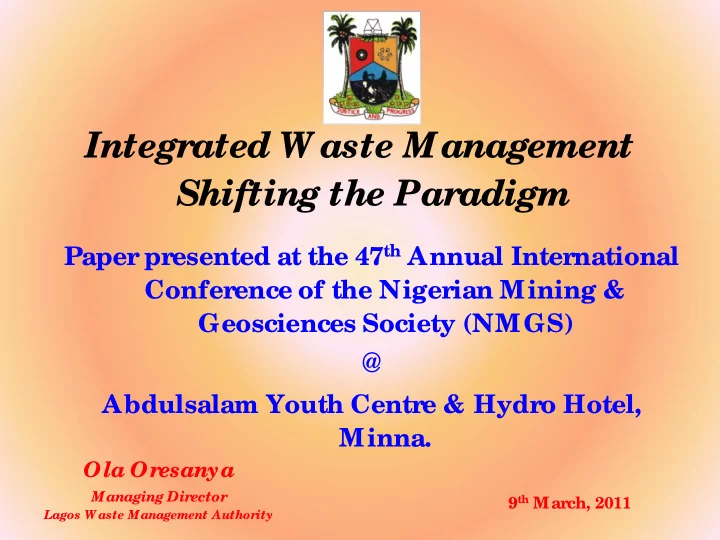

Integrated W aste Management Shifting the Paradigm Paper presented - - PowerPoint PPT Presentation

Integrated W aste Management Shifting the Paradigm

Ola Oresanya

Managing Director

Lagos W aste Management Authority

9th March, 2011

Paper presented at the 47th Annual International Conference of the Nigerian Mining & Geosciences Society (NMGS)

@

Abdulsalam Youth Centre & Hydro Hotel, Minna.

Lagos State At A Glance

• Population
• about 18 Million.
• Growth rate:
• 6 – 8%.
• Waste generation: - about 10,000MTPD.

Preamble

• GPC
• 0.5kg/ person/ day.
• Lagos VD -
• ver 222veh/ km.
• Nigeria VD
• 11veh/ km.

200 400 600 800 1000 1200

ACTUAL WASTE GENERATION PROJ ECTION DAILY GENERATION PROJ ECTION

Estimated Waste Generation of Lagos State (2009)

Vegetables 45% Papers 10% Glass 5% Plastics 15% M etals 5% Textiles 4% Fines 8% Putrescibles 8%

Lagos State Waste Analysis

Proximate Analysis Moisture (%) Volatile Matter (%) Fixed Carbon (%) Non Combustible (%) Higher Heat Value (Bu+ib) Ultimate Analysis Moisture Carbon (%) Hydrogen (%) Nitrogen (%) Sulphur (%) 15 – 35 50 – 60 3 – 9 15 – 25 30 – 60 15 – 35 15 – 30 12 – 24 0.2 – 1.0 Proximate and ultimate chemical Analysis of Municipal Solid Waste

Country/City} Kg/Person/day

New York City/USA Hamburg, Germany Rome, Italy Singapore Hong Kong Tunis, Tunisia Medelin, Colombia Kano, Nigeria Manila, Philippines Jakanta, Indonesia Sunabaya, Indonesia Banduny, Indonesia Lahone, Pakista Kanrachi, Pakinstan Calcutta, India Kanpun, India 1.80 0.85 0.69 0.87 0.85 0.56 0.54 0.46 0.50 0.50 0.60 0.50 0.55 0.60 0.50 0.50

Urban Solid Waste Generation Rate World Major Cities.

Source: Sandna J. cointueau, Environmental Management of Urban Solid Waste in Developing Countries (The World Bank, Washington, D.C 1982).

v Lagos 0.5kg/person/day

Generatio n At-Source Sorting Categoriz ed Collection (Compart mentalize d Trucks) Material Recovery/ Renewabl e Energy Landfillin g of Residuals Generation Partial At- Source Sorting Waste-To- Wealth / Renewable Energy Campaign Improved Landfill Manageme nt Disposal (Heaping, Bu rning and Burying) Collection (Comingled) Generation (Cocktail)

Prior LAWMA Re-Branding 1977 – 1991 - 2004 Re-Branded LAWMA 2005 Till Date Future (Beyond 2020s)

The Trend

STYLE STRUCTURE SKILLS STAFF

The Approach

Staff

* Staff Motivation * Sharing the Vision *Ownership of the New Vision *Setting the New Agenda

Raising the Army

Style

Core values of LAWMA

• Professionalism
• Efficiency
• Resilience
• Integrity.

Structure

• Corporate services
• Commercial Dept.
• Waste Management Services
• Engineering services
• Planning Research & Statistics Dept.
• Legal Dept.

Skills

• Waste treatment
• Engineering
• Scientific approach
• Administrative
• Communication etc.

SUSTAINABILITY SUSTAINABILITY

Creating New Brands W2W

very useful after all

W2M

ClimaDollar

W2G

Cash

W2S

Muscle

Gender Bliss

Did I Hear You Say Waste?

The Relevance

General Challenges

• Climate conditions
• Cultural and Socio – economic factors
• Funding
• Budgeting
• Technology
• Energy
• Capacity Building
• Human Capacity Quality

Task Progression

Task 2005 2009 2011 1 Budgeting (%

• f monthly State

recurrent expenditure) 2.5 8 12 2 Street sweeping (litter control) 1015 8240 (5400W, 2840M) 12,000 3 MSW Storage LB Nil 3020 4500 RORO/ B 26 400 400 STC/ B 30 100 100 HHB No data >100,000 400,000 SKIP Nil 80 500 RLB No data >1,000 2,000

Task 2005 2009 2011 4 Refuse Transportation Tippers 30 5 10 R/ Loaders 27 650 800 TLS/ Trailers Nil 18 40 STC 2 30 35 Roro 4 20 30 Skip Nil 40 100 Others 68 743 945 5 MSW Disposal Dumpsites 3 6 3 IWMF Nil Nil 1 TLS Nil 2 6 6 Resource Recovery Composting Nil 1 (600 TPD)

2 (combined 1500 TPD)

WTE Nil Nil 1 (10mghph) Plastic Recycling 2 (informal) 2 – Informal 1 – Formal 4 – Informal 3 – Formal Paper Bailing Nil 1 2

Lagos MSW (KPI) Projection (2005 – 2010)

s/n Activity (Grouping) Employment Socio Index Potential (2015) Direct

Indirect

1 MSW Administration, i.e. Publicity Awareness, logistics, Legal service, Research & Development etc. 225 649 Increase in public awareness and readiness to support MSW reform programme, 65% voluntary compliance 95% compliance 2 MSW Storage 86 820 Reduction of refuse on road and open spaces 90% household storage & separation at source 3 Waste collection &

• transportation. (LAWMA,

PSP, LGA & MOE) 9750 5200 Efficiency in the MSW collection & transportation and retaining confidence in the public utility service. (89% now) 98% access to collection 4 Street Sweeping (LAWMA, H/ manager, MOE & LG) 10,840 2024 Immense contribution to poverty eradication programme. Reduction in crime rate, improvement in city aesthetics, visibility of Government’s work in progress To increase activity by 100% 5 Waste disposal 240 584 Improvement in best practices Continuous improvement 6 Resource Recovery 650 1850 Better value for waste management services and reduction in GHG (12% conversion 35% conversion TOTAL 21,791 11,127

Lagos MSW Project/Programme Impact (Socio – Economic) Projection (2005 – 2010)

5000 10000 15000 20000 25000

Employment Direct Employment Indirect

Strategies

• Private Sector Participation (PSP)
• Waste Sorting
• Waste to Wealth Initiatives

PERIOD

OLUSOSUN ABULE-EGBA SOLOUS

TOTAL VOLUME(2007)

1st QUARTER SUB.TOTAL

219,947.00 118,260.00 84,740.00 422,947.00

2nd QUARTER SUB.TOTAL

247,235.00 149,890.00 137,857.50 534,982.50

3rd QUARTER SUB.TOTAL

239,947.50 130,930.00 148,032.00 518,909.50

4th QUARTER SUB.TOTAL

371,637.00 218,577.50 155,692.00 745,906.50

G.TOTAL

1,078,766.50 617,657.50 526,321.50 2,222,745.50

QUARTERLY DEPOSIT OF REFUSE (METRIC TONNES) AT VARIOUS LANDFILL IN YEAR 2007.

0.00 200,000.00 400,000.00 600,000.00 800,000.00 1,000,000.00 1,200,000.00 1st QUARTER SUB.TOTAL 2nd QUARTER SUB.TOTAL 3rd QUARTER SUB.TOTAL 4th QUARTER SUB.TOTAL GRAND TOTAL OLUSOSUN ABULE-EGBA SOLOUS

QUARTERLY DEPOSIT OF REFUSE (METRIC TONNES) AT VARIOUS LANDFILL IN YEAR 2007.

PERIOD

OLUSOSUN ABULE-EGBA SOLOUS

TOTAL VOLUME(2008)

1st QUARTER SUB.TOTAL

283,018.00 174,703.00 150,092.00 607,813.00

2nd QUARTER SUB.TOTAL

322,659.00 191,245.00 185,310.00 699,214.00

3rd QUARTER SUB.TOTAL

409,562.50 147,292.70 183,351.25 740,206.45

4th QUARTER SUB.TOTAL

409,899.00 175,377.25 182,033.75 767,310.00

G.TOTAL

1,425,138.50 688,617.95 700,787.00 2,814,543.45

QUARTERLY DEPOSIT OF REFUSE (METRIC TONNES) AT VARIOUS LANDFILL IN YEAR 2008.

0.00 200,000.00 400,000.00 600,000.00 800,000.00 1,000,000.00 1,200,000.00 1,400,000.00 1,600,000.00 1st QUARTER SUB.TOTAL 2nd QUARTER SUB.TOTAL 3rd QUARTER SUB.TOTAL 4th QUARTER SUB.TOTAL GRAND TOTAL OLUSOSUN ABULE-EGBA SOLOUS

QUARTERLY DEPOSIT OF REFUSE (METRIC TONNES) AT VARIOUS LANDFILL IN YEAR 2008.

PERIOD

OLUSOSUN SOLOUS 2 SOLOUS EWUELEPE EPE

TOTAL VOLUME (2009)

1st QUARTER SUB.TOTAL

545,026.00 189,980.00 210,678.00 52,217.00 69,876.00 1,067,777.00

2nd QUARTER SUB.TOTAL

486,220.00 140,685.00 218,050.00 53,190.00 29,838.00 927,983.00

3rd QUARTER SUB.TOTAL

427,986.00 164,870.00 161,895.00 132,387.00 23,028.00 910,166.00

4th QUARTER SUB.TOTAL

514,195.00 159,730.00 166,420.00 49,221.00 36,216.00 925,782.00

G.TOTAL

1,973,427.00 655,265.00 757,043.00 287,015.00 158,958.00 3,831,708.00

QUARTERLY DEPOSIT OF REFUSE (METRIC TONNES) AT VARIOUS LANDFILL IN YEAR 2009.

QUARTERLY DEPOSIT OF REFUSE (METRIC TONNES) AT VARIOUS LANDFILL IN YEAR 2009.

0.00 200,000.00 400,000.00 600,000.00 800,000.00 1,000,000.00 1,200,000.00 OLUSOSUN SOLOUS 2 SOLOUS EWUELEPE EPE TOTAL VOLUM E

1st QUARTER SUB.TOTAL 2nd QUARTER SUB.TOTAL 3rd QUARTER SUB.TOTAL 4th QUARTER SUB.TOTAL

PERIOD

OLUSOSUN SOLOUS 2 SOLOUS 3 EWUELEPE EPE

TOTAL VOLUME (2010)

1st QUARTER SUB.TOTAL

492,736.00 168,443.00 169,145.00 103,538.00 35,623.00 969,485.00

2nd QUARTER SUB.TOTAL

364,986.00 112,280.00 102,870.00 68,149.00 26,641.00 674,926.00

3rd QUARTER SUB.TOTAL

378,382.00 77,436.00 53,738.00 10,413.00 7,842.00 527,856.00

4th QUARTER SUB.TOTAL

230,739.00 64,190.00 65,683.80 9,412.00 7,347.75 377,362.55

G.TOTAL

1,466,843.00 422,349.00 391,436.80 191,512.00 77,453.75 2,549,629.55

QUARTERLY DEPOSIT OF REFUSE (METRIC TONNES) AT VARIOUS LANDFILL IN YEAR 2010

100000 200000 300000 400000 500000 600000

OLUS OS UN S OLOUS 2 S OLOUS 3 EWUELEPE EPE

QUARTERL Y DEPOSIT OF REFUSE (M ETRIC TONNES) AT VARIOUS LANDFILL IN YEAR 2010

IS T QTR(JAN.- MAR.) 2ND QTR (APR. - JUN) 3RD QTR(JUL- S EPT 4TH QTR (OCT.-DEC)

London C40 Workshop

The Signing of the M.O.U for the development of the 1st Integrated Waste Management Facility in Lagos.

• Federal Capital territory (Abuja)
• Ogun State
• Plateau State
• Ekiti State
• Cross Rivers State
• Osun State
• Banjul, Gambia
• Accra Metropolitan Authority (Ghana)
• City of Freetown (Sierra Leone)
• Addis Ababa, Ethiopia.

LAWMA’s Footprint

This was Lagos

This is Lagos

This was Lagos

This is Lagos 2010

Street of Lagos in 2010

Mechanized Sweeping

Lagos Highway

Olushosun landfill site in 2004

Olushosun Landfill Site (2009)

Olushosun Landfill Site (2010)

PHYSICAL CHARACTERISTICS

v Landfill Area Coverage

Approximately 47 Hectares

v Waste Depth

About 15M

v Geology

The sub-surface geology is comprised of a lateritic cover with variable thickness averaging 4m. It is reddish brown in colour with sand and clay portions. This cover overlies an alternating sequence of sand and clay deposits. The top soil (0-50cm) and sub soil (50-100cm) are predominantly clay and slightly alkaline with a pH range

• f 7.12-7.24

OLUSHOSUN LAYOUT PLAN

Test M ethod Samples (5/ 5/ 00)A (12/ 500)B (19/ 5/ 00)C

• 1. Colour
• 2. PH
• 3. Temperature

4.Turbidity (FTU) 5.Conductivity s/ cm

• 6. TSS mg/ l
• 7. TDS mg/ l
• 8. Chloride (mg/ l)

9.Sulphate as SO4

• 2 mg/ l
• 10. S

ulphide as S mg/ l

• 11. Cyanide (CN) mg/ l
• 12. Nitrate NO3 mg/ l

13.Phosphate (PO4) mg/ l

• 14. Arsenic (AS) mg/ l
• 15. Iron (as Fe) mg/ l
• 16. M anganese (mn)
• 17. Phenol Compd. Mg/ l

Visual Meter Meter Meter Meter A.P .H.A. A.P .H.A. A.P .H.A. A.P .H.A. A.P .H.A. A.P .H.A. A.P .H.A. A.A.S. A.P .H.A. Light Brown 6.10 290C Nil 4.02 x 103 1277.33 241.00 50.4 1493.10 ND 3.40 0.0067 0.08 27.00 Light Brown 6.05 260C Nil 4.40 x 10-3 1250.24 240.5 52.2 1504.05 ND 3.40 0.0071 0.081 21.90 Cloudy 5.4 260C Nil 2.85 x 103 1993.33 222.3 56.59 1393.10 ND 2.95 ND 0.06 21.96

Analysis of Tracer’s Behavioural Pattern in Attenuation Site.

Test M ethod Samples (5/ 5/ 00)A (12/ 500)B (19/ 5/ 00)C

• 18. Copper mg/ l
• 19. Lead mg/ l
• 20. Mercury mg/ l
• 21. Silver mg/ l
• 22. Zinc mg/ l
• 23. Ammonia mg/ l

24.T

• tal Hardnessmg.calog/ l
• 25. Coliform cfu/ ml

A.A.S. A.A.S. A.A.S. A.A.S. A.P .H.A. Microbiological 0.035 0.07 0.01 2.95 14.00 Nil 0.036 0.08 0.01 2.90 14.00 Nil 0.035 ND 0.009 2.81 13.56 Nil

Analysis of Tracer’s Behavioural Pattern in Attenuation Site. Cont’d

S/ N Test M ethod Samples and Date

A(5/5/00) B(7/6/00) C(7/7/00) 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Colour PH Temperature Turbidity (FTU) Conductivity s/cm TSS mg/l TDS mg/l BOD Chloride (u-2mg/l) Sulphate (SO4

• 2 mg/l)

Visual Meter Meter Meter Meter A.P.H.A. A.P.H.A. Meter A.P.H.A. A.P.H.A.

Dark Brown 7.8 300C 14750 9709 1.27 2341 2270 Dark Brown 7.3 270C 16330 90041 1.05 2146 183 Dinting Brown 6.8 270C 11210 12,794 1.6 1850 2149

Leachate sample analysis.(Sample Location SA2)

S/ N Test M ethod Samples and Date

A(5/5/00) B(7/6/00) C(7/7/00)

11. 12. 13. 14. 15. 16. 17. 18. 19. 20.

Sulphide (S mg/l) Nitrates(NO2 mg/l) Phosphate (PO4 mg/l) Arsenic (as mg/l) Iron (Fe mg/l) Phenol (mg/l) Copper mg/l Lead mg/l Zinc mg/l Ammonia mg/l A.P.H.A A.P.H.A. A.P.H.A. A.A.S. A.P.H.A A.A.S. A.A.S. A.A.S. A.P.H.A 10 56 0.09 26.14 240.5 0.04 ND 2.04 4.05 8 34 0.1 20.5 196 0.035 0.13 2.35 5.14 12 32 ND 19.42 143.5 ND 0.10 2.37 2.39

Leachate sample analysis.(Sample Location SA2) Cont’d

S/ N Test M ethod Samples and Date

A(5/5/00) B(7/6/00) C(7/7/00) 21. 22. T

• tal

hardness (mg.CaCO3/ l) Coliform cfu/ ml A.P.H.A Microbiological

2430 196 x104 2119 125 x 104 384 256 x 103

Leachate sample analysis.(Sample Location SA2) Cont’d

S/ N Test M ethod Samples and Date

A(5/5/00) B(7/6/00) C(7/7/00) 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. Colour PH Temperature Turbidity (FTU) Conductivity skin TSS mg/l TDS mg/l BOD Chloride (u-2mg/l) Sulphate (SO4

• 2 mg/l)

Sulphide (SO2 mg/l) Visual Meter Meter Meter Meter A.P.H.A. A.P.H.A. Meter A.P.H.A. A.P.H.A. A.P.H.A Brownish 6.3 270C 50 4000 2371 1069 4.03 1569 1897 1.2 Brownish 6.32 260C 55 325.0 3943 1021 6.65 1243 2044 1.4 Brownish 6.3 270C 48 396.7 3107 942 5.4 835 2254 1.5

Down-stream well water analyses.(Sample Location SA3)

S/ N Test M ethod Samples and Date

A(5/5/00) B(7/6/00) C(7/7/00)

12. 13. 14. 15. 16. 17. 18. 19. 20. 21.

Nitrates(NO2 mg/l) Phosphate (PO4 mg/l) Iron (Fe mg/l) Phenol (mg/l) Copper mg/l Lead mg/l Zinc mg/l Ammonia mg/l Total hardness (mg/l) A.P.H.A. A.P.H.A. A.A.S. A.P.H.A A.A.S. A.A.S. A.A.S. A.P.H.A A.P.H.A 26 ND 10 122.4 0.03 0.032 0.95 2.10 56 42 ND 10 112 ND 0.06 1.24 2.95 41 40 ND 14 165 ND ND 1.47 3.19 32

Down-stream well water analyses.(Sample Location SA3) Cont’d

S/N TEST SA1 SA2 SA3 Acceptable Limit Agency 1 PH 5.9 7.3 6.3 6.5 WHO 2 Colour

• 15

USEPA 3 Temperature 260C 28 27 4 Turbidity Nil 51 1.5 USEPA 5 Conductivity 3.8 x 10-3 373.9 0.0004 EEC 6 TSS (mg/l) 1507.08 14097 3140 5 WHO 7 TDS (mg/l) 234.6 10848 1011 500 USEPA 8 BOD 0.5 1.31 5.36 9 Chloride(mg/l) 53.1 2112 1216 250 – 500 WHO 10 Sulphate (mg/l) 1463.4 2083 2065 250 – 400 WHO 11 Sulphide(mg/l) Nd 10 1.37 12 Nitrate (mg/l) 3.25 41 36 10 USEPA 13 Phosphate (mg/l) 0.0069 0.095 Nd 0.7 NJ 14 Iron (mg/l) 0.074 22.02 11.3 0.3 USEPA 15 Phenol (mg/l) 21.95 193 133.13 0.005 EEC 16 Copper (mg/l) 0.035 0.38 0.03 1 WHO 17 Lead (mg/l) 0.075 0.12 0.046 0.05 USEPA 18 Zinc (mg/l) 0.01 0.25 1.22 5 USEPA 19 Ammonia (mg/l) 2.89 3.86 2.75 2 USSR 20 Total Hardness 14.0 16.44 43 500 WHO

Comparative analysis of mean values from sample locations and acceptable standards

Parameter Sample 0 – BH-2 0-BH-5* * Concentration Limit Agency Physical Apearance Colour Odour PH Turbidity (Ftu) Coductivity (S/cm) Dissolved Oxygen TSS TDS T

• tal Alkalinity

(asCaCO3) Acidity (as CaCO3) T

• tal Hardness (as

CaCO3) Light Brown 2 Unobjectible 6.1 ND 0.0042 0.6 1077 211 17 8 7 30.13 44.05 Cloudy 2 Unobjectionable 5.4 ND 0.00185 0.2 34933 222.33 2 10 10 3 26.59 15 3.0 D# 6.5 1.5 0.0004 500 USEP A USEP A USEP A USEP A EEC USEP A

Oregun-Backround Groundwater Quality

Parameter Sample 0 – BH-2 0-BH-5* * Concentration Limit Agency Chloride T

• tal Chlorine

Sulphate Nitrate Phosphate Sulphite Silica Iron Copper Zinc Lead Phenol Ammonia Coliform (cfu/ m) 1383.1 3.4 0.0067 ND 15 <0.06 <0.035 <0.01 0.1 20 2 2.95 ND 1383.1 3.4 0.0067 ND 15 <0.06 <0.035 <0.01 0.1 20 2 2.95 ND 250 10 0.7 0.3 1 5 0.05 0.0005 2 0.01 USEP A USEP A UJ USEP A WHO USEP A USEP A EEC USSR USEP A

Oregun-Backround Groundwater Quality Cont’d

• Sample taken from shallow aquifer
• Sample taken from lower aquifer; observed distinct H2S odour

USEPA

• United States Environmental Protection Agency

WHO

• World Health Organization

NJ

• New J

ersey Dept. of Environmental Protection EEC

• European Economic Community Drinking Water Directive

USSR

• Union
• f

Soviet Socialist Republics Maximum Permissible Concentration.

Achakpo (Old) Leachate Anthony Village Leachate LUTH 55m Borehole Aguda Dug well Natufe St. S/lere Dug Well Lantana Landfill U.S.A. Lowestoft, UK PH

• Elect. Cond.

TDS Chloride Sulphate Alkalinity Bicarbonate COD Irion Hardness Ammonia 7.3 ND 5101 1498 1104 3344 ND 137 6.9 3344 4.8 7.3 ND 1290 546 1274 442 ND 95 10.6 442 1.7 4.4 24 40 10 1.5 13 ND ND ND ND 6 390 240 129 ND ND 134 ND ND ND 7 8285 4660 1838 ND ND 1586 ND ND ND ND 1200 606 60 ND ND ND 240 4.3 ND 0.44 ND 790 460 20 ND ND ND 50 2.6 ND 0.44 N1 46000 N1 2837 ND ND ND 9743 ND 2090 3500 N1 850 N1 87 ND ND ND 24 ND 425 0.12

Comparison of Chemical Characteristics of Leachate Natural Ground Water

Landfill Compactors

Marine Waste Unit

Simpson Transfer Loading Station

London C40 Workshop

Simpson TLS, Lagos

Transfer trailers

Oshodi TLS (Awaiting Commissioning)

Marini TLS, Oshodi

Medical Waste Treatment Plant, Oshodi

Plastic Recycling Plant @ Olushosun Landfill Site

PELLETIZER

EXTRUDER SHOWING WASTE BAGS IN PRODUCTION

Compos Compostin ting

Potential increase in market demand due to rise in non- organic fertilizer price.

.

London C40 Workshop

Nylon Recycling Process

Baled Nylons

Paper bailing machine

Scavengers in Olushosun

Recycling Bank

London C40 Workshop

Household Sorting of MSW with the Provision

• f 240litres Wheeler Bins

97

Abandoned refuse trucks Abandoned refuse trucks

Private waste collection trucks before 2005

Low Emission Refuse Collection Trucks

Static Compactors

Street Captains

London C40 Workshop

London C40 Workshop

ADVOCACY

Removing Gender Barrier

London C40 Workshop

London C40 Workshop

Cross section of Female Drivers at LAWMA

LAWMA Crèche

Even our babies have space

Welcome to LAGOS

THANK YOU FOR LIS TENING

Contact us @

www.lawma.gov.ng

info@lawma.gov.ng
