Insulator Application in Insulator Application in Distribution Distribution Research & Standardization in Eskom Distribution Welcome to the year 2 000 000 BC! CUSTOMER REQUIREMENTS 500 kVA mobile point of supply for diamond fields

slide-1
SLIDE 1

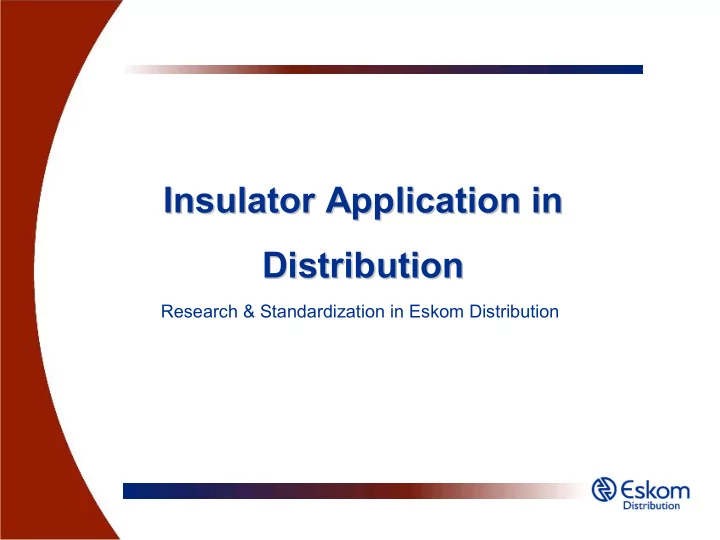

Insulator Application in Insulator Application in Distribution Distribution

Research & Standardization in Eskom Distribution

slide-2
SLIDE 2

Welcome to the year 2 000 000 BC!

slide-3
SLIDE 3

CUSTOMER REQUIREMENTS

  • 500 kVA mobile point of supply for

diamond fields in the Kimberley area;

  • Turn around time = 4 HOURS;
  • Primary voltage = 11 kV / 22 kV;
  • Secondary voltage = 400 V;
  • The solution …………?????
slide-4
SLIDE 4

MOBILE TRANSFORMER

slide-5
SLIDE 5

A Definition

  • Technology can be

described as the integration of people, knowledge, tools and systems with the

  • bjective to improve

people’s lives.

?

slide-6
SLIDE 6

The Technology Management Process

Research

slide-7
SLIDE 7

The Technology Management Process Technology selection and standardisation

slide-8
SLIDE 8

The Technology Management Process

Project design

slide-9
SLIDE 9

The Technology Management Process

Operate and maintain

slide-10
SLIDE 10

The Technology Management Process

Feedback

slide-11
SLIDE 11

The Technology Management Process Centre of expertise

slide-12
SLIDE 12
slide-13
SLIDE 13
slide-14
SLIDE 14

Distribution Technology Web

  • 25 Parts –Technology categories
  • Document types

– Specifications – Standards – Guidelines – Technical Bulletins – Technical Instructions – Buyers guides and accepted products

slide-15
SLIDE 15
slide-16
SLIDE 16

Insulator Research

  • Done internally and externally

(manufacturer input/ international stds)

  • A 5 year plan of most pressing needs
  • Insulator working groups priorities items

from 5 year plan.

  • Research completed by insulator

research specialists in conjunction with field services and manufacturers.

  • A research report is produced at the end
  • f the research.
slide-17
SLIDE 17

Research Questions

What protection time grading is required to ensure that damage to end fittings during arc conditions are limited as not to affect the mechanical integrity and further should arcing horns be used? What is the effect on pollution performance as a result of orientation of the insulator (22 kV line post)? Can defects in porcelain/cyclo aliphatic insulator products be detected by means of non­destructive laboratory tests? Cost benefit analysis based on performance ­ at what stage does it become viable to replace? Find the criteria, which will enable an insulators remaining life and flashover performance to be predicted. Find a coating that can be applied to field­aged cycloaliphatic in a workshop environment. Does the new hydrophobic porcelain material work? Does the new hydrophobic cyclo aliphatic material work and if so what will be the benefits to the Distribution business? Brittle fracture test methodology, what should be specified? In­service test towers as an aid for obtaining field performance data Visual, IR and UV observation techniques for in­service insulators

slide-18
SLIDE 18

Pollution map

slide-19
SLIDE 19

Koeberg Insulator Testing

  • Research of insulators in the field

suggested that IEC 61109 test insulators adequately for SA conditions.

  • Particularly the accelerated aging of

composite insulators (IEC 61109 Annex C).

  • Insulators that passed Annex C were

failing in the field.

  • KIPTS ­ Natural ageing and Pollution

performance testing is born.

slide-20
SLIDE 20

Insulation performance

  • Insulation is tested based on design and

material

  • Relative performance is gauged
  • Pass/Fail criteria were setup to ensure

service life and good performance of the insulator.

  • New design methodologies for insulation

are found through the research and collaboration with manufacturers.

slide-21
SLIDE 21

What is achieved

  • Good decisions on application of

insulation materials and designs.

  • These decisions are incorporated into

insulator specifications and standards.

  • Feedback mechanisms are setup to

ensure designs are optimised.

  • More comprehensive realistic testing.
  • A set of accepted products can be put

together on a listing.

  • Education of field staff, suppliers etc.
slide-22
SLIDE 22

Feedback

  • Failures are feedback
  • Failures database
  • Investigation of failure modes
  • Expertise continually being improved.
slide-23
SLIDE 23

Insulator Audit Insulator Audit

Gareth Stanford Pr Eng. Gareth Stanford Pr Eng. Insulator Working Group Insulator Working Group IARC IARC

Acknowledgements: Acknowledgements: Dr W Vosloo, Mr R Macey Dr W Vosloo, Mr R Macey

slide-24
SLIDE 24

Insulator Audits Sheet Insulator Audits Sheet

Phase Function Cat. Fault Qty Cat. Fault Qty Cat. Fault Qty Strain Shattered Broken Sulphur Cement Melted Suspension Cracked Bent Housing to Rod Failure Support >25% Sheds Broken Pin/Clip Missing Housing Punctured Pin/Clip Not Inserted Cement Cracking Type Core Exposed Loose Bolts Seal Damaged Disc, No in string Housing Split Loose Arcing Horns Sealant Peeling Long Rod, No of sheds Core Fractured Loose Corona Ring Sealant Puncture Pin Burnt Arcing Horns Melted Line Post, No of sheds Tracking Corona Rings Melted Apparatus, No of sheds Erosion > 0.5mm Deep Power Arc Damage Cat. Fault Qty Material Insulator Skew Glass Grease Leakage Cap Corrosion Mounting Incorrect Porcelain Flashover Mark Disc Pin Corrosion Bonding Wire Broken Composite Handling Damage Flashover Mark Bonding Wire Missing Resin Moulding Defect Tie Incorrect Coated Erosion < 0.5mm Deep 3 General Corrosion Tie Loose Greased Embrittlement Tie Damaged Condition Cat. Fault Qty Polluted Chipped Eroded Conductor Damage Pollution type Sheds Broken <25% Tracked Pole Top Burning Surface Conductivity (µS) Discolouration Peeled Oil Leak Hydrophobicity Class (1­7) Chalking Oxidised (whitened) Profile Crocodile Skin Removed Alternating sheds Rodent Damage Sheds Bridged Plain sheds Ribbed sheds Cat. Fault Qty Crocodile Skin Shed clearance (mm) Discharges >25% Hydrophobicity Loss Shed spacing (mm) Conductivity >60µS Uneven Layer Shed projection (mm) Creepage distance (mm) Discharges <25% Discoloured Arcing distance (mm) Conductivity >30<60µS Chalking Corona Category 1 Replace or Correct 2 Requires Further Investigation 3 Monitor Condition Name: Sign: Date: ………………………….. 3 1 2 1 2 Electrical Activity/Conductivity 2 1 3 2 Insulator Description Defects 1 2 1 INSULATOR FIELD INSPECTION SHEET Line/Substation Equipment Tower / Pole No / Bay Voltage, Um (kV) …………………………………… ……………………………… Comments Insulator Body Metalware Interfaces 2 1 Coating/Grease Layer Other

slide-25
SLIDE 25

Shattered disc

slide-26
SLIDE 26

Cracked Porcelain Post Cracked Porcelain Post

slide-27
SLIDE 27

Broken Porcelain Sheds Broken Porcelain Sheds

slide-28
SLIDE 28

Core Exposure Core Exposure

slide-29
SLIDE 29

Burnt Burnt

slide-30
SLIDE 30

Puncture Disc Puncture Disc

slide-31
SLIDE 31

Puncture Shed Puncture Shed

slide-32
SLIDE 32

Puncture Sheath Puncture Sheath

slide-33
SLIDE 33

Core Fracture (brittle fracture) Core Fracture (brittle fracture)

slide-34
SLIDE 34

Core Fracture (handling damage) Core Fracture (handling damage)

slide-35
SLIDE 35

Core Fracture (handling damage) Core Fracture (handling damage)

slide-36
SLIDE 36

Core Fracture (bullet damage) Core Fracture (bullet damage)

slide-37
SLIDE 37

Tracking Tracking

slide-38
SLIDE 38

Flashover Mark Flashover Mark

slide-39
SLIDE 39

Flashover Mark Flashover Mark

slide-40
SLIDE 40

Erosion Erosion

slide-41
SLIDE 41

Erosion Erosion

slide-42
SLIDE 42

Sheath Split (handling damage) Sheath Split (handling damage)

slide-43
SLIDE 43

Sheath Abrasion (rope damage) Sheath Abrasion (rope damage)

slide-44
SLIDE 44

Shed torn (handling damage) Shed torn (handling damage)

slide-45
SLIDE 45

Moulding defect Moulding defect

slide-46
SLIDE 46

Moulding defect Moulding defect

slide-47
SLIDE 47

Chalking and Discolouration Chalking and Discolouration

slide-48
SLIDE 48

Chalking and Discolouration Chalking and Discolouration

slide-49
SLIDE 49

Chalking and Discolouration Chalking and Discolouration

slide-50
SLIDE 50

Rodent Damage Rodent Damage

slide-51
SLIDE 51

Embrittlement Embrittlement

slide-52
SLIDE 52

W W­ ­Clip not Inserted Clip not Inserted

slide-53
SLIDE 53

Loose Bolts Loose Bolts

slide-54
SLIDE 54

Power Arc Damage (end Power Arc Damage (end­ ­fitting melted) fitting melted)

slide-55
SLIDE 55

Power Arc Damage (corona ring melted) Power Arc Damage (corona ring melted)

slide-56
SLIDE 56

Missing Arcing Horn Missing Arcing Horn

slide-57
SLIDE 57

Loose Arcing Horn Loose Arcing Horn

slide-58
SLIDE 58

Arcing Horn Melted Arcing Horn Melted

slide-59
SLIDE 59

Loose Corona Ring Loose Corona Ring

slide-60
SLIDE 60

Corrosion Corrosion

slide-61
SLIDE 61

Corroded Pin Corroded Pin

slide-62
SLIDE 62

Bent Pin Bent Pin

slide-63
SLIDE 63

Interface Failure (rod/housing) Interface Failure (rod/housing)

slide-64
SLIDE 64

Sealant Peeling Sealant Peeling

slide-65
SLIDE 65

Mounting Incorrect (restricted movement) Mounting Incorrect (restricted movement)

slide-66
SLIDE 66

Mounting Incorrect (restricted movement and split pin) Mounting Incorrect (restricted movement and split pin)

slide-67
SLIDE 67

Partial Discharge Activity Partial Discharge Activity

slide-68
SLIDE 68

Corona Activity Corona Activity

slide-69
SLIDE 69

Tracking of Grease Layer Tracking of Grease Layer

slide-70
SLIDE 70

Uneven Grease Layer Uneven Grease Layer

slide-71
SLIDE 71

Peeling, Chalking and Discoloured coating Peeling, Chalking and Discoloured coating

slide-72
SLIDE 72

Coating with tracking and loss of hydrophobicity Coating with tracking and loss of hydrophobicity

slide-73
SLIDE 73

Questions?
