Innovative product range with large portfolio of attachments means safe and effective material handling. meclift.fi Meclift Company Located in Tampere, Finland, founded in 1993 Specializing in innovative materials handling equipment

slide-1
SLIDE 1

meclift.fi

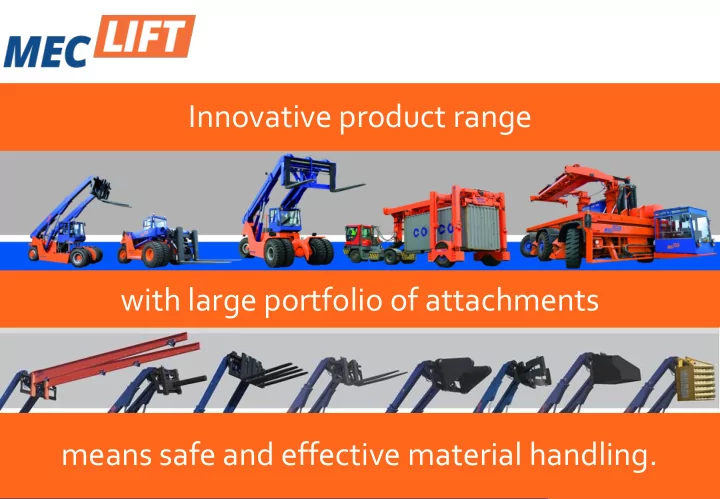

Innovative product range with large portfolio of attachments means safe and effective material handling.

slide-2
SLIDE 2

meclift.fi

Meclift Company

  • Located in Tampere, Finland,

founded in 1993

  • Specializing in innovative materials

handling equipment for ports and industry

  • A unique product range covering

different kinds of material handling needs

  • Own R&D and ability to design new

solutions according to customers’ needs

slide-3
SLIDE 3

meclift.fi

  • Our products have been exported over 25 countries:
  • Europe: Austria, Belarus, Denmark, Finland, Germany, Italy, Latvia, Norway,

Poland, Russia, Slovenia, Slovakia, Spain, Sweden, The Netherlands, Turkey

  • Africa: Mosambique, South Africa
  • Asia: Bangladesh, China
  • Oceania: Australia, New Zealand
  • Middle East: Iran, Qatar, UAE, Bahrain
  • South America: Brazil, Chile
  • North America: USA

Meclift references

slide-4
SLIDE 4

meclift.fi

Meclift references cont.

  • Our clients include:
  • Harbours
  • Paper mills
  • Steel/aluminium plants
  • Terminals
  • Rental companies
  • Wind mill industry
  • Military
  • We are also a Framework

Supplier for the State of Finland

slide-5
SLIDE 5

meclift.fi

  • Variable Reach Trucks
  • Variable Reach Truck attachments
  • Container Movers

Innovative product range

slide-6
SLIDE 6

meclift.fi

Meclift™Variable Reach Trucks

  • ML1612R (16T)
  • ML1812R (18T)
  • ML3012RC (30T)
  • ML4212RC (42T)
  • ML5012R (50T)
slide-7
SLIDE 7

meclift.fi

Meclift™ ML1612R/1812R

  • Lifting capacity of 16 -18 tons @ 1200

mm, depending on the variant

  • Only 16-18 tonner capable of driving

inside standard containers

  • Handling 20’ containers from fork

pockets

  • Lifting height 6 meters
  • Wide range of attachments
slide-8
SLIDE 8

meclift.fi

Meclift™ ML1612R/1812R

slide-9
SLIDE 9

meclift.fi

Meclift™ ML1812R reaching inside container

slide-10
SLIDE 10

meclift.fi

Meclift™ ML1612R in Ro-Ro ship

slide-11
SLIDE 11

meclift.fi

Meclift™ ML1612R in the Finnish army

slide-12
SLIDE 12

meclift.fi

Drivers can adjust cabin height for optimal visibility

slide-13
SLIDE 13

meclift.fi

Meclift™ ML1612R/ML1812R

  • ptions and attachments
  • Extra cooling system, for intensive

lifting/warm conditions

  • Camera (Rear+Front) + 1 display
  • Seat air suspension
  • LED working lights - 4 pcs
  • Solid resilient tyres
  • Bogey Rollers, added capacity while reaching

heavy loads from containers/trucks

  • Extra hydraulic interface, for attachments
  • Central lubrication
  • Special colour, etc…
  • Double Forks System
  • Lifting Beams
  • Coil Ram
  • Coil Clamps
  • Adjustable Coil Ram
  • 16t lifting winch
  • Paper Clamp
  • Bucket
  • Air Cargo Pallet Forks
  • Fork scale
  • Side lift spreader (empty containers)
slide-14
SLIDE 14

meclift.fi

PERFORMANCE

Lifting speed m/s 0,3 0,3 Driving speed laden km/h 28 28 Driving speed unladen km/h 30 30 Drawbar pull kN 168 168 WEIGHTS Gross vehicle weight (with standard forks) kg 21 000 22 300 Axle load- FRONT unladen kg 10 000 10 150 Axle load- FRONT laden kg 36 000 37 200 Axle load- REAR unladen kg 11 000 12 150 Axle load- REAR laden kg 1 000 3 200 CHASSIS Wheelbase mm 3 950 3 950 Wheel number at FRONT/REAR (*=Driven) 4*/2 Tire size FRONT 12.00-20 12.00-20 Tire size REAR 12.00-20 12.00-20 Tire pressure Bar 10 10 Ground clearance mm 150 150 Foot brake system: Type/brake wheels Wet disc brake/Front axle Parking brake Spring brake/Front axle Steering type Hydrostatic, steering wheel in cabin, rear axle steering POWERTRAIN Engine manufacturer/type Cummins QSB6.7 (stage IIIA/IV) Rating (ISO 2534) kW 153 153 Peak torque Nm 930 930 Number of cylinder/ swept volume cm^3 6700 6700 Fuel consumption (Avarage) l/h 15 15 Alternator V/A 24/70 24/70 Batteries voltage/capacity V/Ah 2 pc. 24/110 2 pc. 24/110 Drive axle Kessler D81 Gear box type, number of gears (fwd/rev.) Powershift ZF WG171, 3F/3R automatic Clutch type Torque converter Main hydraulic pump Eaton Eaton Hydraulic pressure for attachments (optional) Bar 235 235 SPECIFICATIONS Units Model Model Model ML1612R ML1812R Capacity 1200mm load center kg 16 000 18 000 Capacity 1800mm load center kg

  • Power unit

Diesel engine Tire type REAR axle Pneumatic Tire type FRONT axle Pneumatic Number of wheels at REAR axle 2 Number of wheels at FRONT axle 4 Standard colors RAL 2004 (Orange), RAL 5002 (Blue) and RAL 9005 (Black) DIMENSIONS Length (without attachments) mm 5 470 5 470 Width mm 2 160 2 160 Height (min) mm 2 265 2 265 Elevation of cabin mm 680 680 Height (max) mm 2 945 2 945 Wheelbase mm 3 950 3 950 Track FRONT (outer/inner) mm 1816/1076 1816/1076 Track REAR mm 1 686 1 686 Ground clearance mm 150 150 Weight (without attachments) kg 20 000 21 400 Turning radius outer mm 5 250 5 250 Turning radius inner mm 750 750 Lifting height mm 6 000 6 000 Reach mm 2 250 2 250 Lifting capacity See table 1 Width of standard forks mm 200 200 Thickness of standard forks mm 100 100 Length on standard forks mm 1 800 1 800 Distanse between forks (min) mm 216 216 Distanse between forks (max) mm 1 796 1 796 Side shift of fork carriers mm 790-0 790-0 Tilt of fork carrier (min elevation of boom) deg +6/-62 +6/-62 Tilt of fork carrier (max elevation of boom) deg +64/-5 +64/-5 Seat height from ground (min) mm 1350 1350 Distance from front axle to load (to LC) mm 2134 2134

Meclift™ ML1612R/ML1812R technical details

slide-15
SLIDE 15

meclift.fi

Meclift™ ML3012RC

  • Lifting capacity of 30 tons @

1200 mm

  • Able to reach inside standard

containers

  • Handling 20’ containers from

fork pockets

  • Lifting height 6 meters
slide-16
SLIDE 16

meclift.fi

Meclift™ ML3012RC

Meclift can reach 28t marble block inside a standard 20’ container

slide-17
SLIDE 17

meclift.fi

MecliftTM ML4212RC

Meclift™ ML4212RC

slide-18
SLIDE 18

meclift.fi

ML4212RC is capable

  • f lifting 42 tons with

1.2m load center Can reach up to 3.25 meters Lifting height 7.8 meters

Meclift™ ML4212RC

slide-19
SLIDE 19

meclift.fi

Meclift™ ML4212RC Coil Ram

slide-20
SLIDE 20

meclift.fi

Meclift™ ML4212RC Coil Ram

slide-21
SLIDE 21

meclift.fi

With high reaching capability, MecliftTM ML4212RC can reach to the end of a standard 20” container and still lift 10 tons, making all logistical maneuvers significantly easier and safer.

Meclift ML4212RC Reaching

slide-22
SLIDE 22

meclift.fi

Meclift™ ML5012R

  • Smallest 50 tonner in the world
  • Lifting capacity of 50 tons @

1200 mm

  • Lifting height 6 meters
  • Small turning radius
  • Able to reach a load of 26 tons

until 3,45 meters

slide-23
SLIDE 23

meclift.fi

Meclift™ ML5012R in cargo ship

slide-24
SLIDE 24

meclift.fi

MecliftVariable reach truck comparison

Type Lifting capacity Reach Lifting height Weight* Turn radius Length* Width Height ML16/1812R Truck 16t / 18t 2,5 m 6,0 m 20t / 21t 5,25 m 5,47 m 2,16 m 2,26 m ML3012RC Truck 30t 2,25 m 6,0 m 41t 5,60 m 6,15 m 2,85 m 3,65 m ML4212RC Truck 42t 3,25 m 7,8 m 50t 7,90 m 7,36 m 3,78 m 3,33 m ML5012R Truck 50t 2,25 m 6,0 m 59t 7,75 m 7,75 m 3,8 m 3,73 m ML36CM

  • ther

36t

  • 2,0 m

16t

  • 9,5/15,8 m

4,02 m

  • Cont. + 1m
  • ML1612R and ML1812R can be driven inside a standard container
  • ML3012RC and ML4212RC can reach inside a standard container

*Without an attachments

slide-25
SLIDE 25

meclift.fi

Large portfolio of attachments

  • Lifting Beams
  • Coil Ram
  • Double Forks System
  • Coil Clamps
  • 16t lifting winch
  • C-hook
  • Bogie Rollers

Other options available upon request

  • Paper Clamp
  • Bucket
  • Loading Box
  • Air Cargo Pallet Forks
  • Fork scale
  • Side lift spreader
  • Top Spreader
  • Adjustable Coil Ram
slide-26
SLIDE 26

meclift.fi

  • For handling extra long objects,

such as steel tubes or steel beams.

  • Also handling different kinds of

sacks is effective.

Meclift™ Lifting Beams

slide-27
SLIDE 27

meclift.fi

Double Forks System

slide-28
SLIDE 28

meclift.fi

Coil Ram

slide-29
SLIDE 29

meclift.fi

Coil Clamps

slide-30
SLIDE 30

meclift.fi

Bucket – examples with 16t truck

Big bucket for wider usage Smaller bucket for heavy materials and to operate inside containers

slide-31
SLIDE 31

meclift.fi

Meclift™ Air Cargo Pallet/Roller Forks

slide-32
SLIDE 32

meclift.fi

Meclift™ Side Lift Spreader for empty containers

slide-33
SLIDE 33

meclift.fi

Meclift™ C-hook for steel coils

slide-34
SLIDE 34

meclift.fi

  • Allow to weight loads during

normal operation

  • Works even with full reach
  • All normal options available
  • Fast tool changing
  • Normal fork side sifting

Meclift™ Fork Scale

slide-35
SLIDE 35

meclift.fi

Meclift™ Bogie rollers

slide-36
SLIDE 36

meclift.fi

Meclift™ Adjustable Coil Ram

With adjustable Coil Ram it is possible to handle coils all sizes and load them into a container. The position of the ram is changed with special ram holder.

slide-37
SLIDE 37

meclift.fi

Meclift Container Movers

Compact container movers, that are operated with terminal tracktors to ensure safety. Fast and efficient way to move containers long distances.

slide-38
SLIDE 38

meclift.fi

Meclift™ Container Mover ML36CM

  • Handles 20-45’ containers up to

36T

  • Lifts containers on/off a

trailer/highway chassis

  • Also fixed models for 20’ or 40’

containers available

slide-39
SLIDE 39

meclift.fi

Meclift™ Container Mover ML36CM

  • Compact design allows

to enter normal terminal doors and to operate inside warehouses, ship ramps and inside vessels

slide-40
SLIDE 40

meclift.fi

Meclift™ Container Mover ML36CMt with tilting

  • Ideal for bulk container

handling

  • For 20 feet containers
  • Max capacity 36t
  • Tilting angle 42°
slide-41
SLIDE 41

meclift.fi

  • Lifting height 1,9m

Meclift™ Container Mover ML36CMt with tilting

slide-42
SLIDE 42

meclift.fi

Oy Meclift Ltd FI-33720 Tampere

  • tel. +358 20 743 1120

www.meclift.fi Hepolamminkatu 51 Finland fax +358 20 743 1121 sales@meclift.fi
