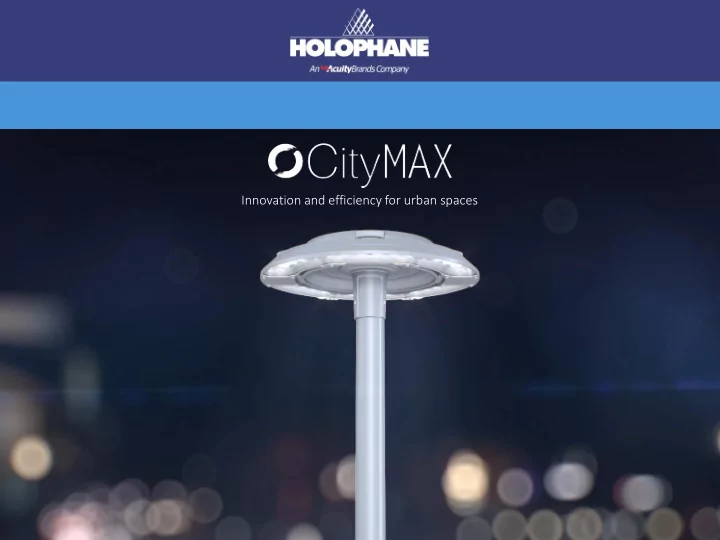

Innovation and efficiency for urban spaces

Innovation and efficiency for urban spaces.

A modern and innovative design.

Value Proposition

Competitively positioned with key unique customer benefits. Patented design that provides a efficient optical solution with excellent lumen efficacy. Developed with an array of mounting options that allow the luminaire to adapt to customer requirements. Viable long term solution that can be maintained and upgraded throughout product life.

Target Applications

Product Proposition

Manufactured from die-cast aluminium.

Materials

Tempered glass

Body, cover, modules, brackets and attachments are all manufactured from with high pressure injected, high quality and low copper content EN AC- 44100 aluminium.

Installation/Maintenance

Captive tool less screw and hinging housing lid ensures ease and speed of access during installation and maintenance.

4 Mounting Options

The 4 mounting options allow use in different city spaces; parks, squares, streets, avenues, urban centres and secondary roads.

Mounting Options

VB1 - 76 mm VB2 - 60 mm SE1 - 34/42 mm SE2 - 49/60 mm CP1 - 76 mm CP2 - 60 mm

Side Side En Entry PT T – Pos

• st

t Top

• p

CP CP – Cen Central l Pos

• st

VB VB – Cr Cradle le Mo Mount

PT1 - 76 mm PT2 - 60 mm

Tilt Options

SE and PT mounting tilting With mounting options SE & PT CityMAX can be tilted -10° to + 10° tilt on site.

SE mounting PT mounting

Mechanical tilting adjustment In a PT mounting

Lumen Range

32 LED

2 MODULES WITH 16 LEDs

16 LED

2 MODULES WITH 8 LEDs

52 LED

4 modules (2 x 16 LED mod. & 2 x 10 LED mod.)

8 LED

2 MODULES WITH 4 LEDs

2000 lm 4000 lm 12,000 lm and 15,000 lm 7000 and 9000 lm

Modular Design

Outer + inner modules For installations that require a larger lumen output. The addition

• f the modules deliver a lumen

range of between 12,000 lm and 15,000 lm. Outer modules The outer modules utilise between 8 & 32 LED’s to deliver a lumen

• utput of 2000 to 9000.

Performance Characteristics

Configuration Delivered Lumens Power Consumption Drive Current Lumens Per Watt # LED’s SCL.L024 1987 19W 675mA 107 8 SCL.L034 2990 25W 469mA 120 16 SCL.L044 4000 36W 675mA 113 16 SCL.L054 5099 42W 403mA 121 32 SCL.L064 6098 51W 492mA 120 32 SCL.L074 7147 61W 591mA 117 32 SCL.L094 9077 78W 788mA 117 32 SCL.L124 12000 104W 628mA 115 52 SCL.L154 14964 140W 830mA 107 52

100,000 hours L70B50 @25oC

Optical Distributions

AS1 AS1 Long & Narrow AS2 AS2 Asymmetric

ST1 T1

Symmetric

ST2 T2

Symmetric Wide

Thermal Management

The CityMax utilises all three heat transfer principles of conduction, convection and radiation to ensure that the LED’s and electronic driver are thermally managed within their limits to maximise system life. The allows us to deliver a life of 100,000 L70B50 at 25oC tq

Pressure compensation valve

ISSUE

Adverse or variable environmental conditions may cause pressure changes that produce mechanical stress on seals, allowing the entry of contaminants that can damage electronic components and allow condensation to build up. SOLUTION... The ventilation gland incorporates an expanded polytetrafluoroethylene (ePTFE) membrane. The membrane is made up of billions of pores 700 times the size of an air molecule’. These pores allow air to circulate freely inside and outside of the housing, preventing mechanical stress on the

• seals. At the same time, the membrane pores (20,000 times smaller than

a drop of water) act as a barrier, preventing the entry of water, dirt and debris. BENEFIT Ensures the IP integrity of the luminaire is preserved whilst maintaining the life of seals. Eliminates the build up of condensation within the housing that can affect lumen output and efficiency.

Controls – Connected Lighting

ControLux Air. Smart City Sensors, Network and Lighting Management Software. Wireless Mesh Network offering full remote configuration, intuitive user interface, map based visualisation, reporting and accurate real time data.

Controls – Integrated Wireless Controller

Integral wireless communication, lighting control and external sensor interface. External antenna allowing communication with ‘Motion Sensor’ and ‘Wireless Gateway’. Creates a wireless mesh network when used with the ‘Wireless Gateway’. Available as a standard option with code .TSK

Integrated wireless lighting controller External Antenna

Motion sensor and wireless communication triggering 1 to 10 luminaires (with Integral Wireless Controller) upon detection (user configurable). Wireless communication with ‘Gateway’. Detects pedestrians, cyclists and cars (range: 2.5 – 75 mph) Range: up to 15m on each side, 9m front and 3m behind at a mounting height of 5m (max). IP65 sealed, suitable for -20oC to +70oC

Controls – Motion Sensor

Motion Sensor

Wireless network and sever communication (via SIM Card). Suitable for pole, wall or inside cabinet mounting. One Gateway required for up to 200 devices (Motion Sensors or Integrated Light Controllers) with a range of up to 1km open field. Links all devices to web-based Customer Interface for remote management of luminaires and devices.

Controls – Gateway

Controls – Customer Interface

Intuitive user Interface Automatic failure reports Power metering Power metering Map based visualisation Continuous Support

Controls

Update will be provided at the upcoming Sales Conference to cover:

• Customer support.
• Sales Engineer support.
• Product (luminaires) integration plan.
• Commissioning and interface set-up.
• Subscription costs and maintenance plans.
• Quotation process.
• Lighting Design support.

Launch Plan

Product showcased at Lux Live. Brochure (UK, DE & NL) and animation developed to support release. ENVISION and photometry drive updated with product addition.

Vista Junior vs CityMAX

Vista Junior CityMAX Lumen

2000-9000 lm 2000 - 15,000 lm

Temp

3K, 4K, Amber (Up to 5.000 lm) 3K, 4K, Amber (Up to 12.000 lm)

IK

IK10 IK10

IP

66 66

Temperature

• 20º C to 35ºC
• 40ºC to50ºC

Material

Cover (Aluminum plate) Brackets, attachments (Die-Cast aluminium) Brackets, Cover, attachments (Die-Cast aluminium)

lm/W

101 lm/W @ 525mA (3000 lm) 120 lm/W @ 469mA (3000 lm)

Casing

Tempered Glass Tempered Glass

Attachments

Cradle Mount, Side Entry Central Post, Side Entry Cradle Mount, Post Top

Tilt Option

0º (+ 10 ° and -10 °) in SE and PT

Future Proof

No Yes

Distribution

4 distributions 5 distributions (rotational symmetric)

Useful life L80B10

87,000 hrs 6.000 lm @ 600 mA) 100,000 hrs 9,000 lm @ 700 mA)

Competitors

CitySoul Philips YOA Schreder Kazu Schreder Townguide Philips

Products on the market

CitySoul Philips 2 sizes YOA Schreder 2 sizes Kazu Schreder Stela Philips Townguide Philips CityMAX

Lumen Range 1,200 - 8,650 (tam 1) 3,340 lm - 14,785 (tam 2) 2,200 – 12,200 lm 9,600 – 24,400 lm 2,000 – 7,000 900 - 12,350 2,000 – 7,000 2,000 – 15,000 Temp 3K and 4K 3K and 4K 3K, 4K 3K, 4K, 5K 3K, 4K, 5K 3K & 4K IK 08 08 IK09 / IK10 IK10 IK10 10 IP 66 66 66 ? 66 66 Useful life 100,000 HRS L80B10 100,000 HRS L90 @ 350 mA & 500 mA L80 @ 700 mA 100,000 HRS L90 @ 500 mA L80 @ 700 mA and 1000 mA 100,000 hours (L-Tune tool) 70,000 hrs L80B10 100.00 hrs L80B10 @ 700 mA lm/W 105-122 105-122 700 mA (nominal LED flow, not luminaire) 80-106 92 - 135 87 - 108 107 - 124 Optical Housing Tempered Glass Tempered Glass Polycarbonate translucent No casing Polycarbonate transparent Tempered Glass Attachments Cradle Mount, Post Top, Side Entry, Catenary, Cradle Mount, Side Entry Central only Central only Central only Side Entry, Cradle Mount, Central Post, Post Top Future Proof No Yes Yes No No Yes
