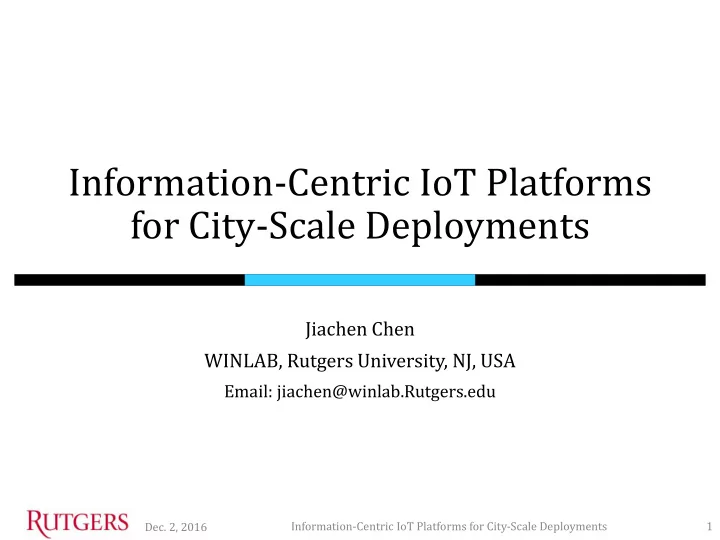

Information-Centric IoT Platforms for City-Scale Deployments

Jiachen Chen WINLAB, Rutgers University, NJ, USA

Email: jiachen@winlab.Rutgers.edu

• Dec. 2, 2016

Information-Centric IoT Platforms for City-Scale Deployments 1

Internet-of-Things

• IoT is everywhere…
• Wearable devices (smart person)
• Smart home / smart building
• Smart city
• Smart… country?
• Dec. 2, 2016

Information-Centric IoT Platforms for City-Scale Deployments 2

Internet-of-Things

• Requirements on the network platform?
• Global reachability
• Reach every node without going

into the application layer

• Mobility
• Things tend to have different levels
• f mobility
• Fitbits, smart vehicles, drones, …
• Richer communication patterns
• Serve requests
• Node to node communication
• Multicast and anycast support
• Resource heterogeneity
• Computation (CPU frequency < 100MHz | i5 cores)
• Storage (RAM < 50kB | > 4GB)
• Transport (MTU < 128 bytes | > 1500 bytes)
• Power (Button cells | power plugged)
• Dec. 2, 2016

Information-Centric IoT Platforms for City-Scale Deployments 3

Internet-of-Things

• Requirements on the network platform?
• Low latency, and lower…
• Several seconds delay for applications like alarms, intrusion detection, …
• < 5ms delay for applications like VR/AR
• Scalability
• Support more devices
• Support queries to be disseminated and response collected in a scalable way
• Get the average engine temperature of all BMW cars in New Jersey
• Service-oriented communication
• Reach the road-side unit 5 miles ahead of me
• Control the environment around me
• Surveillance camera → object recognition → notify me if my missing pet

appears

• Security
• IoT is going to collect sensitive data
• Protect the privacy
• Dec. 2, 2016

Information-Centric IoT Platforms for City-Scale Deployments 4

ICN Architecture

• Unique names as the routing labels
• Late-binding, store and forward
• Multicast, anycast support based on names
• Self-certifying contents
• Content-oriented encryption
• Dec. 2, 2016

Information-Centric IoT Platforms for City-Scale Deployments 5

Extending ICN to the IoT world

• Dec. 2, 2016

Information-Centric IoT Platforms for City-Scale Deployments 6

…

…...

Sensors/Actuator/Smart devices  Data signal generation

 Key predistribution  Energy mgmt

IoT Aggregator (e.g. Raspberry Pi, Smart Phone)

 Data collection  Data filtering, grouping and formatting  Device/Service Discovery Service  Device local naming service

Local Service Gateway

 Subscribe to the formatted sensor data  Context data Processing& storage  Name Assignment Service  Local/Global ID translation  Sensor data access policy enforcement

ICN Network

IoT Server: Pub/Sub Management, System Monitoring

APP—Website, Mobile APP: ICN Data Consumer Radio-specific Interface Adaptation ICN Adaptor ZigBee, TO, 6LoWPAN, BLE,etc

ICN Non- ICN ICN ICN- UNI

Edge Service Router Service Controller Edge Service Router Service Provider

ICN-NNI ICN/Non - ICN

Heterogeneous Collector Cluster (e.g., Mote/Receiver/Sensor Router, Nest)

 Context-supervised sensor discovery & clustering

 Data relay with security

Data Center

V2V-ICN ICN IoT Aggregators (e.g. RSU)

Example: Find Missing Pet

• Provide images of the missing pet, and the time it went away
• Dec. 2, 2016

Information-Centric IoT Platforms for City-Scale Deployments 7

To GUIDPetSearch

Missing time: 2016-12-01 Location: New Bwunswick Images: …

To: GUIDObjectRecognition

Event: XXYY Images Target GUID: map service

Object Recognition Object Recognition Map Service 19:20 18:50 18:10 17:30 17:20

Summary

• Internet-of-Things place higher requirements over the network
• Reachability, mobility, communication patterns, resource heterogeneity,

low latency, scalability, service orientation, security, …

• ICN can provide better support to these applications
• Unique name as routing labels
• Multicast & anycast
• Self certification contents
• Extending ICN to IoT world
• Resource heterogeneity
• Flexibility (service-oriented communication)
• Dec. 2, 2016

Information-Centric IoT Platforms for City-Scale Deployments 8

Questions & Answers

• Dec. 2, 2016

Information-Centric IoT Platforms for City-Scale Deployments 9
