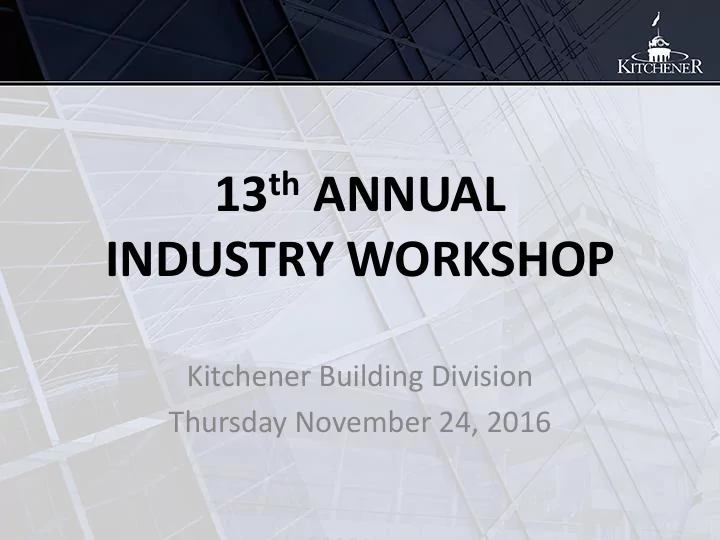

13th ANNUAL INDUSTRY WORKSHOP

Kitchener Building Division Thursday November 24, 2016

2

Welcome

• Washrooms and exits
• Welcome from

Ward 2 – Councillor Dave Schnider

• Introductions of staff and comments from

Chief Building Official – Mike Seiling

3

Agenda

• Administration
• Part 9 Updates
• SB-12 Updates
• Inspection Updates
• Safety
• Break

4

ADMINISTRATION

Tim Benedict Manager, Building

5

MMA Update

Potential Changes to Ontario’s Building Code Ontario’s Building Code is typically reviewed every five to seven years. In addition, interim amendments to the Building Code are sometimes made between editions to reflect technological advancements, support government priorities and address emerging issues. This year, the Ministry of Municipal Affairs is seeking input from the public and industry stakeholders on changes being considered to the Building Code. This consultation will occur in two phases.

6

MMA Update continued...

The first phase, October 21 to December 20, will include proposed interim amendments that support the Long-Term Affordable Housing Strategy update as well as changes that would form the next edition of the Building Code. In addition, they are seeking advice on preliminary changes the government should consider to improve energy efficiency and water conservation that could be implemented quickly and over time.

7

MMA Update continued...

The second phase, The consultation will seek input on proposed requirements to support the implementation of the government’s Climate Change Action Plan.

8

MMA Update continued...

How to participate The Ministry of Municipal Affairs want to hear your comments and feedback on the proposed Building Code changes. Closing date: December 20, 2016 For more info please visit

www.mah.gov.on.ca

Ontario Building Code\Hot Topics\Potential Changes to Ontario’s Building Code

9

Development Charges

2017 Development Charge Rates

• City of Kitchener (1.3% from 2016)**

Single = $10,763 Townhouse = $7,639 Multiple = $5,951 Non-Res = $5.16 sq. ft.

• Region of Waterloo

“the Region will issue new rates once they are approved

• n November 30th and we will endeavor to have them

posted as quickly as we can.”

• School Boards (WRDSB & WCDSB)

Rates remain unchanged until May 31, 2017

**The new development charge rates will apply to all permits issued in 2017

10

2017 Permit Fees

5% decrease from 2016 rates

• Singles, semis, towns - $1.19/sq. ft.
• Apartment Building - $1.19/sq. ft.
• Interior Finishes - $0.41/sq. ft.

(basement finishes & major renovations)

• Deck - $106.00 each
• Solar Panels - $ 106.00 for singles and duplex’s
• Residential Revisions - $181.00 (min), will be

charged for each revision submitted

Complete applications for 10 business day (new SDD) review must be applied for by end of Wednesday December 14th, 2016

11

PART 9

Martina Schneider Municipal Building Official

12

Online Permits

320 688 1054 1511

Number of Users

2013 2014 2015 2016

13

Applications

Online Permits:

• Applications should be one attachment containing

all the required information.

• All drawing attachment(s) shall be original pdf and

not scanned copied of the drawings.

• Ensure any of the drawings being provided to you

are not locked by your design professional.

• When entering in the description of the permit for

a new dwelling it is helpful to enter the model name the builder uses.

14

Applications continued…

Online Permits continued:

• Take advantage of the copy feature available.

http://www.kitchener.ca/en/livinginkitchener/Build ingDivision_AnnualWorkshops.asp

• Stacked Townhouses require one permit

application per “bay” and include the list of unit number(s) in the description.

15

Applications continued…

16

Applications continued…

17

Applications continued…

Online Permits continued:

• All revisions shall be uploaded to “My Permits” for

the affected permit . We receive notification of the new attachments automatically, no separate email is required.

• Decks or new finished areas (not previously

included in the issued permit) are not revisions. These type of items are new and separate applications.

18

Applications continued…

Online Permits continued:

• Square footage is measured to the outside of

exterior walls for all floors above grade. The areas for the stairs, open to below spaces are not to be

• mitted from this calculation.

19

Plans Examination

• Engineered beams bearing on another beam, the

bearing beam also requires to be designed by the engineer.

• All beam sizes outside of the building code tables

require Engineer review.

20

Plans Examination

• Side entry doors requiring a landing that exceed

24” above grade will require the setback per our Zoning By-law (eg 1.2m).

21

Plans Examination

• Any column, beam, or wall supporting a floor that

has a fire resistance rating shall have the same rating as that floor above. Details need to be provided on the drawings showing how this is going to be achieved.

• Indicate the number of risers required from the

garage into the house on either the site grading plan or floor plans.

22

Code Requirements

• Include a site plan and grading plan for all

townhouse/stacked townhouse type

• developments. Setbacks to property lines and
• ther buildings on the site are to be shown.
• New grab bar details, effective January 1, 2017.

23

Code Requirements

24

Code Requirements

• Provide Engineering when the width of the

foundation between windows is less than the size

• f the window that portion of the wall is now

considered laterally unsupported as per 9.15.4.3.(4).

25

SB-12

Justin Massecar Municipal Building Official

26

Overview

• Applicable for permits applied for AFTER

December 31, 2016.

• Reminder: Provide calculations to determine the %
• f the basement which is above grade on walkout
• lots. [3.1.1.1.(10)]
• Reminder: When calculating Gross Wall Area for

any townhouse type building the “party walls” are to used in the calculation [3.1.1.1.(7) to (9)]

• Reminder: Hot supply pipe to be insulated for first

8’ of pipe after water tank. [Div. B, 12.3.1.4.]

27

Overview

• Reminder: Correct window labeling, as required

currently, is important.

28

Heat Recovery Ventilators

• Heat Recovery Ventilators required for all

ventilation systems serving dwelling units. [3.1.1.1.(16)]

• Review HRV efficiency. The minimum Sensible

Recovery Efficiency (SRE) measured at 0°C and 30L/s flow rate. Varies from 65%-81% (75% likely most common). [3.1.1.1.(19)]

• HRV information to be shown on the mechanical

summary form submitted with the heat loss calculations.

29

Drain Water Heat Recovery

• Drain Water Heat Recovery units required

in all dwelling units. [3.1.1.12.(1)]

• Must be connected to at least two

showers, if more than two showers. [3.1.1.12.(1)]

• Cold in the bottom, hot out the top.

[3.1.1.12.(6)(b)]

• Installed in a conditioned space

[3.1.1.12.(6)(d)], downstream of any water softener. [3.1.1.12.(6)(c)]

• Efficiency shall be not less than 42%

[3.1.1.12.(5)]

30

Trade-offs Within Packages

• Incentives are provided for increasing air tightness

in dwellings. Tables for one or two substitutions per

• dwelling. [3.1.1.4]

31

Trade-offs Continued…

• Must be verified by blower door test. [3.1.1.4.(2)]
• Report is required to be completed by the energy

consultant.

• Provide to inspector prior to occupancy inspection.
• Report to include the Air Changes per Hour

(ACH)(most common) or the Normalised Leakage Rate (NLA). [3.1.1.4.A]

32

Insulation

• In addition to increased R values, packages include
• ptions for effective R-values, and max. total U-

value.

33

Insulation continued…

• Reducing thermal bridging by

adding continuous insulation (ci) to most packages.

• Take advantage of advanced

framing techniques, right sized lintels, etc. to reduce amount of lumber within wall assembly.

34

Insulation continued…

• Insulation values must be either all nominal or all

effective, can’t switch between the two.

• If your design includes a tall wall, likely won’t

achieve effective R value.

• When right sizing lintels, show correct lintel size at

each openings, not with a generic note or chart.

35

Insulation continued…

• We require calculations for effective R value, if

selecting this option, to be shown on drawings for plans review.

• National Research Council of Canada “Tables for

Calculating Effective Thermal Resistances of Opaque Assemblies” [Appendix A 1.3.2.1.(2)] www.nrcan.gc.ca/energy/efficiency/housing/new- homes/energy-star/14176

36

Windows

• Specific windows or sliding glass doors permitted

to not meet the required U-value under a specific

• circumstance. [3.1.1.9.(5)]
• When a lower solar heat gain coefficient is

used due to it’s orientation (i.e.. South/West facing).

• Permitted, provided average thermal

performance of all windows/SGD is

• maintained. [3.1.1.9.(5)]
• Need to show on drawing U-values of windows, if

different

37

Basements

• R20 continuous insulation is typical (R20 wrap)
• Effective R value is an option to explore.
• Packages with both batt insulation and continuous

insulation are available.

• Stair opening dimensions will change when located

adjacent to foundation walls (R12 stud or R12 blanket wrap walls no longer an option)

• Watch out for protection of foamed plastics (i.e..

R5 rigid insulation can’t be protected with only 3.5” mineral wool batt, may have to substitute products)

38

Performance Compliance

• Similar methodology to existing.
• Updated list of software (See SB-12 Appendix).
• SB-12 changes are promoting the use energy

modelling.

• Opportunity to use performance, reduce attic

insulation, change efficiencies of mechanicals, provide for strategically placed windows, etc. could lead to better built houses, while controlling costs.

39

Performance Compliance

• Would need to model each house separately.
• NRCan, “Energy Star for New Homes Standard

Version 12.6, or,

• NRCan, “2012 R2000 Standard.”

40

INSPECTIONS

Derek Taylor Municipal Building Official

41

Inspections

• Electronic submission of reports is our preference,

attaching documents online is not permitted

• Reminder on TOF (should be submitted prior to

framing inspection)

• Colour permit drawings on-site to scale
• Shingles and windows/doors must be installed

prior to framing inspection

42

Inspections continued…

• Truss drawing education for trades/site super
• Back framing should be happening prior to framing

inspection

• Verify work has been completed prior to

inspection, not doing this delays you not us.

• There is value in someone reviewing prior to us

(particularly framing and occupancy inspections)

43

Inspections continued…

• Garage stairs and landings
• Windows at landings

(guards/loading)

• Windows above tub edge 16”
• Height above basement stairs

Landing Required

16” min.

44

Inspections continued…

Typical framing issues

note: these are only common issues. This list does not cover all issues

• Install stud at cut top plates
• Nail bottom plates at HVAC or plumbing cut-outs
• Connect exhaust ducts in washrooms
• Grab bar blocking in main bathroom (see new

detail)

• Replace bridging where removed
• Nails in hangers
• Sister cut floor joists
• Bolt top plates of steel beams
• Bolt bottom plates of steel columns (i.e. Garage)
• Engineered truss drawings required to be on-site
• Ensure roofing and windows/exterior doors are

installed

45

Inspections continued…

• Support basement landing corners
• Support splices in exterior walls
• Provide nuts on anchor bolts and

tighten ones in basement.

• Fire separations to be tightly

fitted, or caulked in rim, attic, garage

• Fire rated drywall between back to

back electrical boxes in fire separations

• Clamp poly behind tub
• Point load blocking
• Partition blocking

46

Inspections continued…

Typical occupancy issues:

• Mixing valve tags at water meter
• Support basement landing
• Fasten up vapour barrier in rim
• Fasten down clean-out cover
• Guard required at front porch where higher than 2’ above

grade

• Seal penetrations in fire separation in rim (Rowhouses and

Semi’s)

• Ensure all penetrations (i.e. Garage door wire) are caulked

in garage

• Vacuum breakers on hose bibs (indoor and outdoor)
• Ensure reports and paperwork have been submitted (i.e.

HVAC, Plumbing, Survey, Top of Foundation, Infiltration gallery certification, ESA)

47

Inspections continued…

• Have a ladder at the attic

access hatch which is tall enough

• Ensure final plumbing test has

been completed prior to

• ccupancy inspection or test is
• n at occupancy inspection

48

Plumbing

Top 10 Plumbing Issues on-site;

1. VB (vacuum breaker) on hose bibs (interior and exterior) 2. Trace wire (some suppliers have been providing copper coated steel which is not permitted) 3. Thermal expansion tank required with pressure reducing

• valve. Ensure the tank is adequately supported

4. PVC (SDR 35) is not permitted to extend through the basement floor slab 5. Sump cleanout buried (Exterior at front porch)

49

Plumbing continued…

• 6. Infiltration trench rainwater leader detail

50

Plumbing continued…

• 7. Thermal Mixing Valve tags
• 8. Leave underground exposed for inspection

51

Not able to be inspected Should look like this for underground inspection

Plumbing continued…

• 9. When a trap guard is used, the final plumbing test shall be

performed without water in that trap.

• 10. The laundry standpipe is to extend a minimum of 600mm

above the trap

600mm Min.

52

Safety

• No smoking in Buildings under Construction

(Smoke-Free Ontario Act and Occupational Health and Safety Act)

• Ensure hardhats are worn by all contractors on-site.
• Be mindful when using gas powered equipment in

enclosed areas. (e.g. basements)

53

54

Safety

Winter Safety

• Access to Buildings, keep all stairs and pathways

clear from snow and ice For safety reasons, inspections will be postponed during inclement weather (e.g. snow storms). Notification will be given via CBO’s email contact list, City of Kitchener Facebook and Twitter

55

Booking Inspections

519-741-2761

• Automated call-in for inspections allows same day

booking, provided prior to 8:00am.

• Online Booking
• When booking inspections there is no guarantee

for specific time requested.

• If not ready for inspection(s), please ensure it’s

cancelled by calling 519-741-2312.

• Please use the above options for booking

inspections, voicemails and emails directly to the inspector can be missed

56

Questions?

57

Presentation will be available on our website www.kitchener.ca/building

58
