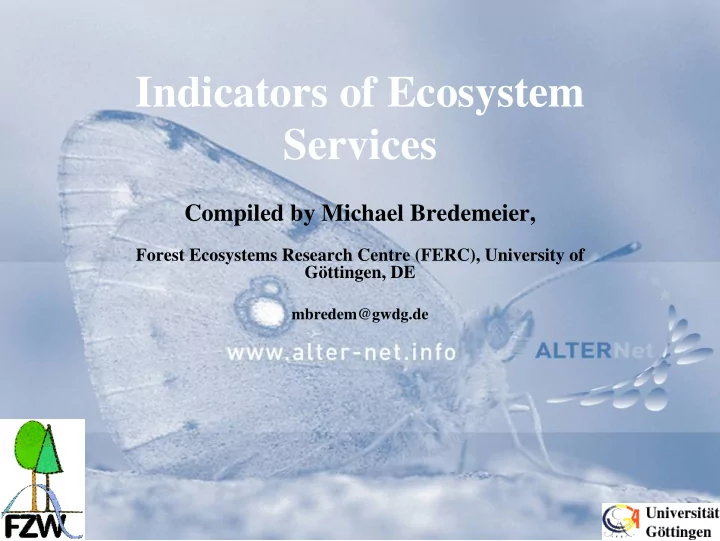

Indicators of Ecosystem Services

Compiled by Michael Bredemeier,

Forest Ecosystems Research Centre (FERC), University of Göttingen, DE

mbredem@gwdg.de

Indicators of Ecosystem Services -

• utline
• Fundamental role of ecosystem functions (EF) and

services (ES) for humans

• Terminology around „indicator“ (what is it?)
• Indication of ecosystem services: how and why?

– Examples from forest ecosystems and soils

• The historical dimension – looking back on the „Wooden Age“

– Connection to indication systems relevant for biodiversity and ALTER-Net (CBD and EU headline indicators, SEBI2010, Millenium Assessment) – Towards a common indicator framework?

• Attempts and limitations of (monetary) valuation
• Condensed indication of ecosystem functioning and

services by aggregated indices (ALTER-Net project)

A striking example how delicate and vulnerable ecosytem services are: the failed "Biosphere 2" endeavour

• Eight humans enclosed in 3.15

acre closed ecosystem

• With replicas of several key

ecosystems

• Investment of over 200 M$
• Proved impossible to supply

the essential services to support the eight humans

– Integrated ES „life support“ failed

• Unexpected and unpleasant

problems arose instead.

Terminology: EF and ES

• „Ecosystem functions“ (EF) longer established and in

use compared to „Ecosytem services“ (ES)

• The former refer more to the natural processes and

their resilience and integrity, the latter more to the benefits to humans from that.

• No definite and clear distinction since many

ecosystem functions directly constitute ecosystem services, e.g., water retention in soils:

– Water supply to the vegetation as well as water resource provision to humans – Prevention of erosion and mitigation of flood peaks

Terminology: Indicators

• „Classical“ use in science from chemistry

– Any of various substances, such as litmus or phenolphthalein, that indicate the presence, absence, or concentration of another substance ... – Ecology A plant or animal whose existence in an area is strongly indicative of specific environmental conditions (thefreedictionary.com)

• Should be a measurable parameter (metric or
• rdinal scaled)
• An „index“ can be something more abstract or more

aggregated.

A model of ecosystem function – service relationship

From: NRC (2005)

valuation

Fundamental category system for forest ecosytem functions

• Natural functions

– Habitat

• Support of biological

diversity

– Regulation of energy and matter cycles

• Soil protection
• Water storage and peak

flow control

• Cultural functions

– Wood production – Non-timber products (game, resins, herbs, mushrooms ...) – Water resource provision – Recreation – Education

Beese 1996, and many others

The category system of the Millenium Assessment for ecosystem services (ES)

• „supporting“

ecosystem services

– i.e., ecosystem functions

• Provisioning ES
• Regulating ES
• Cultural ES
• + Preserving ES

Dimensions of the services

• btained through plant use

Species richness: vascular plants

• ca. 270,000

Utilized by humans > 70,000 Not utilized < 200,000

Species protection (CITES)

25,000 In bio-prospecting > 30,000 Medicinal plants >20,000 Food and fibre plants >10,000 Food plants

• Ca. 3,000

Medicinal

• Ca. 25,000

Wood and fibre >15,000 Ornamental > 15,000 Model plants in science

• Ca. 2,000

Source: WBGU (2004)

Valuation of ecosystem services ....

„Many of Nature's services are literally priceless - w e cannot live w ithout them and they have no know n substitutes. "Pricing" these services can focus attention

• n the im portance of healthy ecosystem s.“

Arguments for valuation, starting points for communication

• The world's ecosystems provide a flow of vital services,

like the generation of fertile soils, purification of air and water, the mitigation of floods and drought, pollination and pest control. The world economy would crash without this "natural capital."

– In this sense, the value of nature's services is infinite - we simply cannot live without them.

• the value of forest services, like flood control, recycling
• f rainfall and carbon dioxide uptake, can be several

times more valuable than timber yield.

– However, the former ones are not priced ...

• BD is thought to support ecosystem services

– Inter alia the ability of species diversity to provide an insurance against environmental fluctuations

• Economists assign values to non-marketed ecosystem

services using several valuation methods.

Valuation m ethods

Productivity Method: (sometimes called the net factor income or derived value method): estimates the value of ecosystem goods or services used, along with other inputs, to produce a marketed good. For example, the economic benefits of improved water quality can be measured by valuing improved crop quality and agricultural productivity. Hedonic Pricing Method: estimates values for ecosystem or environmental services that directly affect market prices, e.g. variations in housing prices reflecting local air and water quality or noise. Travel Cost Method: estimates the value of ecosystems that are used for recreation, based on how much people are willing to pay to visit the site. Dam age Cost Avoided: estimates the value of ecosystem services based on the costs

• f avoiding damages due to lost services.

Replacem ent and Substitute Cost Method: estimates values of ecosystem services based on the cost of replacing them, or the cost of providing substitute services, e.g. valuing the water purification services of a wetland by comparing it to the cost of filtering and chemically treating water. Contingent Valuation Method: estimates values by asking people to directly state their willingness to pay for specific ecosystem services, based on a hypothetical scenario.

Source: http://www.albaeco.com/sdu/06/htm/main.htm

An example of damage cost avoided

• In China's Yangtze River basin,

85 percent of the original forest cover had been lost by 1998.

• flooding of the river basin

displaced 120 million people, causing US$30 billion worth of damage.

• Chinese officials argued that

standing trees were worth many times more than felled trees and banned logging in the upper reaches of the basin.

• About 15 percent of the world's energy

consumption is supplied by fuelwood and

• ther plant material

– in developing countries, such "biomass" supplies nearly 40 percent of energy consumption (Hall et

• al. 1993)
• Annual world fish catch

– About 100 million metric tons – Valued between $50 and $100 billion

• Medical drugs

– a recent survey showed that of the top 150 prescription drugs used in the United States, 118 are based on natural sources

• 74% on plants, 18% on fungi, 5% on bacteria, and 3% on
• ne vertebrate (snake) species

– commercial value of pharmaceuticals in the developed nations exceeds $40 billion per year (Principe 1989)

Further examples

Ecosystem services valuation as a matter of debate

• In 1997, Robert Costanza of the University of Maryland

and twelve co-authors estimated the annual value of the world's ecosystem services at US$33 trillion. (Nature 387)

– This was more than the value of the global gross national product (GNP) that year!

• According to Costanza, most economists would have

guessed that the value of ecosystem services would

• nly be 1 percent of global GNP or less.
• Criticism: ecosystem services could never be traded in
• pen commerce, which is how prices of conventional

goods and services are determined.

• Criticism: some also claim that it is not the role of

science to determine what is right or wrong or to assign values based on human preferences at all.

• Criticism: assigning money value only deepens the

inadequate anthropocentric approach of ES („Deep Ecology“)

Conclusions / Theses

• Ecosystems offer many functions and

services which are indispensable for humans.

– Although essential these are usually not marketed and hence not priced.

• Integrity of ecosytems and their biological

diversity are values per se and do not need money value as proof.

• However, assigning money value can support

valuation of BD and can help communicate valuation to users and the general public.

• Few studies with concrete numbers available

so far; easy to arrive at controversial results!

Historical excursus .... Ecosystem functions and services have been used and consumed for a long time ...

However, manifest effects emerged only with the „invention“ of agriculture and large-scale forest clearing

„Dutchmen Cuttings“

Wood demand of early Industries leads to regional deforestation

From: Klose (1985)

Litter raking and humus layer removal (straw substitute)

Permanent transfer of nutrient capital (forest arable land)

N, P, Ca2+, Mg2+, K+ ...

To quantitatively reconstruct biogeochemical transfers at landscape level, we have to investigate ...

• Regional and local

forest history Different nutrient contents!

• Land use history
• f the arable land
• Precise course of

element fluxes in the landscape over long time periods

A deep acidification front in a Central European forest soil (spruce, Solling)

• It is caused by:

– humid climate and vegetation cover – natural ecosystem disturbances – Human land use history – anthropogenic acid deposition

• Particularly relevant for

deep acidification and water acidification!

Back to indicators ...

• What is an indicator?

– Until present there is, unfortunately, no rigorous unification of terminology. In the ecological and monitoring communities, however, there is largely agreement that – An indicator should be a quantitative variable (metric or

• rdinal scaled) which gives information on the system's

actual status. – An index should be a combined or aggregated measure which may integrate over very many such indicator observations. – It is important to be aware of this differentiation, because an indicator is unequivocal once its indication function of system status is accepted. For an aggregated index much more scrutiny is required if the mode of aggregation and application seem sensible.

A typical example

... and another one (abiotic)

Slapy Reservoir (CZ), Nitrate-N 1959-2007

Time 1960 1970 1980 1990 2000 2 4 6 8

Bredemeier, Straskrabova, Prenzel 2008 in prep.

Advanced statistical techniques such as TSA

• ffer much deeper ways of exploration …

0 2 4 6 8

• bserved

1 2 3 4 5

trend

• 0.6

0.0 0.6

seasonal

• 2

2 4 1960 1970 1980 1990 2000

random Time

Decomposition of additive time series

Bredemeier, Straskrabova, Prenzel 2008 in prep.

Long catalogues of ESs and their pertinent indicators

EF ES Indicator(s)

Net primary production (forest ES) Wood supply Wood produced; ratio

harvest/actual increment (sustainability indicator!)

Water retention of soils Flood mitigation Peak flow attenuation [mm/h] Water purification Drinking water resource provision Water extracted; stability of stores Habitat and niche provision Support of biodiversity Species diversity and abundance; species population trends Emergence of natural structures Aesthetic appeal Number of tourists in region

.... and so forth and forth ...

The challenge is to develop agreed and common indicator frameworks

• Identify a key set of indicators to address

(an) issue(s) adequately

• Harmonized approach across different

regions and countries

– Considering, of course, the differentiation of ecosytems, and – Eco-regional differentiation (e.g., forest in sub-continental vs. atlantic climate)

• Including identification of suitable proxies

and surrogates

What are proxies and surrogates?

http://www.daviesand.com/Choices/Precautionary_Planning/New_Data/

500 1000 Meters

Indication systems: The EU headline biodiversity indicators

• Level 1. Structural Indicator for Biodiversity.

– The function of this indicator is to inform politics and the public at a very generic way on the condition of biodiversity in Europe. This indicator should place biodiversity alongside economic growth and social development.

• Level 2. Headline Indicators for Biodiversity.

– A small set of indicators that give high-level messages on trends of various aspects of biodiversity. Politicians and the public are the target group again but the information has a broader coverage. This level should complement other environment, economic and social indicators and together they present a picture of sustainable development in Europe.

• Level 3. Indicators linked to policy sectors.

– Indicators designed for communication with key stakeholders in each sector, so that stakeholders get an impression of how their actions impact on biodiversity. Organisation of indicators around recognised key stakeholder/policy themes is the main issues at this level.

Levels of communication Levels of communication

Level 1

Structural I ndicator for Biodiversity

Level 2

Headline I ndicators for Biodiversity

Level 3

I ndicators linked to policy sectors Heads of State and Governm ent Policy-m akers and public Stakeholders in each sector From: Gordon McInnes, EEA

EU headline BD indicators by focal areas: 1 – components of BD

• 1: Status and trends of the components
• f biological diversity

– Trends in extent of selected biomes, ecosystems and habitats – Trends in abundance and distribution of selected species – Change in status of threatened and/or protected species – Trends in genetic diversity of domesticated animals, cultivated plants, and fish species of major socioeconomic importance – Coverage of protected areas

EU headline BD indicators by focal areas: 2 – use and threats

• 2: Sustainable use of BD and threats

– Area of forest, agricultural land, fishery and aquaculture ecosystems under sustainable management – Nitrogen deposition (CL exceedance) – Numbers and costs of invasive alien species – Impact of climate change on biodiversity

EU headline BD indicators by focal areas: 3 – integrity and services

• 3: ES Integrity, goods and services,

resources allocated

– Marine Trophic Index – Connectivity/fragmentation of ecosystems – Water quality in aquatic ecosytems – Patents (to be developed) – Funding to biodiversity – (Public awareness and participation; added in SEBI 2010)

A common framework for BD and ES indication?!

Frameworks like EU Headline and SEBI have

• Merits

– Reduction of number

• f indicators to an
• perational amount

– Harmonized selection for reporting over large spatial scales (e.g., EU or Pan-Europe) – Reflect state-of-the-art assessment of many experts

• ...and pitfalls

– Some relevant indicators may drop from the set – Fixed selection may not appropriately reflect the needs of particular regions or countries – May become out- dated but not adapted

Examples of aggregated indicators

STI NCI

ALTER-Net project „aggregating indicators for policy purposes – sense or nonsense?“

The aggregated species trend indicator (STI) of EEA/RIVM

Terms of Reference

purpose: to show the long-term trends in species populations function: evaluation of progress towards 2010 target target audience:high-level policy makers and the general public focus: Pan-Europe, major habitat types principles: following CBD

Pan-European aggregated STI

Mireille de Heer, ALTER-Net RA2 Hamburg Workshop, 2005

Coastal habitats Fresh- water Forest and woodland Mires, bogs and fens Heath- land, scrub & tundra Un- vegetated habitats Farmland All natural habitats Albania Andorra Armenia Austria Azerbaijan Belarus …. Europe

Methodology

each cell: index = geometric mean

• f the population trends
• f the set of species

habitat total: index = area-weighted mean

• f the country indices
• verall:

index = non-weighted mean

• f the habitat indices

each cell: set of representative species, with their population trend

Pan-European aggregated STI

Data Providing Organisations

breeding birds butterflies large mammals vascular plants

• BirdLife International
• European Bird Census Council
• Wetlands International
• Butterfly Conservation
• Large Carnivore Initiative Europe
• Large Herbivore Foundation
• Planta Europa

Pan-European aggregated STI

Characteristics of the Data

• wide variety of collection methods: total

population estimates, monitoring schemes, atlasses, expert judgement

• data available at country-level
• 1970 starting year
• trends often expressed in broad classes
• birds and butterflies: ALL species in

ALL countries

Pan-European aggregated STI

The Data

43 countries

species group

• no. of

species

• no. of time

series butterflies 119 1359 birds 142 1389 mammals 5 35 total 266 2783

Pan-European aggregated STI

Species Trends per Habitat (all groups)

• 50
• 40
• 30
• 20
• 10

10 20 unvegetated areas (51) heathland, scrub and tundra (94) woodland and forest (743) mires, bogs and fens (8) freshwater (251) coastal areas (135) farmland (855) average % change in population size since 1970

Pan-European aggregated STI

Species Trends in Europe

• 50
• 40
• 30
• 20
• 10

10 20 farmland (855) natural habitats (1282) average % change in population size since 1970

Pan-European aggregated STI

Direction of Change in Time Series

(locally) extinct 1% decrease 40% increase 19% stable 40%

Pan-European aggregated STI

Species Trends in Farmland

• 50
• 40
• 30
• 20
• 10

10 20 non EU (278) Acceded (149) EU15 (428) % change in population size since 1970

Pan-European aggregated STI

Conclusions

• The indicator is potentially feasible and

meaningful for monitoring progress towards the 2010 target in Europe

• Potentially applicable in other regions
• (Harmonised) monitoring is essential for

timely and reliable update

• Tools and organisation for assembling

and processing data are also needed

Pan-European aggregated STI

Natural Capital Index (NCI)

• focuses on both the species- and the

ecosystems and habitat level

– the terms "ecosystem" and "habitat" are used more or less synonymously

• combines qualitative and quantitative

information

– computing a 2-dimensional product (habitat quality * quantity)

• has been developed to evaluate

whether or not progress is being made towards conservation of biodiversity

• results of different countries or eco-

regions are mutually comparable

Natural Capital Index (NCI)

Mode of computation

NCI = ecosystem quantity * ecosystem quality quantity quality

100% 100% 0% 50% 50% 25%

NCI

100%

Natural Capital Index (NCI)

De Heer et al. (2005)

Example of application

Natural Capital Index (NCI)

De Heer et al. (2005)

Advantages and benefits

• computation of NCI is simple and straightforward
• the two-dimensional concept (habitat quantity x

quality) is appealing

• index can be clearly communicated, even to

non-scientific audiences

• Graphical representations can be done in an

instructive way

– both in the form of spatially explicit maps at different grain resolution (depending on the resolution of input data) and of summary graphics

Natural Capital Index (NCI)

Deficits and limitations

• NCI shares with many indicators and indices the

problem of the appropriate baseline.

– baseline reference values usually remain a guess, even if that is a "best educated guess"

• very small values for NCI may result from

computation of the index for single habitats, which may lead to an erroneous impression when viewed in isolation.

• It is „data-hungry“!

Natural Capital Index (NCI)

Briefly on some (aggregated?) global ecological indicators

• HANPP

– Acronym resolved: „Human appropriation of net primary productivity“ – Started out with an analysis of the global pattern in human consumption of net primary productivity (NPP); Whittacker and Lieth 1974, Vitousek et al. 1986, Imhoff et al. 2004 Nature, and many further ...

• Ecological Footprint

– Simply based on the idea to compare productive area needed to support human demand (ES!) with the area available

• Regional applications are feasible for both!

National Footprints

• In U.S. each person uses about 4.5

hectares/person

• Worldwide average = 1.5 hectares/person
• Therefore if everybody were to adopt the U.S.

consumptive style, we would need 3 planets

(Wackernagel and Rees, 1996)

Definition and calculation of HANPP

From: Haberl et al. 2007; http://www.ecoeco.org/publica/encyc.htm

Derivation of a global HANPP map - 1

Figure 1. Spatial Distribution of Net Primary Productivity (NPP) (in grams of carbon)

Imhoff, Marc L., Lahouari Bounoua, Taylor Ricketts, Colby Loucks, Robert Harriss, and William T. Lawrence. 2004. Data distributed by the Socioeconomic Data and Applications Center (SEDAC): http://sedac.ciesin.columbia.edu/es/hanpp.html. [downloaded 2008-08-07]

Derivation of a global HANPP map - 2

Figure 2. Human Appropriation of Net Primary Productivity (HANPP) (in grams of carbon)

Imhoff, Marc L., Lahouari Bounoua, Taylor Ricketts, Colby Loucks, Robert Harriss, and William T. Lawrence. 2004. Data distributed by the Socioeconomic Data and Applications Center (SEDAC): http://sedac.ciesin.columbia.edu/es/hanpp.html. [downloaded 2008-08-07]

Derivation of a global HANPP map - 3

Figure 3. HANPP as a Percentage of Local NPP

Imhoff, Marc L., Lahouari Bounoua, Taylor Ricketts, Colby Loucks, Robert Harriss, and William T. Lawrence. 2004. Data distributed by the Socioeconomic Data and Applications Center (SEDAC): http://sedac.ciesin.columbia.edu/es/hanpp.html. [downloaded 2008-08-07]

Criticism of Ecological Footprint and HANPP indicators

• Ecological Footprint: underlying data can be

strongly questioned (?)

– Enhancements in productivity per unit area are ignored – Data used are open to all kinds of intentional manipulation („a purposeful indicator...“)

• HANPP: results are very sensitive to particular

method of HANPP estimation employed

– Data base fairly secure, but different details in application of method lead to greatly differing results (Haber et al. 2007)

• To both (and provocative): Isn‘t it just merely a

re-invention of the good old „Malthusian catastrophe“ ?!

Some brief conclusions

…after a long morning talk

• Ecosystem services are vital and have

been so throughout the development of

• ur species ( they are still generally

undervalued!).

• A multitude of indicators and indication

systems are available for ESs.

– reduce number in appropriate and sensitive indication systems, integrated under a logical framework

• Conclusive indices (aggregated

indicators) should be developed further.

Thank you so much for your attention!

… and for inviting me to come here!!
