DEPARTMENT VIROLOGY, PARASITOLOGY AND IMMUNOLOGY RESEARCH GROUP IMMUNOLOGY THE EFFECTS OF -1,3-1,6-GLUCANS ON INNATE IMMUNE RESPONSES IN PIGS . Hermans L., Devriendt B., Favoreel H., Cox E . Haemolytic uremic syndrome STEC infection Renal

slide-1
SLIDE 1

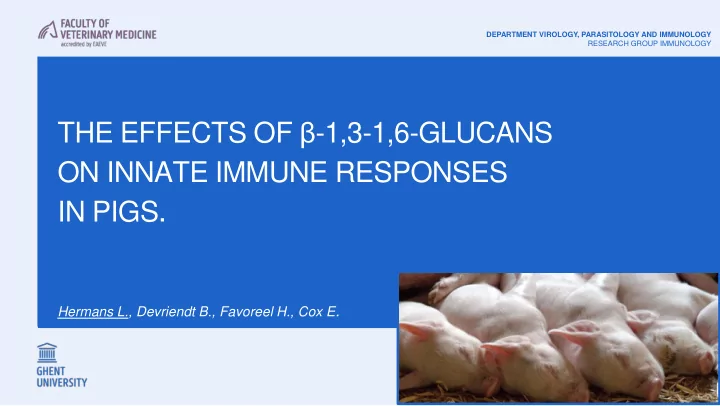

THE EFFECTS OF β-1,3-1,6-GLUCANS ON INNATE IMMUNE RESPONSES IN PIGS.

Hermans L., Devriendt B., Favoreel H., Cox E.

DEPARTMENT VIROLOGY, PARASITOLOGY AND IMMUNOLOGY RESEARCH GROUP IMMUNOLOGY

slide-2
SLIDE 2

Haemolytic uremic syndrome

STEC infection

Renal failure Haemolytic anaemia Thrombocytopenia Public health Oedema Ataxia Death

C.L. Gyles (Ed.), Escherichia coli in Domestic Animals and Humans, CAB International, Wallingford, Oxon, UK (1994), p. 337 Wöchtl B et al. Comparison of clinical and immunological findings in gnotobiotic piglets infected with Escherichia coli O104 : H4 outbreak strain and EHEC O157 : H7. Gut Pathog. BioMed Central; 2017;1–18. Tseng M et al. Shiga toxin-producing Escherichia coli in swine: the public health perspective. Anim Health Res Rev. 2014;15(1):63–75.

β-glucans Economic losses Modulate innate immune response in pigs

slide-3
SLIDE 3

β-glucans stimulate PBMC ➔ cytokine production ➔ NK cell activation

slide-4
SLIDE 4

NK cells

APC features Memory-like PT CD3- CD172a- CD8a+ Cytotoxicity Shape immune responses

Rupert Handgretinger et al. Blood 2016;127:3341-3349 De Pelsmaeker et al. , J. Leukoc. Biol., 2018; 103(1); 129-140 Gerner et al., J Allergy Clin Immunol. 2013 September ; 132(3): 536–544

slide-5
SLIDE 5

STEC INFECTION IN GNOTOBIOTIC PIGLETS

Wöchtl B et al. Comparison of clinical and immunological findings in gnotobiotic piglets infected with Escherichia coli O104 : H4 outbreak strain and EHEC O157 : H7. Gut Pathog. BioMed Central; 2017;1–18

Potential role for NK cells during STEC infection

Increase of NKp46+ NK cells in PBMC: IFN-γ production

1. Control group 2.

  • E. Coli O104:H4 infection

3.

  • E. Coli O157:H7 infection
slide-6
SLIDE 6

Beta-glucans?!

Proven to modulate immunity MAMP PRR ▪ Dectin-1 ▪ CR3 Carbohydrate polymers

slide-7
SLIDE 7

FEED TRIAL WITH ETEC CHALLENGE

In-feed administered β-glucans can protect against ETEC infection

Stuyven et al., Vet Immunol Immunopathol, 2009; 128(1-3):60-6

Decrease in faecal ETEC excretion Lower antigen-specific IgM response

slide-8
SLIDE 8

Macrogard (Saccharomyces cerevisiae) Curdlan (Alcaligenes faecalis)

STRUCTURE?!

  • Solubility
  • Size
  • Branching frequency
  • Length of the branches
  • Molecular conformation
slide-9
SLIDE 9

NK cells Beta-glucans

Activation Effects on innate immune responses

slide-10
SLIDE 10

EFFECTS OF β–GLUCANS ON PORCINE NK CELLS

slide-11
SLIDE 11

Direct effects of β-glucans on pNK cells

̶ NK isolation ̶ IL-2 Priming (16-18h) ̶ Beta-glucan (50 µg/ml) (2h) ̶ CFSE-labelled K562 (4h) IL-2 Lysis of target cells

slide-12
SLIDE 12

Direct effects of β-glucans on pNK cells

̶ NK isolation ̶ IL-2 Priming (16-18h) ̶ Beta-glucan (50 µg/ml) (2h) ̶ CFSE-labelled K562 (4h)

W ith o u t g lu c a n M a c ro g a rd C u rd la n 0 .0 0 .5 1 .0 1 .5

R e la tiv e N K -m e d ia te d ly s is

  • f K 5 6 2 c e lls a fte r 1 8 h IL -2 p rim in g

No direct effect of β-glucans on pNK cells

slide-13
SLIDE 13

Indirect effects of β-glucans on pNK cells

̶ PBMC isolation ̶ β-glucan priming (10 µg/ml)/ IL-2 priming (50ng/ml) (18h) ̶ Medium (2h) ̶ CFSE-labelled K562 (4h) M / IL-2 / Lysis of target cells

slide-14
SLIDE 14

Indirect effects of β-glucans on pNK cells

̶ PBMC isolation ̶ β-glucan priming (10 µg/ml)/ IL-2 priming (50ng/ml) (18h) ̶ Medium (2h) ̶ CFSE-labelled K562 (4h)

M e d iu m IL -2 M G C L 2 0 4 0 6 0 8 0

A b s o lu te P B M C -m e d ia te d ly s is

* * * * MG: Macrogard CL: Curdlan

p<0,05: * ; p<0,001: ***

β-glucans do indirectly activate pNK cells

slide-15
SLIDE 15

Are these effects NK-mediated?

R e la tiv e ly s is

P B M C P B M C  N K P B M C P B M C  N K P B M C P B M C  N K P B M C P B M C  N K 5 1 0 1 5

M e d iu m IL -2 M G (1 0 µ g /m l) C L (1 0 µ g /m l)

Yes

slide-16
SLIDE 16

HOW DOES THIS WORK?

slide-17
SLIDE 17

Effect of supernatant on pNK cells

̶ PBMC isolation ̶ β-glucan priming (10 µg/ml)/ IL-2 priming (50ng/ml) (18h) ̶ Collecting culture SN ̶ FACS purified NK cells (18h)

̶ CFSE-labelled K562 cells (4h)

M / IL-2 / SN

slide-18
SLIDE 18

Effect of supernatant on pNK cells

̶ PBMC isolation ̶ β-glucan priming (10 µg/ml)/ IL-2 priming (50ng/ml) (18h) ̶ Collecting culture SN ̶ FACS purified NK cells (18h)

̶ CFSE-labelled K562 cells (4h)

A b s o lu te N K -m e d ia te d ly s is

M I L

  • 2

M G C L 2 0 4 0 6 0 8 0 1 0 0

* * * *

p<0,05: * ; p<0,001: ***

PBMC produce NK cell stimulating factors upon β-glucan priming

slide-19
SLIDE 19

Effect of monocytes/DC

P B M C -m e d ia te d ly s is o f K 5 6 2 c e lls

% ly s e

F u l l  C D 1 7 2 a

+

F u l l  C D 1 7 2 a

+

F u l l  C D 1 7 2 a

+

1 0 2 0 3 0 4 0 5 0 M e d ium IL -2 M G (1 0 µ g /m l)

*** **

p<0,01: ** ; p<0,001: ***

Role for CD172a+ cells: monocytes and/or DC

slide-20
SLIDE 20

CONCLUSIONS

slide-21
SLIDE 21

Beta-glucans Monocytes / DC Cytokines Cytotoxicity Cytokines ??? Activation of monocytes Activation of Th1 Maturation of DC

slide-22
SLIDE 22

Beta-glucans Monocytes / DC Cytokines Cytotoxicity Cytokines ??? Activation of monocytes Activation of Th1 Maturation of DC Shape innate immune response → Stronger resistance to infection

slide-23
SLIDE 23

Leen Hermans

DEPARTMENT VIROLOGY, PARASITOLOGY AND IMMUNOLOGY

Promotors: Prof. Eric Cox, Prof. Herman Favoreel Co-promotor: Dr. Bert Devriendt

ICONS AND FIGURES Post Pigeon by Alina Oleynik from the Noun Project Mail Password by iconsmind.com from the Noun Project Human by Rose Alice Design from the Noun Project BioRender

Acknowledgements
