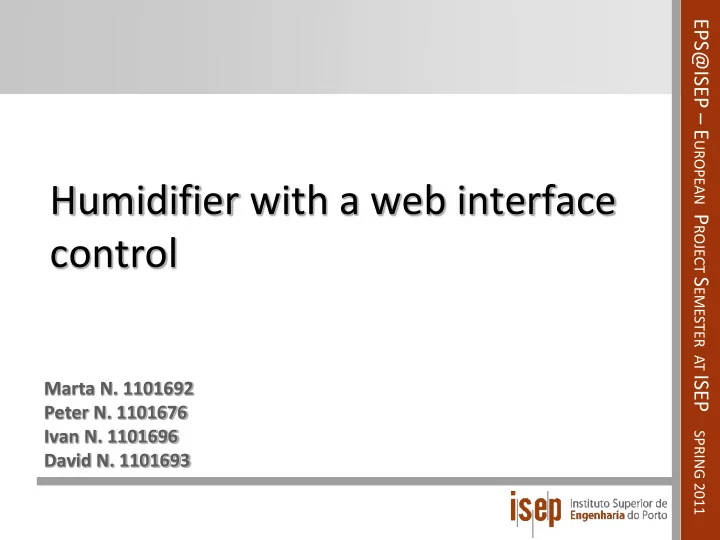

SLIDE 1
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Marta N. 1101692 Peter N. 1101676 Ivan N. 1101696 David N. 1101693
2011-06-15 | 2
Humidifier with a web interface control Marta N. 1101692 Peter N. - - PowerPoint PPT Presentation
Humidifier with a web interface control Marta N. 1101692 Peter N. - - PowerPoint PPT Presentation
EPS@ISEP E UROPEAN P ROJECT S EMESTER AT ISEP SPRING 2011 Humidifier with a web interface control Marta N. 1101692 Peter N. 1101676 Ivan N. 1101696 David N. 1101693 EPS@ISEP E UROPEAN P ROJECT S EMESTER AT ISEP SPRING 2011 Problem
SLIDE 2
SLIDE 3
2011-06-15 | 3
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
- humidifier to server room of 80 m3
- relative humidity between 40 % and 70 % (± 5)
- two days of autonomy
- on-off switch
- water and humidity alarms
Guidelines
SLIDE 4
2011-06-15 | 4
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Guidelines
- compliance with the EU Directives 2006/42/CE 2006-05-17
and 2006/95/CE 2006-12-12
- include a life-cycle analysis
- use open source technologies
- distribution of water vapour
SLIDE 5
2011-06-15 | 5
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Types of humidifiers
- Evaporative Humidifiers
- Impeller Humidifiers
- Ultrasonic Humidifiers
- Humidifier with air compressor
- Warm Mist Humidifiers
State of the Art
SLIDE 6
2011-06-15 | 6
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Our Decision
- Evaporative humidifier:
- Ensures a pure and clean mineral-free moisture
- utput
- Low costs of building and maintaining
- Powerful enough to cover large area
- Low energy consumption
SLIDE 7
2011-06-15 | 7
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
What we needed
SLIDE 8
2011-06-15 | 8
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Sketch of humidifier
SLIDE 9
2011-06-15 | 9
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Fan
- Kitchen extractor
- Metal filter easy to change
- Tray for excess of water
SLIDE 10
2011-06-15 | 10
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Water Tank
- Volume of 10 liters
- Thigh cover
- 2 water level sensors
SLIDE 11
2011-06-15 | 11
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Aluminum Structure
- Structure to organize all equipment
SLIDE 12
2011-06-15 | 12
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Modified Fan
SLIDE 13
2011-06-15 | 13
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Filter
- Professional filter
- Cloth towel
SLIDE 14
2011-06-15 | 14
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Controlling System
There are two basic way to solve the controlling. Our
- bjective to choose one from these tools what is the best to
realize the controlled humidity-level in a server room Two options :
- PLC
- Microcontroller
SLIDE 15
2011-06-15 | 15
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Our Decision
- Microcontroller
- Low energy consumption
- Low price
- Small size
SLIDE 16
2011-06-15 | 16
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Arduino Uno
- Microcontroller board
- 14 digital inputs/outputs pins (2; 5)
- 6 analog inputs
- USB connection (easily to connect to PC)
- AC-DC adapter
SLIDE 17
2011-06-15 | 17
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Ethernet Board
- Communicate with Data server
– 3 later 8 humidity sensor values – Server date – Sensor dates – Send 2 water level switcher state
- Email server
– Send water warning
SLIDE 18
2011-06-15 | 18
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Inputs
- Built-in humidty sensor (analog pin 0)
- Water level switcher 1 (digital pin 7)
- Water level switcher 2 (digital pin 8)
SLIDE 19
2011-06-15 | 19
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Outputs
- Kitchen extractor (digital pin 2)
- Aquarium pump (pin 4)
- LEDs
– Water level sensor 1 state (pin 5) – Water level switcer 2 state (pin 3) – Ethernet connection state (pin 9)
SLIDE 20
2011-06-15 | 20
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Programming – Basic idea
SLIDE 21
2011-06-15 | 21
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Programming - Objectives
- Keep the humidity level on 55%
- Based on the 8 (3) cabin sensors
- Check the sensor dates and value propriety
SLIDE 22
2011-06-15 | 22
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Programming - Objectives
- Use local sensor (no connection)
- Send water warning
- Ban the run without water
SLIDE 23
2011-06-15 | 23
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Electric and electronic Part
Pump and fan control Control with two relays finder 40.31 6V DC Additional electronic circuit
SLIDE 24
2011-06-15 | 24
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Electric and electronic Part
Water level sensor Water level sensors switch RSF40 Series Additional electronic circuit
SLIDE 25
2011-06-15 | 25
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Electric and electronic Part
Arduino power Power supply 230V AC / 12V DC
SLIDE 26
2011-06-15 | 26
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Electric and electronic Part
SLIDE 27
2011-06-15 | 27
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Electric and electronic Part
Electrical Box
SLIDE 28
2011-06-15 | 28
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Final model of humidifier
SLIDE 29
2011-06-15 | 29
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
Final model of humidifier
SLIDE 30
2011-06-15 | 30
EPS@ISEP – EUROPEAN PROJECT SEMESTER AT ISEP SPRING 2011
References & Bibliography
- http://www.jsnawilzacze.pl/humipac-ceiling-mounted-humidifier-510-details/
- http://www.jsnawilzacze.pl/humevap-mc3-nawilacz-wyparny-chodnica-486-details/
- http://en.wikipedia.org/wiki/Programmable_logic_controller
- http://www.engineeringtoolbox.com/
- www.bryant.com
- www.maxim-ic.com
- www.beyondlogic.org
- http://mediasklep.ogicom.pl/nawilzacz-powietrza-triada.html
- http://www.jsnawilzacze.pl/humevap-mc3-nawilacz-wyparny-chodnica-486-details/
