How medium sized mammals defend our network! Tim Clark (eclipse) - PowerPoint PPT Presentation

Dec 02, 2023 •180 likes •355 views

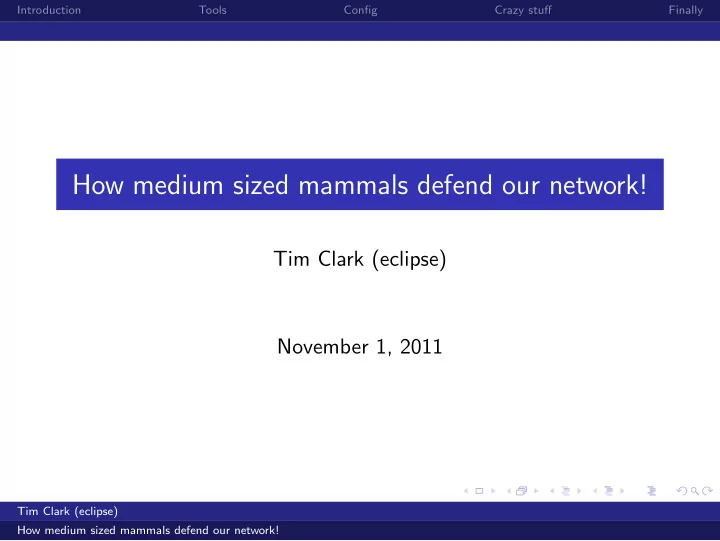

Introduction Tools Config Crazy stuff Finally How medium sized mammals defend our network! Tim Clark (eclipse) November 1, 2011 Tim Clark (eclipse) How medium sized mammals defend our network! Introduction Tools Config Crazy stuff

  1. Introduction Tools Config Crazy stuff Finally How medium sized mammals defend our network! Tim Clark (eclipse) November 1, 2011 Tim Clark (eclipse) How medium sized mammals defend our network!

  2. Introduction Tools Config Crazy stuff Finally Tim Clark (eclipse) How medium sized mammals defend our network!

  3. Introduction Tools Config Crazy stuff Finally IPSec Secure tunnels over IP Uses racoon Needs setkey Usually auth with shared keys Can auth with public keys (X.509) Tim Clark (eclipse) How medium sized mammals defend our network!

  4. Introduction Tools Config Crazy stuff Finally Racoon The thing you need to do IP tunnels IKE Daemon IKE=Internet Key Exchange Negotiates keys to make a IPSec tunnel IPSec tunnels use ESP (seriously) ESP=Encapsulating Security Payload Tim Clark (eclipse) How medium sized mammals defend our network!

  5. Introduction Tools Config Crazy stuff Finally Setkey Causes the tunnel to be used Sets the security policy For example: when talking to SUCS only talk through the tunnel, and only listen to SUCS if its through the tunnel The tunnel doesn’t exist till its needed Setkey is the thing that tells racoon to make the tunnel Tim Clark (eclipse) How medium sized mammals defend our network!

  6. Introduction Tools Config Crazy stuff Finally Racoon path pre_shared_key "/etc/racoon/psk.txt"; remote 137.44.6.5 { proposal { encryption_algorithm 3des; hash_algorithm sha1; authentication_method pre_shared_key; dh_group modp1024; } lifetime time 60 min; exchange_mode main; } Tim Clark (eclipse) How medium sized mammals defend our network!

  7. Introduction Tools Config Crazy stuff Finally Racoon sainfo address 137.44.10.0/24[any] any address 137.44.6.5[any] any { pfs_group modp1024; lifetime time 20 min; encryption_algorithm 3des; authentication_algorithm hmac_sha1; compression_algorithm deflate; } Tim Clark (eclipse) How medium sized mammals defend our network!

  8. Introduction Tools Config Crazy stuff Finally Setkey spdadd 137.44.10.0/24 137.44.6.5 any -P out ipsec esp/tunnel/137.44.19.200-137.44.6.5/require; spdadd 137.44.6.5 137.44.10.0/24 any -P in ipsec esp/tunnel/137.44.6.5-137.44.19.200/require; Tim Clark (eclipse) How medium sized mammals defend our network!

  9. Introduction Tools Config Crazy stuff Finally psk.txt 137.44.6.5 ThisIsNotActuallyTheKey Tim Clark (eclipse) How medium sized mammals defend our network!

  10. Introduction Tools Config Crazy stuff Finally Server for complex remote remote anonymous { proposal { encryption_algorithm 3des; hash_algorithm sha1; authentication_method pre_shared_key; dh_group modp1024; } generate_policy unique; nat_traversal on; passive on; verify_identifier off; lifetime time 60 min; exchange_mode main,aggressive; } Tim Clark (eclipse) How medium sized mammals defend our network!

  11. Introduction Tools Config Crazy stuff Finally Server for complex remote sainfo address 137.44.10.0/25[any] any anonymous { pfs_group modp1024; lifetime time 20 min; encryption_algorithm 3des; authentication_algorithm hmac_sha1; compression_algorithm deflate; } Tim Clark (eclipse) How medium sized mammals defend our network!

  12. Introduction Tools Config Crazy stuff Finally psk.txt client-test ThisIsNotActuallyTheKey Tim Clark (eclipse) How medium sized mammals defend our network!

  13. Introduction Tools Config Crazy stuff Finally Server for complex remote remote 137.44.19.200 { proposal { encryption_algorithm 3des; hash_algorithm sha1; authentication_method pre_shared_key; dh_group modp1024; } nat_traversal on; my_identifier keyid tag "client-test"; verify_identifier off; lifetime time 60 min; exchange_mode aggressive; } Tim Clark (eclipse) How medium sized mammals defend our network!

  14. Introduction Tools Config Crazy stuff Finally Old Setkey spdadd 137.44.10.0/24 137.44.6.5 any -P out ipsec esp/tunnel/137.44.19.200-137.44.6.5/require; spdadd 137.44.6.5 137.44.10.0/24 any -P in ipsec esp/tunnel/137.44.6.5-137.44.19.200/require; Tim Clark (eclipse) How medium sized mammals defend our network!

  15. Introduction Tools Config Crazy stuff Finally New Setkey spdadd 137.44.10.0/24 137.44.6.5 any -P out ipsec esp/tunnel/137.44.19.200-137.44.6.5/unique; spdadd 137.44.6.5 137.44.10.0/24 any -P in ipsec esp/tunnel/137.44.6.5-137.44.19.200/unique; Tim Clark (eclipse) How medium sized mammals defend our network!

  16. Introduction Tools Config Crazy stuff Finally The Internet Slides Available at http://sucs.org/~eclipse Tim Clark (eclipse) How medium sized mammals defend our network!

  17. Introduction Tools Config Crazy stuff Finally Questions? Any Questions? Tim Clark (eclipse) How medium sized mammals defend our network!
