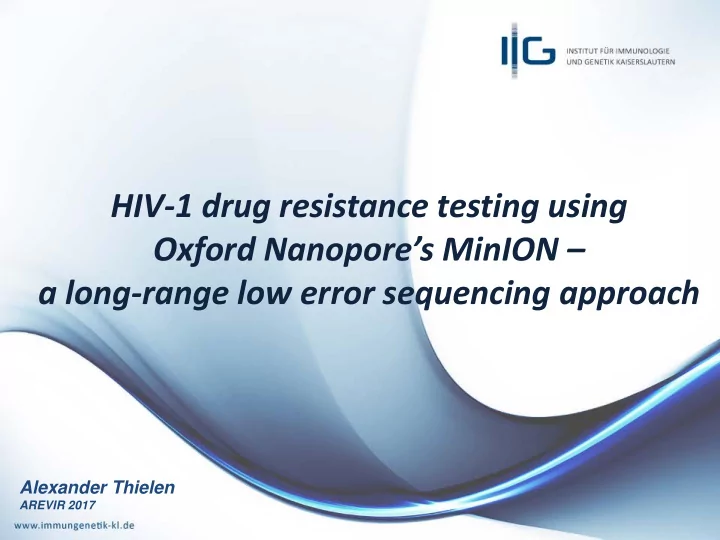

HIV-1 drug resistance testing using Oxford Nanopore’s MinION – a long-range low error sequencing approach

Alexander Thielen

AREVIR 2017

SLIDE 2

Oxford Nanopore’s technology

SLIDE 3

– long range sequencing

Oxford Nanopore’s technology

SLIDE 4

– long range sequencing – very fast

Oxford Nanopore’s technology

SLIDE 5

Oxford Nanopore’s technology

SLIDE 6

– long range sequencing – very fast – portability / global access (search for “Massimo Delledonne: MinIONs and Nanofrogs“)

Oxford Nanopore’s technology

SLIDE 7

Oxford Nanopore’s MinION

SLIDE 8

– long range sequencing – very fast – portability / global access (search for “Massimo Delledonne: MinIONs and Nanofrogs“)

Oxford Nanopore’s technology

SLIDE 9

– long range sequencing – very fast – portability / global access (search for “Massimo Delledonne: MinIONs and Nanofrogs“) – relatively cheap, no capital cost – but: high error rate

Oxford Nanopore’s technology

SLIDE 10

Oxford Nanopore’s error rate

SLIDE 11

Error rate reduction using an Rolling Circle Amplification approach

SLIDE 12

cDNA PR RT RNaseH INT 3.1kb

M13for M13rev

MID1 MID2

RCA Approach: 1. Amplification

PCR product

SLIDE 13

Self-ligation using T4 ligase, digestion of non-circularized fragments

RCA Approach: 2. Circularization

SLIDE 14

random priming

RCA Approach: 3. Rolling Circle Amplification

isothermal amplification by phi29 polymerase

SLIDE 15

RCA Approach: 3. Rolling Circle Amplification

80-100 kb copyn copy1 copy2 Amplification products are sheared to ~20kb Final products:

SLIDE 16

RCA Approach: 4. Library Preparation & Sequencing

SLIDE 17

RCA Approach: 5. Analysis

Individual copies are detected in the sequenced reads and aligned against each other A consensus sequence is generated 80-100 kb copyn copy1 copy2 copyn copy1 copy2 ... consensus x x x x x x x x

SLIDE 18

– except for homopolymers, errors shoud occur randomly – consensus sequences should therefore reduce error rates – accuracy simulations:

RCA accuracy estimation

Amplicon count Estimated RCA Accuracy R7 sim.

1 75.00% 80.00% 85.00% 90.00% 77.91% 3 84.38% 89.60% 93.93% 97.20% 84.41% 5 89.65% 94.21% 97.34% 99.14% 89.38% 7 92.94% 96.67% 98.79% 99.73% 91.49% 9 95.11% 98.04% 99.44% 99.91% 93.03%

SLIDE 19

– 16 samples were prepared with the RCA approach (RCA- 1D) – for comparison, the same amplified 3.1kb products were also sequenced with

Illumina MiSeq, with Nextera XT tagmentation (MiSeq)
MinION with 1D Ligation Kit without fragmentation & RCA (1D-
nly)

– MiSeq results were used as gold-standard

Experiment

SLIDE 20

– MinION output:

1D-only:

240.000 reads mapped onto HIV-1 1300 bp (range: 31-3098 bp)

RCA-1D:

198.000 reads mapped onto HIV-1 1698 bp (range: 173-82.556 bp)

Results

log10 read length Frequency 1 2 3 4 5 1000 2000 3000

SLIDE 21

– Error rates (when only one copy of the amplified region is considered):

1D-only:

14.7% in total, 6.4% substitution errors, 5.6% deletions, and 1.1% insertions

RCA-1D:

14.7% in total, 6.0% mismatches, 6.3%, deletions 0.8% insertions  RCA has no effect on raw error rates

Results

SLIDE 22

– median RCA consensus error rates:

Results

region copies total substitution deletion insertion 1 14.72% 6.03% 6.29% 0.77% 2 11.25% 5.63% 3.18% 1.00% 3 11.00% 3.49% 6.02% 0.18% 4 7.39% 1.64% 4.76% 0.00% 5 6.12% 1.22% 3.97% 0.00% 6 4.44% 0.94% 2.79% 0.00% 7 2.76% 0.00% 1.56% 0.00% 8 1.78% 0.00% 0.00% 0.00% 9 1.56% 0.00% 0.00% 0.00% 10 1.47% 0.00% 0.00% 0.00% 11 1.2% 0.00% 0.00% 0.00%

SLIDE 23

Results

2,00%

0,00% 2,00% 4,00% 6,00% 8,00% 10,00% 12,00% 14,00% 16,00% 1 2 3 4 5 6 7 8 9 10 11 12

error rates

total substitution deletion insertions

SLIDE 24

RCA accuracy estimation

vs. experiment

Amplicon count Estimated RCA Accuracy R7 sim. R9 exp.

1 75.00% 80.00% 85.00% 90.00% 77.91% 85.28% 3 84.38% 89.60% 93.93% 97.20% 84.41% 89.00% 5 89.65% 94.21% 97.34% 99.14% 89.38% 93.88% 7 92.94% 96.67% 98.79% 99.73% 91.49% 97.24% 9 95.11% 98.04% 99.44% 99.91% 93.03% 98.44%

SLIDE 25

– Basecalling errors at different sensitivity cut-offs: – Basecalling errors almost entirely within or adjacent to homo-polymers

Results

0,00% 5,00% 10,00% 15,00% 20,00% 25,00% 30,00% 35,00% 2 4 6 8 10 12 5% 10% 15% 20%

SLIDE 26

16-76608: M184V, K219R, E138K ~ 100% V108I: 77% V179I: 30% H221Y: 24% V106I: 4.4%

Outlook: Long-range covariation analysis

SLIDE 27

Acknowledgments

Kirsten Becker Nina Engel Anja Förster Anna Memmer Bettina Spielberger Martin Däumer Bernhard Thiele
