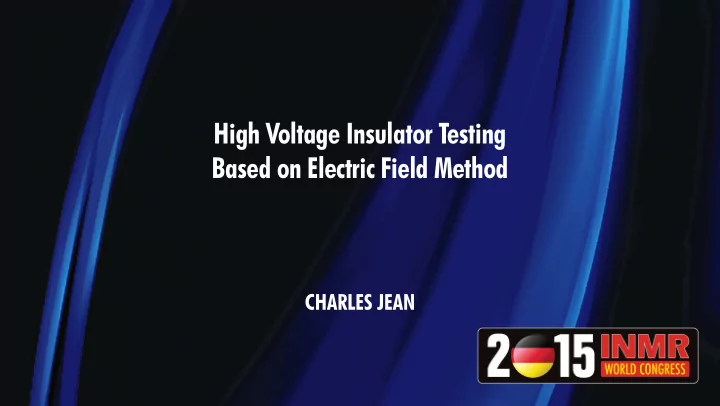

High Voltage Insulator Testing Based on Electric Field Method

CHARLES JEAN

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

By Charles Jean P. Eng.

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Introduction

The condition of insulators on transmission and distribution power grid is of prime importance for the successful operation of a power network. Particularly since a damaged, electrically deficient insulator can lead to costly systems outages, serious injury, or loss of life.

2

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Scope

In this presentation, some of the dangers and a solution will be described and applied to improve the safety of personnel working in close proximity

• f live high voltage insulators.

3

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

High Voltage Insulators Types

Porcelain Glass Composite or Polymer

(Non Ceramic Insulator)

4

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Some Testing Techniques

Visual Inspection Infrared /UV Detection HV DC Tests Buzz Sticking

Electric Field Measurement

5 Composite Porcelain Universal

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Diagnostic Test Chart

Some Testing Techniques Type of Insulators Porcelain Glass Composite

Visual Inspection

X X (1) X

Infrared/UV detection

X

HV DC Tests

X

Buzz Sticking

X

Electric Field measurement (3)

X X (2) X

(1) A punctured glass insulator can be identified visually (2) Used for surface contamination evaluation (3) Electric Field measurement will be the technique described in this presentation 6

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Comments on some Testing Techniques

• BUZZ STICKING: Used on Porcelain insulator strings only. Shorting out an

insulator using a buzz stick can be cause a line-to-ground power arc if the insulator string contains multiple failed insulators and only one or several insulators are holding off the entire voltage.

• Can be potentially dangerous
• Requires operator judgement
• Difficulty of counting to ensure that each insulator is checked on a long string
• HV DC TEST: Very heavy device. Used on Porcelain insulators only. This

involves injecting a 10 kV DC voltage across each insulator which can cause a line-to-ground power arc if the insulator string contains multiple failed insulators.

7

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Comments on some Testing Techniques (con’t)

• UV DETECTION: Does not detect internal cracks on composite or porcelain

insulators nor puncturing through porcelain. There may not be sufficient external cracks to produce detectable signatures. Very expensive.

• INFRARED DETECTION: Used on composite insulators only. Very expensive.

Small defects will be undetectable and consequently, will not produce an early fault indication. The defect has to be major to produce a detectable temperature rise. Ambient temperature, sun and wind may mask the temperature rise. Sensitivity is low for this application. Requires operator judgement.

• VISUAL INSPECTION: Only detects obvious external visible damage facing

the observer for composite and porcelain insulators. Useful for detecting failed glass insulators because they shatter.

8

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Our Development Objectives

• Safe to operate
• Lightweight (less than 2 kg)
• Ease and speed of operation
• Reliable and early detection of faults
• Instant reporting: number of bad discs
• GO/NO-GO indication: safe or not safe
• Visual and audible alarm
• Contamination assessment
• Database compliant to allow degradation
• ver time assessment
• Can be used on live line up to 1M Volts

9

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Electric Field Measurement Technique

10

Electric field testing technique involves the use of devices to measure and plot the Electric Field along the length of the insulator (Composite or Porcelain) or string (Porcelain).

• This technique can be used on many types of insulators including:

– Porcelain, Composite, Post, Bushings, Lightning arrestors, etc. 3 different sizes of lightweight sleds with mounted sensors are required to accommodate all these types of insulators.

• This technique can be used to detect many types of defects including:

– Leaking insulators, punctured insulators, severe surface contamination, carbon tracking, captive moisture, etc.

• This technique uses a microprocessor based automatic measuring, processing, data

gathering and reporting device which is attached to lightweight sled at the end of a non-conductive stick that slides along the insulator or insulator string.

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Electric Field Distribution

This simulation confirms that the Electric Field surrounding the disc #8 is lower The disc #8 is leaking (Low resistance), consequently, the voltage across its Cap and Pin is lower

Source: Background of the method

11

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Insulator Scanning

The Electric Field sensor & processing device is mounted on a high impact ABS sled which is moved along the insulator by means of a hot stick.

12 Hot stick

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Porcelain & Glass Insulator

Porcelain Glass Metal

Electric Field measurement location Punctured Glass disc can be visually detected

Cap Pin

13

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Electric Field Measurement

Electric Field sensor The Electric Field measured by the sensor is proportional to the voltage between the Socket Cap and the Ball Pin

Note that there is no electrical contact between the sensor and the metal parts of the disc for added security A reading is taken as the sled passes each disc

14

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Faulty Porcelain Insulator String

Disc #15 is punctured

15

Ground end High voltage end

Note: Electric Field is lower under the HV corona ring

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Faulty Porcelain Insulator String

Ground end High voltage end

Disc #7, 9, 15, 16, 23 and 29 are punctured

Danger: This Porcelain string presents a dangerous situation for close proximity workers

The minimum number of good insulators in a string shall be specified by the relevant power company before attempting close proximity working

16

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Composite Insulator

Corona Ring Optional Corona Ring High Voltage end Ground end There is no metal part along the path. Any conduction along that path will be detected by the Electric Field Sensor

17

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Floating Defect

Graph showing the effect of 3 types of simulated defect placed near the center of the insulator

18

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

High Voltage Connected Defect

Graph showing the Electric Field distribution of two 735 kV Composite Insulators. The colored curves show a dangerous insulator, the curve in black shows a healthy insulator

High Voltage Connected Defects are the most common type of defects on Composite Insulators

Note: Two curves per scan are displayed, one curve (red) for the Forward scan towards HV end and one curve (blue) for the Backward scan towards the Ground end

Danger: This Composite Insulator represents a very dangerous situation for close proximity workers

19

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Instant Reporting & GO/NO-GO

• The sensor has a built-in microprocessor that uses

programs and algorithms to automatically interpret the result of an insulator scan and instantly report a DANGEROUS status to the operator using visual and audible alarms (Validated by extensive tests on live lines under all types of insulator failure conditions)

• The condition of each insulator is stored for 100’s of

towers and strings. It can be downloaded to a PC for investigation and future reference for maintenance purposes

20

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Conclusion

• The Electric Field Measurement Technique is safe

and has a long record of reliable results

• Based on science and extensive experience,

Instant Reporting and GO/NO-GO features, it is now possible to ensure better safety for workers

• This Personal Safety innovation is now part of the

insulator testing & maintenance process

21

Personnel Safety Through Assessment of Electric Field Distribution Along Energized Insulators

Thank you

www.positronpower.com Charles Jean P. Eng. cjean@positronpower.com
