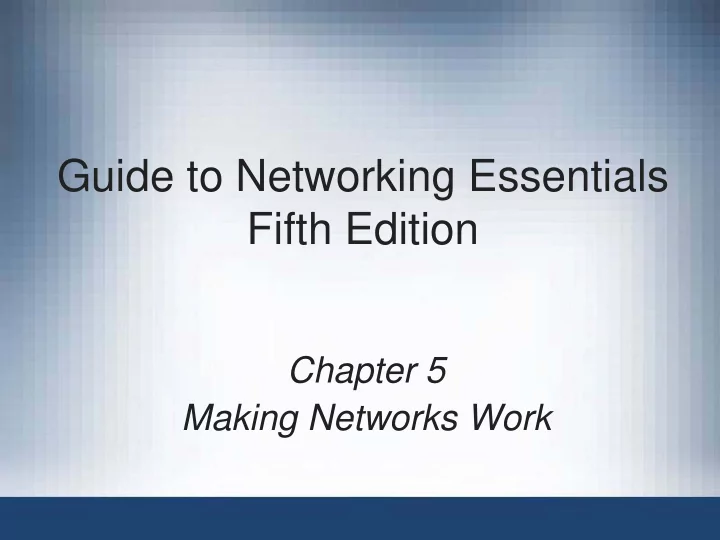

Guide to Networking Essentials Fifth Edition

Chapter 5 Making Networks Work

slide-2
SLIDE 2

Guide to Networking Essentials, Fifth Edition 2

Objectives

  • Explain the OSI reference model layers and their

relationship to hardware and software

  • Describe the function and creation of a data frame
  • Explain the IEEE 802 networking model and related

standards

slide-3
SLIDE 3

Guide to Networking Essentials, Fifth Edition 3

Understanding the OSI and 802 Networking Models

  • The Open Systems Interconnection (OSI)

reference model was proposed by the ISO

– Common framework for developers and students of networking to work with and learn from – Attempt to develop a working set of protocols and technologies based on the OSI model and to put those efforts into common use never materialized

  • IEEE 802 networking model provides detailed

implementation specifications for a number of networking technologies

– Influential set of networking standards

slide-4
SLIDE 4

Guide to Networking Essentials, Fifth Edition 4

Role of a Reference Model

  • Reference models and standards enable

interoperability among layers

  • Computer networking, computer compatibility, and

networking features and functions can be daunting concepts to grasp

– However, they would be more difficult to comprehend if networking weren’t built on a common framework with the process separated into layers

  • The OSI model and its seven-layer approach to

networking provides this common framework

slide-5
SLIDE 5

Guide to Networking Essentials, Fifth Edition 5

OSI Reference Model

  • OSI reference model: drafted in late 1970s by ISO;

theoretical model for networks of all kinds

– By 1983, the draft became ISO Standard 7498

  • Model’s foundation: networking can be separated

into a series of related tasks

– Each task can be conceptualized as a single aspect,

  • r layer, of the communication process
  • Reduces complexity of networked communications into

series of interconnected tasks and activities

  • “Divide and conquer” approach: relationship among

tasks persists, but each can be handled separately, and its issues solved independently

slide-6
SLIDE 6

Guide to Networking Essentials, Fifth Edition 6

Understanding Layers

  • The OSI reference model for networking clarifies

many communications activities and related tasks and requirements to help in understanding what networks are and how they work

– Breaks down all the events that must occur for data to be addressed and formatted correctly before it can actually be delivered to its final recipient – With a layered approach, one part of the process can change, sometimes drastically, while the rest of the process remains unchanged

slide-7
SLIDE 7

Guide to Networking Essentials, Fifth Edition 7

Structure of the OSI Reference Model

  • A computer that accesses a network must have a

protocol stack (protocol suite)

– TCP/IP – IPX/SPX – NetBEUI – AppleTalk

  • Protocols plus drivers equal network access
slide-8
SLIDE 8

Guide to Networking Essentials, Fifth Edition 8

Structure of the OSI Reference Model (continued)

slide-9
SLIDE 9

Guide to Networking Essentials, Fifth Edition 9

Structure of the OSI Reference Model (continued)

slide-10
SLIDE 10

Guide to Networking Essentials, Fifth Edition 10

Structure of the OSI Reference Model (continued)

slide-11
SLIDE 11

Guide to Networking Essentials, Fifth Edition 11

Structure of the OSI Reference Model (continued)

  • Communication between peer layers is “virtual”

– In reality, communications pass up and down the protocol stacks on both machines – As data gets passed from layer to layer, it’s divided into data units appropriate for the layer

  • Protocol data units (PDUs) are passed as a self-

contained data structure from layer to layer

  • Encapsulation process adds “headers” to allow

successful delivery of each layer’s payload

– Decapsulation strips header information on way up

– No layer can pass information directly to its peer counterpart except for the Physical layer

slide-12
SLIDE 12

Guide to Networking Essentials, Fifth Edition 12

Application Layer

  • Layer 7; PDU: data

– Set of interfaces to access networked services

  • E.g., networked file transfer, message handling, and

database query processing

– Handles network access, moving data from sender to receiver, and error recovery for applications – Components usually have a client and a server part

  • E.g., HTTP, Client for Microsoft Networks, NFS

– Possible problems: missing/misconfigured client or server SW, incompatible or obsolete commands used to communicate between client and server

slide-13
SLIDE 13

Guide to Networking Essentials, Fifth Edition 13

Presentation Layer

  • Layer 6

– Data-formatting info for network communications – Handles: protocol conversion, character set issues, encryption/ decryption, and graphics commands – May compress data – A redirector operates at this layer

  • Intercepts requests for service from the computer;

those that can’t be handled locally are redirected to a networked resource that can handle the request

– Usually built into the Application layer component

  • E.g., FTP, HTTP
slide-14
SLIDE 14

Guide to Networking Essentials, Fifth Edition 14

Session Layer

  • Layer 5

– Permits two parties to hold ongoing sessions – Handles session setup, data or message exchanges, and teardown when the session ends – Monitors session identification so that only designated parties can participate – Monitors security services for access control – Examples: name lookup and user logon and logoff

  • E.g., DNS name resolution, FTP’s logon/logoff

– End-to-end task synchronization services – Manages mechanics of any ongoing conversation

slide-15
SLIDE 15

Guide to Networking Essentials, Fifth Edition 15

Transport Layer

  • Layer 4; PDU: segment

– Manages end-to-end transfer of data – Segments long data streams into chunks

  • Resequences chunks into original data on receipt

– Includes error checks to ensure error-free delivery – Handles flow control – E.g., TCP (TCP/IP) and SPX (from IPX/SPX) – Layer 4 problems include a corrupt protocol stack and segments that are too large for the medium between the source and destination networks

  • The latter forces Network layer to fragment segments,

which causes performance degradation

slide-16
SLIDE 16

Guide to Networking Essentials, Fifth Edition 16

Transport Layer (continued)

slide-17
SLIDE 17

Guide to Networking Essentials, Fifth Edition 17

Network Layer

  • Layer 3; PDU: packet

– Handles addressing messages for delivery – Translates logical addresses into physical addresses – Determines how to route transmissions from sender to receiver (routing process) – Traffic cop for network activity and handles routing and access control (during routing process) – E.g., IP (from TCP/IP) and IPX (from SPX/IPX) – Possible problems: incorrect IP addresses or subnet masks, incorrect router configuration, and router

  • peration errors
slide-18
SLIDE 18

Guide to Networking Essentials, Fifth Edition 18

Network Layer (continued)

slide-19
SLIDE 19

Guide to Networking Essentials, Fifth Edition 19

Data Link Layer

  • Layer 2; PDU: frame (has header and trailer (FCS))

– Sends PDUs from/to Network to/from Physical layer – FCS contains Cyclical Redundancy Check (CRC)

  • It’s the responsibility of the upper layers (e.g., Layer 4)

to retransmit data discarded due to errors

– Header contains source/destination MAC addresses

  • Destination address is of final destination or

intermediate device (e.g., router)

– The SW component at this layer is the NIC driver – HW components include NIC and switches – Possible problems: collisions, invalid frames, trying to use incompatible network architectures

slide-20
SLIDE 20

Guide to Networking Essentials, Fifth Edition 20

Data Link Layer (continued)

slide-21
SLIDE 21

Guide to Networking Essentials, Fifth Edition 21

Physical Layer

  • Layer 1

– Converts bits into signals and vice versa

  • Signals generated depend on the medium

– Details for creating network connection are specified – Governs the type of connector used – Regulates the transmission technique – Handles intricacies of transmitting bits

  • Specifies encoding mechanism
  • Tries guarantee that received bits match pattern sent

– Problems: improper media termination, EMI, faulty or misconfigured NICs and hubs

slide-22
SLIDE 22

Guide to Networking Essentials, Fifth Edition 22

Summary of the OSI Layers

slide-23
SLIDE 23

Guide to Networking Essentials, Fifth Edition 23

Function of Data Frames in Network Communications

  • A frame is the basic unit for network traffic as it

travels across the medium

  • Reasons why networks split data into small pieces

– Large units of data sent across a network hamper effective communications by saturating the network

  • If a sender and receiver use all the available

bandwidth, other computers can’t readily communicate

– Networks can sometimes be unreliable

  • Retransmission of large frames (due to errors) is

inefficient

slide-24
SLIDE 24

Guide to Networking Essentials, Fifth Edition 24

Examining the Structure of a Data Frame

  • Header: source/destination MAC addresses,

frame’s size, description of content, clocking information

  • Data (“payload”): actual data being sent along with

the headers of other PDUs in the frame

– Size can vary from less than 50 bytes to 16 KB, depending on the network type

  • Trailer: CRC (if the sent/received CRCs don’t

match, the receiving computer discards the frame)

slide-25
SLIDE 25

Guide to Networking Essentials, Fifth Edition 25

Creating a Data Frame

slide-26
SLIDE 26

Guide to Networking Essentials, Fifth Edition 26

Understanding Types of Data Frames

  • Unicast frame: addressed to only one computer

– Adapters read the frames and pass them to higher layers only if the destination address in the frame header matches their own address

  • Broadcast frame: created for all computers on a

network

– Destination address is a value of all binary 1s

  • Multicast frame: created for any computers on a

network that “listen” to a shared network address

– A special kind of address allows any interested receiver to read these data streams

slide-27
SLIDE 27

Guide to Networking Essentials, Fifth Edition 27

Understanding the IEEE 802 Networking Specifications

  • The IEEE defined a set of LAN standards to ensure

network interface and cabling compatibility

– Project 802 (inception on February (2) of 1980)

  • Concentrates on standards that describe a network’s

physical elements

– NICs, cables, connectors, signaling technologies, media access control, and the like

  • OSI model was not standardized until 1983–1984

– IEEE 802 standards predate the model – Both were developed in collaboration and are compatible with one another

slide-28
SLIDE 28

Guide to Networking Essentials, Fifth Edition 28

IEEE 802 Extensions to the OSI Reference Model

slide-29
SLIDE 29

Guide to Networking Essentials, Fifth Edition 29

IEEE 802 Extensions to the OSI Reference Model (continued)

slide-30
SLIDE 30

Guide to Networking Essentials, Fifth Edition 30

IEEE 802 Working Groups and status

(this list from http://en.wikipedia.org/wiki/IEEE_802)

  • IEEE 802.1 Bridging (networking) and Network Management
  • IEEE 802.2 Logical link control (inactive)
  • IEEE 802.3 Ethernet
  • IEEE 802.4 Token bus (disbanded)
  • IEEE 802.5 Defines the MAC layer for a Token Ring (inactive)
  • IEEE 802.6 Metropolitan Area Networks (disbanded)
  • IEEE 802.7 Broadband LAN using Coaxial Cable (disbanded)
  • IEEE 802.8 Fiber Optic TAG (disbanded)
  • IEEE 802.9 Integrated Services LAN (disbanded)
  • IEEE 802.10 Interoperable LAN Security (disbanded)
  • IEEE 802.11 Wireless LAN & Mesh (Wi-Fi certification)
  • IEEE 802.12 demand priority (disbanded)
slide-31
SLIDE 31

Guide to Networking Essentials, Fifth Edition 31

IEEE 802 Working Groups (continued)

  • IEEE 802.13 Not used (officially)

– IEEE 802.13ah Defines "Copper for the first mile" for Metro Area Networks (proposed)

  • IEEE 802.14 Cable modems (disbanded)
  • IEEE 802.15 Wireless PAN

– IEEE 802.15.1 (Bluetooth certification) – IEEE 802.15.4 (ZigBee certification)

  • IEEE 802.16 Broadband Wireless Access (WiMAX certification)

– IEEE 802.16e (Mobile) Broadband Wireless Access – IEEE 802.16.1 Local Multipoint Distribution Service

  • IEEE 802.17 Resilient packet ring
  • IEEE 802.18 Radio Regulatory TAG
  • IEEE 802.19 Coexistence TAG
  • IEEE 802.20 Mobile Broadband Wireless Access
  • IEEE 802.21 Media Independent Handoff
  • IEEE 802.22 Wireless Regional Area Network
slide-32
SLIDE 32

Guide to Networking Essentials, Fifth Edition 32

IEEE 802 Explanations

(Table 5-2, from the textbook)

slide-33
SLIDE 33

Guide to Networking Essentials, Fifth Edition 33

IEEE 802 Explanations (continued)

slide-34
SLIDE 34

Guide to Networking Essentials, Fifth Edition 34

Summary

  • The OSI reference model and IEEE Project 802

define a frame of reference for networking and specify the lower-layer behaviors for most networks

– Together, these models describe the complex processes and operations involved in sending and receiving information across a network

  • The OSI reference model separates networking into

seven layers, each with its own purposes/activities

– From the bottom up: Physical, Data Link, Network, Transport, Session, Presentation, and Application

slide-35
SLIDE 35

Guide to Networking Essentials, Fifth Edition 35

Summary (continued)

  • Data frames consist of three parts: frame header,

data section, and frame trailer

– Classified as unicast, multicast, or broadcast frames

  • The IEEE 802 project elaborates on the functions of a

network’s Physical and Data Link layers by dividing the Data Link layer into two sublayers: Logical Link Control (LLC) and Media Access Control (MAC)

– Together, these sublayers handle media access, addressing, and control and provide reliable, error-free delivery of data frames from one computer to another
