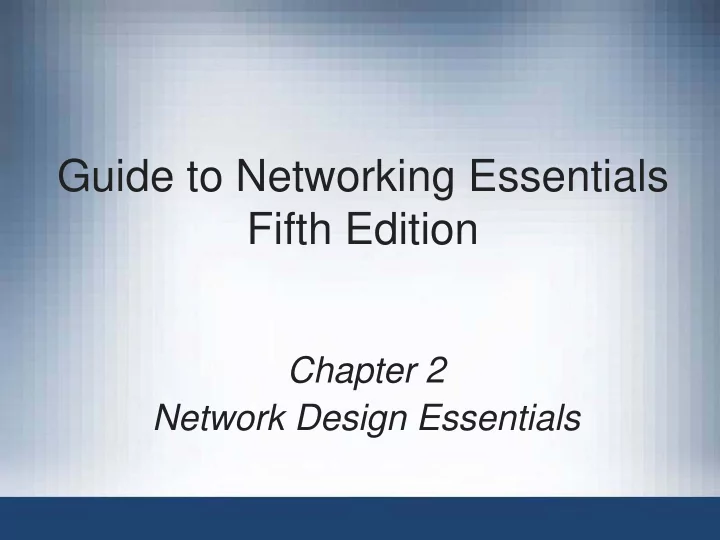

Guide to Networking Essentials Fifth Edition

Chapter 2 Network Design Essentials

slide-2
SLIDE 2

Guide to Networking Essentials, Fifth Edition 2

Objectives

  • Explain the basics of a network layout
  • Describe the standard networking topologies
  • Explain the variations on standard networking

topologies

  • Describe the role of hubs and switches in a network

topology

  • Construct a basic network layout
slide-3
SLIDE 3

Guide to Networking Essentials, Fifth Edition 3

Examining the Basics of a Network Layout

  • To implement a network, you must first decide how

to best situate the components in a topology

– Topology refers to the physical layout of its computers, cables, and other resources, and also to how those components communicate with each other

  • The arrangement of cabling is the physical topology
  • The path that data travels between computers on a

network is the logical topology

– Topology has a significant effect on the network’s performance and growth, and equipment decisions

slide-4
SLIDE 4

Guide to Networking Essentials, Fifth Edition 4

Understanding Standard Topologies

  • Networks are based on three physical topologies

– A bus consists of a series of computers connected along a single cable segment – Computers connected via a central concentration point (hub) are arranged in a star topology – Computers connected to form a loop create a ring

  • Physical topologies describe cable arrangement

– How the data travels along those cables might represent a different logical topology

  • The logical topologies that dominate LANs

include bus, ring, and switching, all of which are usually implemented as a physical star

slide-5
SLIDE 5

Guide to Networking Essentials, Fifth Edition 5

Physical Bus Topology

Low fault tolerance

slide-6
SLIDE 6

Guide to Networking Essentials, Fifth Edition 6

Signal Propagation

  • Computers communicate by sending information

across the media as a series of signals

– In a typical (copper wire) physical bus, those signals are sent as electrical pulses that travel along the length of the cable in all directions – The signals continue to travel until they weaken enough so as not to be detectable or until they encounter a device that absorbs them – This traveling across the medium is called signal propagation

  • At the end of a cable, the signal bounces back
slide-7
SLIDE 7

Guide to Networking Essentials, Fifth Edition 7

Signal Bounce

slide-8
SLIDE 8

Guide to Networking Essentials, Fifth Edition 8

Cable Termination

slide-9
SLIDE 9

Guide to Networking Essentials, Fifth Edition 9

Cable Failure

slide-10
SLIDE 10

Guide to Networking Essentials, Fifth Edition 10

Logical Bus Topology

  • Logical topologies describe the path that data

travels from computer to computer

  • A physical bus topology is almost always

implemented as a logical bus as well

– Technology has moved past the physical bus, but a logical bus topology is still in use on some physical topologies, in particular a star

  • All computers communicate in the same way

– They address data to one or more computers and then transmit that data across the cable in the form

  • f electronic signals
slide-11
SLIDE 11

Guide to Networking Essentials, Fifth Edition 11

Sending the Signal

  • When a computer has data to send, it addresses

that data, breaks it into manageable chunks, and sends it across the network as electronic signals

– All computers on a logical bus receive them

  • Only the destination accepts the data
  • All users must share the available amount of

transmission time

– Thus, network performance is reduced

  • A bus topology is a passive topology

– In an active topology network, computers and other devices regenerate signals and are responsible for moving data through the network

slide-12
SLIDE 12

Guide to Networking Essentials, Fifth Edition 12

Physical Ring Topology

slide-13
SLIDE 13

Guide to Networking Essentials, Fifth Edition 13

Logical Ring Topology

  • Data in a logical ring topology travels from one

device, or node, on the network to the next device until the data reaches its destination

– Token passing is one method for sending data around a ring

  • Modern logical ring topologies use “smart hubs”

that recognize a computer’s failure and remove the computer from the ring automatically

  • An advantage of the ring topology lies in its

capability to share network resources fairly

slide-14
SLIDE 14

Guide to Networking Essentials, Fifth Edition 14

Physical Star Topology

slide-15
SLIDE 15

Guide to Networking Essentials, Fifth Edition 15

A Logical Bus Implemented as a Physical Star

slide-16
SLIDE 16

Guide to Networking Essentials, Fifth Edition 16

A Logical Ring Implemented as a Physical Star

slide-17
SLIDE 17

Guide to Networking Essentials, Fifth Edition 17

Switching Implemented as a Physical Star

  • Switching is neither a bus nor a ring logically, but is

always implemented as a physical star

– A switch takes a signal coming from a device connected and builds a circuit on the fly to forward the signal to the intended destination computer – Superior to other logical topologies because, unlike bus and ring, multiple computers can communicate simultaneously without affecting each other – Dominant method used in almost every LAN design

slide-18
SLIDE 18

Guide to Networking Essentials, Fifth Edition 18

Wireless Topologies

  • Wireless networking has a logical and physical

topology

– Ad hoc topology: two computers can communicate directly with one another; sometimes called a peer- to-peer topology – Infrastructure mode: Use a central device, called an access point (AP), to control communications

  • Star physical topology because all the signals travel

through one central device

  • Logical bus topology
slide-19
SLIDE 19

Guide to Networking Essentials, Fifth Edition 19

Examining Variations of Physical Topologies

  • The major physical topologies have three typical

variations or combinations

– Extended star – Mesh – Combination star and bus

  • These combinations can be used to get the most

from any network

slide-20
SLIDE 20

Guide to Networking Essentials, Fifth Edition 20

Extended Star Topology

slide-21
SLIDE 21

Guide to Networking Essentials, Fifth Edition 21

Mesh Topology

slide-22
SLIDE 22

Guide to Networking Essentials, Fifth Edition 22

Combination Star Bus Topology

slide-23
SLIDE 23

Guide to Networking Essentials, Fifth Edition 23

Hubs and Switches

  • Both hubs and switches can act as the center of a

star topology

  • Basic operation was discussed briefly; this section

expands on them

slide-24
SLIDE 24

Guide to Networking Essentials, Fifth Edition 24

Hubs

  • In everyday use, a hub is “the center of activity”

– This definition is appropriate in network usage also

  • In network usage, there are a number of variations
  • n this central theme

– Active hub – Passive hub – Repeating hub (just a type of active hub) – Switching hub

slide-25
SLIDE 25

Guide to Networking Essentials, Fifth Edition 25

Active Hubs

  • Most common type of hub today
  • Regenerate, or repeat, the signals

– Require electrical power to run

  • Generally, have many ports—eight or more
  • Also called multiport repeaters or repeating hubs
  • 1. Takes a signal coming in on one port
  • 2. Cleans the signal (e.g., by filtering out noise)
  • 3. Strengthens the signal
  • 4. Sends the regenerated signal out to all other ports
  • Drawback: require sharing the cable bandwidth

among all connected stations

slide-26
SLIDE 26

Guide to Networking Essentials, Fifth Edition 26

Passive Hubs

slide-27
SLIDE 27

Guide to Networking Essentials, Fifth Edition 27

Switches

  • Central connecting point in a star topology network
  • Does more than simply regenerate signals
  • Looks just like a hub, with several ports for

connecting workstations in a star topology

  • Determines to which port the destination device is

connected and forwards the message to that port

– This capability allows a switch to handle several conversations at one time, thereby providing the full network bandwidth to each device rather than requiring bandwidth sharing

slide-28
SLIDE 28

Guide to Networking Essentials, Fifth Edition 28

Constructing a Network Layout

  • The first step in any network design is to evaluate

the underlying requirements

– First determine how the network will be used, which

  • ften decides the topology you use

– Decide the types of devices for interconnecting computers and sites – Finally, the type and usage level of network resources dictates how many servers you need and where to place servers

slide-29
SLIDE 29

Guide to Networking Essentials, Fifth Edition 29

Selecting a Topology

  • Most new network designs come down to only one

choice: How fast should the network be?

  • The physical topology will certainly be a star, and

the logical topology is almost always switching

  • Ethernet switches are typically used on a LAN, but

you might consider other logical topologies for

  • ther reasons:

– Use of legacy equipment – Network size – Cost restrictions – Difficulty to run cables

slide-30
SLIDE 30

Guide to Networking Essentials, Fifth Edition 30

Creating the Layout

  • Network must be documented

– Useful questions before drawing the diagram

  • How many client computers will be attached?
  • How many servers will be attached?
  • Will there be a connection to the Internet?
  • How will the building’s physical architecture

influence decisions, such as whether to use a wired or wireless topology, or both?

  • Which topology or topologies will you use?

– Network diagram must be kept up to date

slide-31
SLIDE 31

Guide to Networking Essentials, Fifth Edition 31

Creating the Layout (continued)

slide-32
SLIDE 32

Guide to Networking Essentials, Fifth Edition 32

Summary

  • Basic physical topologies: bus, star, or ring

– Physical bus: easy to install but outdated

  • The logical bus topology is still used, but is almost

always implemented as a physical star

– Physical ring: connects devices in such a way that the cabling starts and ends with the same computer

  • Rarely used (except in FDDI)
  • Logical ring topology typically uses token passing to

send data around ring; normally implemented as a star

– Physical star: centralized management and higher degree of fault tolerance

  • Topology of choice in today’s networks
slide-33
SLIDE 33

Guide to Networking Essentials, Fifth Edition 33

Summary (continued)

  • For wireless networks: ad hoc or infrastructure mode
  • Variations on major topologies

– Extended star (most widely used) – Mesh (most fault tolerant) – Combination star and bus

  • Hub: central point of concentration for a star network

– Can be active (if it regenerates the signals) or passive

  • Switch: provides better performance than a hub

– Device of choice in corporate star topology networks

  • Network layout should be consistent and maintained

accurately as the network changes
