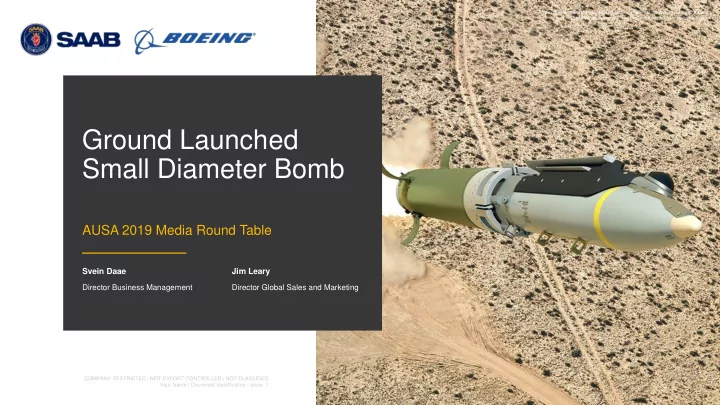

Ground Launched Small Diameter Bomb

Svein Daae Director Business Management

AUSA 2019 Media Round Table

Jim Leary Director Global Sales and Marketing

slide-2
SLIDE 2

COMPANY RESTRICTED | NOT EXPORT CONTROLLED | NOT CLASSIFIED Your Name | Document Identification | Issue 1

Integrating two combat-proven systems

2

GBU–39/B Interstage Adapter TRL 9 M26

Ground Launched Small Diameter Bomb (GLSDB)

slide-3
SLIDE 3

COMPANY RESTRICTED | NOT EXPORT CONTROLLED | NOT CLASSIFIED Your Name | Document Identification | Issue 1

Ground Launched Small Diameter Bomb

History

GLSDB Design 2013 2015 Live Fire # 1 Vidsel / Sweden

THOR Concept

  • M26 motor
  • SDB I

Initial Technical Concept 2011 2014 GLSDB Test Assets

Saab and Boeing team up

2019 Live Fire # 3 Andøya / Norway

Steady and consistent progress

Increasing maturity – now ready for production

2017 USG CRADA Live Fire # 2 Eglin AFB / USA 2006 IOC for SDB

slide-4
SLIDE 4

COMPANY RESTRICTED | NOT EXPORT CONTROLLED | NOT CLASSIFIED Your Name | Document Identification | Issue 1

SDB (GBU-39/B) versus GLSDB

4

  • Aircraft independent CAS
  • All weather
  • Lower operational risk
  • Same capabilities (SDB)
  • Programmable Attack
  • Long range 150 km
  • High accuracy CEP50 ~ 1 m
slide-5
SLIDE 5

COMPANY RESTRICTED | NOT EXPORT CONTROLLED | NOT CLASSIFIED Your Name | Document Identification | Issue 1

GLSDB vs Ballistic Missile

5

COMPANY RESTRICTED | NOT EXPORT CONTROLLED | NOT CLASSIFIED Your Name | Document Identification | Issue 1

500 lb warhead 200 lb warhead 200 lb warhead ATACMS GLSDB M31 GMLRS UNITARY

15-83km 0-150km 70-300km

slide-6
SLIDE 6

COMPANY RESTRICTED | NOT EXPORT CONTROLLED | NOT CLASSIFIED Your Name | Document Identification | Issue 1

GLSDB footprint

Engage targets 360° without moving the launcher

6

150 km 115 km 115 km

COMPANY RESTRICTED | NOT EXPORT CONTROLLED | NOT CLASSIFIED Your Name | Document Identification | Issue 1

Launch direction 70 km

slide-7
SLIDE 7

COMPANY RESTRICTED | NOT EXPORT CONTROLLED | NOT CLASSIFIED Your Name | Document Identification | Issue 1

  • Launch pod container

7

Launch pod

slide-8
SLIDE 8

COMPANY RESTRICTED | NOT EXPORT CONTROLLED | NOT CLASSIFIED Your Name | Document Identification | Issue 1

GLSDB – Variety

8

Unitary Laser Guided Area Attack Focused Lethality Data Link AT Submunition Sensor/Seeker Homing

slide-9
SLIDE 9

COMPANY RESTRICTED | NOT EXPORT CONTROLLED | NOT CLASSIFIED Your Name | Document Identification | Issue 1

  • Test firing at Andøya

9

Range – 130km Time of flight – 14 min Impact angle - 70º

slide-10
SLIDE 10

COMPANY RESTRICTED | NOT EXPORT CONTROLLED | NOT CLASSIFIED Your Name | Document Identification | Issue 1

  • Combat proven parts M26/GBU–39
  • Long range: 150 km
  • Highly accurate: CEP50 ~1 m
  • Variety of warheads
  • Launcher independent

Summary

10

Ready for production!
