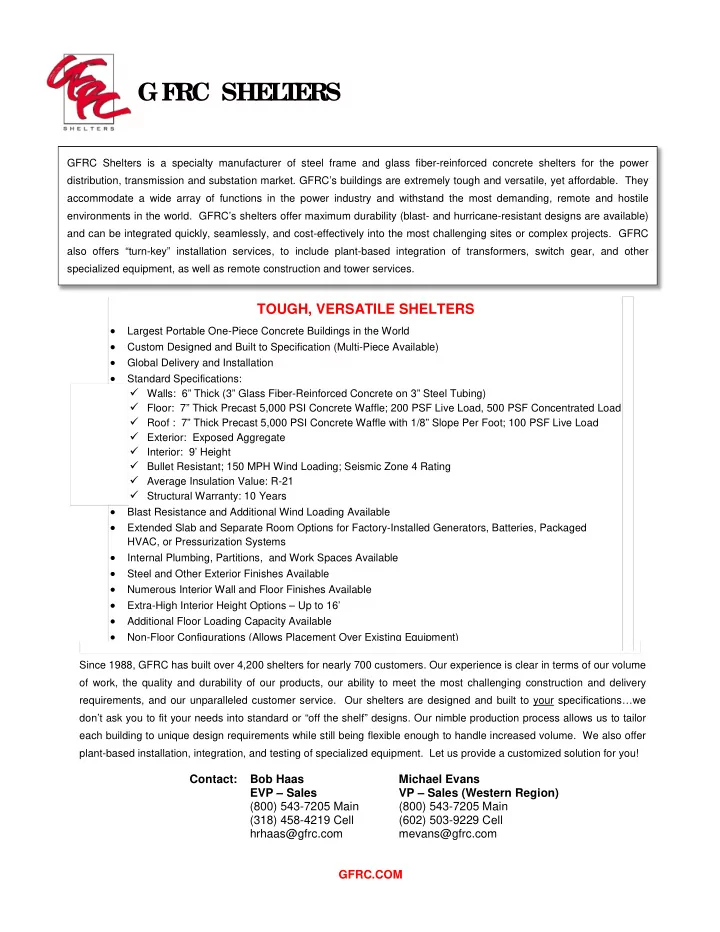

GF RC SHE L T E RS GFRC Shelters is a specialty manufacturer of steel frame and glass fiber-reinforced concrete shelters for the power distribution, transmission and substation market. GFRC’s buildings are extremely tough and versatile, yet affordable. They accommodate a wide array of functions in the power industry and withstand the most demanding, remote and hostile environments in the world. GFRC’s shelters offer maximum durability (blast- and hurricane-resistant designs are available) and can be integrated quickly, seamlessly, and cost-effectively into the most challenging sites or complex projects. GFRC also offers “turn-key” installation services, to include plant-based integration of transformers, switch gear, and other specialized equipment, as well as remote construction and tower services. TOUGH, VERSATILE SHELTERS • Largest Portable One-Piece Concrete Buildings in the World • Custom Designed and Built to Specification (Multi-Piece Available) • Global Delivery and Installation • Standard Specifications:  Walls: 6” Thick (3” Glass Fiber-Reinforced Concrete on 3” Steel Tubing)  Floor: 7” Thick Precast 5,000 PSI Concrete Waffle; 200 PSF Live Load, 500 PSF Concentrated Load  Roof : 7” Thick Precast 5,000 PSI Concrete Waffle with 1/8” Slope Per Foot; 100 PSF Live Load  Exterior: Exposed Aggregate  Interior: 9’ Height  Bullet Resistant; 150 MPH Wind Loading; Seismic Zone 4 Rating  Average Insulation Value: R-21  Structural Warranty: 10 Years • Blast Resistance and Additional Wind Loading Available • Extended Slab and Separate Room Options for Factory-Installed Generators, Batteries, Packaged HVAC, or Pressurization Systems • Internal Plumbing, Partitions, and Work Spaces Available • Steel and Other Exterior Finishes Available • Numerous Interior Wall and Floor Finishes Available • Extra-High Interior Height Options – Up to 16’ • Additional Floor Loading Capacity Available • Non-Floor Configurations (Allows Placement Over Existing Equipment) Since 1988, GFRC has built over 4,200 shelters for nearly 700 customers. Our experience is clear in terms of our volume of work, the quality and durability of our products, our ability to meet the most challenging construction and delivery requirements, and our unparalleled customer service. Our shelters are designed and built to your specifications…we don’t ask you to fit your needs into standard or “off the shelf” designs. Our nimble production process allows us to tailor each building to unique design requirements while still being flexible enough to handle increased volume. We also offer plant-based installation, integration, and testing of specialized equipment. Let us provide a customized solution for you! Contact: Bob Haas Michael Evans EVP – Sales VP – Sales (Western Region) (800) 543-7205 Main (800) 543-7205 Main (318) 458-4219 Cell (602) 503-9229 Cell hrhaas@gfrc.com mevans@gfrc.com GFRC.COM

Photographic Overview

Wall Sections

Floor

Roof

Exteriors

Interiors

Finished

Please Contact Any Member of the GFRC Shelters Team: Address: 3725 East Texas Street, Bossier City, LA 71111 Phone: (800) 543-7205 main, (318) 747-5598 local Web Site: www.gfrc.com Jason Hutton – President Mobile Phone: (214) 205-7492 E-mail: jhutton@gfrc.com GFRC.COM Bob Haas – Executive Vice President, Sales Mobile Phone: (318) 208-2863 E-mail: hrhaas@gfrc.com Michael Evans – Vice President, Sales (Western Region) Mobile Phone: (602) 503-9229 E-mail: mevans@gfrc.com David Haas – Vice President, Production & Operations Mobile Phone: (318) 208-2863 E-mail: dahaas@gfrc.com R. Jeff Hart – Director, CAD Operations Mobile Phone: (318) 773-7123 E-mail: rhart@gfrc.com
