Getting Answers to Fuzzy and Flexible Searches by Easy Modelling of Real-World Knowledge Victor Pablos-Ceruelo and Susana Mu noz-Hernandez susana@fi.upm.es Universidad Polit ecnica de Madrid (T.U. of Madrid), Spain FCTA2013, Vilamoura,

slide-1

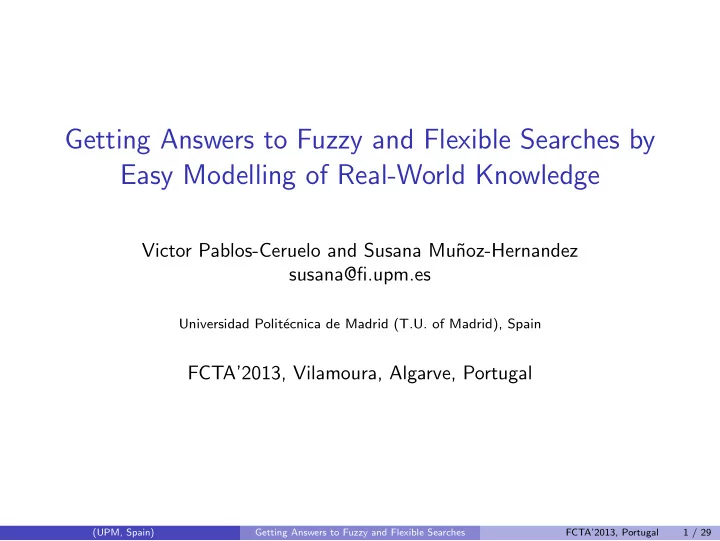

SLIDE 1

Getting Answers to Fuzzy and Flexible Searches by Easy Modelling of Real-World Knowledge

Victor Pablos-Ceruelo and Susana Mu˜ noz-Hernandez susana@fi.upm.es

Universidad Polit´ ecnica de Madrid (T.U. of Madrid), Spain

FCTA’2013, Vilamoura, Algarve, Portugal

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 1 / 29

slide-2
SLIDE 2

Overview

  • Motivation

− Crisp Databases − Fuzzy Databases − Real Databases − Expressive Queries − Limited Queries

  • Goal
  • Query Framework

− Query Components − Query Structure − Basis − Semantics & Syntax − Syntactical Constructions

  • Present work
  • Conclusions

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 2 / 29

slide-3
SLIDE 3

Overview

  • Motivation

− Crisp Databases − Fuzzy Databases − Real Databases − Expressive Queries − Limited Queries

  • Goal
  • Query Framework

− Query Components − Query Structure − Basis − Semantics & Syntax − Syntactical Constructions

  • Present work
  • Conclusions

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 3 / 29

slide-4
SLIDE 4

Crisp Databases

Restaurants table

name distance price avg. food type Il tempietto 100 30 italian Tapasbar 300 20 spanish Ni Hao 900 10 chinese Kenzo 1200 40 japanese

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 4 / 29

slide-5
SLIDE 5

Fuzzy Databases

Restaurants table

name close cheap similar to mediterranean Il tempietto 1 0.5 0.8 Tapasbar 0.9 0.8 0.9 Ni Hao 0.4 1 0.1 Kenzo 0.1 0.2 0.2

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 5 / 29

slide-6
SLIDE 6

Real Databases

  • Crisp values (traditional)
  • Easy update values
  • Fuzzy concept personalization
  • Less number of fields
  • Data objectivity

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 6 / 29

slide-7
SLIDE 7

Expressive Queries

I’m looking for a ...

  • restaurant of mediterranean food or similar and not far from the city

center

  • cheap flat of two rooms very close to the beach

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 7 / 29

slide-8
SLIDE 8

Limited Queries

I’m looking for a restaurant or a flat

  • mediterranean food
  • 2 rooms
  • cheaper than 30 euros menu

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 8 / 29

slide-9
SLIDE 9

Limited Queries

I’m looking for a restaurant

  • food type

= mediterranean

  • number of rooms = 1
  • price

30 euros

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 9 / 29

slide-10
SLIDE 10

Overview

  • Motivation

− Crisp Databases − Fuzzy Databases − Real Databases − Expressive Queries − Limited Queries

  • Goal
  • Query Framework

− Query Components − Query Structure − Basis − Semantics & Syntax − Syntactical Constructions

  • Present work
  • Conclusions

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 10 / 29

slide-11
SLIDE 11

Goal

  • Defining a flexible and expressive query structure
  • Providing a sound framework with a search engine of these queries over

traditional databases

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 11 / 29

slide-12
SLIDE 12

Overview

  • Motivation

− Crisp Databases − Fuzzy Databases − Real Databases − Expressive Queries − Limited Queries

  • Goal
  • Query Framework

− Query Components − Query Structure − Basis − Semantics & Syntax − Syntactical Constructions

  • Present work
  • Conclusions

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 12 / 29

slide-13
SLIDE 13

Query Components

I’m looking for a ...

  • restaurant of mediterranean food or similar and

individual value nfp co not far from the city center negation fp

  • cheap

flat of two rooms very close to the beach fp individual value nfp q fp

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 13 / 29

slide-14
SLIDE 14

Query Components

  • individuals (restaurant, film, house, ...)
  • comparison operands co (equal, distinct, greater, less, similar, ...)
  • fuzzy concepts fp (big, cheap, close to the beach, ...)
  • quantifiers q (quite, rather, much, very, little, ...)
  • crisp concepts nfp (prize, size, distance, food type, ...)
  • values (30000, 3, mediterranean, comedy, ...)

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 14 / 29

slide-15
SLIDE 15

Query Structure

I ′m looking for a/an individual

  • not

q fp whose nfp co value

  • AND

(1)

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 15 / 29

slide-16
SLIDE 16

Basis

RFuzzy (very expressive fusion information tool)

  • Multi adjoint Logic
  • Over Prolog (distributed computation, constraints, finite domains, ...)
  • Sugar Syntax
  • Similarity
  • Types
  • Combine crisp and fuzzy information
  • Incomplete information (default values, conditioned)

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 16 / 29

slide-17
SLIDE 17

Semantics and Syntax

  • Framework Semantics ← RFuzzy Semantics
  • Framework Syntax ← defined using RFuzzy predicates
  • Fuzzy concepts ← fuzzyfication of crisp values of nfp
  • Similarity ← explicit or advance definition
  • Configuration file ← fp definition

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 17 / 29

slide-18
SLIDE 18

Syntactical constructions

Database definition

define database(pT/pA, [(pN, pT ′)]) (2) define database(restaurant/4, [ (id, string type), (food type, enum type), (years since opening, integer type), (distance to the city center, integer type)]). (3)

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 18 / 29

slide-19
SLIDE 19

Syntactical constructions

Similarity Definition

similarity between(pT, pN(V 1), pN(V 2), TV ) (4) with credibility(credOp, credVal) (5)

  • nly for user ′UserName′

(6) similarity between(restaurant, food type(mediterranean), food type(spanish), 0.8) (7) similarity(pT(pN(V 1, V 2)))

(p, v), &i

← − − − − − − TV if COND (8)

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 19 / 29

slide-20
SLIDE 20

Syntactical constructions

Truth value Definition

fPredName(pT) :∼ value(TV ) (9) if (pN(pT) cond value). (10) cheap(restaurant) : value(0.1) if (id(restaurant) is equal to zalacain). (11) fPredName

(p, v), &i

← − − − − − − TV if COND (12)

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 20 / 29

slide-21
SLIDE 21

Syntactical constructions

Fuzzification Definition

fPredName(pT) :∼ function(pN(pT), [(valIn, valOut)]) (13) traditional(restaurant) : function( years since opening(restaurant), [(0, 0), (5, 0.1), (10, 0.4), (15, 1), (100, 1)]). (14) fPredName(valIn)

(p, v), &i

← − − − − − − OP if COND (15) OP = valIn ∗ (valOut2 − valIn1) (valIn2 − valIn1) (16) COND′ = (valIn1 < valIn < valIn2) (17)

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 21 / 29

slide-22
SLIDE 22

Syntactical constructions

RFuzzy Rule Definition

fPredName(pT) :∼ rule(aggr, complexBody) (18) fPredName(pT) :∼ rule(simpleBody) (19) fPredName

(p, v), &i

← − − − − − − aggr(complexBody) if COND (20) fPredName

(p, v), &i

← − − − − − − simplexBody if COND (21)

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 22 / 29

slide-23
SLIDE 23

Syntactical constructions

Default Values Definition

fPredName(pT) :∼ defaults to(TV ) (22) near the city center(restaurant) :∼ defaults to(0). (23) fPredName

(p, v), &i

← − − − − − − TV if COND (24)

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 23 / 29

slide-24
SLIDE 24

Overview

  • Motivation

− Crisp Databases − Fuzzy Databases − Real Databases − Expressive Queries − Limited Queries

  • Goal
  • Query Framework

− Query Components − Query Structure − Basis − Semantics & Syntax − Syntactical Constructions

  • Present work
  • Conclusions

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 24 / 29

slide-25
SLIDE 25

Present work

Prototype

  • Web Interface Application
  • Parametric (databases)
  • Personalized (fuzzy concepts)

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 25 / 29

slide-26
SLIDE 26

Overview

  • Motivation

− Crisp Databases − Fuzzy Databases − Real Databases − Expressive Queries − Limited Queries

  • Goal
  • Query Framework

− Query Components − Query Structure − Basis − Semantics & Syntax − Syntactical Constructions

  • Present work
  • Conclusions

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 26 / 29

slide-27
SLIDE 27

Conclusions

  • Useful, expressive query structure (friendly user interface)
  • Flexible and fuzzy search included combination with crisp search and

similarity

  • Easily implemented over CLP
  • Adequate for any kind of traditional database
  • Multiple possibilities of personalization

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 27 / 29

slide-28
SLIDE 28

Questions

Thank you

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 28 / 29

slide-29
SLIDE 29

Getting Answers to Fuzzy and Flexible Searches by Easy Modelling of Real-World Knowledge

Victor Pablos-Ceruelo and Susana Mu˜ noz-Hernandez susana@fi.upm.es

Universidad Polit´ ecnica de Madrid (T.U. of Madrid), Spain

FCTA’2013, Vilamoura, Algarve, Portugal

(UPM, Spain) Getting Answers to Fuzzy and Flexible Searches FCTA’2013, Portugal 29 / 29
