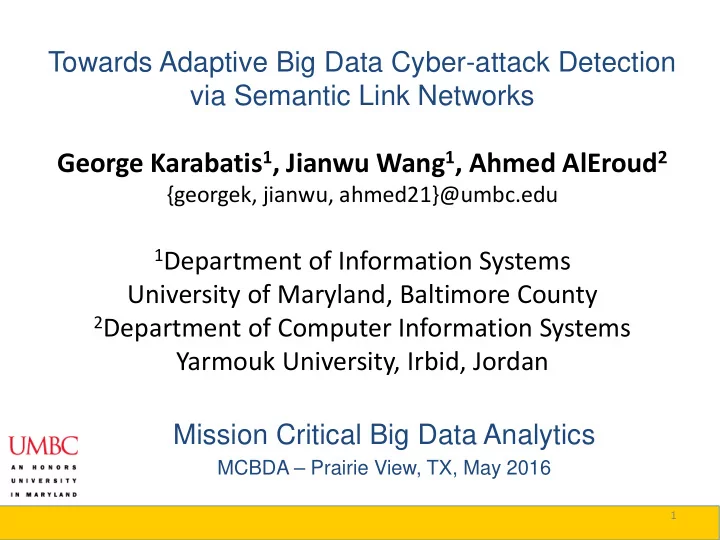

Towards Adaptive Big Data Cyber-attack Detection via Semantic Link Networks

George Karabatis1, Jianwu Wang1, Ahmed AlEroud2

{georgek, jianwu, ahmed21}@umbc.edu

1Department of Information Systems

University of Maryland, Baltimore County

2Department of Computer Information Systems

Yarmouk University, Irbid, Jordan Mission Critical Big Data Analytics

MCBDA – Prairie View, TX, May 2016

1

UMBC

Why are Cyber Attacks an issue?

2

Grid Security Sabotage of Operations Data Security

(Database & Communication)

Communication Interference Financial fraud

UMBC

Intrusion Detection Systems

• Packet-based IDSs: Analyze the content of network

packets to predict attacks – Fairly hard task with today’s high speed Gigabit networks which carry vast volumes of network packets

• Flow-based IDSs: Detect Cyber attacks by analyzing

net-flows – The content of packets is not-available – Only traffic-based features

3

UMBC

Packet-based Intrusion Detection

Advantages

• Have full access to payload
• More information is available
• More accurate intrusion detection

Disadvantages

• Increasing network bandwidth generates huge

amounts of data

• Analysis of data is computationally expensive

Result: Perfect big data problem

4

UMBC

Network Flows (flows)

Think of it like phone call metadata: who called whom, when, but without the conversation

• Source/Destination IP
• Input/Output Router Interface
• Protocol
• Type of Service
• Packet Count
• Octet Count
• Start/End Time
• TCP Flags
• Source/Dest Network Mask
• Input/Output Interface encapsulation size
• IP Address of next hop within the peer
• Router IP of cache shortcut in supervisor

UMBC

flow 1 flow 2 flow 3 flow 4

NetFlow

• Set of packets that “belong together”

– Source/destination IP addresses and port numbers – Same protocol, … – Same input/output interfaces at a router (if known)

• Packets that are “close” together in time

– Maximum spacing between packets (e.g., 30 sec)

UMBC

Flow-based intrusion detection

Advantages

• Less information is available
• Detection process is faster due to less data

Disadvantages

• Have no access to payload
• Subset of attacks detected
• Accuracy not as good as packet-based

7

UMBC

Semantic Link Networks (SLN)

• A SNL is a graph with nodes and edges
• Nodes: Represent alerts or benign activity
• Edges: Weighted links representing similarity
• f the nodes

– Measured in terms of context: time, location, numerical, and descriptive features

8

UMBC

Contextual features

• Time

– Start, end time of flows

• Location

– Source, destination IP addresses, port numbers

• Numerical

– Traffic statistics, e.g. # of packets, octets

• Descriptive

– Other characteristics, e.g. flags, protocol

9

UMBC

Constructing SLNs

Nodes represent either alerts or benign activities – Each node is initially represented as feature vector

10

n1 n2 n1 n2 f1 1 1 f2 1 f3 1 f4 Binary Feature Vectors (e.g. TCP flags) n1 n2 f1 0.7 0.8 f2 0.02 0.5 f3 0.9 0.03 f4 0.01 0.01 Feature Vectors using numerical weights 𝑞 𝑜1, 𝑜2 = 𝑇𝑇𝑇 𝑜1, 𝑜2 ∑ 𝑇𝑇𝑇 𝑛

𝑞 𝑛=1

𝑄𝑄_𝑇𝑇𝑇 𝑜1, 𝑜2 𝐵𝐵_𝑇𝑇𝑇 𝑜1, 𝑜2

𝑞 𝑜1, 𝑜2

Edges: weighted links (calculated using Anderberg and Pearson)

UMBC

Intrusion Detection with SLNs

After SLN is complete, and during run-time

• Investigate features of an incoming flow
• Find start node in the SLN with similar features to the

incoming flow

– Classifies individual flows using rule-based classifier that works on flow features (J48)

• Expand the set of nodes with additional ones based
• n:

– Connectivity on the graph – Threshold value (controls scope of expansion)

• Recall is increased, but may have false positives

11

UMBC

Intrusion Detection with SLNs

• Apply context filters

– Limit the expanded result set – Reduce the false positives/negatives

• Precision increases
• SLN must be updated when new attacks

(nodes) are discovered

– Graph re-generation is expensive – Dynamic approach is more promising

12

UMBC

Attack Prediction Process

R1 R2 Rn

13

Incoming flow Classification rules for Initial prediction Filtering FPs Final predictions

UMBC

Hybrid intrusion detection

• Combines flow-based and packet-based
• Takes advantages of both approaches
• Requires big data platform
• Increased accuracy of predictions (obviously)

14

UMBC

Hybrid intrusion detection

Layer one

• Flow-based approach is applied
• If prediction is benign, allow flow to pass
• If prediction is suspicious analyze further

– Flow marked suspicious with high probability, then enforce appropriate policy:

• Deny entry
• Divert to another system (e.g. honeypot)

– Flow marked suspicious with medium probability, then proceed to layer two

15

UMBC

Hybrid intrusion detection

Layer two

• More information is needed to decide
• Corresponding packets are passed to Spark

based platform

• Spark Dstream is applied
• Map function in parallel for both individual

and multi-stage packet analysis

16

UMBC

Hybrid Big-Data IDS

17

Flow-based layer

UMBC

Hybrid intrusion detection

• Multistage attacks

– Requires current and past (historical packets with same IP address) – A NoSQL DB (Cassandra) stores suspicious packets and is queried for matched patterns – Newly discovered attacks are used to dynamically update the SLN

18

UMBC

Advantages of Hybrid Approach

• Flows that are predicted as benign or suspicious with high

probability do not reach the second layer (packet examination) saving computational resources

• Only questionable flows are further examined at the packet

level

• Accuracy of the prediction is expected to rise, since more

information (payload) is available

• More attacks may be recognized (since there is access to

payload, in addition to flow data)

• Compared to packet-based approaches, our approach

requires less computational resources

19

UMBC

Packet Analysis on Spark

• Create a Spark streaming context with batch interval at n second
• Create DStream by collecting incoming network socket, a DStream

contains all packets within the batch interval time window

• Apply full packet analysis function for each packet in parallel

through the DStream’s map function, output each suspicious packet and its attackType using key-value structure

• Report new types of attacks to update SLN
• Apply multistage packet analysis function for each DStream

element in parallel through DStream’s map function, output each suspicious multistage packets and its attackType using key-value structure

20

UMBC

Conclusions

• A promising technique for huge amounts of

network data

• Takes advantage of flow and packet approaches
• Builds on previous success on packet-based and

flow-based intrusion detection

• Work in progress on Hybrid approach for BD

– Implementation for Spark platform – Evaluation with datasets

21

UMBC

Questions?
