DEBRA Members Weekend 2017 EB therapy research in Dundee: an update Knocking out the faulty gene & Skipping the faulty exon Peter van den Akker Premium sponsors: EB therapy research in Dundee: an update Knocking out the faulty gene

slide-1

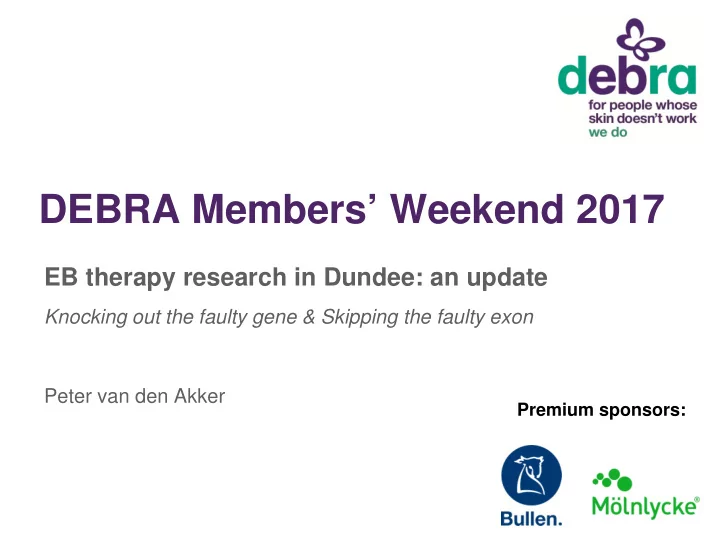

SLIDE 1

Premium sponsors:

DEBRA Members’ Weekend 2017

EB therapy research in Dundee: an update

Knocking out the faulty gene & Skipping the faulty exon Peter van den Akker

slide-2
SLIDE 2

EB therapy research in Dundee: an update

Knocking out the faulty gene & Skipping the faulty exon

Peter van den Akker p.vandenakker@dundee.ac.uk p.c.van.den.akker@umcg.nl DEBRA Clinical Research Fellow McLean-Hickerson lab, University of Dundee Clinical Geneticist UMC Groningen, the Netherlands

slide-3
SLIDE 3

What am I going to tell you?

 Recap of my presentation of last year – What does the skin look like? – What is wrong in EB?  EB therapy research in Dundee: where do we stand? – Gene knock-out for EBS – Exon-skipping for RDEB

slide-4
SLIDE 4

The skin – A wall - Protection

Hadrian’s Wall Dermis Epidermis

slide-5
SLIDE 5

Wednesday, 31 May 2017 6

Basement Membrane Zone (BMZ)

Dermis Epidermis

slide-6
SLIDE 6

Epidermolysis bullosa simplex Basal skin cells

Hadrian’s Wall Dermis Epidermis

skin cells (keratinocytes) BMZ

Basal cells

slide-7
SLIDE 7

Basal keratinocytes Keratin: support to cells

Stretch

Basal skin cells (keratinocytes) BMZ Keratin 5&14 Basal skin cells (keratinocytes) BMZ Keratin 5&14

slide-8
SLIDE 8

Normal basal cells EBS basal cells

Keratin 5&14

slide-9
SLIDE 9

EBS Keratin cannot be made well

Stretch

Basal skin cells (keratinocytes) BMZ Keratin 5&14

BLISTER

Basal skin cells (keratinocytes) BMZ Keratin 5&14

slide-10
SLIDE 10

KNOCKING OUT THE FAULTY GENE

EBS Therapy Project in Dundee

slide-11
SLIDE 11

In a normal skin cell

RNA copy KRT14 Protein Keratin 14 DNA KRT14

slide-12
SLIDE 12

In an EBS skin cell

Keratin protein

Mutation Disease- causing Mutation

Protein Keratin 14 DNA KRT14 RNA copy KRT14

slide-13
SLIDE 13

KRT14 gene knock-out

Mutation

C

Mutation-specific antisense oligonucleotides (ASOs) (“RNA scissors”)

C G

Protein Keratin 14 DNA KRT14

Disease- causing Mutation

RNA copy KRT14

slide-14
SLIDE 14

KRT14 gene knock-out

Keratin protein

Mutation

C

Protein Keratin 14 DNA KRT14

C G

Disease- causing Mutation No match!

RNA copy KRT14

Mutation-specific antisense oligonucleotides (ASOs) (“RNA scissors”)

slide-15
SLIDE 15

KRT14 gene knock-out

Keratin protein

Mutation

C

Protein Keratin 14 DNA KRT14

C G

Match!

RNA copy KRT14

Mutation-specific antisense oligonucleotides (ASOs) (“RNA scissors”)

slide-16
SLIDE 16

KRT14 gene knock-out

Keratin protein

Mutation

C

Disadvantage: mutations specific  suitable

  • nly for a limited number of people with EBS

Protein Keratin 14 DNA KRT14

C G

RNA copy KRT14

slide-17
SLIDE 17

Benign DNA variations (SNP)

Keratin protein

Everybody carries these benign variations (also people with EBS)

Benign SNP SNP

Protein Keratin 14 DNA KRT14

T C

RNA copy KRT14

slide-18
SLIDE 18

Targeting benign SNPs

Keratin protein

SNP

SNP T

Protein Keratin 14 DNA KRT14

Benign SNP

T C

Match!

RNA copy KRT14

Same result as targeting a mutation

slide-19
SLIDE 19

Targeting benign SNPs

Keratin protein

SNP

Protein Keratin 14 DNA KRT14

C

RNA copy KRT14

Benign SNP

T

Same result as targeting a mutation (but does not make a difference for the protein)

slide-20
SLIDE 20

Idea: target the benign DNA variations (SNPs) that are linked to the mutations

Keratin protein

Mutation SNP

SNP T

Protein Keratin 14 DNA KRT14

Benign SNP

T C

Match!

C G

Disease- causing Mutation

RNA copy KRT14

slide-21
SLIDE 21

Idea: target the benign DNA variations (SNPs) that are linked to the mutations

Keratin protein

Mutation SNP

Protein Keratin 14 DNA KRT14

C G

Disease- causing Mutation

C

RNA copy KRT14

Benign SNP

T

slide-22
SLIDE 22

Targeting many different mutations!

Keratin protein

Other Mutation SNP Benign SNP Other Mutation

Protein Keratin 14 DNA KRT14

C SNP T T

Match!

RNA copy KRT14

A G

slide-23
SLIDE 23

Targeting many different mutations!

Keratin protein

A

SNP Other Mutation

Advantage: the strategy can be used to target many mutations and treat many patients

Protein Keratin 14 DNA KRT14

G

Other Mutation Benign SNP

T C

RNA copy KRT14

slide-24
SLIDE 24

NOW WHERE DO WE STAND?

slide-25
SLIDE 25

Treating cultured skin cells with ASOs

ASOs Cultured skin cells

slide-26
SLIDE 26

Epidermis Dermis

ASOs

Treating skin with ASOs

slide-27
SLIDE 27

KRT14 knockdown: summary

 Works in cultured skin cells  Does not work as well in skin (skin explant system) as in cell culture  We are trying to find out why this is, in order to improve the knockdown in our skin explant system and make it applicable for people with EBS

slide-28
SLIDE 28

SKIPPING THE FAULTY EXON

RDEB Therapy Project in Dundee

slide-29
SLIDE 29

Basal skin cells (keratinocytes) BMZ Keratin 5&14

Dystrophic epidermolysis bullosa Anchoring fibrils: attach epidermis to dermis

Anchoring fibrils Composed of Type VII collagen

Epidermis Dermis

slide-30
SLIDE 30

Anchoring fibrils Composed of Type VII collagen

Dystrophic epidermolysis bullosa Anchoring fibrils are absent

Basal skin cells (keratinocytes) BMZ Keratin 5&14

Epidermis Dermis Stretch

BLISTER

slide-31
SLIDE 31

In normal skin

RNA copy COL7A1 Protein Type VII collagen DNA COL7A1

Type VII collagen Nuclei

Normal skin

slide-32
SLIDE 32

In RDEB skin

Keratin protein

Type VII collagen absent Nuclei

RDEB

RNA copy COL7A1 Protein Type VII collagen DNA COL7A1

slide-33
SLIDE 33

COL7A1 exon skipping

RNA copy COL7A1 Protein Type VII collagen DNA COL7A1

slide-34
SLIDE 34

COL7A1 exon skipping

Type VII collagen Nuclei

RNA copy COL7A1 Protein Type VII collagen DNA COL7A1

slide-35
SLIDE 35

Normal skin RDEB

slide-36
SLIDE 36

Goal of exon skipping

Shorter but functional protein Normal skin RDEB

slide-37
SLIDE 37

NOW WHERE DO WE STAND?

slide-38
SLIDE 38

72 hours after transfection

Exon skipping for COL7A1 Cultured RDEB cells make new type VII collagen

50% 10% 100% 30% 0% 0%

Type VII collagen Nuclei

slide-39
SLIDE 39

Type VII collagen Nuclei

Exon skipping for COL7A1 RDEB skin makes new type VII collagen

slide-40
SLIDE 40

COL7A1 exon skipping: summary

 Works well for certain exons in cultured cells and skin grafts  Does work less well for other exons  We are trying to find out why this is  We need to improve the exon skipping efficiency  We are studying whether the skipped protein is truly functional

slide-41
SLIDE 41

Acknowledgements

McLean lab

  • Irwin McLean
  • Robyn Hickerson
  • Michael Conneely
  • Sylvain Roque
  • Linda Campbell
  • Stephanie MacCallum
  • Yu-en Cheah
  • Roberta Spilotri
  • Aileen Sandilands
  • Maurice van Steensel

UMC Groningen, Dermatology & Genetics

  • Marjon Pasmooij
  • Jeroen Bremer
  • Darryll Eichhorn
  • Antoni Gostyński
  • Miranda Nijenhuis
  • Marcel Jonkman
slide-42
SLIDE 42

Peter van den Akker p.vandenakker@dundee.ac.uk p.c.van.den.akker@umcg.nl DEBRA Clinical Research Fellow McLean lab, University of Dundee Clinical Geneticist UMC Groningen, the Netherlands

Thank you for your attention
