GeoGIPSAR A SYSTEM INTENDED FOR LONG-TERM FORECASTING AND ANALYSIS - - PowerPoint PPT Presentation

Melentiev Energy Systems Institute, SB RAS

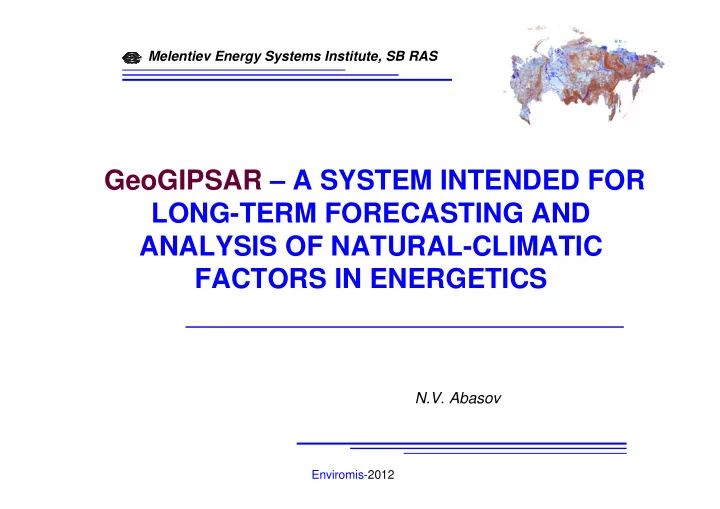

GeoGIPSAR – A SYSTEM INTENDED FOR LONG-TERM FORECASTING AND ANALYSIS OF NATURAL-CLIMATIC FACTORS IN ENERGETICS

Enviromis-2012

N.V. Abasov

Melentiev Energy Systems Institute, SB RAS 2

Hydro-energetic resources of Russia. The level of the hydroenergetic potential exploited

IEA-2004.

23% of the total economic hydroenergetical potential of Russia is exploited

6% 33% 2% 49% 34% 74% Russian Far East East Siberia West Siberia Urals North Caucasus Volga Region 68% Volgo-Vyatsky North-West 60% 23,4% North

Melentiev Energy Systems Institute, SB RAS 3

Hydro-energetic potential of the Anagara cascade HPPs (annual and monthly variability)

Melentiev Energy Systems Institute, SB RAS 4

Stages in development of the technology of long-term forecasting in Melentiev Energy Systems Institute, SB of RAS (generations)

• Generation one (1960–1994)

Technique of Forecastiong (I.P.Druzhynin, A.P. Reznikov, T.V.Berejnykh) space-time regularities + approximation (neural network) techniques. (Programming technology → Fortran).

• Generation two (1995–2004) – an information-forecasting system GIPSAR

→ complex automation of the process of forecasting: data preparation; choosing the forecasting technique; verifications; finding a generalized forecast; analysis (A.P. Reznikov, T.V.Berejnykh).

Programming technology → a universal programming environment ZIRUS(N.Abasov).

• Generation three (2005-2012) → a sharp increase of the volume of the

information component employed in forecasting, which is gained at the expense of: satellite monitoring; global climate change; application of geoinformation technologies (GeoGIPSAR) (T.V. Berejnykh, E. Osipchuk, O. Marchenko)

Melentiev Energy Systems Institute, SB RAS 5

Space-time decomposition of the hydropower potential model (Angara cascade of HPPs)

Melentiev Energy Systems Institute, SB RAS 6

Output data of the information-forecasting system GIPSAR

TECHNIQUES OF LONG-TERM FORECASTING

paramtern

paramter1

paramtern paramter1

finding a generalized forecast

Experimantal (wavelet, global analogs,

astronimic indioces

Basis one (approximation,

probabilistic, qualitative)

Melentiev Energy Systems Institute, SB RAS 7

Local extremes and Investigation of the attractors

Attractors

• f

(a) inflows (annual and 3rd quarter, resp.) for Lake Baikal (1,2) and Bratsk reservoir (3,4). Indicated are many- year series (b), envelopes of the maxima (d) and minima (с)

• f

inflows and the centers

• f

these attractors (e).

Melentiev Energy Systems Institute, SB RAS 8

Basic functions of the system GeoGIPSAR

Melentiev Energy Systems Institute, SB RAS 9

The technology for processing geoclimatic data

Melentiev Energy Systems Institute, SB RAS 10

∫

∞ ∞ −

      − ⋅ = dt s t t f s s W τ ψ τ

*

) ( 1 ) , (

2 1

1 ) , ( ) ( s dsd s s t s W C t f τ τ ψ τ

ψ ∫ ∫ ∞ ∞ − ∞ ∞ − −

      − =

вейвлет базисный t − ) ( ψ

) ( : . . 3 ) ( . 2 ) ( : ) ( ) ( . 1

2 2

= = ∞ < ∈

∫ ∫ ∫

∞ ∞ − ∞ ∞ − ∞ ∞ −

dt t t условие Доп dt t dt t R L t

m

ψ ψ ψ ψ

MHAT , 2 : 3 ; 2 , : 2 ; , : 1 , , , = = = = = = > > ∈ − − τ τ τ τ τ τ s s s s R s сдвиг временной масштаб s

2 / 2 2 / 2 2

2 1

) 1 ( ) (

t t

e t e dt d t

− −

− = = ψ ] [ ) (

4 / /

2 2 2 2

α α

ψ

k t ik t

e e e t

− −

− =      < ≤ − < ≤ = случаях остальных в t для t для t , 1 2 / 1 , 1 2 / 1 , 1 ) ( ψ ( ) ∫

= τ τ d s W s Ew ) , (

2

Wavelet analysis Wavelet analysis

Melentiev Energy Systems Institute, SB RAS 11

Wavelet analysis of inflows for the Lake Baikal Wavelet analysis of inflows for the Lake Baikal and and Bratsk Bratsk reservoir + (spectral characteristics) reservoir + (spectral characteristics)

Baikal Baikal Bratsk Bratsk

high low

Scale-1 Scale-2

Melentiev Energy Systems Institute, SB RAS 12

Classification and Clastering of spatial cells of intergral- difference curves representing summer precipitation, temperature and pressure data

Melentiev Energy Systems Institute, SB RAS 13

Melentiev Energy Systems Institute, SB RAS 14

precipitations temperature hgt500 uwnd

Summer (6-8)

Melentiev Energy Systems Institute, SB RAS 15

Analogs with respect to geoclimatic indices

Melentiev Energy Systems Institute, SB RAS 16

Correlations between the inflow into Lake Baikal (3rd quarter (4-5 months)) and the surface temperatures (advance time being 1 year)

Melentiev Energy Systems Institute, SB RAS 17

Correlations between the inflow into Lake Baikal (3rd quarter [4-5 months]) and the surface temperatures (advance time being 1 year)

Melentiev Energy Systems Institute, SB RAS 18

11-13.05.2012 HGT-500 (anomaly) UV-850

Melentiev Energy Systems Institute, SB RAS 19

11-13.05.2012 HGT- 850-500 (trajectories)

500 850

Melentiev Energy Systems Institute, SB RAS 20

The process of constructing HTML-files in course of analysis of geoclimatic data, a special language of retrievals being employed

Melentiev Energy Systems Institute, SB RAS 21

Modeling water regimes of the Irkutsk HPP

Melentiev Energy Systems Institute, SB RAS 22

Modeling of the volume and the surface of the Boguchany water reservoir

Усть-Илимская ГЭС

V=63км3 Vполезн=2.3км3 HУМО=207м HНПУ=208м HФПУ=209.5м

Melentiev Energy Systems Institute, SB RAS 23

Various terms of filling in the Boguchany HPP

Melentiev Energy Systems Institute, SB RAS 24

Modeling of potential HPPs on the river Irkut.

(Mondy Reservoir)

Melentiev Energy Systems Institute, SB RAS 25

Conclusion

• 1. An easy-to-learn portable technology intended for processing geoclimatic

data has been developed. 2 Gb – monthly data (NCEP reanalysis, GPCC-precipitations) 5Mb – basic system software (extended version of Lua with ZIRUS, Gnuplot, SciTE -editor) 50 Mb – gis data 2. 50 Gb daily data (NCEP reanalysis)

• 3. This technology is extensively employed in energetics for the purpose of

emproving reliability of forecasting of hydroenergetic potential under the conditions of global and regional climate changes. This tecnology is simple and portable for different kind of users.
