Genetics Virtual Science University 1 Genetics Texas TEK B.6 (D) - PowerPoint PPT Presentation

Genetics Virtual Science University 1 Genetics Texas TEK B.6 (D) The student will compare Genetic Variations observed in plants, (pea plants). 2 Genetics Song Punnet Square with 4 Alleles Two from Mom and two from Pop Each one

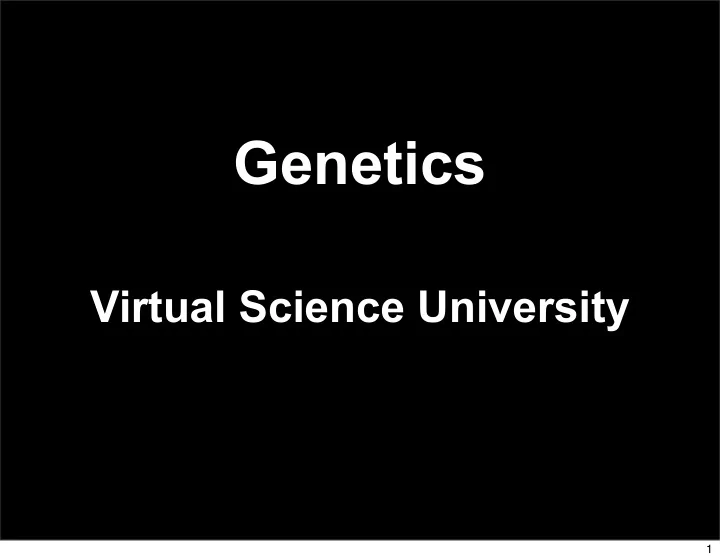

  1. Genetics Virtual Science University 1

  2. Genetics Texas TEK B.6 (D) The student will compare Genetic Variations observed in plants, (pea plants). 2

  3. Genetics Song • Punnet Square with 4 Alleles • Two from Mom and two from Pop • Each one Gives one to the Family Crop • Genotype with two Alleles • Is the Genetic Code for the Phenotype • Phenotype with two Alleles • Gives you, Your Look, Uniquely One Type 3

  4. Gregor Mendel • Born July 22, 1822 and died January 6, 1884. • He was born to well off peasants. • He entered into the Augustinian Abbey of St. Thomas in Brunn in 1843 and was ordained a priest in 1847. 4

  5. Gregor Mendel • He travelled to Vienna and studied physics and natural science from 1851-1853. • On returning to the cloister he taught in the Augustinian Abby of St. Tomas in Brunn where he later became Abbot. 5

  6. Glossary of Genetic Terms • Heredity is the passing of characters from Parents to Offspring. • Genetics is the discipline of Biology that incorporates the mechanics of Heredity. • Monohybrid Cross is the cross between parent alleles and involves a pair of contrasting traits. • True Breeding is when Offspring displays a true Character of the Parent. 6

  7. Glossary of Genetic Terms • P generation is the Parental Generation or the first two individuals that are crossed in a breeding experiment. • F1 generation is the first filial generation or the offspring of the Parent Generation. • F2 generation is the second filial generation or the offspring of the First Filial Generation. 7

  8. Glossary of Genetic Terms • Alleles are letters that designate the different versions of a gene. • Dominant is the expressed form of a character. • Recessive is the trait that is not expressed when the Dominant Form of the Character is present. 8

  9. Glossary of Genetic Terms • Homozygous the genotype expressed when two alleles of a particular gene are the same in an individual. • Heterozygous the genotype expressed when two alleles of a particular gene are different in an individual. • Genotype is the set of alleles that an individual has for a character. • Phenotype is the physical appearance of a character. 9

  10. Monohybrid Cross • In 1856 and the following years he undertook his investigations into hybridization of plants in the garden of the convent. • Gregor Mendel discovered the basic rules of inheritance. • From 1858 to 1866, he bred garden peas in his monastery garden and analyzed the offspring of the mating. 10

  11. Monohybrid Cross The garden pea was good choice of experimental organism because many varieties were available that bred true for clear-cut, qualitative traits 11

  12. Monohybrid Cross – Seed texture • round vs wrinkled – Seed color • green vs yellow – Flower color • white vs purple – Growth habit • Tall vs Dwarf – Three others that also varied in a qualitative - rather than quantitative way 12

  13. Monohybrid Cross • Peas are normally self- pollinated because the stamen and carpel are enclosed within the petals. • By removing the stamen from unripe flowers, Mendel could brush pollen from another variety on the carpel when they ripened . 13

  14. Monohybrid Cross • The stamen is the male reproductive part of the flower. • The carpel is the female reproductive part of the flower. 14

  15. The First Cross Mendel crossed a pure-breed round-seeded variety with a pure-breed wrinkled-seeded one. 15

  16. Genetics Song • Punnet Square with 4 Alleles • Two from Mom and two from Pop • Each one Gives one to the Family Crop • Genotype with two Alleles • Is the Genetic Code for the Phenotype • Phenotype with two Alleles • Gives you, Your Look, Uniquely One Type 16

  17. The First Cross The parents (designated the P generation) were pure-breed because each was homozygous for the alleles at the gene location (on chromosome 7) controlling seed texture (RR for round; rr for wrinkled). 17

  18. Results of the First Cross • All the peas produced in the second or hybrid generation were round. • All the peas of this F1 generation have an Rr genotype . • All the haploid sperm and eggs produced by meiosis received one chromosome 7. • All the zygotes received one R allele (from the round parent) and one r allele (from the wrinkled parent). • Because the round trait is dominant , the phenotype of all the seeds was round. • Monohybrid Cross results on table. 18

  19. Results of the First Cross 19

  20. Second Cross • Mendel then allowed his hybrid peas to self- pollinate. • Results of second cross: –The wrinkled trait — which had disappeared in his hybrid generation — reappeared in 25% of the new crop of peas. –Random union of equal numbers of R and r gametes produced an –F2 generation • 25% RR and 50% Rr - both with the round phenotype • 25% rr with the wrinkled phenotype. 20

  21. Homozygous Round crossed with Homozygous Round F1 Generation • F2 Generation Results • Genotypic Results – 1 Homozygous Round – 2 Heterozygous Round – 1 Homozygous Wrinkled • Phenotypic Results – 3 Round – 1 Wrinkles 21

  22. Results of the Second Cross 22

  23. Third Cross • Mendel then allowed some of each phenotype in the F2 generation to self-pollinate. • His results: – All the wrinkled seeds in the F2 generation produced only wrinkled seeds in the F3. – One-third (193/565) of the round F1 seeds produced only round seeds in the F3 generation, but – two-thirds (372/565) of them produced both types of seeds in the F3 and - once again - in a 3:1 ratio. 23

  24. Monohybrid Cross Results What do these results mean? • One-third of the round seeds and all of the wrinkled seeds in the F2 generation were homozygous and produced only seeds of the same phenotype. • But two thirds of the round seeds in the F2 were heterozygous and their self-pollination produced both phenotypes in the ratio of a typical F1 cross. 24

  25. Punnett Square 25

  26. Monohybrid Cross 26

  27. Monohybrid Cross Interpreting the results of a Punnett square • We now have the information for predicting the outcome of the cross. • The genotypes in the four boxes of the Punnett square are each equally likely to occur among the offspring of this cross. • We may now tabulate the results. • Genotypes that resulted from this monohybrid cross (Rr x Rr) – 25% homozygous dominant – 50% heterozygous – 25% homozygous recessive • Phenotypes that resulted from this monohybrid cross (Rr x Rr) 27

  28. Monohybrid Cross Round Pods Crossed with Wrinkled Pods Results Genotypic Ratio-- 4:0 Heterozygous Round Phenotypic Ratio—4:0 Round 28

  29. Monohybrid Cross Yellow Pods Crossed with Green Pods Results • Genotypic Ratio-- 4:0 Heterozygous Yellow • Phenotypic Ratio—4:0 Yellow 29

  30. Monohybrid Cross Yellow Pods Crossed with Green Pods Results • Genotypic Ratio-- 4:0 Heterozygous Yellow • Phenotypic Ratio—4:0 Yellow 30

  31. Dihybrid Cross • In this case, we have a cross involving two traits. • A pea plant that produces – Round (R), Yellow (Y) seeds is crossed is crossed with a pea plant that produces wrinkled (r), green (y) seeds. • These 8 genotypes result in 4 different phenotypes. – 9/16 of the seeds are Round and Yellow – 3/16 of the seeds are Round and Green – 3/16 of the seeds are Wrinkled and Yellow – 1/16 of the seeds are Wrinkled and Green 31

  32. Mendel’s Conclusions First Conclusion Inherited characteristics are controlled by factors that occur in pairs. Second Conclusion (known as Principle of Dominance and Recessiveness) States that one factor in a pair may mask the other, preventing the other from having an effect. Third Conclusion (known as Mendel’s First Law or the Law of Segregation) States that a pair of factors is segregated during the formation of gametes. Fourth Conclusion (known as Mendel’s Second Law or the Law of Independent Assortment) It is translated as seed color for instance does not have any connection with the height of the pea plant. 32

  33. Contact Information www.VirtualScienceUniversity.com 1-877-920-5550 33
