SLIDE 1

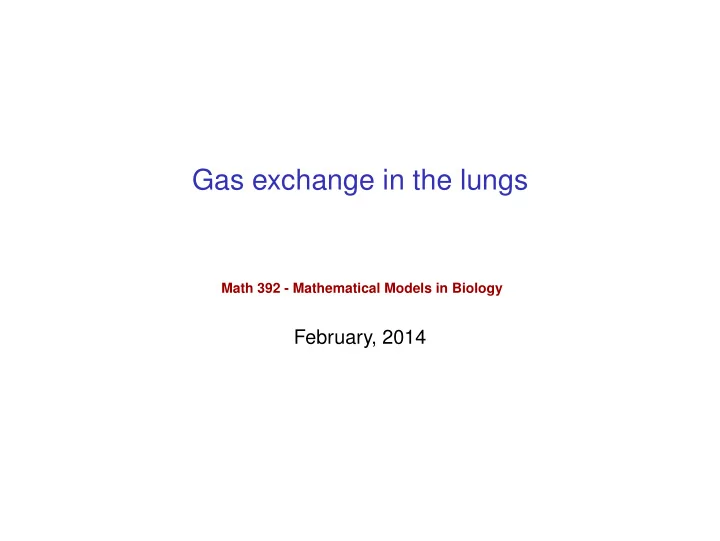

Gas exchange in the lungs
Math 392 - Mathematical Models in Biology
Gas exchange in the lungs Math 392 - Mathematical Models in Biology - - PowerPoint PPT Presentation
Gas exchange in the lungs Math 392 - Mathematical Models in Biology - - PowerPoint PPT Presentation
Gas exchange in the lungs Math 392 - Mathematical Models in Biology February, 2014 Introduction Gas transport I = inspired air A = alveolar air E = expired air v = venous blood a = arterial blood . Gas transport I = inspired air A = alveolar
SLIDE 2
SLIDE 3
Gas transport
I = inspired air A = alveolar air E = expired air v = venous blood a = arterial blood.
SLIDE 4
Gas transport
I = inspired air A = alveolar air E = expired air v = venous blood a = arterial blood. Quantities: VA = alveolar ventilation (liters/minute) Q = blood flow (liters/minute) c = concentration of particular gas (# of molecules/liter) P = partial pressure of the particular gas (mmHg) σ = solubility of the gas T = absolute temperature (Kelvin)
SLIDE 5
Equation of transport
- 1. Steady state - rate in=rate out:
VAcI + QcV = VAcE + Qca
SLIDE 6
Equation of transport
- 1. Steady state - rate in=rate out:
VAcI + QcV = VAcE + Qca
- 2. Expired air is a sample of alveolar air:
cE = cA
SLIDE 7
Equation of transport
- 1. Steady state - rate in=rate out:
VAcI + QcV = VAcE + Qca
- 2. Expired air is a sample of alveolar air:
cE = cA These assumptions lead to the transport equation VA(cI − cA) = Q(ca − cv).
SLIDE 8
Balance of pressures equation
- 3. In the alveolar air the gas behaves like an ideal gas (PV = nkT):
PA = kTcA
SLIDE 9
Balance of pressures equation
- 3. In the alveolar air the gas behaves like an ideal gas (PV = nkT):
PA = kTcA
- 4. In the blood the gas forms a simple solution:
ca = σPa
SLIDE 10
Balance of pressures equation
- 3. In the alveolar air the gas behaves like an ideal gas (PV = nkT):
PA = kTcA
- 4. In the blood the gas forms a simple solution:
ca = σPa
- 5. The arterial blood and alveolar air are in equilibrium:
Pa = PA
SLIDE 11
Balance of pressures equation
- 3. In the alveolar air the gas behaves like an ideal gas (PV = nkT):
PA = kTcA
- 4. In the blood the gas forms a simple solution:
ca = σPa
- 5. The arterial blood and alveolar air are in equilibrium:
Pa = PA These assumptions lead to the balance of pressures equation ca = σkTcA.
SLIDE 12
Gas transport system
- VAcA + Qca
= VAcI + Qcv σkTcA − ca = 0
SLIDE 13
Gas transport system
- VAcA + Qca
= VAcI + Qcv σkTcA − ca = 0 Solving for cA and ca gives (r = VA/Q is the ventilation/perfusion ratio) CA = VAcI + Qcv VA + QσkT = rcI + cV r + σkT , ca = σkT VAcI + Qcv σkTQ + VA = σkT rcI + cV σkT + r .
SLIDE 14
Gas transport system
- VAcA + Qca
= VAcI + Qcv σkTcA − ca = 0 Solving for cA and ca gives (r = VA/Q is the ventilation/perfusion ratio) CA = VAcI + Qcv VA + QσkT = rcI + cV r + σkT , ca = σkT VAcI + Qcv σkTQ + VA = σkT rcI + cV σkT + r . As r → ∞ : cA → cI, ca → σkTcI As r → 0 : cA → cv σkT , ca → cv
SLIDE 15
Net gas transport
f = Q(ca − cv) = Qrσ kTcI − 1
σcv
r + σkT = Qrσ PI − Pv r + σkT = Qσ(PI − Pv) r r + σkT
SLIDE 16
Net gas transport
f = Q(ca − cv) = Qrσ kTcI − 1
σcv
r + σkT = Qrσ PI − Pv r + σkT = Qσ(PI − Pv) r r + σkT Total gas transport (all alveoli): ri = (VA)i/Qi (cA)i = ricI + cV ri + σkT , (ca)i = σkT ricI + cV ri + σkT .
SLIDE 17
Net gas transport
f = Q(ca − cv) = Qrσ kTcI − 1
σcv
r + σkT = Qrσ PI − Pv r + σkT = Qσ(PI − Pv) r r + σkT Total gas transport (all alveoli): ri = (VA)i/Qi (cA)i = ricI + cV ri + σkT , (ca)i = σkT ricI + cV ri + σkT . f =
- i
fi = σ(PI − Pv)
- i
Qiri ri + σkT = σ(PI − Pv)E with E = 1 Q0
- i
