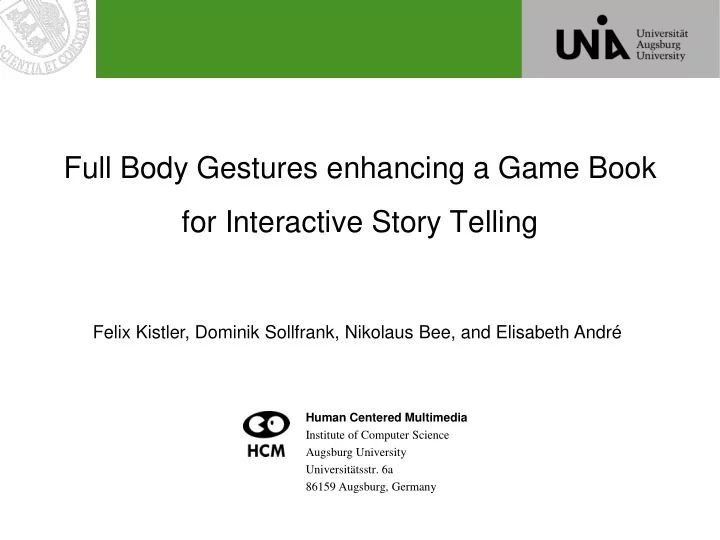

Full Body Gestures enhancing a Game Book for Interactive Story Telling

Human Centered Multimedia Institute of Computer Science Augsburg University Universitätsstr. 6a 86159 Augsburg, Germany

Felix Kistler, Dominik Sollfrank, Nikolaus Bee, and Elisabeth André

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

• 1. Adaption of the Game Book

Sugarcane Island for Interactive Story Telling

• 2. Quick Time Events with

Full Body Interaction

2

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Adaption of the Game Book Sugarcane Island for Interactive Story Telling

3

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Adaption of Sugarcane Island

Book Game

4

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Game Book?

• Book with non-linear story
• Decision after each page how to proceed  Continue
• n a different page

5

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Implementation of the Story

• Story reduced to about one-third

6

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Implementation of the Story

• Virtual character narrates

the story of each book page

• Adapting background image

and background sound

• Adapting facial expressions of the narrator and

additional “action sounds”

• After each text passage the character asks for a

decision on how to proceed

• 2-player scenario

7

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Implementation of the Decisions

• Two versions of decision prompt:

1. Indicated mode: the users speak out one of the key- words displayed on screen 2. Freestyle mode: on-screen prompt is omitted  users have to figure out the answers for themselves by listening to the story

• Speech input idealized in a Wizard-of-Oz design

No influence of any difficulties in speech processing

• Evaluation with 26 participants in groups of 2

8

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Results of the Questionnaire

• User rated the indicated mode significantly better than the freestyle mode

in terms of usability

• All other items (satisfaction, effectance, suspense, and curiosity) were not

affected by the two modes  Freestyle mode more difficult, but the same fun!

• 4
• 3
• 2
• 1

1 2 3 4

easy to use* quickly learnable* inconvenient to use* Indicated Freestyle

Strongly agree Strongly disagree Neutral

*significant difference with p < 0.01

9

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

• Video recordings show that in freestyle mode was significantly (p < 0.001)

…more and longer gaze between the participants …more and longer speech utterances between the participants …a longer overall duration for one run

 More user interaction causing longer playtime in freestyle mode

Results of the Video Recordings

5 10 15 20 25 30 35 40 gaze count gaze duration speech count speech duration

• verall

duration x0.1

Indicated Freestyle

avg time in sec

10

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Quick Time Events with Full Body Interaction

11

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Full Body Interaction? Kinect!

• Microsoft Kinect includes an

easily affordable depth sensor

• It induced software for real-time

full body tracking

• Interaction without any

handheld devices = „You are the controller“

12

150 CDN$

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Full Body Interaction?

• Avatar control

– An avatar mirrors the movements and postures of the user

• GUI interaction

 User controls a graphical user interface with body movements (e.g. controlling a cursor by moving one hand in the air)

• Gesture recognition

 Interpretation of the user motions  recognition of full body postures and gestures of the user

13

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Kinect Games

• Current Kinect games:

– sport and fitness games (e.g. Kinect Sports) – racing games (e.g. Kinect Joy Ride) – party and puzzle games (e.g. Game Party in Motion)

• Motion or gesture interaction, but no focus
• n a story

14

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Full Body Interaction in Interactive Story Telling

• Various approaches for innovative interaction modalities in interactive

storytelling, but none with full body tracking yet

• Frequent use of Qick Time Events (QTEs)

in current video games, e.g. Fahrenheit (Indigo Prophecy)

• r Heavy Rain
• QTE occurs  symbol representing a

specific action on the control device appears on screen  limited time to perform that action  Application of Full Body Interaction as QTEs adding new story transitions

• 2-player scenario as in most Kinect games

15

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Quick Time Events?

• On-screen prompt?

16

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Full Body Quick Time Events!

• Full body gesture symbols
• 7 different actions
• 2 players  2 symbols at once, positioned left and right
• Countdown centered on top for representing the time that is left

17

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Full Body Gestures

18

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver 19

Full Body Gestures

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Posture and Gesture Recognition

• Framework “FUBI” available under

http://hcm-lab.de/fubi.html

• Recognition of gestures and postures divided in four

categories:

1) Static postures 2) Linear movements 3) Combinations of postures and linear movements 4) Complex gestures

20

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Posture and Gesture Recognition

• 1. Static posture: Configuration of several joints, no

movement

• 2. Linear movement: Linear movement of several joints with

specific direction and speed

Posture: arms crossed Linear movement: right hand moves right

21

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Posture and Gesture Recognition

• 3. Combination of postures and linear movements:

Combination of static postures and linear movements with specific time constraints

3x ( + ) = ?

right hand moves left + over shoulder right hand moves right + over shoulder

user waves the right hand over shoulder

22

• max. duration

= 600 ms

• max. duration

= 600 ms

max. transition = 200 ms

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Posture and Gesture Recognition

• 4. Complex gestures: Detailed observation
• f one (or more) joints over a certain

amount of time  sequence of 3D-coordinates is processed by some kind of recognition algorithm, e. g. Dollar$1  Main problem: determine the start and end of a gesture (separation of gestures)  Not used in this application

23

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Second type of Quick Time Events

• Instead of performing a gestures the users have to select randomly

positioned buttons on screen that contains the text of the required action

• The cursor is controlled with Kinect by moving one hand in the air
• Selection occurs by hovering the button for 1.5 seconds
• r by performing a push gesture

24

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Evaluation of Quick Time Events

• 18 participants ran through both

conditions (gesture mode and button mode) in groups of 2

• Both modes worked well in terms
• f recognition

– 93% successful actions within the button-based mode (67 out of 72) – 97% in gesture-based mode (65 out

• f 67)
• Gesture mode significantly rated

better in terms of usability and game experience

25

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Evaluation of Quick Time Events

• 4
• 3
• 2
• 1

1 2 3 4

stared with expectation at the screen* interaction was fun** expected more usability*** pleased about execution* inconvenient to use** quickly learnable* easy to use* gesture mode button mode

Significance: * p < 0.05; ** p < 0.01; *** p < 0.001 Strongly agree Strongly disagree Neutral

26

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Conclusions

• Game books can be easily used to

get a ready-to-use story for IDS

• It can make sense to hide

information from the users in the interface

(but you have to be careful)

• Full body gestures that map directly

to actions in the story are feasible and

• ffer an engaging way of interaction

27

Human Centered Multimedia • Augsburg University • www.hcm-lab.de ICIDS 2011, Vancouver

Thank you for your attention! Questions? http://hcm-lab.de/fubi.html
